Quantum chemical research of the molecular structure of 3,4-dicyanofuroxan

Objectives. The study set out to determine the equilibrium parameters of the 3,4-dicyanofuroxan molecule by means of molecule geometry optimization by quantum chemistry methods, verify the adequacy of the methods used, and compare the obtained results with X-ray diffraction analysis (XRD) and gas electron diffraction (GED) data.

Methods. Quantum chemical calculations were carried out using B3LYP, MP2, and CCSD(T) methods with 6-31G(d,p), cc-pVTZ, and aug-cc-pVTZ basis sets.

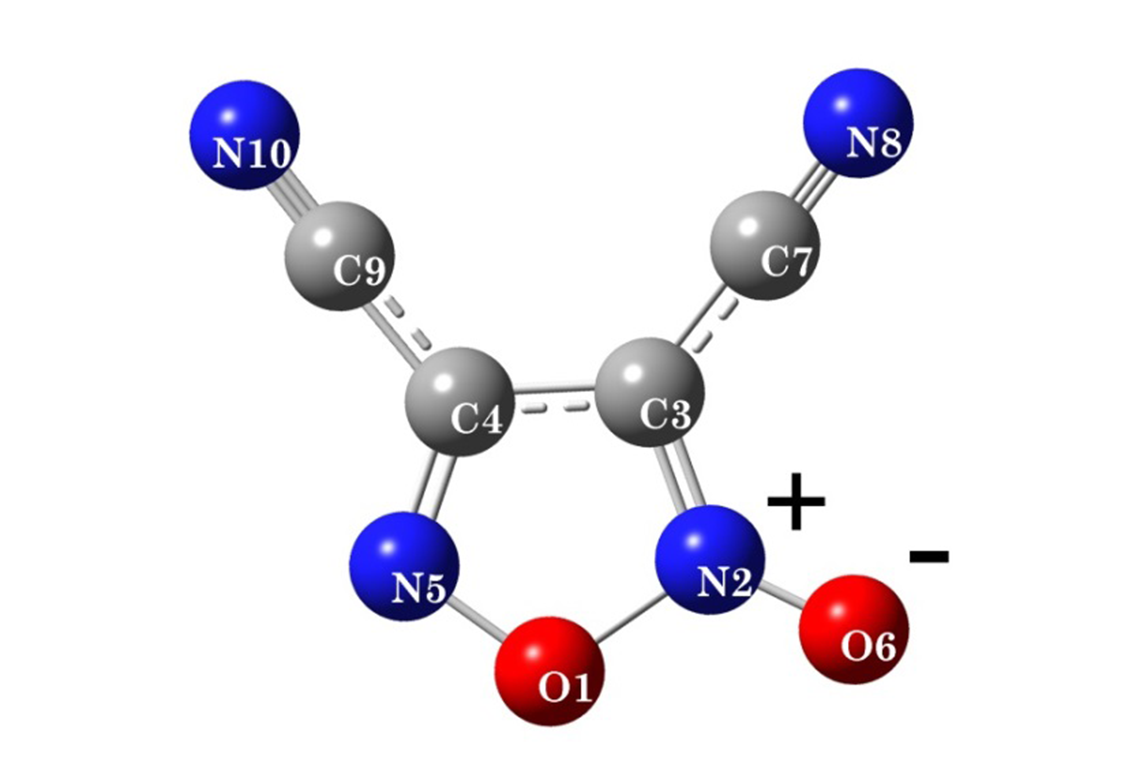

Results. The equilibrium molecular structure of 3,4-dicyanofuroxan was refined by means of quantum chemical calculations using the Gaussian09 program. The geometrical parameters were compared with the structure of this compound in the solid phase and a number of related compounds in gas and solid phases. It was theoretically established that the planar equilibrium structure of the dicyanofuroxan molecule has CS symmetry. The structure of the free dicyanofuroxan molecule was found to differ depending on the phase. The B3LYP and CCSD(T) methods describe the molecular structure of dicyanofuroxan more accurately than the MP2 method. A regularity was revealed, according to which an increase in the basis, as a rule, leads to a better agreement of the geometry, regardless of the functional.

Conclusions. The calculations performed are in good agreement with the literature data and results of joint analysis by GED and XRD. The effect of cyano substituents on the ring geometry is observed in comparison with the literature data for the dicyanofuroxan molecule. For the molecule in question, it is better to use the B3LYP/aug-cc-pVTZ method. The values of geometric parameters obtained by this method are in better agreement with the structure in the gas phase. The discrepancies with the experimental XRD results may be due to interactions in the crystal structure. Differences in the geometric parameters obtained on the basis of different functionals and bases make this molecule interesting for experimental structural studies using GED or microwave spectroscopy, which will permit the identification of optimal methods and bases for obtaining the geometric parameters of furoxan class molecules.

1. Mel'nikova S.F., Tselinskii I.V. 1,2,5-Oxadiazoles as energetic compounds. Izvestiya Sankt-Peterburgskogo gosudarstvennogo tekhnologicheskogo instituta (tekhnicheskogo universiteta) = Bulletin of the Saint Petersburg State Institute of Technology (Technical University). 2013;2 (47):25-29 (in Russ.). URL: https://cyberleninka.ru/article/n/proizvodnye-1-2-5-oksadiazola-kak-energonasyschennye-soedineniya (accessed December 09, 2022).]

2. Sharnin G. P., Falyakhov I.F., Yusupova L. M., Larionova O.A. Khimiya energoemkikh soedinenii. Kn. 2. N-, O-nitrosoedineniya, furoksany, furazany, azidy, diazosoedineniya: uchebnoe posobie (Chemistry of Energy-Intensive Substances. V. 2. N-, O-Nitrocompounds, Furoxanes, Furazanes, Azides, Diazocompounds). Kazan: KNITU; 2011. 376 p. (in Russ.). ISBN 978-5-7882-1200-5

3. Grundmann C., Nickel G.W., Bansal R.K. Nitriloxide, XVIII1’ Das Tetramere der Knallsaure (Isocyanilsaure) und seine Derivate. (Justus Liebigs Annalen der Chemie) Eur. J. Org. Chem. 1975;19(6):1029-1050. https://doi.org/10.1002/jlac.197519750602

4. Johnson E.C., Bukowski E.J., Sausa R.C., Sabatini J.J. Safer and Convenient Synthesis of 3,4-Dicyanofuroxan. Org. Process Res. Dev. 2019;23(6):1275-1279. https://doi.org/10.1021/acs.oprd.9b00186

5. Mel'nikova T.M., Novikova T.S., Khmel'nitskii L.I., Sheremetev A.B. Novel synthesis of 3,4-dicyanofuroxan. Mendeleev Commun. 2001;11(1):30-31. https://doi.org/10.1070/MC2001v011n01ABEH001369

6. Mott B.T., Cheng K.C.-C., Guha R., et al. A furoxan- amodiaquine hybrid as a potential therapeutic for three parasitic Diseases. Med. Chem. Commun. 2012;3(12):1505-1511. https://doi.org/10.1039/C2MD20238G

7. Wieland H. Die Polymerisation der Knallsaure. Isocyanilsaure und Erythro-cyanilsaure. VII. Mitteilung uber die Knallsaure. (Justus Liebigs Annalen der Chemie) Eur. J. Org. Chem. 1925;444(1):7-40. https://doi.org/10.1002/jlac.19254440103

8. Parker C.O., Emmons W.D., Rolewicz H.A., McCallum K.S. Chemistry of dinitroacetonitrile: Preparation and properties of dinitroacetonitrile and its salts. Tetrahedron. 1962;17(1-2):79-87. https://doi.org/10.1016/S0040-4020(01)99006-4

9. Belyakov A.V., Oskorbin A.A., Losev, V.A., Rykov A.N., Shishkov I.F., Fershtat L.L., Larin A.A., Kuznetsov V.V., Makhova N.N. The equilibrium molecular structure of 3-methyl-4-nitro-and 4-methyl-3-nitrofuroxans by gas-phase electron diffraction and coupled cluster calculations. J. Molec. Str. 2020;1222:128856. https://doi.org/10.1016/j.molstruc.2020.128856

10. Vogt N., Khaikin L.S., Rykov A.N., et al. The equilibrium molecular structure of 2-cyanopyridine from combined analysis of gas-phase electron diffraction and microwave data and results of ab initio calculations. Struct. Chem. 2019;30;1699-1706. https://doi.org/10.1007/s11224-019-01393-y

11. Khaikin L.S., Vogt N., Rykov A.N., Grikina O.E., Vogt J., Kochikov I.V., Ageeva E.S., Shishkov I.F. The equilibrium molecular structure of 3-cyanopyridine according to gas-phase electron diffraction and microwave data and the results of quantum-chemical calculations. Mendeleev Commun. 2018;28(3):236-238. https://doi.org/10.1016/j.mencom.2018.05.002

12. Khaikin L.S., Vogt N., Rykov A.N., et al. The equilibrium molecular structure of 4-cyanopyridine according to a combined analysis of gas-phase electron diffraction and microwave data and coupled-cluster computations. Russ. J. Phys. Chem. 2018;92(10):1970-1974. https://doi.org/10.1134/S0036024418100102

13. Pasinszki T., Ferguson G., Westwood N.P.C. Geometric and electronic structure of dicyanofuroxan by experiment and theory. J. Chem. Soc. Perkin Trans. 2. 1996;(2):179-185. https://doi.org/10.1039/P29960000179

14. Pasinszki T., Westwood N.P.C. Substituted oximes and furoxans as precursors to unstable nitrile oxides. Electronic and geometric structures by ultraviolet photoelectron spectroscopy, infrared spectroscopy and ab initio calculations. J. Mol. Struc. 1997;408-409:161-169. https://doi.org/10.1016/s0022-2860(96)09631-7

15. Vass G., Dzsotjan D., Lajgut G.G., Pasinszki T. Photoelectron spectroscopic investigation of the electronic structure of furoxans. Eur. Chem. Bull. 2012;1(1-2):22-26. URL: https://www.epa.oszk.hu/02200/02286/00001/pdf/EPA02286_European_Chemical_Bulletin_2012_01-02_Vass_Dzsotjan_Lajgut_etal.pdf

16. Frisch M.J., Trucks G.W., Schlegel H.B., Scuseria G.E., Robb M.A., Cheeseman J.R., Scalmani G., Barone V., Petersson G.A., Nakatsuji H., Li X., Caricato M., Marenich A., Bloino J., Janesko B.G., Gomperts R., Mennucci B., Hratchian H.P., Ortiz J.V., Izmaylov A.F., Sonnenberg J.L., Williams-Young D., Ding F., Lipparini F., Egidi F., Goings J., Peng B., Petrone A., Henderson T., Ranasinghe D., Zakrzewski V.G., Gao J., Rega N., Zheng G., Liang W., Hada M., Ehara M., Toyota K., Fukuda R., Hasegawa J., Ishida M., Nakajima T., Honda Y., Kitao O., Nakai H., Vreven T., Throssell K., Montgomery J.A., Peralta Jr. J. E., Ogliaro F., Bearpark M., Heyd J.J., Brothers E., Kudin K.N., Staroverov V.N., Keith T., Kobayashi R., Normand J., Raghavachari K., Rendell A., Burant J.C., Iyengar S.S., Tomasi J., Cossi M., Millam J.M., Klene M., Adamo C., Cammi R., Ochterski J.W., Martin R.L., Morokuma K., Farkas O., Foresman J.B., Fox D.J. Gaussian 09, Revision A.02. Gaussian, Inc., Wallingford CT. 2016. URL: https://gaussian.com/g09citation/ (accessed December 09, 2022).

17. Becke D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A. 1988;38(6):3098-3100. https://doi.org/10.1103/PhysRevA.38.3098

18. Lee C., Yang W., Parr R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B. 1988;37(2):785-789. https://doi.org/10.1103/PhysRevB.37.785

19. M0ller C., Plesset M.S. Note on an Approximation Treatment for Many-Electron Systems. Phys. Rev. 1934;46(7):618-622. https://doi.org/10.1103/PhysRev.46.618

20. Petersson A., Bennett A., Tensfeldt T.G., Al-Laham M.A., Shirley W.A., Mantzaris J. A complete basis set model chemistry. I. The total energies of closed-shell atoms and hydrides of the first-row elements. J. Chem. Phys. 1988;89(4):2193-2218. https://doi.org/10.1063/1.455064

21. Dunning Jr. T.H. Gaussian Basis Sets for Use in Correlated Molecular Calculations. I. The Atoms Boron through Neon and Hydrogen. J. Chem. Phys. 1989;90(2):1007-1023. https://doi.org/10.1063/1.456153

22. Kendall R.A., Dunning T.H., Harrison R.J. Electron-Affinities of the first-row Atoms Revisited. Systematic Basis Sets and Wave Functions. J. Chem. Phys. 1992;96(9):6796-6806. https://doi.org/10.1063/1.462569

23. Barnes E.C., Petersson G.A., Montgomery J.A. Jr., Frisch M.J. Martin M.L.J. Unrestricted Coupled Cluster and Brueckner Doubles Variations of W1 Theory. J. Chem. Theory Comput. 2009;5(10):2687-2693. https://doi.org/10.1021/ct900260g
