Technology for processing phosphogypsum into a fluorescent dye based on calcium sulfide

Objectives. There is considerable economic demand for products obtained by processing phosphogypsum. In particular, calcium sulfide-based materials having luminescent properties are the object of intensive study due to the wide range of possibilities for their use. The alloying of the structure of calcium sulfide with cations of rare earth elements leads to the appearance of a glow having various colors. However, the high cost of such phosphorescent materials is due to the high chemical purity of the reagents required for their synthesis. The development of efficient methods for obtaining calcium sulfide-based luminescent materials from phosphogypsum is part of an integrated approach to solving the problem of synthesizing economically demanded materials from production waste.

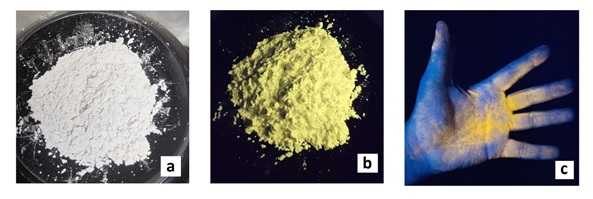

Methods. The synthesized materials were studied using X-ray phase analysis and scanning electron microscopy. Photos of the samples were taken under illumination with an incandescent lamp or a fluorescent ultraviolet lamp.
Results. According to X-ray phase analysis, phosphogypsum is mainly comprised of calcium sulfate dihydrate and calcium sulfate hemihydrate. Heat treatment of a phosphogypsum sample at a temperature of 1073 K is accompanied by the formation of anhydrous calcium sulfate. In the presence of a reducing agent, a composite material is formed containing a phase of anhydrous calcium sulfate and calcium sulfide. Due to the calcium sulfide content, phosphogypsum has luminescent properties when heat-treated in the presence of various reducing agents, including activated carbon, wood charcoal, vegetable oil, citric acid, starch, and sucrose.
Conclusions. Optimal technological conditions for obtaining a composite material exhibiting luminescent properties are revealed. The successful synthesis of phosphor from without nonpretreated phosphogypsum is demonstrated. Optimal technological conditions for obtaining a composite material exhibiting luminescent properties are as follows: heat treatment temperature is 1073–1173 K; isothermal holding time is 60 min; reducing agent quantity is 37–50% (mol). The study results are widely applicable to processing wastes obtained from large-scale chemical production involving the production of a highly demanded inorganic product.

1. Xu J.P., Fan L.R., Xie Y.C., Wu G. Recyclingequilibrium strategy for phosphogypsum pollution control in phosphate fertilizer plants. J. Clean. Prod. 2019;215:175–197. https://doi.org/10.1016/j.jclepro.2018.12.236

2. El Zrelli R., Rabaoui L., Abda H., Daghbouj N., Perez-Lopez R., Castet S., Aigouy T., Bejaoui N., Courjault-Rade P. Characterization of the role of phosphogypsum foam in the transport of metals and radionuclides in the Southern Mediterranean Sea. J. Hazard. Mater. 2019; 63:258–267. https://doi.org/10.1016/j.jhazmat.2018.09.083

3. Szajerski P., Celinska J., Bern H., Gasiorowski A., Anyszka R., Dziugan P. Radium content and radon exhalation rate from sulfur polymer composites (SPC) based on mineral fillers. Constr. Build. Mater. 2019;198:390–398. https://doi.org/10.1016/j.conbuildmat.2018.11.262

4. Miękoś E., Zieliński M., Kolodziejczyk K., Jaksender M. Application of industrial and biopolymers waste to stabilise the subsoil of road surfaces. Road Mater. Pavement Des. 2017;20(2):440–453. https://doi.org/10.1080/146806292017.1389766

5. James J. Strength benefit of sawdust/wood ash amendment in cement stabilization of an expansive soil. Revista Facultad de Ingenieria, Universidad Pedagogica y Tecnologica de Colombia. 2019;28(50):44–61. https://doi.org/10.19053/01211129.v28.n50.2019.8790

6. Michalovicz L., Muller M.M.L., Tormena C.A., Dick W.A., Vicensi M., Meert L. Soil chemical attributes, nutrient uptake and yield of no-till crops as affected by phosphogypsu doses and parceling in southern Brazil. Archives of Agronomy and Soil Science. 2019;65(3):385–399. https://doi.org/10.1080/03650340.2018.1505041

7. Fedotov P.S., Petropavlovsk I.A., Norov A.M., Malyavin A.S., Ovchinnikova K.N. Production of PKS-fertilizers grade 0-20-20-5S using different phosphate raw materials. Khimicheskaya promyshlennost’ segodnya = Chemical industry today. 2016;(2):6–11 (in Russ.).

8. Zhuang Y.F., Li T.Y., Yuan P., Li Y.Q., Yang Y.M., Yang Z.P. The novel red persistent phosphor CaS: Yb2+, Clpotentially applicable in AC LED. Appl. Phys. A. 2019;125(2):141. https://doi.org/10.1007/s00339-019-2447-6

9. Tong X.B., Yang J.X., Wu P.P., Zhang X.M., Seo Y.J. Color tunable emission from CaS: Cu+, Mn2+ rare-earth-free phosphors prepared by a simple carbon-thermal reduction method. J. Alloys Compd. 2018;779:399–403. https://doi.org/10.1016/j.jallcom.2018.11.325

10. Medennikov O.A., Shabelskaya N.P., Gaidukova Y.A., Astakhova M.N., Chernysheva G.M. The use of phosphoric acid waste product for calcium sulfide production. IOP Conf. Ser.: Earth Environ. Sci. 2021;677(5):052049. https://doi.org/10.1088/1755-1315/677/5/052049

11. Yankova T.V., Melnikov P.V., Yashtulov N.A., Zaitsev N.K. Chemiluminescent reactions of luminol and N-octylluminol with a hypochlorite in non-ionic surfactants. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2019;14(3) 90–97 (in Russ.). https://doi.org/10.32362/2410-6593-2019-14-3-90-97

12. Get’man E.I., Oleksii Yu.A., Radio S.V., Ardanova L.I. Determining the phase stability of luminescent materials based on the solid solutions of oxyorthosilicates (Lu1−xLnx)[(SiO4)0.5O0.5], where Ln = La−Yb. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2020;15(5):54–62. https://doi.org/10.32362/2410-6593-2020-15-5-54-62

13. Tomina E.V., Lastochkin D.A., Maltsev S.A. The synthesis of nanophosphors YPxV1–xO4 by spray pyrolysis and microwave methods. Kondensirovannye sredy i mezhfaznye granitsy = Condensed Matter and Interphases. 2020;22(4):496–503. https://doi.org/10.17308/kcmf.2020.22/3120

14. Rosa J., Lahtinen J., Julin J., Sun Z., Lipsanen H. Tuning of emission wavelength of CaS:Eu by addition of oxygen using atomic layer deposition. Materials. 2021;14(20):5966. https://doi.org/10.3390/ma14205966

15. Wang X., Ke J., Wang Y., Liang Y., He J., Song Z., Lian S., Qiu Z. One-Step Design of a Water-Resistant Green-to-Red Phosphor for Horticultural Sunlight Conversion. ACS Agric. Sci. Technol. 2021;1(2):55–63. 2021;1(2):55–63. https://doi.org/10.1021/acsagscitech.0c00062

16. Arai M., Fujimoto Y., Koshimizu M., Kawamura I., Nakauchi D., Yanagida T., Asai K. Development of rare earth doped CaS phosphors for radiation detection. Journal of the Ceramic Society of Japan. 2020;128(8):523–531. https://doi.org/10.2109/jcersj2.20036

17. Sharma R., Bhatti H.S., Kyhm K. Enhanced transition probabilities and trapping state emission of quencher impurities doped CaS:Mn phosphors. J. Optoelektron. Adv. Mater. 2009;11(1):62–69.
