The effect of ureas and their sulfur and selenium-containing analogs on the vulcanization and thermo-oxidative resistance of elastomers based on nitrile butadiene rubber

   Objectives. The study set out to investigate the effect of ureas and their sulfur- and selenium-containing analogs on the vulcanization of elastomeric materials based on nitrile butadiene rubber and their resistance to thermo-oxidative aging.

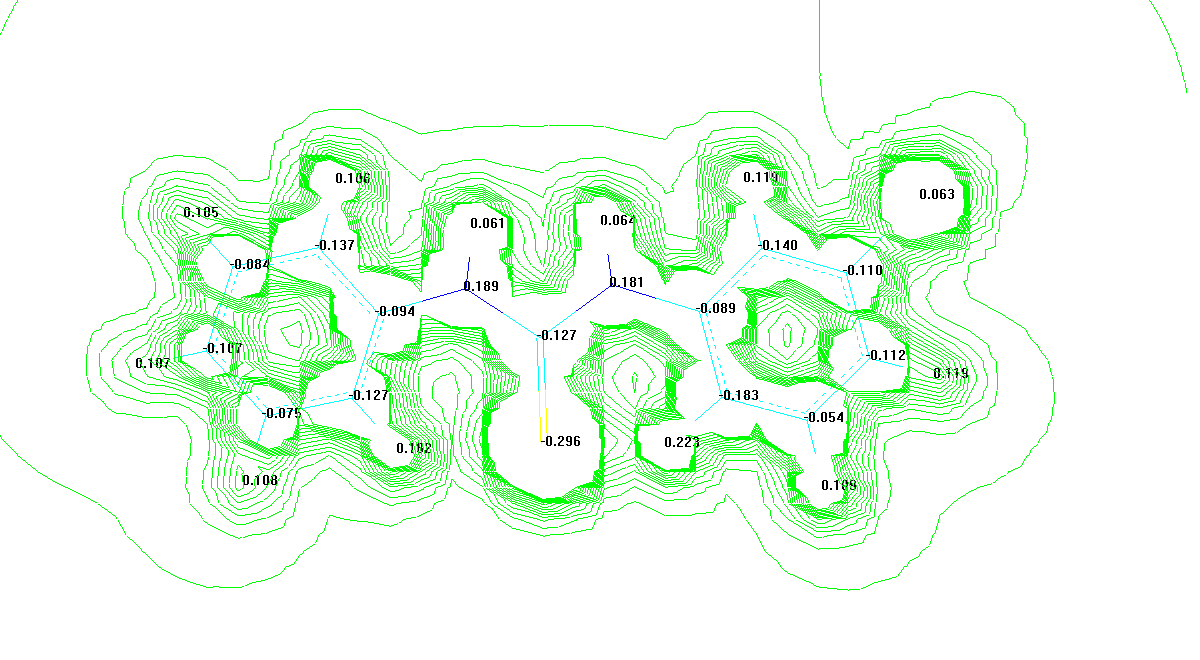

   Methods. The properties of the molecules of ureas under study were calculated by the MM+ quantum chemical method of molecular mechanics and PM3 semiempirical method using the HyperChem 8.0 software. Vulcanization of rubbers and total crosslink density were studied using the rotorless vulcanization method with a MonTech MDR 3000 Professional rheometer. The dynamic characteristics of vulcanized rubbers were investigated in accordance with ASTM D6601-02 and D5992-96 standards. The efficiency of the studied antioxidants against thermo-oxidative aging was evaluated in accordance with GOST 9.024-74. Infrared (IR) spectra of samples were recorded with an FT-801 Fourier-transform IR spectrometer (Russia) according to the attenuated total reflection method.

   Results. For the first time, a study was conducted on the efficiency of 1-(3-chlorophenyl)-3-phenylurea, 1-(3-chlorophenyl)-3-phenylthiourea, and 1-(3-fluorophenyl)-3-phenylselenourea as antioxidants for elastomers under conditions of thermo-oxidative aging. The effect of these substances on the vulcanization characteristics and total crosslink density of materials based on nitrile butadiene rubber was investigated.

   Conclusions. The values of electron affinity energy and its sign were shown to accurately predict the possibility of using individual molecules as accelerators of the vulcanization process or antioxidants. With a change in the electron affinity energy from 0.051 (urea) to −1.115 (thiourea) and −1.365 eV (selenourea), the time to the start of vulcanization was shown to change from 15 to 3 and 2 min, respectively. As a result of thermo-oxidative aging of rubbers based on BNKS-28 AN rubber without a stabilizer and with 1-(3-chlorophenyl)-3-phenylurea, 1-(3-chlorophenyl)-3-phenylthiourea, and 1-(3-fluorophenyl)-3-phenylselenourea, the total crosslink density changes by 33 %, 23 %, 25 %, and 29 %, respectively. In this connection, the use of 1-(3-chlorophenyl)-3-phenylurea somewhat improves the stability of rubbers to thermo-oxidative aging, whereas 1-(3-chlorophenyl)-3-phenylthiourea and 1-(3-fluorophenyl)-3-phenylselenourea do not worsen this property when introduced into the rubber compound.

1. Gaidadin A.N., Petryuk I.P., Kosterin D.V. Evaluation of kinetic parameters of high-temperature aging of rubbers based on ethylene-propylene rubber. Vestnik Kazanskogo tekhnologicheskogo universiteta = Bulletin of the Kazan Technological University. 2014;17(1):169–171 (in Russ).

2. Khankishiyeva R.F. The improvement of physical and mechanical properties of sealers based on nitrile-butadiene rubber and combination of nano-metal oxides. SOCAR Proceedings. 2020;3:174–182. doi: 10.5510/OGP20200300459

3. Dorofeev A.N., Zemskii D.N. New stabilizers based on p-phenylene diamine for tire rubbers. Kauchuk i Rezina. 2016;5:30–33 (in Russ).

4. Akhmadullin R.M., Karimov I.A., Akhmetshin I.F., Kotyrev E.A., Alimanov D.V., Nadelyaev K.L. Study of the stabilizing efficiency of thermal stabilizers bisphenol-5 and vulcanox BKF at production of butadiene acrylonitrile rubber. Kauchuk i Rezina. 2017;76(4):210–213 (in Russ).

5. Chirkova Yu.N., Dorofeev A.N., Gaifetdinov R.R. Effect provided by N-phenyl, N′-oxyalkyl-p-phenylenediamine-based stabilizers upon the thermo-oxidation and ozone ageing stability of rubbers. Vestnik Tekhnologicheskogo universiteta = Herald of Technological University. 2018;21(3):98–102 (in Russ.).

6. Martynova Y.Z., Khairullina V.R., Nasretdinova R.N., et al. Determination of the chain termination rate constants of the radical chain oxidation of organic compounds on antioxidant molecules by the QSPR method. Russ. Chem. Bull. 2020;69(9): 1679–1691. doi: 10.1007/s11172-020-2948-7 [Original Russian Text: Martynova Yu.Z., Khairullina V.R., Nasretdinova R.N., Garifullina G.G., Mitsukova D.S., Gerchikov A.Ya., Mustafin A.G. Determination of the chain termination rate constants of the radical chain oxidation of organic compounds on antioxidant molecules by the QSPR method. Izvestiya Akademii nauk. Seriya khimicheskaya. 2020;9:1679–1691 (in Russ.).]

7. Vernigora A.A., Nilidin D.A., Davidenko A.V., Fan Ngok Tu, Gubin S.G., Gubina E.V., Vaniev M.A., Novakov I.A. Influence of anyles D,L-camphora on thermal oxidating stability of butadiene rubber based elastomer. Izvestiya VolgGTU = Izvestia VSTU. 2021;252(5):47–52 (in Russ). doi: 10.35211/1990-5297-2021-5-252-47-52

8. Kholshin S.V., Yagunov S.E., Kandalintseva N.V., et al. Synthesis of new selenium-containing analogs of phenozan acid. Russ. Chem. Bull. 2019;68(12):2374–2376. doi: 10.1007/s11172-019-2715-9 [Original Russian Text: Kholshin S.V., Yagunov S.E., Kandalintseva N.V., Prosenko A.E. Synthesis of new selenium-containing analogs of phenozan acid. Izvestiya Akademii nauk. Seriya khimicheskaya. 2019;12:2374–2376 (in Russ.).]

9. Averina A.E., Laptev A.B., Nesterov A.S., Sarvaeva G.A., Nikolaev E.V. Application of quantum-chemical calculations to evaluate the aging processes of polyethylene terephthalate under the influence of climate. Aviatsionnye materialy i tekhnologii = Aviation Materials and Technologies. 2020;3(60):47–56 (in Russ.). doi: 10.18577/2071-9140-2020-0-3-47-56

10. Valiev H.H., Vorobyev V.V., Karnet Yu.N., Kornev Yu.V., Yumaschev O.B. Application of quantum-chemical modeling results in experimental investigations of silicone composites. Mater. Phys. Mechan. 2017;32(3):293–297.

11. Siddique M.U.M., McCann G.J.P., Sonawane V., Horley N., Williams I.S., Joshi P., Chaudhuri B. Biphenyl urea derivatives as selective CYP1B1 inhibitors. Org. Biomol. Chem. 2016;14(38):8931–8936. doi: 10.1039/C6OB01506A

12. Serrano J.L., Soeiro P.F., Reis M.A., Boto R.E.F., Silvestre S., Almeida P. Synthesis and process optimization of symmetric and unsymmetric barbiturates C5-coupled with 2,1-benzisoxazoles. Mol. Diver. 2020;24(1):155–166. doi: 10.1007/s11030-019-09937-4

13. Kuznetsov Ya.P., Rasskazova E.V., Pitushkin D.A., et al. Synthesis and Properties of N,N′-Disubstituted Ureas and Their Isosteric Analogs Containing Polycyclic Fragments: XI. 1-[(Adamantan-1-yl)alkyl]-3-arylselenoureas. Russ. J. Org. Chem. 2021;57(7): 1036–1046. doi: 10.1134/S1070428021070022 [Original Russian Text: Kuznetsov Ya.P., Rasskazova E.V., Pitushkin D.A., Eshtukov A.V., Vasipov V.V., Burmistrov V.V., Butov G.M. Synthesis and Properties of N,N′-Disubstituted Ureas and Their Isosteric Analogs Containing Polycyclic Fragments: XI. 1-[(Adamantan-1-yl)alkyl]-3-arylselenoureas. Zhurnal organicheskoi khimii. 2021;57(7):929–941 (in Russ.). doi: 10.31857/S0514749221070028 ]

14. Reznichenko S.V., Morozov Yu.L. (Eds.). Bol’shoi spravochnik rezinshchika. Kauchuki i ingredienty (Large Rubber Manufacturer’s Reference Book : in 2 v. V. 1. Rubbers and Ingredients). Moscow: Tehinform MAI; 2012. P. 209 (in Russ.).

15. Blume A., Kiesewetter J. Determination of the crosslink density of tire tread compounds by different analytical methods. Kautschuk Gummi Kunststoffe. 2019;72(9):33–42.

16. Sperling L.H. Introduction to Physical Polymer Science. Hoboken, New Jersey: John Wiley & Sons Inc.; 2006. Р. 504.

17. Litvinov I.A., Burmistrov V.V., Fayzullin R.R. Structure of some adamantyl-containing ureas and hydrogen bonds in their crystals. J. Struct. Chem. 2022;63(8):1274–1283. doi: 10.1134/S002247662208008X [Original Russian Text: Litvinov I.A., Burmistrov V.V., Fayzullin R.R. Structure of some adamantyl-containing ureas and hydrogen bonds in their crystals. Zhurnal strukturnoi khimii. 2022;63(8): 96114 (in Russ.). doi: 10.26902/JSC_id96114 ]

18. Voronchikhin V.D., Sorochenko O.V., Semikolenov S.V., et al. Influence of oligomeric unsaturated polyketone on the vulcanization of elastomeric compositions in the presence of sulfenamide C. Russ. Chem. Bull. 2020;69(11):2171–2176. doi: 10.1007/s11172-020-3018-x [Original Russian Text: Voronchikhin V.D., Sorochenko O.V., Semikolenov S.V., Ivanov D.P., Babushkin D.E., Dubkov K.A. Influence of oligomeric unsaturated polyketone on the vulcanization of elastomeric compositions in the presence of sulfenamide C. Izvestiya Akademii nauk. Seriya khimicheskaya. 2020;11:2171–2176 (in R
