The influence of lanthanum content in the Fe₂O₃-Li₂O-La(OH)₃ system on phase formation and properties of composite material

Objectives. To study the effect of varying lanthanum content in the Fe₂O₃–Li₂O–La(OH)₃ system on phase formation and corresponding structural and electromagnetic properties of a lithium-ferrite composite material obtained using high-temperature ceramic technology.

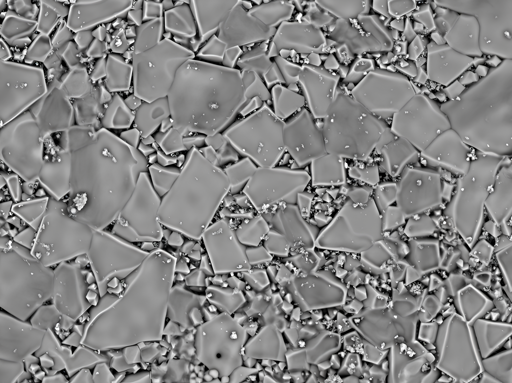

Methods. Following the addition of lanthanum occurred at the initial stage of mixing the Fe₂O₃/Li₂CO₃/La(OH)₃ components in a certain weight ratio, the obtained samples were sent for preliminary synthesis at a temperature of 900°C for 240 min in an air atmosphere and sintering in a dilatometer at a temperature of 1100°C for 120 min. The microstructure and properties of the sintered composite samples were studied using X-ray phase analysis (XRD), thermogravimetry (TG), differential scanning calorimetry (DSC), and scanning electron microscopy.

Results. XRD analysis confirmed the formation of a two-phase structure following solid-phase synthesis, consisting of the magnetic phase of lithium ferrite Li_0.5Fe_2.5O₄ and the perovskite-like phase LaFeO₃. XRD carried out after sintering showed that the hightemperature heating process did not affect the changes in the phase composition of the sample phases. Dilatometric shrinkage curves obtained after sintering showed that the addition of La reduces the rate of compaction of the samples at the stage of their heating. The sintered samples were characterized by a density of 4.34, 3.84, 3.93 g/cm³ and a porosity of 0.7, 16, and 18%, respectively, having an increased mass content of La(OH)₃ at the synthesis stage. A decrease in the grain sizes was also observed. An increase in the amount of lanthanum hydroxide La(OH)₃ additive from 0 to 4.4 and 13.9 wt % led to an increase in the concentration of the synthesized LaFeO₃ phase in the samples to 4.2 and 16.6 wt %, resulting in decreased specific saturation magnetization values from 59.4 to 58.2 and 49.7 G∙cm³/g and the initial magnetic permeability from 41.6 to 22.8 and 19.5, respectively. TG and DSC showed that high-temperature sintering of lithium ferrite without additives leads to the predominant formation of the disordered b-phase Li_0.5Fe_2.5O₄, which has a reduced Curie temperature of 626°C. This process is associated with a violation of the stoichiometric composition of the samples for lithium and oxygen due to the release of these elements from the samples during high-temperature sintering.

Conclusions. The high values of the Curie temperature of 631°C confirm that the addition of lanthanum during the production of lithium ferrite prevents the violation of the stoichiometric composition of the ferrite during sintering due to the construction of an additional LaFeO₃ lattice. The addition of lanthanum was also found to lead to a significant increase in specific electrical resistance from 5 ∙ 10² to 6 ∙ 10⁹ and 1 ∙ 10¹² Ohm∙cm, which may be associated with both a change in the microstructure of the samples and a change in their phase composition.

1. Ahmad M., Shahid M., Alanazi Y.M., Rehman A. ur., Asif M., Dunnill C.W. Lithium ferrite (Li0.5Fe2.5O4): synthesis, structural, morphological and magnetic evaluation for storage devices. J. Mater. Res. Technol. 2022;18:3386–3395. https://doi.org/10.1016/j.jmrt.2022.03.113

2. Khot S.S., Shinde N.S., Basavaiah N., Watawe S.C., Vaidya M.M. Magnetic properties of LiZnCu ferrite synthesized by the microwave sintering method. J. Magn. Magn. Mater. 2015;374:182–186. https://doi.org/10.1016/j.jmmm.2014.08.039

3. Aravind G., Raghasudha M., Ravinder D., Manivel Raja M., Meena S.S., Bhatt P., Hashim M. Study of structural and magnetic properties of Li–Ni nanoferrites synthesized by citrate-gel auto combustion. Ceram. Int. 2016;42(2): 2941–2950. https://doi.org/10.1016/j.ceramint.2015.10.077

4. Nikishina E.E. Heterophase synthesis of cobalt ferrite. Fine Chem. Technol. 2021;16(6):502–511. https://doi.org/10.32362/2410-6593-2021-16-6-502-511

5. Isaev I.M., Kostishin V.G., Korovushkin V.V., et al. Magnetic and Radio-Absorbing Properties of Polycrystalline Li0.33Fe2.29Zn0.21Mn0.17O4 Spinel Ferrite. Tech. Phys. 2021;66(11):1216–1220. https://doi.org/10.1134/S1063784221090085 [Original Russian Text: Isaev I.M., Kostishin V.G., Korovushkin V.V., Salogub D.V., Shakirzyanov R.I., Timofeev A.V., Mironovich A.Yu. Magnetic and Radio-Absorbing Properties of Polycrystalline Li0.33Fe2.29Zn0.21Mn0.17O4 Spinel Ferrite. Zhurnal tekhnicheskoi fiziki. 2021;91(9):1376–1380 (in Russ.). https://doi.org/10.21883/JTF.2021.09.51217.74-21 ]

6. Isaev I.M., Kostishin V.G., Korovushkin V.V., et al. Crystal chemistry and magnetic properties of polycrystalline spinel ferrites Li0.33Fe2.29Zn0.21Mn0.17O4. Russ. J. Inorg. Chem. 2021;66(12):1917–1924. https://doi.org/10.1134/S0036023621120056 [Original Russian Text: Isaev I.M., Kostishin V.G., Korovushkin V.V., Shipko M.N., Timofeev A.V., Mironovich A.Yu., Salogub D.V., Shakirzyanov R.I. Crystal chemistry and magnetic properties of polycrystalline spinel ferrites Li0.33Fe2.29Zn0.21Mn0.17O4. Zhurnal neorganicheskoi khimii. 2021;66(12):1792–1800 (in Russ.). https://doi.org/10.31857/S0044457X21120059 ]

7. Kareva K.V., Suraev A.S., Chervinskaya A.S., Dotsenko O.A., Kushnarev B.O., Minin R.V., Zhuravlev V.A., Wagner D.V. Structural characteristics and magnetic properties of Ni1–x Znx Fe2O4 ferrimagnets synthesized by the ceramic method. Izvestiya vuzov. Fizika. 2023;66(12):5–11 (in Russ.).

8. Punda A.Yu., Gafarova K.P., Zhivulin V.E., Chernukha A.S., Zykova A.R., Gudkova S.A., Pesin L.A., Vyatkin G.P., Vinnik D.A. Synthesis and structure of barium hexaferrite BaFe12–x Inx O19 (x = 0–1). Zhural obshchei khimii. 2024;94(2):285–291 (in Russ.). https://doi.org/10.31.57/s0044460x24020149

9. Maksoud M.I.A.A., El-Ghandour A., Ashour A.H., Atta M.M., Abdelhaleem S., El-Hanbaly A.H., Fahim R.A., Kassem S.M., Shalaby M.S., Awed A.S. La3+ doped LiCo0.25Zn0.25Fe2O4 spinel ferrite nanocrystals: Insights on structural, optical and magnetic properties. J. Rare Earths. 2021;39(1):75–82. https://doi.org/10.1016/j.jre.2019.12.017

10. Khan M.A., Sabir M., Mahmood A., Asghar M., Mahmood K., Khan M.A., Ahmad I., Sher M., Warsi M.F. High frequency dielectric response and magnetic studies of Zn1−x Tbx Fe2O4 nanocrystalline ferrites synthesized via micro-emulsion technique. Magn. Magn. Mater. 2014;360:188–192. https://doi.org/10.1016/j.jmmm.2014.02.059

11. Ahmad I., Abbas T., Ziya A.B., Maqsood A. Structural and magnetic properties of erbium doped nanocrystalline Li–Ni ferrites. Ceram. Int. 2014;40(6):7941–7945. https://doi.org/10.1016/j.ceramint.2013.12.142

12. Jiang J., Liangchao L., Feng X. Structural analysis and magnetic properties of Gd-doped Li-Ni ferrites prepared using rheological phase reaction method. J. Rare Earths. 2007;25(1):79–83. https://doi.org/10.1016/S1002-0721(07)60049-0

13. Mahmoudi M., Kavanlouei M., Maleki-Ghaleh H. Effect of composition on structural and magnetic properties of nanocrystalline ferrite Li0.5Smx Fe2.5–x O4. Powd. Metall. Met. Ceram. 2015;54:31–39. https://doi.org/10.1007/s11106-015-9676-9

14. Nikumbh A.K., Pawar R.A., Nighot D.V., Gugale G.S., Sangale M.D., Khanvilkar M.B., Nagawade A.V. Structural, electrical, magnetic and dielectric properties of rare-earth substituted cobalt ferrites nanoparticles synthesized by the co-precipitation method. J. Magn. Magn. Mater.2014;355:201–209. https://doi.org/10.1016/j.jmmm.2013.11.052

15. Sadykov S.A., Kallaev S.N., Emirov R.M., Alikhanov N.M.-R. Electrical properties of Sm- doped BiFeO3 ceramics. Phys. Solid State.2023;65(10):1654–1663. https://doi.org/110.61011/PSS.2023.10.57217.149 [Original Russian Text: Sadykov S.A., Kallaev S.N., Emirov R.M., Alikhanov N.M.-R. Electrical properties of Sm-doped BiFeO3 ceramics. Fizika tverdogo tela. 2023;65(10):1727–1736 (in Russ.). https://doi.org/10.61011/FTT.2023.10.56320.149 ]

16. Khabirov R.R., Mass A.V., Kuzmin R.I., Ruktuev A.A., Cherkasova N.Yu., Agafonov M.Yu., Koroleva V.A., Miller A.A. Features of the formation of the structure and properties of Mn–Zn ferrites obtained by sol-gel synthesis. Tech. Phys. Lett. 2024;50(9):17–21. https://doi.org/10.61011/TPL.2024.05.58414.19834 [Original Russian Text: Khabirov R.R., Mass A.V., Kuzmin R.I., Ruktuev A.A., Cherkasova N.Yu., Agafonov M.Yu., Koroleva V.A., Miller A.A. Features of the formation of the structure and properties of Mn–Zn ferrites obtained by sol-gel synthesis. Pis’ma vZhurnal tekhnicheskoi fiziki. 2024;50(9):21–26 (in Russ.). https://doi.org/10.61011/PJTF.2024.09.57563.19834 ]

17. Lysenko E.N., Vlasov V.A., Nikolaeva S.A., Nikolaev E.V. TG, DSC, XRD, and SEM studies of the substituted lithium ferrite formation from milled Sm2O3/Fe2O3/Li2CO3 precursors. J. Therm. Anal. Calorim. 2023;148(4):1445–1453. https://doi.org/10.1007/s10973-022-11665-1

18. Lysenko E.N., Surzhikov A.P., Astafyev A.L. Thermomagnetometric analysis of lithium ferrites. J. Therm. Anal. Colorim. 2019;136(2):441–445. https://doi.org/10.1007/s10973-018-7678-9

19. LysenkoE.N., NikolaevaS.A., SurzhikovA.P., GhyngazovS.A., Plotnikova I.V., Zhuravlev A., Zhuravleva E.V. Electrical and magnetic properties of ZrO2-doped lithium-titanium-zinc ferrite ceramics. Ceram. Int. 2019;45(16):20148–20154. https://doi.org/10.1016/j.ceramint.2019.06.282

20. Ridley D.H., Lessoff H., Childress J.D. Effect of lithium and oxygen losses on magnetic and crystallographic properties of spinel lithium ferrite. J. Am. Ceram. Soc. 1970;53(6):304–311. https://doi.org/10.1111/J.1151-2916.1970.TB12113.X

21. Surzhikov A.P., Frangulyan T.S., Ghyngazov S.A., Lysenko E.N. Investigation of structural states and oxidation processes in Li0.5Fe2.5O4−δ using TG analysis. J. Therm. Anal. Calorim. 2012;108(3):1207–1212. https://doi.org/10.1007/s10973-011-1734-z

22. Bulai G., Diamandescu L., Dumitru I., Gurlui S., Feder M., Caltun O.F., Effect of rare earth substitution in cobalt ferrite bulk materials. J. Magn. Magn. Mater. 2015;390:123–131. https://doi.org/10.1016/j.jmmm.2015.04.089

23. Mohanty V., Cheruku R., Vijayan L., Govindaraj G. Ce-substituted Lithium Ferrite: Preparation and Electrical Relaxation Studies. J. Mater. Sci. Technol. 2014;30(4): 335–341. https://doi.org/10.1016/j.jmst.2013.10.028

24. Al-Hilli M.F., Li S., Kassim K.S. Structural analysis, magnetic and electrical properties of samarium substituted lithium–nickel mixed ferrites. J. Magn. Magn. Mater. 2012;324(5):873–879. https://doi.org/10.1016/j.jmmm.2011.10.005

25. An S.Y., Shim I.B., Kim C.S. Synthesis and magnetic properties of LiFe5O8 powders by a sol–gel process. J. Magn. Magn Mater. 2005;290–291:1551–1554. https://doi.org/10.1016/j.jmmm.2004.11.244

26. Mazen S.A., Abu-Elsaad N.I. Characterization and magnetic investigations of germanium-doped lithium ferrite. Ceram. Int. 2014;40(7):11229–11237. https://doi.org/10.1016/j.ceramint.2014.03.167

27. Abdellatif M.H., El-Komy G.M., Azab A.A., Magnetic characterization of rare earth doped spinel ferrite. J. Magn. Magn. Mater. 2017;442:445–452. https://doi.org/10.1016/j.jmmm.2017.07.020

28. Berbenni V., Marini A., Capsoni D. Solid state reaction study of the system Li2CO3/Fe2O3. Z. Naturforschung – Sect. J. Phys. Sci. 1998;53:997–1003. https://doi.org/10.1515/zna-1998-1212
