Hydroperoxide method for the co-production of methyl ethyl ketone and phenol
https://doi.org/10.32362/2410-6593-2025-20-1-7-17
EDN: HWFSVA
Abstract
Objectives. Applying the hydroperoxide method for the co-production of methyl ethyl ketone and phenol, the work studies the kinetic and other characteristics of the individual stages of the developed process to select the optimal conditions for producing the maximum yield of intermediate and target products.
Methods. The research relied on the main theoretical and methodological provisions for the synthesis of intermediate and target products of the cumene technology for the co-production of phenol and acetone. The obtained intermediate and target products were qualitatively and quantitatively analyzed according to modern physicochemical approaches. Gas–liquid chromatography was performed with a Chromatec-Crystal 5000.2 hardware and software complex. The infrared (IR) spectra of the synthesized compounds were recorded with a Spectrum RX-1 IR Fourier spectrometer. 1H nuclear magnetic resonance (NMR) spectroscopy of substances was conducted using a Bruker DRX 400 NMR spectrometer. A quantitative determination of the content of sec-butylbenzene hydroperoxide was carried out using iodometric titration.
Results. The main stages of the developed method for the co-production of methyl ethyl ketone and phenol based on the hydroperoxide oxidation of sec-butylbenzene were investigated. sec-Butylbenzene was synthesized by alkylation of benzene with 1-butanol in the presence of concentrated sulfuric acid at a yield of about 82%. The hydrocarbon compound was subjected to aerobic liquid-phase oxidation catalyzed by N-hydroxyphthalimide to the corresponding hydroperoxide with a main substance content of 30–35 wt %, feedstock conversion of 34–37%, and selectivity of hydroperoxide formation above 95%. The kinetic and other characteristics were studied for the final stage of the developed method, comprising the acid decomposition of hydroperoxide to methyl ethyl ketone and phenol. Suitable conditions for obtaining target products with high yields were identified.
Conclusions. Methyl ethyl ketone and phenol of high purity with yields of 72 and 74%, respectively, were obtained by the hydroperoxide method. The structures of the synthesized substances were confirmed by IR and 1H NMR spectroscopy.
Keywords
About the Authors
V. S. KabanovaRussian Federation
Viktoriya S. Kabanova, Postgraduate Student, Department of General and Physical Chemistry
Scopus Author ID 57749250400
88, Moskovskii pr., Yaroslavl, 150023
Competing Interests:
The authors declare no conflicts of interest.
E. A. Kurganova
Russian Federation
Ekaterina A. Kurganova, Dr. Sci. (Chem.), Professor, Department of General and Physical Chemistry
Scopus Author ID 24338325800, ResearcherID B-4021-2018
88, Moskovskii pr., Yaroslavl, 150023
Competing Interests:
The authors declare no conflicts of interest.
A. S. Frolov
Russian Federation
Aleksandr S. Frolov, Cand. Sci. (Chem.), Associate Professor, Department of General and Physical Chemistry
Scopus Author ID 56412435400, ResearcherID I-8533-2018
88, Moskovskii pr., Yaroslavl, 150023
Competing Interests:
The authors declare no conflicts of interest.
G. N. Koshel
Russian Federation
Georgiy N. Koshel, Dr. Sci. (Chem.), Professor, Department of General and Physical Chemistry
Scopus Author ID 6602886373, ResearcherID I-7782-2017
88, Moskovskii pr., Yaroslavl, 150023
Competing Interests:
The authors declare no conflicts of interest.
A. A. Smurova
Russian Federation
Alina A. Smurova, Postgraduate Student, Department of General and Physical Chemistry
Scopus Author ID 58870183900
88, Moskovskii pr., Yaroslavl, 150023
Competing Interests:
The authors declare no conflicts of interest.
E. I. Bayov
Russian Federation
Egor I. Bayov, Postgraduate Student, Department of General and Physical Chemistry
ResearсherID JOK-1491-2023
88, Moskovskii pr., Yaroslavl, 150023
Competing Interests:
The authors declare no conflicts of interest.
References
1. Egizaryan A.M., Golovachev V.A., Kleimenov A.V., Miroshkina V.D., Noskov A.S., Piryutko L.V., Russkikh A.V., Chernyavskii V.S., Kharitonov A.S. Method of Obtaining Methyl Ethyl Ketone: RF Pat. RU 2623435. Publ. 26.06.2017 (in Russ.).
2. Matveev K.I., Zhizhina E.G., Odyakov V.F. Catalyst and Methyl Ethyl Ketone Production Process: RF Pat. RU 2230612. Publ. 20.06.2004 (in Russ.).
3. Matveev K.I., Zhizhina E.G., Odyakov V.F., et al. Homogeneous redox catalysts based on heteropoly acid solutions: I. Pilot testing of a catalyst and methyl ethyl ketone synthesis. Cat. Ind. 2014;6(3):202–211. https://doi.org/10.1134/S207005041403009X
4. Zhizhina E.G., Odyakov V.F., Balashov A.L., Matveev K.I. Development of new technology of catalytic synthesis of methyl ethyl ketone by oxidation of n-butylenes. Kataliz v promyshlennosti. 2005;5:28–35 (in Russ.).
5. Agaguseynova M.M., Amanullayeva G.I., Bayramova Z.E. Catalysts of oxidation reaction of butene-1 to methyl ethyl ketone. Izv. Vyssh. Uchebn. Zaved. Khim. Khim. Tekhnol. = ChemChemTech. 2018;61(2):53–57 (in Russ.). https://doi.org/10.6060/tcct.20186102.5693
6. Torres-Vinces L., Contreras-Zarazua G., Huerta-Rosas B., SaґnchezRamıґrez E., Segovia-Hernaґndez J.G. Methyl Ethyl Ketone Production through an Intensified Process. Chem. Eng. Technol. 2020;43(7):1433–1441. https://doi.org/10.1002/ceat.201900664
7. Azizov M.A., Karimov R.H. Transformation of alcohols into carbonyl compounds on the D-53 catalyst. Khimicheskaya promyshlennost’ = Chemical Industry. 1982;10:7–12 (in Russ.).
8. Zak T.S. Preparation of Methyl Ethyl Ketone: USA Pat. 4075128. Publ. 21.02.1978.
9. Halawy S.A., Osman A.I., Abdelkader A., Yang H. Boosting NiO Catalytic Activity by x wt % F-ions and K2O for the Production of Methyl Ethyl Ketone (MEK) via Catalytic Dehydrogenation of 2-Butanol. ChemCatChem. 2021;13(9):2200–2214. https://doi.org/10.1002/cctc.202001954
10. Galanov S.I., Golovachev V.A., Dubkov K.A., Zuber V.I., Miroshkina V.D., Mutas I.N., Reshetnikov D.M., Fedotov K.V., Kharitonov A.S. Method of Producing Methyl Ethyl Ketone: RF Pat. RU 2731903. Publ. 09.09.2020 (in Russ.).
11. Torlova A.S., Vitkalova I.A., Pikalov E.S. Production technology, properties and applications of compositions based on phenol-formaldehyde resins. Nauchnoe obozrenie. Tekhnicheskie nauki = Scientific Review. Technical Sciences. 2017;2:96–114 (in Russ.).
12. Kharlampovich G.D., Churkin Yu.V. Fenoly (Phenols). Moscow: Khimiya; 1974. 376 p. (in Russ.).
13. Kruzhalov B.D., Golovanenko B.I. Sovmestnoe poluchenie fenola i atsetona (Joint Production of Phenol and Acetone). Moscow: Goskhimizdat; 1963. 200 p. (in Russ.).
14. Antonovskii V.L., Buzlanova M.M. Analiticheskaya khimiya organicheskikh peroksidnykh soedinenii (Analytical Chemistry of Organic Peroxide Compounds). Moscow: Khimiya; 1978. 309 p. (in Russ.).
15. Yarkina E.M., Kurganova E.A., Frolov A.S., Koshel G.N., Nesterova T.N., Shakun V.A., Spiridonov S.A. Para-tertbutylcumyl synthesis. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2020;16(1):26–35. https://doi.org/10.32362/2410-6593-2020-16-1-26-35
16. Sapunov V.N., Kurganova E.A., Koshel G.N. Kinetics and Mechanism of Cumene Oxidation Initiated by N-Hydroxyphthalimide. Int. J. Chem. Kinet. 2018;50(1):3–14. https://doi.org/10.1002/kin.21135
17. Kabanova V.S., Kurganova E.A., Frolov A.S., Koshel G.N., Smurova A.A., Baev E.I., Danilova A.S. Acid-catalyzed decomposition of sec-butylbenzene hydroperoxide to phenol and methyl ethyl ketone. Khimicheskaya promyshlennost’ segodnya = Chemical Industry Developments. 2024;4:77–84 (in Russ.).
18. Minachev Kh.M., Kononov N.F., Mortikov E.S., Lent’ev A.S., Papko T.S., Zhomov A.K., Khlopochkin B.P., MasloboevShvedov A.A. Method of Obtaining Second-Butylbenzene: USSR Pat. 265349. Publ. 05.10.1976 (in Russ.).
19. Isakov Ya.I., Minachev Kh.M., Eidus Ya.T., Lapidus A.L., Kalinin V.P. Method of Co-Production of Ethylbenzene and Secondary Benzene: USSR Pat. 417405. Publ. 28.02.1974 (in Russ.).
20. Zakoshanskii V.M. Fenol i atseton. Analiz tekhnologii, kinetiki i mekhanizma osnovnykh reaktsii (Phenol and Acetone. Analysis of Technologies, Kinetics and Mechanisms of Main Reactions). St. Petersburg: Khimizdat; 2009. 590 p. (in Russ.).
21. Koshel G.N., Smirnova E.V., Kurganova E.A., Ekimova I.D., Lebedeva N.V., Koshel S.G., Plakhtinskii V.V. Intensification of the isopropylbenzene oxidation process. Kataliz v Promyshlennosti. 2010;3:26–29 (in Russ.).
22. Kurganova E.A., Kabanova V.S., Frolov A.S., Koshel G.N., Smurova A.A., Baev E.I. Hydroperoxide method of synthesis of phenol and its alkyl derivatives together with ketones of the aliphatic and alicyclic series. Neftegaz.RU. 2023;137(5): 34–40 (in Russ.).
Supplementary files
|

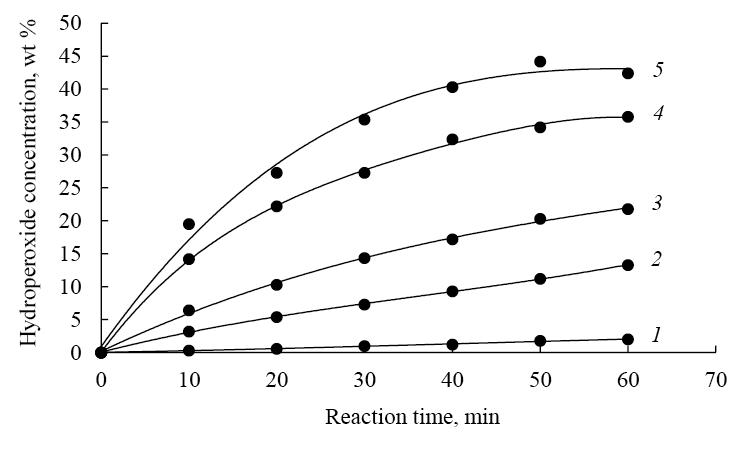

1. Kinetics of aerobic liquid-phase oxidation of sec-butylbenzene to hydroperoxide | |
Subject | ||
Type | Исследовательские инструменты | |
View
(34KB)
|
Indexing metadata ▾ |
- The main stages of the developed method for the co-production of methyl ethyl ketone and phenol based on the hydroperoxide oxidation of sec-butylbenzene were investigated. Sec-butylbenzene was synthesized by alkylation of benzene with 1-butanol in the presence of concentrated sulfuric acid at a yield of about 82%.
- Methyl ethyl ketone and phenol of high purity with yields of 72 and 74%, respectively, were obtained by the hydroperoxide method
