Oscillation rheometry of curing process of epoxy binders modified with polyetherimide

Objectives. The aim of this study is to ascertain the influence of polyetherimide on the curing process of epoxy binders.

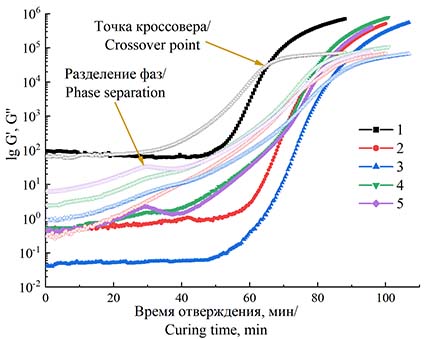

Methods. The storage modulus and loss modulus of epoxyamine systems were measured as a function of curing time on the Anton Paar MCR 302 rheometer. The experiments were carried out at an oscillation frequency of 1 Hz, with an amplitude aligned with the linear viscoelasticity region, and across a range of temperatures (160, 170, and 180°C). The crossover point was determined when the components of the complex modulus of elasticity are equal according to the obtained dependencies.
Results. The influence of polyetherimide on the curing process of epoxyamine binders was investigated at a thermoplastic content of 5 to 20 pts. wt at three temperatures. In a system modified with 20 pts. wt of polyetherimide, phase separation was observed during the curing process. In systems modified with 10 and 20 pts. wt of polyetherimide, the limiting value of the modulus of elasticity was observed to be higher at 170°C than at 180°C.
Conclusions. The modification of epoxyamine binders with thermoplastic in an amount of 5–20 pts. wt has been observed to extend the time required to reach the crossover point. Furthermore, the curing process markedly slows down in the system comprising 10 pts. wt of thermoplastic content, in which it takes the longest time to reach the crossover point at all three experimental temperatures.

1. Kerber M.L., Vinogradov V.M., Golovkin G.S., et al. Polimernye kompozitsionnye materialy: struktura, svoistva, tekhnologiya (Polymer Composite Materials: Structure, Properties, Technology). St. Petersburg: Professiya; 2024. 712 p. (in Russ.). ISBN 978-5-91844-136-5

2. Chen F., Zhang Y., Sun T., Han C.C. Miscibility, Phase Separation and Mechanism of Phase Separatrion in Epoxy/Thermoplastic Blends. In: Parameswaranpillai J., Hameed N., Pionteck J., Woo E. (Eds.). Handbook of Epoxy Blends. Springer; 2017. P. 487–521. http://doi.org/10.1007/978-3-319-40043-3_17

3. Chen Z., Luo Z., Huang Z., Cai C., Tusiime R., Li Z., Wang H., Cheng C., Liu Y., Sun Z., Zhang H., Yu J. Synergistic toughen epoxy resin by incorporation of polyetherimide and amino groups grafted MWCNTs. Composit. Commun. 2020;21(8):100377. https://doi.org/10.1016/j.coco.2020.100377

4. Sun Z., Xu L., Chen Z., Wang Y., Tusiime R., Cheng C., Zhou S., Liu Y., Yu M., Zhang H. Enhancing the Mechanical and Thermal Properties of Epoxy Resin via Blending with Thermoplastic Polysulfone. Polymers. 2019;11(3):461–478. https://doi.org/10.3390/polym11030461

5. Yu G., Wu P. Effect of chemical modified graphene oxide on the phase separation behaviour and properties of an epoxy/polyetherimide binary system. Polym. Chem. 2014;5(1):96–104. https://doi.org/10.1039/C3PY00878A

6. Bresskaya A.D., Trofimov D.A., Simonov-Emel’yanov I.D., Shalgunov S.I., Sokolov V.I. Investigation of surface tension and contact angles for effective polymer binders based on epoxy oligomers and active diluents. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2020;15(3):47–57. https://doi.org/10.32362/2410-6593-2020-15-3-47-57

7. Muthalif M., Choe Y. Influence of Maleinized Polybutadiene on Adhesive Strenght and Toughness of Epoxy Resins. Int. J. Polym. Sci. 2022;2022(1):1–8. https://doi.org/10.1155/2022/9517467

8. Deng H., Yuan L., Gu A., Liang G. Facile strategy and mechanism of great toughening epoxy resin using polyethersulfone through controlling phase separation with microwave-assisted thermal curing technique. J. Appl. Polym. Sci. 2019;137(8):48394. http://doi.org/10.1002/app.48394

9. Shapagin A.V., Budylin N.Yu., Chalykh A.E., Solodilov V.I., Korokhin R.A., Poteryaev A.A. Phase Equilibrium, Morphology, and Physico-Mechanics in EpoxyThermoplastic Mixtures with Upper and Lower Critical Solution Temperatures. Polymers. 2021;13(1):35–47. https://doi.org/10.3390/polym13010035

10. Johnson L.M., Huffman N.D. Rheology of Epoxy/ Thermoplastic Blends. In: Parameswaranpillai J., Hameed N., Pionteck J., Woo E. (Eds.). Handbook of Epoxy Blends. Springer; 2017. P. 613–648. http://doi.org/10.1007/978-3-319-40043-3_21

11. Arinina M.P., Kostenko V.A., Gorbunova I.Yu., et al. Kinetics of curing of epoxy oligomer by diaminodiphenyl Sulfone: Rheology and calorimetry. Polym. Sci. Ser. A. 2018;60(5): 683–690. https://doi.org/10.1134/S0965545X18050012 [Original Russian Text: Arinina M.P., Kostenko V.A., Gorbunova I.Yu., Il’in S.O., Malkin A.Ya. Kinetics of curing of epoxy oligomer by diaminodiphenylsulfone. Rheology and calorimetry. Vysokomolekulyarnye Soedineniya. Seriya A.2018;60(5):418–425 (in Russ.). https://doi.org/10.1134/S2308112018050012 ]

12. Cicala G., MamoA., LatteriA., Recca G. Epoxy/thermoplastic blends: the effect of two different aromatic modifiers. J. Mater. Des. Appl. 2011;225(4):316–326. http://doi.org/10.1177/1464420711411397

13. Polunin S.V., Gorbunova I.Yu., Kerber M.L., Khokhlova E.V., Kryuchkov I.A., Kravchenko T.P., Studying the Rheokinetics of Curing Processes in Epoxy Amine Binders Modified with Carding Polysulfon. Polym. Sci. Ser. D. 2023;16(4):824–829. http://doi.org/10.1134/S1995421223040275

14. Lee S.-Y., Kang M.-J., Kim S.-H., Rhee K.-Y., Lee J.-H., Park S.-J. Roles of Small Polyetherimide Moieties on Thermal Stability and Fracture Toughness of Epoxy Blends. Polymers. 2021;13(19):3310–3320. http://doi.org/10.3390/polym13193310

15. Arinina M.P., Ilyin S.O., Makarova V.V., et al. Miscibility and rheological properties of epoxy resin blends with aromatic polyethers. Polym. Sci. Ser. A. 2015;57(2):177–185. https://doi.org/10.1134/S0965545X15020017 [Original Russian Text: Arinina M.P., Ilyin S.O., Makarova V.V., Kulichikhin V.G., Gorbunova I.Y., Kerber M.L. Miscibility and rheological properties of epoxy resin blends with aromatic polyethers. Vysokomolekulyarnye Soedineniya. Seriya A. 2015;57(2):152–161 (in Russ.). https://doi.org/10.1134/S2308112018050012 ]

16. Guo Q., Zhu P., Li G., Huang L., Zhang Yu., Lu D., Sun R., Wong C.P. One-pot synthesis of bimodal silica nanospheres and their effects on the rheological and thermalmechanical properties of silica-epoxy composites. RSC Adv. 2015;5(62):50073–50081. https://doi.org/10.1039/C5RA06914A
