Highly efficient catalytic system for liquid-phase oxidation of 1-chloro-n-hexadecane with atmospheric oxygen

 Objectives. To develop a highly efficient catalytic system for the liquid-phase oxidation of long-chain mono-chlorinated alkanes by oxygen in air to a mixture of high-boiling chlorinated carboxylic acids, which can serve as raw materials for the production of multifunctional additives for polyvinyl chloride.

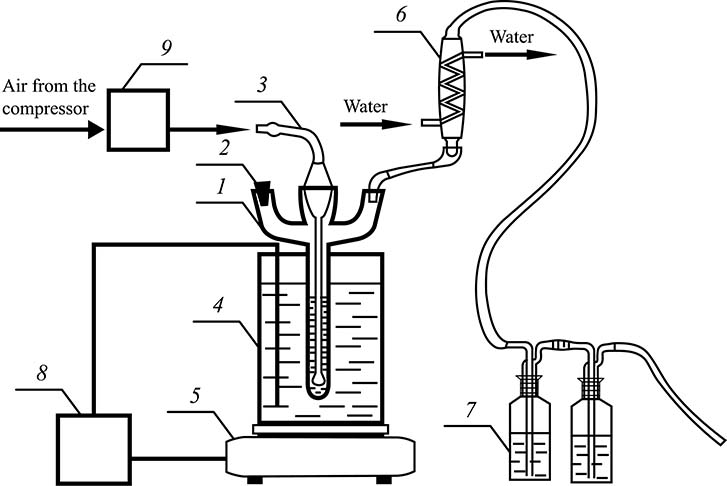

Methods. The liquid-phase oxidation of 1-chloro-n-hexadecane by oxygen in air in the presence of a two-component catalytic system of St₂Co(OH) and N-hydroxyphthalimide (N-HPI) was investigated. The air flow rate during the oxidation of 1-chloro-n-hexadecane was controlled by a gas meter. Identification, composition, and content of the starting 1-chloro-n-hexadecane for conversion control were conducted using chromatographic-mass spectrometric analysis on an Agilent GC 7820A/MSD 5975 instrument. The structure of cobalt(III) hydroxystearate was confirmed by infrared spectroscopy.
Results. Investigation of a two-component catalytic system St₂Co(OH)–N-HPI in the oxidation reaction of 1-chloro-n-hexadecane by oxygen in air revealed that both components of the system participate in the formation of hydroperoxides. This accelerates their formation and contributes to high hydroperoxide content in the reaction mass. It was observed that St₂Co(OH) in the two-component catalytic system accelerates the decomposition of hydroperoxides better than St₂Co in another two-component catalytic system previously studied, making it promising for application in the process. The oxides thus obtained can serve as raw materials for the production of multifunctional additives for polyvinyl chloride which could lead to improvements in the quality and properties of this material.
Conclusions. The investigation into the liquid-phase oxidation of 1-chloro-n-hexadecane by oxygen in air using the two-component catalytic system St₂Co(OH)–N-HPI has shown it to be more efficient compared to the two-component catalytic system St₂Co–N-HPI. The optimal concentration of the two-component catalytic system St₂Co(OH)–N-HPI in the reaction system for the liquid-phase oxidation of 1-chloro-n-hexadecane by oxygen in air has been determined to be 9 mol % of the raw material loading, with a molar ratio of components of 1 : 6. Such a catalytic system enables an acid number in the oxide of 42 mg KOH/g to be attained after 10 h of oxidation.

1. Zotov Yu.L., Krasil’nikova K.F., Popov Yu.V., Butakova N.A., Vasichkina E.V., Borshcheva V.N. Method of Obtaining Higher Fatty Chlorinated Acids: RF Pat. RU 2526056. Publ.20.08.2014 (in Russ).

2. Zotov Yu.L., Krasil’nikova K.F., Popov Yu.V., Butakova N.A., Erina E.V., Vasichkina E.V. Polymer Composition for Cable Plastic. RF Pat. RU 2520097. Publ. 20.06.2014 (in Russ).

3. Zotov Yu.L., Butakova N.A., Popov Yu.V. Okislenie promyshlennykh khlorparafinov kislorodom vozdukha (Oxidation of Industrial Chlorinated Paraffins with Air Oxygen). Monograph. Volgograd: VolgGTU; 2014. 123 p. (in Russ).

4. ZotovYu.L., KozlovtsevV.A., ErinaE.V., et al. Multifunctional composition SINISTAD for polymers. XXIV. The use of the SINSTAD composition as a stabilizer in polymer compositions based on PVC and Poviden. Plasticheskie Massy. 2012;6: 55–56 (in Russ).

5. No B.I., Zotov Yu.L., Gora A.V. Multifunctional composition SINISTAD for polymers. XIV. Study of the oxidation process of chlorinated paraffin HP-30. Plasticheskie Massy. 2003;6:34–35 (in Russ).

6. Zotov Yu.L., Zapravdina D.M., Zotova N.Yu., Tsysar’ D.S. Multifunctional composition SINISTAD for polymers. In: The 5th International Conference-School on Chemical Technology: Collection of Abstracts of Reports of the Satellite Conference of the 20th Mendeleev Congress on General Applied Chemistry. V. 1. Volgograd; 2016. P. 414–415 (in Russ).

7. Zotov Yu.L., Butakova N.A., Borshcheva V.N., Panov A.O. Oxidation of 1-chlorohexadecane with atmospheric oxygen in the presence of cobalt. Izvestiya VolgGTU = Izvestia VSTU. Series Chemistry and Technology of Hetero-Organic Monomers and Polymer Materials. 2014;7(134):66–70 (in Russ).

8. Zotov Yu.L., Shishkin E.V., Nguen T.T., Shipaeva T.A. Catalytic system for the oxidation of 1-chlorohexadecane with atmospheric oxygen. Khimicheskaya promyshlennost’ segodnya = Chemical Industry Developments. 2023;2:23–30 (in Russ).

9. Zotov Yu.L., Lashko D.A., Shishkin E.V., Nguen T.T. Method of Producing Higher Fatty Chlorinated Acids: RF Pat. RU 2768727. Publ. 24.03.2022 (in Russ).

10. Zotov Yu.L., Krasilnikova K.F., Popov Yu.V., Panov A.O., Burtsev A.A., Konnova A.A. Method of Producing Higher Fatty Chlorinated Acids: RF Pat. RU 2586071. Publ. 10.06.2016 (in Russ).

11. Zotov Yu.L., Shishkin E.V., Nguen T.T. Study of the influence of air consumption on the process of catalytic oxidation of monochlorinated long-chain hydrocarbons. Izvestiya VolgGTU = Izvestia VSTU. Series Chemistry and Technology of Hetero-Organic Monomers and Polymer Materials. 2022;5(264):25–32 (in Russ.).

12. OdabashyanG.V., ShvetsV.F. Laboratornyi praktikum po khimii i tekhnologii osnovnogo organicheskogo i neftekhimicheskogo sinteza (Laboratory Workshop on Chemistry and Technology of Basic Organic and Petrochemical Synthesis). Moscow: Khimiya; 1992. 240 p. (in Russ.).

13. Vashchenkov I.S., Verzhichinskaya S.V., Grechishkina O.S., Karadzhev M.A., Petina E.S. Analysis of organic peroxides by potentiometric titration. Uspekhi v Khimii i Khimicheskoi Tekhnologii. 2014;28(10):10–13 (in Russ.).

14. Emanuel N.M., Denisov E.T., Maizus Z.K. Tsepnye reaktsii okisleniya uglevodorodov v zhidkoi faze (Chain Reactions of Hydrocarbon Oxidation in the Liquid Phase). Moscow: Nauka; 1965. 375 p. (in Russ.).

15. Sapunov V.N., Koshel’ G.N., Rumyantseva Y.B., et al. The role of N-hydroxyphthalimide in the reaction mechanism of liquid-phase oxidation of p-cymene. Pet. Chem. 2013;53(3): 171–176. https://doi.org/10.1134/S0965544113030092 [Original Russian Text: Sapunov V.N., Koshel’ G.N., Rumyantseva Yu.B., Kurganova E.A., Kukushkina N.D. The role of N-hydroxyphthalimide in the reaction mechanism of liquid-phase oxidation of p-cymene. Neftekhimiya. 2013;53(3):193–198 (in Russ.). https://doi.org/10.7868/S0028242113030106 ]

16. Perkel’ A.L., Voronina S.G., Buneeva E.I., Nepomnyashchikh Yu.V., Nosacheva I.M. Peroxide precursors for the destruction of the carbon chain in the processes of liquid-phase oxidation of saturated compounds at stages following the formation of alcohol and ketone. Vestnik Kuzbasskogo gosudarstvennogo tekhnicheskogo universiteta = Bulletin of the Kuzbass State Technical University. 2003;5: 92–103 (in Russ.).

17. Ishii Y. A novel catalysis of N-hydroxyphthalimide (NHPI) combined with Co(acac)n (n = 2 or 3) in the oxidation of organic substrates with molecular oxygen. J. Mol. Catal. A: Chem. 1997;117(1–3):123–137. https://doi.org/10.1016/S1381-1169(96)00265-8

18. Dobras G., Orlińska B. Aerobic oxidation of alkylaromatic hydrocarbons to hydroperoxides catalysed by N-hydroxyimides in ionic liquids as solvents. Appl. Catal. A: Gen. 2018;561: 59–67. https://doi.org/10.1016/j.apcata.2018.05.012
