Self-Regulating Electrically Conductive Materials Based on Polyethylene Compositions with UHMWPE and Carbon Black

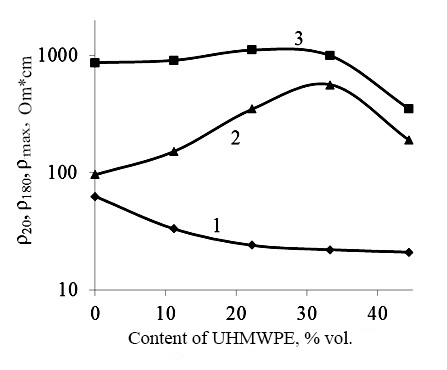

Electrically conductive composites based on high density polyethylene (HDPE) / ultrahigh molecular weight polyethylene (UHMWPE) blends filled with carbon black were studied. The work is a part of the research of electrically conductive materials for the manufacture of self-regulating polymer heaters. In this work, the authors investigated composites based on HDPE/UHMWPE (molecular mass of ~ 7 million) blends filled with carbon black (average particle size ~ 20 nm). The goal of the work was to obtain a self-regulating electrically conductive polymer material with optimal thermoelectric characteristics and high heat resistance. It was shown that the effect of adding UHMWPE to the HDPE/carbon black composites on the thermoelectric behavior of the resulting material was similar to cross-linking. This reduced the undesirable effect of the negative thermal coefficient (NTC) of the electrical resistance. In addition, the heat resistance of the material at elevated temperatures was increased. This makes it possible to exclude the radiation or chemical cross-linking in the manufacture of self-regulating polymer heating elements. The rheological, mechanical and thermoelectric properties of HDPE/carbon black composites modified with UHMWPE were also studied. It was found that a diffusion interphase layer with a reduced fluidity in the melt of HDPE/UHMWPE blends was formed. It was established that self-regulating composites containing 30–40% of UHMWPE had the best operational properties. We can recommend the methods of extrusion and injection molding for the processing of HDPE/carbon black composites mixed with 30% UHMWPE, and the pressing method in case of UHMWPE content of 40%. The ability of the composites to be molded is sharply reduced at higher contents of UHMWPE.

1. Ivanovsky V.I. Carbon black. Processes and devices. Omsk: JSC «Tekhuglerod» Publ., 2004. 228 p. (in Russ.)

2. Zhang W., Dehghani-Sanij A.A., Blackburn R.S. Carbon based conductive polymer composites. J. Mater. Sci. 2007; 42:3408-3418. https://doi.org/10.1007/s10853-007-1688-5

3. Xiao A.Y., Tong Q.K., Savoca A.C., Van Oosten H. Conductive ink for through hole application. IEEE Trans. Compon. Pack. Technol. 2001; 24(3):445-449. DOI: 10.1109/6144.946492.

4. Lipatov Yu.S., Mamunya E.P., Gladyreva N.A., Lebedev E.V. Effect of soot distribution on the electrical conductivity of polymer blends. Vyisokomolekulyarnyie soyedineniya (Polymer Science. Series A). 1983; 25(7):1483-1489. (in Russ.)

5. Heaney M. B.Resistance-expansion-temperature behavior of a disordered conductor-insulator composite. Appl. Phys. Lett. 1996; 69:2602-2604. doi: 10.1063/1.117713

6. Hindermann-Bischoff M., Ehrburger-Dolle F. Electrical conductivity of carbon black-polyethylene composites. Experimental evidence of the change of cluster connectivity in the PTC effect. Carbon. 2001; 39:375-382. doi: 10.1016/ S0008-6223(00)00130-5

7. Markov V.A., Kandyrin L.B., Markov A.V., Gorodnitsky M.S. Effect of crystallization on electrical resistivity of composites filled with carbon black. Konstrukcii iz kompozicionnyh materialov (Composite Materials Constructions). 2013; 3(131):35-40. (in Russ.)

8. Tang H., Chen X., Tang A., Luo Y. Studies on the electrical conductivity of carbon black filled polymers. J. Appl. Polym. Sci. 1996; 59:383-387.

9. Dafu W., Tiejun Z., Yi X.-S. Resistivity-volume expansion characteristics of carbon black-loaded polyethylene. J. Appl. Polym. Sci. 2000; 77:53-58.

10. Markov V.A., Kandyrin L.B., Markov A.V. The influence of technological additives on the electrical characteristics of PE composites with technical carbon. Vestnik MITHT. 2013; 8(6):103-107. (in Russ.)

11. Beaucage G., Rane S., Schaefer D. W., Long G., Fischer D. Morphology of polyethylene–carbon black composites. J. Polym. Sci. Ser. B. 1999; 37:1105-1119.

12. Azulay D., Eylon M., Eshkenazi O., Toker D., Balberg M., Shimoni N., Millo O., Balberg I. Electrical-thermal switching in carbon-black–polymer composites as a local effect. Phys. Rev. Lett. 2003; 90(236601):1-4. Doi:10.1103/ PhysRevLett.90.236601

13. Markov V.A., Kandyrin L.B., Markov A.V. Effect of strain on electrical resistivity of carbon black filled of polyethylene composites. Konstrukcii iz kompozicionnyh materialov (Composite Materials Constructions). 2013; 4(132):40-44. (in Russ.)

14. Markov V.A., Markov A.V., Poldushov M.A., Abysov E.Yu. The influence of the method of preparation of electrically conductive composites based on PE, PP and carbon black on their properties at elevated temperatures. Plasticheskie massy (Plastics). 2015; 1-2:13-17. (in Russ.)

15. Markov V.A., Markov A.V., Poldushov M.A., Abysov E.Y. The influence of the method used to prepare electrically conductive composites based on polyethylene, polypropylene, and carbon black on their properties at elevated temperatures. Int. Polym. Sci. & Techn. 2016; 43(3):T13-T18.

16. Markov A.V., Kuleznev V.N., Ivanov V.V., Persits V.G., Markov V.A., Krivolapova O.V. Heat-resistant films of silanol cross-linked polyethylene. Plasticheskie massy (Plastics). 2010; 9:18-22. (in Russ.)

17. Markov V.A. Kandyrin L.B. Markov A.V., Sorokina E.A. Effect of silane-crosslinking on electrical properties and heat-resistance of carbon black filled polyethylene composites. Plasticheskie massy (Plastics). 2013; 10:21-24. (in Russ.)

18. Savvinova M.E., Kovalenko N.A. Electospending compositions on the basis of polymers with the disperse filler. Konstrukcii iz kompozicionnyh materialov (Composite Materials Constructions). 2011; 17(4):577-583. (in Russ.)

19. Zimin Yu.B., Smyshlyaev K.V., Vlasov S.V., Surzhenko V.V., Marko Ya.G., Astrina V.I., Markov A.V. Properties and methods for obtaining rough polymer films. Plasticheskie massy (Plastics). 1977; 4:60-66. (in Russ.)

20. Markov A.V., Kuleznev V.N. Formation of the phase structure and its influence on the properties of oriented polypropylene- polyethylene blend films. Vyisokomolekulyarnyie soyedineniya (Polymer Science. Series A). 2008; 50(4):422-428.

21. Markov V.A., Markov A.V., Tahseen A.Saki. Effect of relaxation processes during deformation on electrical resistivity of polyethylene composites filled with carbon black. J. Polym. Res. 2016; 23(9):1-5.

22. Markov A.V., Simonov-Emelyanov I.D., Prokopov N.I., Ganiev E.Sh. Markov V.A. Study of the technological properties of rigid PVC compositions with various fillers. Vestnik MITHT. 2012; 7(4):100-105. (in Russ.)

23. Gul V.E., Sokolova V.P., Weiser L.V., Aripov E.A., Bondarenko S.Z., Berlyand A.M. The study of the mechanism of electrical conductivity of conductive plastics with binary filler. Vyisokomolekulyarnyie soyedineniya (Polymer Science. Series B). 1970; 12(6):439-442. (in Russ.)

24. Klimovich A.F., Gurinovich L.M. Electrically conductive polymer composites. Plasticheskiye massy (Plastics). 1975; 7:53-55. (in Russ.)

25. Chmutin I.A., Letyagin S.V., Shevchenko V.G., Ponomarenko, A.T. Electroconducting polymer composites: structure, contact phenomena and anisotropy. Vyisokomolekulyarnyie soyedineniya (Polymer Science. Series A). 1994; 36(4):699-713. (in Russ.)

26. Ponomarenko А.Т., Shevchenko V.G., Letyagin S.V., Klason C. Anisotropy of conductivity in carbon fiber-reinforced plastics with continuous fibers. Proceed. SPIE 2443. Smart Structures and Materials. San Diego, California, 27 Feb. 3 March 1995. Р. 831-840. DOI: 10.1117/12.208323.

27. Motavkin A.V., Pokrovskii E.M. Cluster formation in the structure of polymeric composites. Polym. Sci. Ser. A. 1997; 39(12):1338-1349.

28. Kovalenko N.A., Chersky I.N. The study of physico-mechanical properties of compositions based on polytetrafluoroethylene with carbon fillers. Mekhanika kompozitsionnykh materialov i konstruktsii (Mechanics of Composite Materials and Structures). 1991; 1:19-24. (in Russ.)

29. Pomortsev P.B. Electrical conductivity of a percolation system under conditions of a normal skin effect. Fizika metallov i metallovedeniye (Physics of Metals and Metallography). 1997; 82(7):159-161. (in Russ.)
