Preview

Fine Chemical Technologies

Advanced search

The Dispersion Composition of Polymethylmethacrylate Suspensions and Molecular Weights of Polymers Obtained by Suspension Polymerization in the Presence of Acrylic Copolymers as Surfactants

https://doi.org/10.32362/2410-6593-2019-14-2-51-59

Full Text:

Abstract

The dispersion composition of polymer suspensions and molecular weights of polymers obtained by suspension polymerization of MMA in the presence of polymer surfactants – methylmethacrylate and methacrylic acid copolymers – were studied. It is shown that a highly dispersed fraction of particles with diameters of 0.02–2.0 µm and a fraction of particles with large diameters (up to 1000 µm) are always present in the polymer suspension. After fractionation of polymer suspensions 3 fractions of particles with different diameters were obtained. For each particle fraction the molecular masses of polymers were determined by viscometry. A significant difference in the values of the molecular masses of polymers obtained as particles of small and large diameters – 105 and 106 Da, respectively – is shown. The presence of a highly dispersed fraction of particles in which a polymer of high molecular weight is formed has a noticeable effect on the average molecular weight of the polymer. In particles of small diameter polymerization takes place according to a mechanism close to the emulsion, due to the fact that the volume of such particles contains a small amount of radicals. The high rate of polymerization leads to the formation of a polymer of high molecular weight, the appearance of a gel effect and a decrease in the termination constant. In most particles, polymerization proceeds by a mechanism close to the solution polymerization, and polymers of low molecular weight are formed. This makes it possible to synthesize polymers of a given molecular weight in drops of certain dispersity.

About the Authors

I. A. Gritskova
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

D.Sc. (Chemistry), Professor, Professor of the S.S. Medvedev Chair of Сhemistry and Technology of Macromolecular Compounds

86, Vernadskogo pr., Moscow, 119571, Russia



O. A. Satskevich
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Post-graduate Student of the S.S. Medvedev Chair of Chemistry and Technology of Macromolecular Compounds

86, Vernadskogo pr., Moscow, 119571, Russia



E. S. Klyuzhin
JSC «Academician V.A. Kargin Research Institute of Chemistry and Technology of Polymers with a Pilot Plant»
Russian Federation

D.Sc. (Chemistry), Leading Researcher of the Department of Radical Polymerization

606000, Russia, Dzerzhinsk



A. I. L’vovskiy
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Engineer of the 1st category of the K.A. Bolshakov Chair of Chemistry and Technology of Rare and Scattered Elements, Nanoscale and Composite Materials

86, Vernadskogo pr., Moscow, 119571, Russia



A. V. Andreeva
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Ph.D. (Chemistry), Leading Engineer of the S.S. Medvedev Chair of Chemistry and Technology of Macromolecular Compounds

86, Vernadskogo pr., Moscow, 119571, Russia



N. S. Мukha
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Student of the S.S. Medvedev Chair of Chemistry and Technology of Macromolecular Compounds

86, Vernadskogo pr., Moscow, 119571, Russia



M. I. Haddaj
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

D.Sc. (Chemistry), Professor of the S.S. Medvedev Chair of Chemistry and Technology of Macromolecular Compounds

86, Vernadskogo pr., Moscow, 119571, Russia



S. M. Levachev
Lomonosov Moscow State University
Russian Federation

D.Sc. (Chemistry), Associate Professor, Chemistry Faculty

1, Leninskie Gory, Moscow 119899, Russia



References

1. Jahanzad F., Sajjadi S., Yianneskisb M., Brooks B.W. In situ mass-suspension polymerization. Chem. Eng. Sci. 2008; 63:4412-4417.

2. Tuchigami K., Taguchi Y., Tanaka M. Synthesis of calcium carbonate vaterite crystals and their effect on stabilization of suspension polymerization of MMA // Advanced Powder Technology. 2009; 20:74-79.

3. Ze Xie, Qi Ziu, Zheng-Hong Luo. A multiscale CFDPBM coupled model for kinetic and liquid-liquid dispersion behavior in suspension polymerization stirred tank. Chem. Ing. Res. and Design. 2018; 130:1-17.

4. Fitch R.M., Tsai C.H. Particle formation in polymer colloids. III. Prediction of the number of particles by a homogeneous nucleation theory. In: Polymer Colloids. New York, 1971: 73-102.

5. Mahdavian A.R., Abdollahi M. Investigation into the effect of carboxylic acid monomer on particle nucleation and growth in emulsifier-free emulsion copolymerization of styrene, butadiene and acrylic acid. Polymer. 2004; 45:3233-3239.

6. Tauer K., Oz N. Interfacial energy promotes radical heterophase polymerization. Macromolecules. 2004; 37:5880-5888.

7. Ballard N., Agneirre M., Simula A., Leiza J.R., Van Es S., Mausa J. Nitroxide mediated suspension polymerization of metacrylic monomers. Chem. Eng. J. 2017; 316:665-662.

8. Maletskova E.A. To the question of stabilization of the size of the granules in the suspension polymers. Plasticheskie massy (Plastics). 1961; (8):6-9. (in Russ.)

9. Pointer C.A., Durand J., Pinto J.C., Prat Z. Real time monitoring of quiescent suspension polymerization of methylmetacrylate in microreactors. Part 1. A kinetic study by Raman spectroscopy in evolution of droplet-size. Chem. Eng. Science. 2015; 131:340-352.

10. Kholodova A.A., Beloded L.N., Klyuzhin E.S. Suspension copolymerization of butylmethacrylate and methacrylic acid in the presence of polymer dispersants of different chemical composition. Plasticheskie massy (Plastics). 2009. (11):38-40. (in Russ.)

11. Gritskova I.A., Amelichev A.A., Saskevich O.A., Shkol’nikov A.V. , Ezhova A.A., Simakova G.A., Vasnev V.A., Lobanov N.A., Izmailov B.A. Colloidal-chemical properties of organosilicone surfactants used in the synthesis of polystyrene latex. Tonkie Khim. Tech. = Fine chemical technologies. 2016; 10(4): 56-62.

12. Chaikovskii P.M. Kinetics and topochemically characteristics of emulsion polymerization. Successes of Сhemistry. 1958; 27(2):1025-1055.

13. Chaikovskii P.M. Elementary reactions of emulsion polymerization. Successes of Chemistry. 1959; 28(5):547-575.

14. Oudian D. Fundamentals of polymer chemistry. Moscow: Mir, 1974. 249 p. (in Russ.)

15. Dowding P.J., Vincent B. Suspension polymerization to form polymer beads. Colloids and Surfaces. A: Physicochemical and Engineering Aspects. 2000; 161:259-269.

16. Klyushin E.S. Polyacrylic dispersions for adhesive and film-forming compositions, preparation and properties: D.Sc. (Chem.) thesis. Moscow, 2013. 317 p. (in Russ.)


Supplementary files

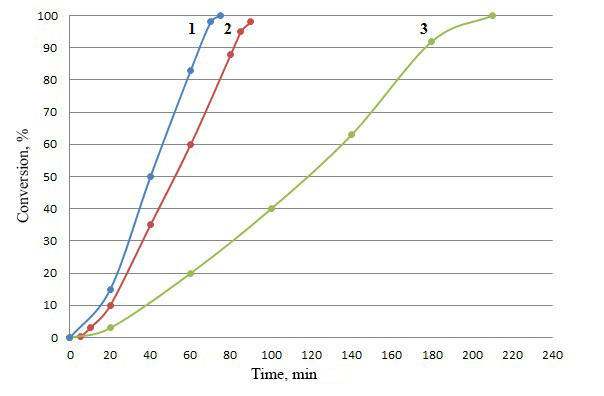

1. Fig. 1. Conversion curves. The time for suspension polymerization of MMA in the presence of different surfactants: 1 – AMPSA; 2 – VPRG; 3 – AMPSA-MMA.
Subject
Type Research Instrument
View (92KB)
Indexing metadata

For citation:


Gritskova I.A., Satskevich O.A., Klyuzhin E.S., L’vovskiy A.I., Andreeva A.V., Мukha N.S., Haddaj M.I., Levachev S.M. The Dispersion Composition of Polymethylmethacrylate Suspensions and Molecular Weights of Polymers Obtained by Suspension Polymerization in the Presence of Acrylic Copolymers as Surfactants. Fine Chemical Technologies. 2019;14(2):51-59. (In Russ.) https://doi.org/10.32362/2410-6593-2019-14-2-51-59

Views: 309


ISSN 2410-6593 (Print)
ISSN 2686-7575 (Online)
