Dichlorocarbenation of polar olefins in conditions of microwave irradiation

Objectives. To evaluate the influence and efficiency of using microwave irradiation on the dichlorocarbenation of polar olefins. To determine the conditions (reaction time and process temperature) under which the maximum yield of target gem-dichlorocyclopropanes is achieved.

Methods. The target compounds were obtained by classical methods of organic synthesis— acetalization of polyols and dichlorocarbenation of unsaturated compounds. The preparation of gem-dichlorocyclopropanes was carried out using the microwave activation method on a Sineo device (microwave system for organic synthesis, made in China). In order to determine the qualitative and quantitative composition of the reaction masses, gas–liquid chromatography (using the Kristall 2000 hardware complex), mass-spectroscopy (using Chromatek-Kristall 5000M device with NIST 2012), and nuclear magnetic resonance spectroscopy (using Bruker AM-500 device with operating frequencies of 500 and 125 MHz) were carried out.

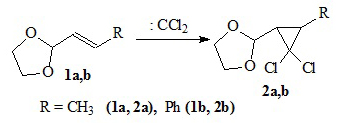

Results. Under microwave irradiation at 25°C for 2 h with the maximum yield (92–98%), the target substituted gem-dichlorocyclopropanes were obtained: 2-(2,2-dichloro-3-methylcyclopropyl)-1,3-dioxolane, 2-(2, 2-dichloro-3-phenylcyclopropyl)-1,3-dioxolane, 8,8-dichloro4-isopropyl-3,5-dioxabicyclooctane, diethyl-2,2-dichloro-3-phenylcyclopropane-1,1-dicarboxylate, and diethyl-2,2-dichloro-3isopropylcyclopropane-1,1-dicarboxylate.

Conclusions. Under the conditions herein proposed, the use of the microwave stimulation method in the dichlorocarbenation of double C=C bonds containing polar substituents allows the reduce the temperature and reaction time to be significantly reduced, and the yield of target gem-dichlorocyclopropanes to be increased.

1. Kailania M.H., Al-Bakrib A.G., Saadeha H., Al-Hiari Y.M. Preparation and antimicrobial screening of novel 2, 2-dichlorocyclopropane–cis-dicarbamates and comparison to their alkane and cis-alkene analogs. Jordan J. Chem. 2012;7(3):239–252.

2. Ziyat H., Ait Itto M.Y., Ait Ali M., Karim A., Riahi A., Daran J.C. Stereochemistry of two new polyfunctionalized gem-dihalocyclopropanes. Acta Cryst. 2002;C58(2):90–93. https://doi.org/10.1107/S0108270101019680

3. Fedorynski M. Synthesesof gem-dihalocyclopropanes andtheir use in organic synthesis. Chem. Rev. 2003;103(4):1099–1132. https://doi.org/10.1021/cr0100087

4. Kumar S., Neudecker T. The activation efficiency of mechanophores can be modulated by adjacent polymer composition. RSC Advances. 2021;11(13):7391–7396. http://doi.org/10.1039/D0RA09834E

5. Stanislawski P.C., Willis A.C., Banwell M.G. Gem-dihalocyclopropanes asbuildingblocksinnatural-product synthesis: enantioselective total syntheses of ent-erythramine and 3-epi-erythramine. Chem. Asian J. 2007;2(9):1127–1136. https://doi.org/10.1002/asia.200700155

6. Ouchi T., Bowser B.H., Kouznetsova T.B., Zheng X., Craig S.L. Strain-triggered acidification in a double-network hydrogel enabled by multi-functional transduction of molecular mechanochemistry. Mater. Horiz. 2023;10(2):585–593. https://doi.org/10.1039/D2MH01105K

7. Merrer D.C., Rablen P.R. Dichlorocarbene addition to cyclopropenes: a computational study. J. Org. Chem. 2005;70(5):1630–1635. https://doi.org/10.1021/jo048161z

8. Rablen P.R., PaizA.A., Thuronyi B.W., Jones M. Computational investigation of the mechanism of addition of singlet carbenes to bicyclobutanes. J. Org. Chem. 2009;74(11):4252–4261. https://doi.org/10.1021/jo900485z

9. Mikhailova N.N., Giniyatullina E.Kh., Zlotskii S.S. Dihalocarbenation of 2-(1-propenyl)-1,3-dioxolane. Izvestiya Vysshikh Uchebnykh Zavedenii, Khimiya i Khimicheskaya Tekhnologiya. 2010;53(5):14–18 (in Russ.).

10. Thankachan A.P., Sindhu K.S., Krishnan K.K., Anilkumar G. Recent advances in the syntheses, transformations and applications of 1,1-dihalocyclopropanes. Org. Biomol. Chem. 2015;13(33):8780–8802. https://doi.org/10.1039/c5ob01088h

11. Musin A.I., Sultanova D.S., Borisova Yu.G., Mudrik T.P., Daminev R.R. Condensation of secondary amines with CH-acids and formaldehyde under the influence of microwave radiation. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2023;18(1):21–28 (Russ., Eng.). https://doi.org/10.32362/2410-6593-2023-18-1-21-28

12. Sakhabutdinova G.N., Raskil’dina G.Z., Chanyshev R.R., Zlotskii S.S. Synthesis of derivatives of gem-dichlorocyclopropane containing 1,3-dioxolane fragments. Bashkirskii khimicheskii zhurnal = Bashkir Chem. J. 2020:27(1):22–26 (in Russ.).

13. Dzhumaev Sh. Sh., Borisova Yu.G., Raskil’dina G.Z., Zlotskii S.S. Synthesis and reactions of cis-2,3-disubstitutedgem-gemdichlorocyclopropane. Khimiya i tekhnologiya organicheskikh veshchestv = Chemistry and Technology of Organic Substances. 2020;3(15):4–11(in Russ.).

14. Borisova Y.G., Raskil’dina G.Z., Zlotskii S.S. Synthesis of novel spirocyclopropylmalonates and barbiturates. Dokl. Chem. 2017;476(1):201–205. https://doi.org/10.1134/S0012500817090014 [Original Russian Text: Borisova Y.G., Raskil’dina G.Z., Zlotskii S.S. Synthesis of novel spirocyclopropylmalonates and barbiturates. Doklady Akademii Nauk. 2017;476(1):39–44 (in Russ.). https://doi.org/10.7868/S0869565217250090 ]

15. Raskil’dina G.Z., Sakhabutdinova G.N., Musin A.I., et al. Alkaline alcoholysis of gem-dichlorocyclopropane derivatives. Russ. J. Gen. Chem. 2021;91(4):596–601. https:// doi.org/10.1134/S1070363221040034 [Original Russian Text: Raskil’dina G.Z., Sakhabutdinova G.N., Musin A.I., Zlotskii S.S. Alkaline alcoholysis of gemdichlorocyclopropane derivatives. Zhurnal Obshchei Khimii. 2021;91(4):510–516 (in Russ.). https://doi.org/10.31857/S0044460X2104003X ]

16. i. Baryshnikov R.N., Vafi R.M., Fedorenko V.Y., et al. Stereochemistry of seven-membered heterocycles: XLIII. Steric structure of diastereoisomeric 8,8-dichloro(dibromo)-4-R-3,5dioxabicyclo[5.1.0]octanes. Russ. J. Org. Chem. 2003;39(7): 1029–1033. https://doi.org/10.1023/B:RUJO.0000003198.64663.ac [Original Russian Text: Baryshnikov R.N., Vafina R.M., Fedorenko V.Y., Shtyrlin Y.G., Klimovitskii E.N. Stereochemistry of seven-membered heterocycles: XLIII. Steric structure of diastereoisomeric 8,8-dichloro(dibromo)4-R-3,5-dioxabicyclo[5.1.0]octanes. Zhurnal Organicheskoi Khimii. 2003;39(7):1092–1096 (in Russ.).]
