PROCESSING ADDITIVES AND RHEOLOGICAL PROPERTIES OF MOLDED PHENOLIC PLASTICS

https://doi.org/10.32362/2410-6593-2019-14-1-90-96

Full Text:

Abstract

By the method of capillary viscosimetry, the melt flow curves of the molded phenolic resin and its compositions with lubricant, plasticizer and their mixture were obtained. It was shown that the size (diameter) of the capillary channel influences the dependence of the effective shear rate on the shear stress (flow curves) of the studied compositions. Such rheological behavior of the compositions during flow is associated with the effect of sliding along the surface of the capillary wall. According to the Mooney method, the dependences of the effective shear rate at given values of shear stress on the reciprocal of the capillary radius are plotted. The function of the slip velocity on the shear stress on the capillary wall is characterized in terms of the slip coefficient, which relates the shear stress on the capillary wall to the velocity of the composition along it. For the studied compositions, the total flow through the capillary was divided into volume fractions, one of which is associated with a shear flow; the other is determined by the slip effect. It has been shown that the introduction of both a lubricant and a plasticizer into the composition leads to an increase in the fluidity of the compositions. At the same time, adding of lubricant increases the volume fraction of the slip flow. The greatest effect of increasing the fluidity of the composition gives the use of complex modifying additives containing both lubricant and plasticizer.

About the Authors

P. V. Surikov
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Ph.D. (Engineering), Associate Professor of the Chair of Chemistry and Technology of Plastic Processing and Polymer Composites,

86, Vernadskogo pr., Moscow, 119571, Russia



N. L. Shembel
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Ph.D. (Engineering), Senior Researcher of the Chair of Chemistry and Technology of Plastic Processing and Polymer Composites

86, Vernadskogo pr., Moscow, 119571, Russia



A. A. Yurkin
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Assistant of the Chair of Chemistry and Technology of Plastic Processing and Polymer Composites

86, Vernadskogo pr., Moscow, 119571, Russia



A. V. Petrogradsky
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Ph.D. (Engineering), Senior Researcher of the K.A. Andrianov Chair of Chemistry and Technology of Organoelement Compounds

86, Vernadskogo Pr., Moscow, 119571, Russia



V. D. Sevruk
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Ph.D. (Engineering), Head of the Laboratory of the Chair of Chemistry and Technology of Plastic Processing and Polymer Composites

86, Vernadskogo Pr., Moscow, 119571, Russia



I. D. Simonov-Emelyanov
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

D.Sc. (Engineering), Professor, Head of the Chair of Chemistry and Technology of Plastic Processing and Polymer Composites

86, Vernadskogo Pr., Moscow, 119571, Russia



References

1. Leonov A.I., Basov N.I., Kazankov Yu.V. Тhe basis of the processing of thermosets and rubbers by casting under pressure. Moscow: Khimiya Publ., 1997. 216 р. (in Russ.)

2. Derkach Ya.S. Injection molding thermosets. Polimernyye materialy (Polymer Materials). 2005; (1): 10-14. (in Russ.)

3. Stavrov V.P., Dedyukhin V.N., Sokolov A.D. Technological tests of thermosetting plastics. Moscow: Khimiya Publ., 1981. 248 p. (in Russ.)

4. Kalinchev A.L., Sakovtseva M.B. Efficient injection molding of polymeric materials with lubricants. Polimernyye materialy (Polymer Materials). 2014; (7): 12-26 (in Russ.)

5. Simonov-Emelyanov I.D., Shembel N.L., Lyutova L.G., Kuznetsov D.Yu. New national high-flowing injection molding thermosets. Message 1. Plasticheskiye massy (Plastics). 2004; (10): 13-15. (in Russ.)

6. Simonov-Emelyanov I.D., Shembel N.L., Lyutova L.G., Kuznetsov D.Yu. New national high-flowing injection molding thermosets. Message 2. Plasticheskiye massy (Plastics). 2005; (1): 28-30. (in Russ.)

7. Simonov-Emelyanov I.D., Shembel N.L., Lyutova L.G., Lisitsa V.V., Kuznetsov D.Yu. Estimation of fluidity of the melt molding of phenolic plastics. Plasticheskiye massy (Plastics). 2004; (7): 16-18. (in Russ.)

8. Zweifel H., Maier R., Schilller M. Plastic Additives Handbook 6E. Carl Hanser Verlag GmbH, 2009. 1248 p.

9. Malkin A.Ya., Chalykh A.E. Diffusion and viscosity of polymers. Methods of measurement. Moscow: Khimiya Publ., 1979. 304 p. (in Russ.)

10. Yurkin A.A., Surikov P.V., SimonovEmelyanov I.D. Performance evaluation of different nature rheological additives to processing of polymeric materials. Vestnik MITHT (Fine Chemical Technologies). 2014; 9(3): 86-91. (in Russ.)

11. Yankov V.I., Boyarchenkov V.I., Pervadchuk V.P., Glot I.O., Shakirov N.V. Processing of fiber-forming polymers. Basics of polymer rheology and the flow of polymers in canals. Moscow-Izhevsk: SRC "Regular and chaotic dynamics". Institute for Computer Research, 2009. 264 p. (in Russ.)

12.


Supplementary files

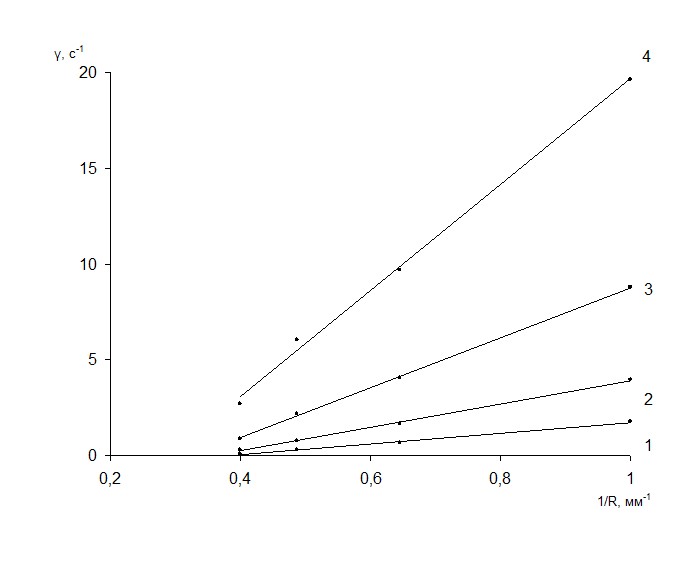

1. The dependence of the effective shear rate on the inverse capillary radius for the melted phenolic resin O250 at shear stress: 1 – 100·кPа; 2 – 160·кPа; 3 – 250 кPа; 4 – 400·кPа.
Subject
Type Research Instrument
View (25KB)
Indexing metadata

For citation:


Surikov P.V., Shembel N.L., Yurkin A.A., Petrogradsky A.V., Sevruk V.D., Simonov-Emelyanov I.D. PROCESSING ADDITIVES AND RHEOLOGICAL PROPERTIES OF MOLDED PHENOLIC PLASTICS. Fine Chemical Technologies. 2019;14(1):90-96. (In Russ.) https://doi.org/10.32362/2410-6593-2019-14-1-90-96
