Analysis of the rectifying separation of H2O–D2O mixture into light and heavy water by means of mathematical modeling

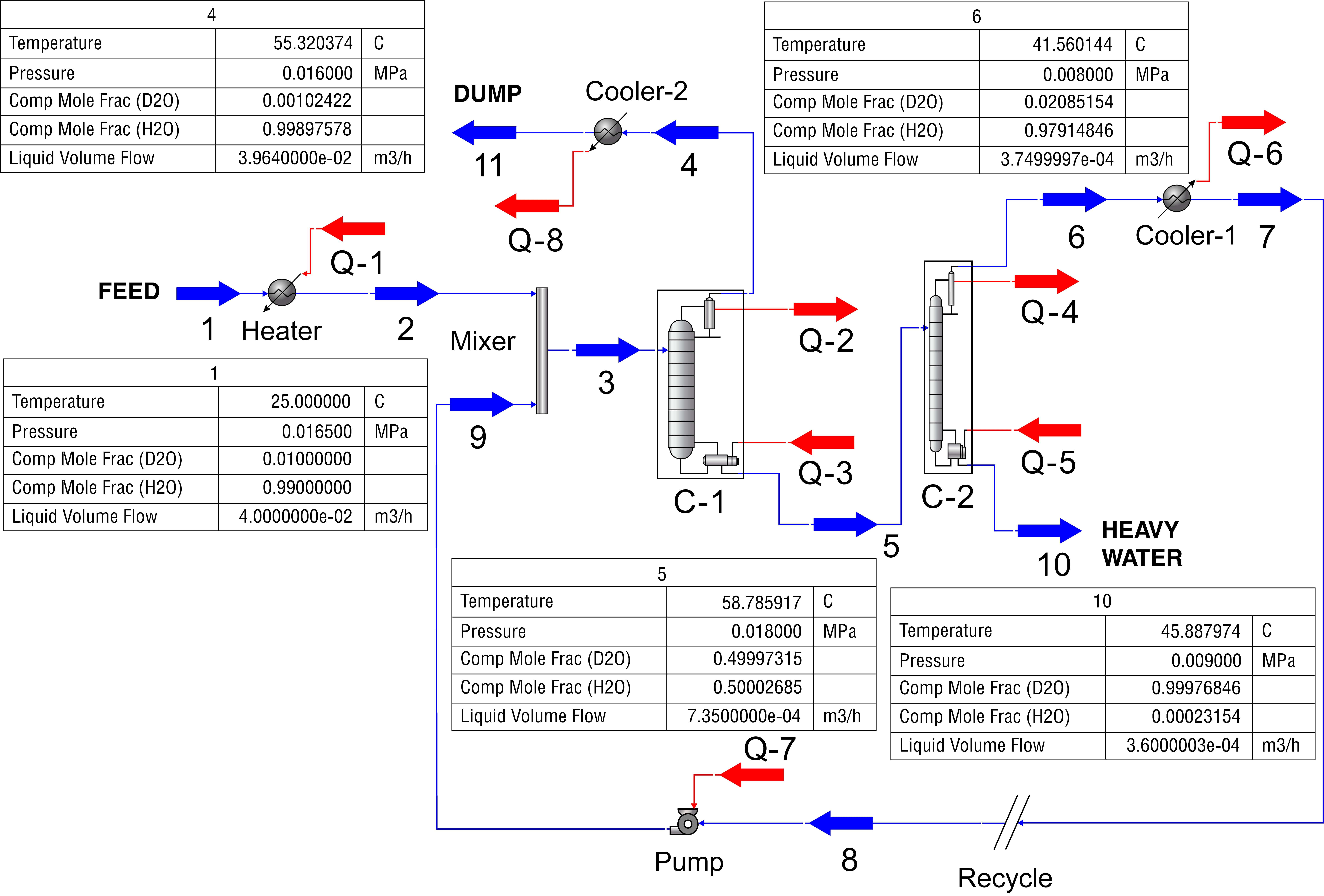

Objectives. To apply an analytical method for the calculation of a distillation column for the production of D₂O at a two-column Kuhn installation operating under vacuum: to simulate the Kuhn installation in the Hysys software; and to compare experimental and calculated data.

Methods. Analytical method for the calculation of distillation columns “from stage to stage,” from the lower theoretical separation stage (TSS) to the upper stage. This method is based on phase equilibrium at the TSS with known data of input flows and component concentrations in the column bottoms. Hysys was used as modeling software.

Results. Comparison of the calculation results with Kuhn’s experimental data testified to the high calculation accuracy of the vapor–liquid phase equilibrium for the H₂O–D₂O mixture at the TSS. The convergence of the D₂O material balance for the entire installation was 0.005%. The identification parameter was the number of the column feed plate. Simulation of the Kuhn installation in the Hysys software showed a qualitative agreement of D₂O concentrations in material flows. The UNIQUAC (UNIversal QUAsiChemical) model was used to calculate activity coefficients. The found values of the number of theoretical separation stages (NTSS) in both columns, were 88 and 153 taking into account the reboiler and condenser. This is less than the experimental 295 and 400, respectively. The discrepancy can be explained by the increased phase equilibrium H₂O constant in the UNIQUAC model. However, the convergence of the material balance in terms of D₂O was high and amounted to 1.38·10−6 %. The absolute error of the found concentrations in material flows did not exceed 0.12 mol %.

Conclusions. The results obtained indicated the possible use of the Hysys modeling software when searching for and optimizing the operating mode of the block diagram of a cascade of distillation columns with direct and recycle flows to separate a mixture of water into light and heavy water. The final results obtained with regard to the operating mode, inlet and outlet material flows (flow rate, composition, temperature, and pressure drop across the column) are recommended for use in the analytical program for the calculation of the distillation column to refine the NTSS and distribution profile of the concentrations of the H₂O and D₂O components along the height of the column.

1. Plotnikova L.V., Chilikova I.I., Sitnikov S.Y., Ukhlin V.E., Efremov G.I., Kislov A.P. Computer model of the power system with inclusion of a heat pump in the process of separation. E3S Web of Conf. 2019;124:01032. https://doi.org/10.1051/e3sconf/201912401032

2. Sotelo D., Favela-Contreras A., Lozoya C., Beltran-Carbajal F., Dieck-Assad G., Sotelo C. Dynamic simulation of a crude oil distillation plant using Aspen-Hysys. Int. J. Simul. Model. 2019;18(2):229–241. https://doi.org/10.2507/IJSIMM18(2)465

3. Magomedbekov E.P., Belkin D.Yu., Rastunova I.L., Sazonov A.B., Selivanenko I.L., Kulov N.N. Simulation and Optimization of the Deprotiation Cascade of a Heavy-Water Moderator. Theor. Found. Chem. Eng. 2017;51(2):133–141. https://doi.org/10.1134/S004057951702004X [Original Russian Text: Magomedbekov E.P., Belkin D.Yu., Rastunova I.L., Sazonov A.B., Selivanenko I.L., Kulov N.N. Simulation and Optimization of the Deprotiation Cascade of a Heavy-Water Moderator. Teoreticheskie osnovy khimicheskoi tekhnologii. 2017;51(2):131–139 (in Russ.). https://doi.org/10.7868/S0040357117020051 ]

4. Korotkova T.G., Kas’yanov G.I. Calculating a Rectification Column for Separating Mixtures of Light and Heavy Water. Russ. J. Phys. Chem. 2021;95(5):1051–1060. https://doi.org/10.1134/S0036024421050186 [Original Russian Text: Korotkova T.G., Kas’yanov G.I. Calculating a Rectification Column for Separating Mixtures of Light and Heavy Water. Zhurnal fizicheskoi khimii. 2021;95(5):800–809 (in Russ.). https://doi.org/10.31857/S0044453721050186 ]

5. Walas S. Fazovye ravnovesiya v khimicheskoi tekhnologii (Phase equilibria in chemical technology). In 2 v.; transl. from Engl. Moscow: Mir; 1989. V. 1. 301 p. V. 2. 360 p. (in Russ.).

6. Alshbuki E.H., Bey M.M., Mohamed A.A. Simulation Production of Dimethylether (DME) from Dehydration of Methanol Using Aspen Hysys. Sch. Int. J. Chem. Mater. Sci. 2020;3(2):13–18. https://doi.org/10.36348/sijcms.2020.v03i02.002

7. Ivanov I.V., Lotkhov V.A., Kulov N.N. Modeling of batch extractive distillation. Theor. Found. Chem. Eng. 2017;51(3):253–261. https://doi.org/10.1134/S004057951703006X [Original Russian Text: Ivanov I.V., Lotkhov V.A., Kulov N.N. Modeling of batch extractive distillation. Teoreticheskie osnovy khimicheskoi tekhnologii. 2017;51(3):239–247 (in Russ.). https://doi.org/10.7868/S004035711703006X ]

8. Gil I.D., Uyazán A.M., Aguilar J.L., Rodríguez G., Caicedo L.A. Separation of ethanol and water by extractive distillation with salt and solvent as entrainer: process simulation. Braz. J. Chem. Eng. 2008;25(01):207–215. https://doi.org/10.1590/S0104-66322008000100021

9. Korotkova T.G., Konstantinov E.N. Modeling technology for food alcohol on distillation plant. Izvestiya vuzov. Pishchevaya tekhnologiya = Food Technology. 2012;1(325):108–111 (in Russ.).

10. Jorge L.M.M, Polli P.A., Nicolin D.J., Jorge R.M.M., Paraíso P.R., Filho R.M. Simulation and analysis of an industrial column system of bioethanol distillation heated by vapor direct injection. ENGEVISTA. 2015;17(2):254–265. https://doi.org/10.22409/engevista.v17i2.657

11. Korotkova T.G., Konstantinov E.N. Production technology of anhydrous ethyl alcohol azeotropic method. Izvestiya vuzov. Pishchevaya tekhnologiya = Food Technology. 2013;1(331):72–76 (in Russ.).

12. Bhattacharyya R, Bhanja K. Studies on the Dynamic Behaviour and Hydraulic Characteristics of a Water Distillation Column. Chem. Technol. Ind. J. 2018;13(2):125. URL: https://www.tsijournals.com/articles/studies-on-thedynamic-behaviour-and-hydraulic-characteristics-of-a-waterdistillation-column-13803.html

13. Krell E. Handbuch der Labaratoriumsdestillation. Berlin; 1976. [Krel’ E. Rukovodstvo po laboratornoi peregonke. (Handbook on laboratory distillation) transl. from German. Moscow: Khimiya; 1980. 520 p. (in Russ.).]

14. Vargaftik N.B. Spravochnik po teplofizicheskim svoistvam gazov i zhidkostei (Reference book on thermophysical properties of gases and liquids). Moscow: Nauka; 1972. 720 p. (in Russ.).

15. Volkov A.I., Zharskii I.M. Bol’shoi khimicheskii spravochnik (Big chemical reference book). Minsk: Sovremennaya shkola; 2005. 608 p. (in Russ.).

16. Rozenkevich M.B., Rastunova I.L. Theoretical foundations of isotope separation processes. In: Interaction of Hydrogen Isotopes with Structural Materials: Abstracts of presentations at the V International Conference and IX International School for Young Scientists and Specialists. Sarov; 2015. P. 57–76 (in Russ.). URL: http://book.sarov.ru/wp-content/uploads/2017/12/IHISM-14-5.pdf

17. Korotkova T.G., Kasyanov G.I., Baryshev M.G. Validation for adequacy description of the vapor-liquid phase equilibrium at the theoretical step when separating a mixture of light and heavy water by rectification. Egyptian J. Chem. 2022;65(2):591–595.
