Heterophase synthesis of cobalt ferrite

Full Text:


Objectives. The study aimed to develop new methods for the synthesis of cobalt ferrite (CoFe2O4), which is a precursor for the synthesis of CoFe2O4-based functional materials, as well as to study the physicochemical properties of the obtained phases.

Methods. Two methods were used for the synthesis of CoFe2O4: (1) heterophase interaction of hydrated iron oxide with cobalt(II, III) oxide and (2) heterophase interaction of hydrated iron oxide with an aqueous solution of cobalt(II) sulfate (CCo = 0.147 mol/L, solid/liquid = 1:43). In both cases, the precursor was hydrated iron oxide (Fe2O3, 84.4 wt %), which was obtained by the heterophase interaction of iron(III) chloride with a concentrated ammonia solution (6.0–9.5 mol/L). The resulting intermediate products were subjected to thermal treatment at 750 °C (synthesis 1) and at 900 °C (synthesis 2) for 10–30 h in increments of 10 h. The synthesized phases and products of their thermolysis were studied by differential thermal analysis and differential thermogravimetry (DTA–DTG), X-ray diffraction analysis (XRDA), and granulometry.

Results. The hydrated iron oxide sample remained amorphous even up to the crystallization temperature of 445 °C, which corresponds to the exothermic effect on the DTA curve. Further heating led to the α-modification of iron(III) oxide of the hexagonal system (a = b = 5.037 ± 0.002 Å; c = 13.74 ± 0.01 Å), which has an average particle size of 1.1 μm. XRDA results showed that a synthesis temperature of 750 °C (synthesis 1) and a heat treatment duration of 30 h were sufficient for the formation of a single-phase cobalt ferrite (a = 8.388 ± 0.002 Å) with an average particle diameter of 1.9 μm. For synthesis 2, a higher temperature of 900 °C was used because sample weight loss (about 12.5%) was observed in the temperature range of 720–810 °C based on the DTA results, which was due to the removal of SO2 and SO3. Moreover, when synthesis temperature and duration were at 900 °C and 30 h, respectively, CoFe2O4 with a = 8.389 ± 0.002 Å was formed. The results of the granulometric analysis showed that particles of different diameters were formed. The smallest particle size (1.5 μm) of cobalt ferrite was obtained by the heterophase interaction of hydrated iron(III) oxide (Fe2O3, 84.4 wt %) with an aqueous solution of cobalt sulfate with CCo = 0.147 mol/L. Conclusions. Depending on the method used for the synthesis of cobalt ferrite, particles of different diameters are formed. The smallest particle size of cobalt ferrite was obtained from the heterophase interaction of hydrated iron(III) oxide with an aqueous solution of cobalt(II) sulfate.

About the Author

E. E. Nikishina
MIREA – Russian Technological University, M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Elena E. Nikishina - Assistant Professor, Department of Chemistry and Technology Rare Elements, Scopus Author ID 6602839662, ResearherID О-7115-2014

86, Vernadskogo pr., Moscow, 119571

Competing Interests:



1. Yan Z., Gao J., Li Y., Zhang M., Guo M. Hydrothermal synthesis and structure evolution of metal-doped magnesium ferrite from saprolite laterite. RSC Advances. 2015;5:92778–92787.

2. Kefeni K.K., Mamba B.B., Msagati T.A.M. Application of spinel ferrite nanoparticles in water and wastewater treatment: A review. Sep. Purif. Technol. 2017 Nov;188:399–422.

3. Rashdan S.A., Hazeem L.J. Synthesis of spinel ferrites nanoparticles and investigating their effect on the growth of microalgae Picochlorum sp. Arab J. Basic Appl. Sci. 2020 Feb;27(1):134–141.

4. Amiri M., Salavati-Niasari M., Akbari A. Magnetic nanocarriers: Evolution of spinel ferrites for medical applications. Adv. Colloid Interface Sci. 2019 Mar;265:29–44.

5. Vedrtnam A., Kalauni K., Dubey S., Kumar A. A comprehensive study on structure, properties, synthesis and characterization of ferrites. AIMS Materials Science. 2020;7(6):800–835.

6. Zhou J., Shu X., Wang Y., Ma J. et al. Enhanced Microwave Absorption Properties of (1-x)CoFe2O4/xCoFe Composites at Multiple Frequency Bands. J. Magn. Magn. Mater. 2020 Jun;493:165699–165708.

7. Bartunek V., Sedmidubsky D., Hube, S., Svecov, M., Ulbrich P., Jankovsky O. Synthesis and properties of nanosized stoichiometric cobalt ferrite spinel. Materials. 2018 Jul;11(7):1241–1251.

8. Zhou Z., Zhang Y., Wang Z., Wei W., et al. Electronic structure studies of the spinel CoFe2O4 by X-ray photoelectron spectroscopy. Appl. Surf. Sci. 2008 Aug;254(21):6972–6975.

9. Das D., Biswas R., Ghosh S. Systematic analysis of structural and magnetic properties of spinel CoB2O4 (B=Cr, Mn and Fe) compounds from their electronic structures. J. Phys.: Condens. Matter. 2016 Nov;28(44):446001–446010.

10. Swatsitang E., Phokha S., Hunpratub S., Usher B., Bootchanont A., Maensiri S., et al. Characterization and magnetic properties of cobalt ferrite nanoparticles. J. Alloys Compd. 2016 Apr;664:792–797.

11. Kazemi M., Ghobadi M., Mirzaie A. Based on: Cobalt ferrite nanoparticles (CoFe2O4 MNPs) as catalyst and support: Magnetically recoverable nano-catalysts in organic synthesis. Nanotechnol. Rev. 2017 Jan;7(1):1–50.

12. Srinivasan S.Y., Paknikar K.M., Bodas D., Gajbhiye V. Applications of cobalt ferrite nanoparticles in biomedical nanotechnology. Nanomedicin. 2018 Jun;13(10):1221–1238.

13. Chagas C.A., de Souza E.F., de Carvalho M.C.N.A., Martins R.L., Schmal M. Cobalt ferrite nanoparticles for the preferential oxidation of CO. Appl. Catal. A-Gen. 2016;519C:139–145.

14. Tatarchuk T., Bououdina M., Vijaya J.J., Kennedy L.J. Spinel Ferrite Nanoparticles: Synthesis, Crystal Structure, Properties, and Perspective Applications. In: International Conference on Nanotechnology and Nanomaterials. NANO 2016: Nanophysics, Nanomaterials, Interface Studies, and Applications. 2016 Aug:305–325.

15. Mu J., Perimutte D.D. Thermal Decomposition of Inorganic Sulfates and Their Hydrates. Ind. Eng. Chem. Process Des. Dev. 1981 Oct;20(4):640–646.

Supplementary files

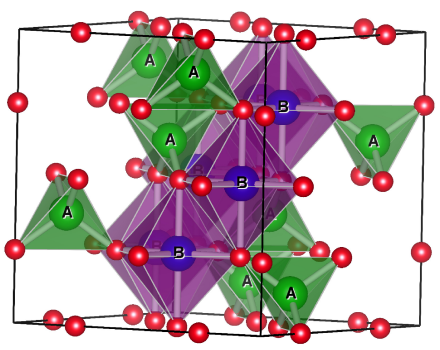

1. Ferrite spinel structure
Type Исследовательские инструменты
View (189KB)
Indexing metadata
  • The methods for the synthesis of cobalt ferrite were developed and the resulting phases were analyzed.
  • Particular attention was paid to the study of the phase composition and granulometry.


For citations:

Nikishina E.E. Heterophase synthesis of cobalt ferrite. Fine Chemical Technologies. 2021;16(6):502-511.
