Characterization of iron-doped crystalline silicon nanoparticles and their modification with citrate anions for in vivo applications

https://doi.org/10.32362/2410-6593-2021-16-5-414-425

Full Text:

Abstract

Objectives. This paper presents data on the development and study of the structural properties of iron-doped crystalline silicon (nc-Si/SiOx/Fe) nanoparticles obtained using the plasma-chemical method for application in magnetic resonance imaging diagnostics and treatment of oncological diseases. This work aimed to use a variety of analytical methods to study the structural properties of nc-Si/SiOx/Fe and their colloidal stabilization with citrate anions for in vivo applications.
Methods. Silicon nanoparticles obtained via the plasma-chemical synthesis method were characterized by laser spark emission spectroscopy, atomic emission spectroscopy, Fouriertransform infrared spectroscopy, and X-ray photoelectron spectroscopy. The hydrodynamic diameter of the nanoparticles was estimated using dynamic light scattering. The toxicity of the nanoparticles was investigated using a colorimetric MTT test for the cell metabolic activity. Elemental iron with different Fe/Si atomic ratios was added to the feedstock during loading.
Results. The particles were shown to have a large silicon core covered by a relatively thin layer of intermediate oxides (interface) and an amorphous oxide shell, which is silicon oxide with different oxidation states SiOx (0 ≤ x ≤ 2). The samples had an iron content of 0.8–1.8 at %. Colloidal solutions of the nanoparticles stabilized by citrate anions were obtained and characterized. According to the analysis of the cytotoxicity of the modified nanosilicon particles using monoclonal K562 human erythroleukemia cells, no toxicity was found for cells in culture at particle concentrations of up to 5 µg/mL.
Conclusions. Since the obtained modified particles are nontoxic, they can be used in in vivo theranostic applications.

About the Authors

K. I. Rozhkov
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

 Postgraduate Student, I.P. Alimarin Department of Analytical Chemistry

86, Vernadskogo pr., Moscow, 119571, Russia



E. Y. Yagudaeva
Shemyakin and Ovchinnikov Institute of Bioorganic Chemistry, Russian Academy of Sciences
Russian Federation

 Cand. Sci. (Chem.), Senior Researcher

Miklukho-Maklaya ul., 16/10, Moscow, 117997, Russia



S. V. Sizova
Shemyakin and Ovchinnikov Institute of Bioorganic Chemistry, Russian Academy of Sciences
Russian Federation

 Cand. Sci. (Chem.), Researcher

Miklukho-Maklaya ul., 16/10, Moscow, 117997, Russia



M. A. Lazov
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

 Assistant, I.P. Alimarin Department of Analytical Chemistry

86, Vernadskogo pr., Moscow 119571, Russia



E. V. Smirnova
Shemyakin and Ovchinnikov Institute of Bioorganic Chemistry, Russian Academy of Sciences
Russian Federation

 Cand. Sci. (Biol.), Researcher

Miklukho-Maklaya ul., 16/10, Moscow, 117997, Russia



V. P. Zubov
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies); Shemyakin and Ovchinnikov Institute of Bioorganic Chemistry, Russian Academy of Sciences
Russian Federation

 Dr. Sci. (Chem.), Professor, S.S. Medvedev Department of Chemistry and Technology of HighMolecular Compounds, Principal Researcher

86, Vernadskogo pr., Moscow, 119571, Russia

Miklukho-Maklaya ul., 16/10, Moscow, 117997, Russia



A. A. Ischenko
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

 Dr. Sci. (Chem.), Professor, I.P. Alimarin Department of Analytical Chemistry

86, Vernadskogo pr., Moscow, 119571, Russia



References

1. Elbeshlawi I., AbdelBaki M.S. Safety of gadolinium administration in children. Pediatr. Neurol. 2018;86:27–32. https://doi.org/10.1016/j.pediatrneurol.2018.07.010

2. Franckenberg S., Berger F., Schaerli S., Ampanozi G., Thali M. Fatal anaphylactic reaction to intravenous gadobutrol, a gadolinium-based MRI contrast agent. Radiol. Case Rep. 2018;13(1):299–301. https://doi.org/10.1016/j.radcr.2017.09.012

3. Xu C., Sun S. New forms of superparamagnetic nanoparticles for biomedical applications. Adv. Drug Deliv. Rev. 2013;65(5):732–743. https://doi.org/10.1016/j.addr.2012.10.008

4. Osminkina L.A., et al. Porous silicon nanoparticles as efficient sensitizers for sonodynamic therapy of cancer. Micropor. Mesopor. Mater. 2015;210:169–175. https://doi.org/10.1016/j.micromeso.2015.02.037

5. Samira F., Sheikhahmadi A. Effect of nanosilicon dioxide on growth performance, egg quality, liver histopathology and concentration of calcium, phosphorus and silicon in egg, liver and bone in laying quails. Appl. Nanosci. 2017;7(1–2):765–772. https://doi.org/10.1007/s13204-017-0620-9

6. Ksenofontova O.I., Vasin A.V., Egorov V.V., et al. Porous Silicon and Its Application in Biology and Medicine. Tech. Phys. 2014;59(1):66–77. https://doi.org/10.1134/S1063784214010083

7. Wang L., Jang G., Ban D., et al. Multifunctional stimuli responsive polymer-gated iron and gold-embedded silica nano golf balls: Nanoshuttles for targeted on-demand theranostics. Bone Res. 2017;5(1):17051. https://doi.org/10.1038/boneres.2017.51

8. Li X., Xia S., Zhou W., Zhan W. Targeted Fe-doped silica nanoparticles as a novel ultrasound–magnetic resonance dual-mode imaging contrast agent for HER2-positive breast cancer. Int. J. Nanomedicine. 2019;14:2397–2413. https://doi.org/10.2147/IJN.S189252

9. Vaytulevich E.A., Yurmazova T.A., Tuan H.T. Sorbents based on magnetite nanoparticles for biomedical application. Nanotechnol Russia. 2019;14(1–2):33–40. https://doi.org/10.1134/S1995078019010129 [Original Russian Text: Vaytulevich E.A., Yurmazova T.A., Tuan H.T. Sorbents based on magnetite nanoparticles for biomedical application. Rossiiskie nanotekhnologii. 2019;14(1–2):31–38 (in Russ.). https://doi.org/10.21517/1992-7223-2019-1-2-31-38

10. Kargina Yu.V., Kharin A.Yu., Zvereva E., et al. Silicon Nanoparticles Prepared by Plasma-Assisted Ablative Synthesis: Physical Properties and Potential Biomedical Applications. Phys. Status Solidi A. 2019;216(14):1800897-1–1800897-7. https://doi.org/10.1002/pssa.201800897

11. Kargina Yu.V., Zinovyev S.V., Perepukhov A.M., et al. Silicon nanoparticles with iron impurities for multifunctional applications. Funct. Mater. Lett. 2020;13(4):2040007-1–2040007-5. https://doi.org/10.1142/S179360472040007X

12. Ishchenko A.A., Fetisov G.V., Aslanov L.A. Nanokremnii: svoistva, poluchenie, primenenie, metody issledovaniya i kontrolya (Nanosilicon: properties, production, application, research and control methods). Moscow: FIZMATLIT; 2012. 648 p. (in Russ.). ISBN 978-5-9221-1369-4

13. Shtikov S.N. (Ed.). Problemy analiticheskoi khimii. Nanoob”ekty i nanotekhnologii v khimicheskom analize (Analytical chemistry problems. Nanoobjects and nanotechnology in chemical analysis). V. 20. Moscow: Nauka; 2015. 431 p. (in Russ.). ISBN 978-5-02-039185-7

14. Mosmann T. Rapid colorimetric assay for cellular growth and survival: application to proliferation and cytotoxicity assays. J. Immunol. Methods. 1983;65(1–2):55–63. https://doi.org/10.1016/0022-1759(83)90303-4

15. Wagner T., Wang J.Y., Hofmann S. Sputter Depth Profiling in AES and XPS. In book: Briggs D., Grant J.T. (Eds.). Surface Analysis by Auger and X-ray Photoelectron Spectroscopy. 2003. P. 619–649.

16. Naumkin A.V., Kraut-Vass A., Gaarenstroom S.W., Powell C.J. NIST X-ray Photoelectron Spectroscopy Database. NIST Standard Reference Database 20, Version 4.1 (Web Version), 2012. http://dx.doi.org/10.18434/T4T88K

17. Crist B.V. Handbook of Monochromatic XPS Spectra: The Elements and Their Native Oxides [Book Review]. IEEE Electr. Insul. M. 2003;19(4):73. https://doi.org/10.1109/MEI.2003.1226740

18. Gongalsky M.B., Kargina Yu.V., Osminkina L.A., Perepukhov A.M., Gulyaev M.V., Vasiliev A.N., Pirogov Yu A., Maximychev A.V., Timoshenko V.Yu. Porous silicon nanoparticles as biocompatible contrast agents for magnetic resonance imaging. Appl. Phys. Lett. 2015;107(23):233702-1-233702-4. https://doi.org/10.1063/1.4937731

19. Berridge M.V., Herst P.M., Tan A.S. Tetrazolium dyes as tools in cell biology: new insights into their cellular reduction. Biotechnol. Annu. Rev. 2005;11:127–152. https://doi.org/10.1016/s1387-2656(05)11004-7

20. Seah M.P., Spencer S.J. Ultrathin SiO2 on Si (IV). Intensity measurement in XPS and deduced thickness linearity. Surf. Interface Anal. 2003;35(6):515–524. https://doi.org/10.1002/sia.1565

21. Vegh J. The Shirley background revised. J. Electron Spectrosc. 2006;151(3):159–164. https://doi.org/10.1016/j.elspec.2005.12.002

22. Sharonova N.V., Yagudaeva E.Yu., Sizova S.V., et al. Modification of nanocrystalline silicon by polymers for biomedical applications. Izv. Vyssh. Uchbn. Zaved. Khim. Khim. Tekhnol. = Chem. Chem. Tech. 2019;62(9):86–96 (in Russ.). https://doi.org/10.6060/ivkkt.20196209.5929

23. Răcucin M., Creangă D.E., Airinei A. Citric-acidcoated magnetite nanoparticles for biological applications. Eur. Phys. J. E. 2006;21(2):117–121. https://doi.org/10.1140/epje/i2006-10051-y

24. Dorofeev S.G., Kononov N.N., Ishchenko A.A., et al. Optical and structural properties of thin films precipitated from the sol of silicon nanoparticles. Semiconductors. 2009;43(11):1420–1427. https://doi.org/10.1134/S1063782609110050

25.


Supplementary files

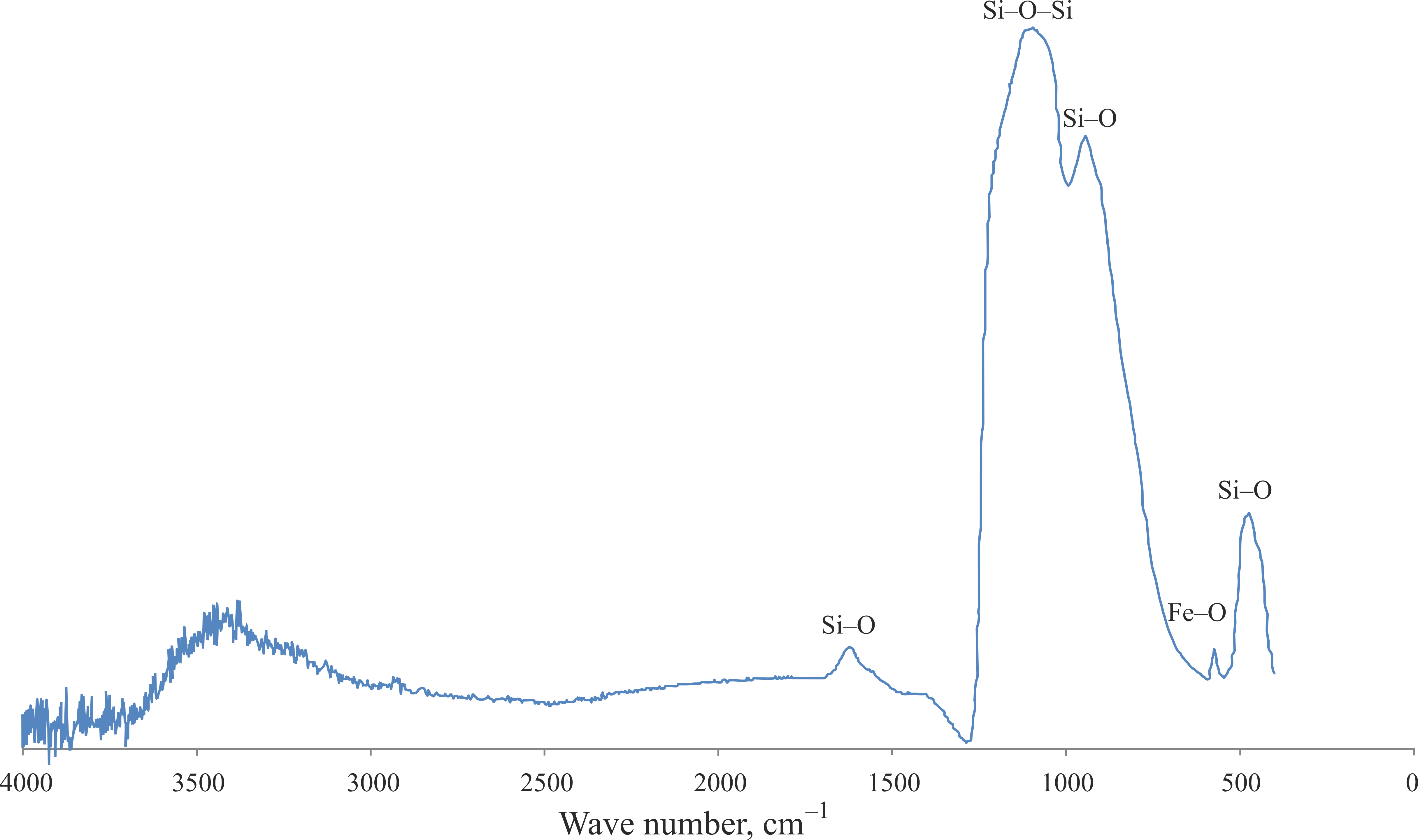

1. Fourier-transform infrared spectrum of the studied nc-Si/SiOx/Fe sample (0.3 mass % in КBr)
Subject
Type Research Instrument
View (335KB)
Indexing metadata
2. This is to certify that the paper titled Characterization of iron-doped crystalline silicon nanoparticles and their modification with citrate anions for in vivo applications commissioned to us by Kirill I. Rozhkov, Elena Y. Yagudaeva, Svetlana V. Sizova, Michael A. Lazov, Evgeniya V. Smirnova, Vitaliy P. Zubov and Anatoliy A. Ischenko has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (280KB)
Indexing metadata
  • A technique for introducing iron into the shell of silicon nanoparticles obtained via the plasma-chemical method was developed.
  • The possibility of obtaining the stable aqueous solutions of silicon nanoparticles by modifying their surfaces with citrate anions was shown.
  • Analysis of the cytotoxicity of nanoparticles modified by citrate anions using monoclonal cells of human erythroleukemia K562 showed no toxicity for cells in culture at a particle concentration of up to 5 μg/mL.
  • The obtained citrate anions modified iron-doped nc-Si particles can be recommended for the bioimaging, for example, in MRI diagnostics.

For citation:


Rozhkov K.I., Yagudaeva E.Y., Sizova S.V., Lazov M.A., Smirnova E.V., Zubov V.P., Ischenko A.A. Characterization of iron-doped crystalline silicon nanoparticles and their modification with citrate anions for in vivo applications. Fine Chemical Technologies. 2021;16(5):414-425. https://doi.org/10.32362/2410-6593-2021-16-5-414-425
