Synthesis and properties of vinyl benzyl alcohol copolymers with styrene

Objectives. Synthesis and study of the properties of copolymers of vinyl benzyl alcohol (VBA) with styrene with antimicrobial properties.
Methods. The study employed infrared (IR) and nuclear magnetic resonance (NMR) spectroscopy, thin-layer chromatography, viscometry, and elemental analysis. The sessile drop method and the pencil method were respectively utilized to determine the contact angles and hardness of the films. The process of testing the film coatings’ resistance to the effects of molds consisted of contaminating the film coatings applied to the glass with mold spores of the All-Russian Collection of Microorganisms in a solution of mineral salts without sugar (Czapek–Dox medium).

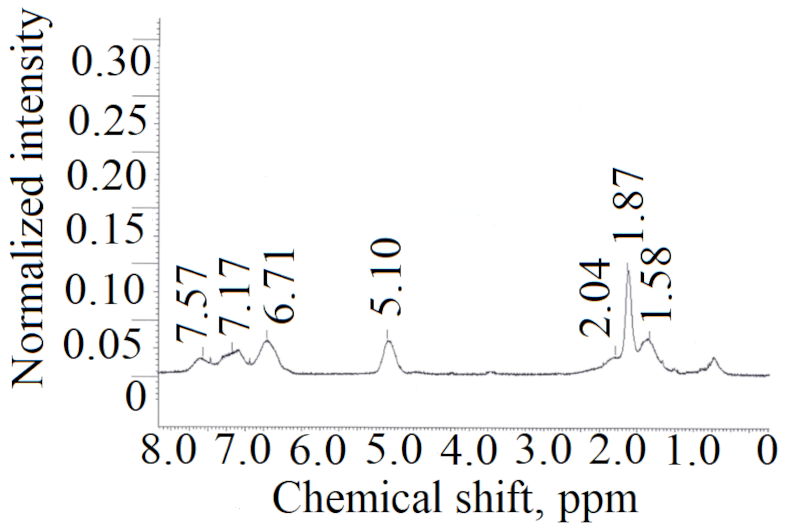

Results. Homopolymers of vinyl benzyl acetate and its copolymers with styrene were synthesized in this study. Homo- and copolymers of VBA were obtained by saponification. IR and proton NMR (¹H NMR) spectroscopy determined the composition of the copolymers. Employing IR spectroscopy, the degree of saponification was monitored by the appearance of the hydroxyl group absorption band and the disappearance of the ester group absorption band. According to the IR spectroscopy data, only an insignificant (~3%) amount of ester groups remains in the saponified copolymers. The influence of the copolymers’ composition on their solubility in various solvents is demonstrated. IR spectroscopy of the copolymers revealed hydrogen-bond formation between the unreacted ester groups and hydroxyl groups formed due to the saponification. The viscometry of the solutions of mixtures of saponified and unsaponified copolymers, solutions of mixtures of saponified copolymer with polyvinyl acetate, and viscometry of saponified copolymers in various solvents all support this conclusion. These bonds’ concentration depends on the copolymer’s composition and can be controlled by the nature of the solvent from which these copolymers’ films are formed. Saponified copolymer solutions form smooth, transparent film coatings with excellent adhesion to metals and silicate glass surfaces. The contact angle of these films, like the hardness, decreases as the VBA units’ concentration in the copolymers increases and depends on the solvent polarity used to form the films. It has been demonstrated that increasing the VBA units concentration suppresses the microorganisms’ growth.
Conclusions. Film coatings made of copolymers of styrene with VBA have been shown to have high biocidal activity against molds; can be used to protect structural materials and products from the effects of microorganisms.

1. Afinogenov G.E., Panarin E.F. Antimikrobnye polimery (Antimicrobial polymers). St. Peterburg: Gippokrat; 1993. 264 p. (in Russ.). ISBN 5-8232-0116-8

2. Timofeeva L., Kleshcheva N. Antimicrobial polymers: mechanism of action, factors of activity, and applications. Appl. Microbiol. Biotechnol. 2011;89(3):475–492. https://doi.org/10.1007/s00253-010-2920-9

3. Tashiro T. Antibacterial and Bacterium Absorbing Macromolecules. Macromol. Mater. Eng. 2001;286(2):63–87. https://onlinelibrary.wiley.com/doi/10.1002/1439-2054(20010201)286:2%3C63::AIDMAME63%3E3.0.CO;2-H

4. Kenawy E.-R., Worley S.D., Broughton R. The Chemistry and Applications of Antimicrobial Polymers: A Stateof-the-Art Review. Biomacromolecules. 2007;8(5):1359–1384. https://doi.org/10.1021/bm061150q

5. Gilbert P., Moore L.E. Cationic Antiseptics: Diversity of Action under a Common Epithet. J. Appl. Microbiol. 2005;99(4):703–715. https://doi.org/10.1111/j.1365-2672.2005.02664.x

6. Kaur R., Liu S. Antibacterial surface design-Contact kill. Prog. Surf. Sci. 2016;91(3):136–153. https://doi.org/10.1016/j.progsurf.2016.09.001

7. Siedenbiedel F., Tiller J.C. Antimicrobial Polymers in Solution and on Surfaces: Overview and Functional Principles. Polymers. 2012;4(1):46–71. https://doi.org/10.3390/polym4010046

8. Tiller J.C. Antimicrobial Surfaces. In: Börner H., Lutz JF. (Eds.). Bioactive Surfaces. Advances in Polymer Science. 2011;240:193–217. https://doi.org/10.1007/12_2010_101

9. Chen A., Peng H., Blakey I., Whittaker A.K. Biocidal Polymers: A mechanistic overview. Polym. Rev. 2017;57(2):276–310. https://doi.org/10.1080/15583724.2016.1223131

10. Kenawy E.-R., Abdel-Hay F., El-Newehy M., El-Zaher E.H.F.A., Ibrahim E.M.A.-E. Novel biocidal polymers based on branched and linear poly(hydroxystyrene). Int. J. Polym. Mater. 2016;65(14):712–719. https://doi.org/10.1080/00914037.2016.1163563

11. McDonnel G., Russell A.D. Antiseptics and Disinfectants: Activity, Action, and Resistance. Clin. Microbiol. Rev. 1999;12(1):147–179. https://doi.org/10.1128/CMR.12.1.147

12. Bamford C.H., Lindsay H. Introduction of hydroxymethyl groups into polystyrene and styrene. Polymer. 1973;14(7):330–332. https://doi.org/10.1016/0032-3861(73)90128-6

13. Stamberg J., Wichterle O., Doskocilova D. Comment on the paper “Introduction of hydroxymethyl groups into polystyrene and styrene” by Bamford C.H., Lindsay H. Polymer. 1973;14:330–332. Polymer. 1974;15(5):323–324. https://doi.org/10.1016/0032-3861(74)90131-1

14. Dyakova M.G., Sklyarevskaya N.M., Deshevaya E.A., Kravchenko V.V., Shevlyakova N.V., Novikova N.D., Tverskoy V.A. Chemical modification of 4-vinylbenzylchloride polymers and antimicrobial properties of produced polymers containing hydroxyl groups. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2012;7(2):65–69 (in Russ.).

15. Nishikubo T., Iizawa T., Kobayashi K., Okawara M. Alkylation reaction of poly(chloromethylstyrene) with malononitrile and diethyl methylmalonate using phase transfer catalysts. Makromol. Chem., Rapid. Commun. 1981;2(6–7):387–392. https://doi.org/10.1002/marc.1981.030020605

16. Gibson H.W., Baily F.C. Chemical modification of polymers. II. Reaction of poly(vinylbenzyl chloride) and phenols. J. Polym. Chem. Ed. 1974;12(9):2141–2143. https://doi.org/10.1002/pol.1974.170120933

17. Beihoffer T.W., Glass J.E. The introduction of hydroxyl functionality into polymers: the synthesis, polymerization and hydrolysis of vinylbenzyl acetate. J. Polymer Sci. A: Polymer Chem. 1988;26(2):343–353. https://doi.org/10.1002/pola.1988.080260201

18. Yakovlev A.D. Khimiya i tekhnologiya lakokrasochnykh pokrytii: Uchebnik dlya vuzov (Chemistry and technology of paint and varnish coatings: Textbook for universities.) St. Peterburg: KHIMIZDAT; 2008. 448 p. (in Russ.). ISBN 978-5-93808-160-4

19. Mitsumori T., Craig I.M., Martini I.B., Schwartz B.J., Wudl F. Synthesis and Color Tuning Properties of Blue Highly Fluorescent Vinyl Polymers Containing a Pendant Pyrrolopyridazine. Macromolecules. 2005;38(11):4698–4704. https://doi.org/10.1021/ma048091y

20. Moskala E.J., Howe S.E., Painter P.C., Coleman M.M. On the Role of Intermolecular Hydrogen Bonding in Miscible Polymer Blends. Macromolecules. 1984;17(9):1671–1678. https://doi.org/10.1021/ma00139a006
