Algorithm and software for the optimal technological design of a system of simple distillation columns

https://doi.org/10.32362/2410-6593-2021-16-5-379-389

Full Text:

Abstract

Objectives. The formalized problem of the optimal design of distillation column systems belongs to the class of mixed integer nonlinear program problems. Discrete search variables are the number of trays in the rectifying and stripping sections of columns, whereas the continuous ones are the operating modes of columns. This study aimed to develop an algorithm and a software package for the optimal technological design of a system of simple distillation columns based on the criterion of total reduced capital and energy costs using rigorous mathematical distillation models.
Methods. The solution to this problem is based on the branch and bound method. A computer model of the distillation column system was developed in the environment of the Aspen Hysys software package. The Inside–Out module was used as the distillation model. The developed algorithm is implemented in the software environment of the Matlab mathematical package. To solve the conditional optimization problem, a sequential quadratic programming method-based model was used. The interaction between software add-ins in Matlab and Aspen Hysys is implemented using a Component Object Model interface.
Results. Approaches to obtain the lower and upper bounds of the optimality criterion and the branching method for the implementation of the branch and bound method have been developed. In addition, an algorithm for the optimal design of a distillation column of a given topology based on the branch and bound method has been developed. Furthermore, using Matlab, a software package that implements the developed algorithm and is integrated with the universal modeling software AspenHysys has been created.
Conclusions. An algorithm and a software package have been developed and implemented that allows automating the design process of distillation column systems and integration with advanced mathematical programming packages, respectively. The performance of the algorithm and software package has been evaluated using the optimal design of the debutanization column as an example.

About the Authors

N. N. Ziyatdinov
Kazan National Research Technological University
Russian Federation

 Dr. Sci. (Eng.), Professor, Head of the Department of Process System Engineering

68, Karl Marx ul., Kazan, 420015, Republic of Tatarstan, Russia



I. I. Emelyanov
Kazan National Research Technological University
Russian Federation

 Cand. Sci. (Eng.), Associate Professor, Department of Process System Engineering

68, Karl Marx ul., Kazan, 420015, Republic of Tatarstan, Russia



A. A. Ryzhova
Kazan National Research Technological University
Russian Federation

 Postgraduate Student, Department of Process System Engineering

68, Karl Marx ul., Kazan, 420015, Republic of Tatarstan, Russia



P. S. Chernakov
Kazan National Research Technological University
Russian Federation

 Student, Department of Process System Engineering

68, Karl Marx ul., Kazan, 420015, Republic of Tatarstan, Russia



References

1. Komissarov Yu.A., Dam Kuang Shang. Khimicheskaya tekhnologiya: Mnogokomponentnaya rektifikatsiya (Chemical Technology: Multicomponent Rectification). Moscow: Yurait; 2019. 255 p. (in Russ.). ISBN 978-5-534-05626-6

2. Klauzner P.S., Rudakov D.G., Anokhina E.A., Timoshenko A.V. Energy saving in the extractive distillation of isobutyl alcohol–isobutyl acetate with n-butyl propionate. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2020;15(4):14–29 (in Russ.). https://doi.org/10.32362/2410-6593-2020-15-4-14-29

3. Serafimov L.A., Frolkova A.K., Bushina D.I. Extractive distillation of binary azeotropic mixtures. Theor. Found. Chem. Eng. 2008;42(5):507–516. https://doi.org/10.1134/S0040579508050059

4. [Original Russian Text: Serafimov L.A., Frolkova A.K, Bushina D.I. Extractive distillation of binary azeotropic mixtures. Teoreticheskie Osnovy Khimicheskoi Tekhnologii. 2008;42(5):521–530 (in Russ.).]

5. Tsirlin A.M., Sukin I.A., Balunov A.I. Estimates of energy consumption and selection of optimal distillation sequence for multicomponent distillation. Theor. Found. Chem. Eng. 2016;50(3):250–259. https://doi.org/10.1134/S0040579516030131 [Original Russian Text: Tsirlin A.M., Sukin I.A., Balunov A.I. Estimates of energy consumption and selection of optimal distillation sequence for multicomponent distillation. Teoreticheskie Osnovy Khimicheskoi Tekhnologii. 2016;50(3):258–267 (in Russ.). https://doi.org/10.7868/S0040357116030131

6. Komisarov Yu.A, Gordeev L.S., Vent D.P. Khimicheskaya tekhnologiya: Nauchnye osnovy protsessov rektifikatsii (Chemical technology: Scientific foundations of rectification processes). In 2 v. V. 2. Moscow: Yurait; 2019. 416 p. (in Russ.). ISBN 978-5-534-10977-1

7. Ostrovskii G.M., Ziyatdinov N.N., Lapteva T.V., Ryjov D.A. Selection of optimal feed trays in a closed-loop system of distillation columns. Theor. Found. Chem. Eng. 2008;42(4):386–397. https://doi.org/10.1134/S0040579508040064 [Original Russian Text: Ostrovskii G.M., Ziyatdinov N.N., Lapteva T.V., Ryjov D.A. Selection of optimal feed trays in a closed-loop system of distillation columns. Teoreticheskie Osnovy Khimicheskoi Tekhnologii. 2008;42(4):401–412 (in Russ.).]

8. Kister H.Z. Distillation design. McGraw-Hill Professional; 1992. 710 p.

9. Timoshenko A.V., Morgunov A.V., Anokhina E.A. Flowsheet synthesis for the extractive distillation of azeotropic mixtures in systems consisting of columns with partially coupled heat and material flows. Theor. Found. Chem. Eng. 2007;41(6):845–850. https://doi.org/10.1134/S0040579507060097 [Original Russian Text: Timoshenko A.V., Morgunov A.V., Anokhina E.A. Flowsheet synthesis for the extractive distillation of azeotropic. Teoreticheskie Osnovy Khimicheskoi Tekhnologii. 2007;41(6):649–655 (in Russ.).]

10. Caballero J.A., Grossman I.E. Design of distillation sequences: from conventional to fully thermally coupled distillation systems. Comp. Chem. Eng. 2004,28(11):2307–2329. https://doi.org/10.1016/j.compchemeng.2004.04.010

11. Grossman I.E., Aquirre P.A., Barttfeld M. Alternative representations and formulations for the economic optimization of multicomponent distillation columns. Comp. Chem. Eng. 2003;27(3):363–383. https://doi.org/10.1016/S0098-1354(02)00213-2

12. Klauzner P.S., Rudakov D.G., Anokhina E.A., Timoshenko A.V. Optimal modes of side-section flow in heatpump-assisted extractive distillation systems for separating allyl alcohol–allyl acetate mixtures with butyl propionate. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2021;16(3):213–224 (in Russ.). https://doi.org/10.32362/2410-6593-2021-16-3-213-224

13. Laptev A.G., Karpeev S.V., Lapteva E.A. Modeling and Modernization of Tray Towers for Reactive Distillation Processes. Theor. Found. Chem. Eng. 2018,52(1):1–10. https://doi.org/10.1134/S0040579518010098 [Original Russian Text: Laptev A.G., Karpeev S.V., Lapteva E.A. Modeling and Modernization of Tray Towers for Reactive Distillation Processes. Teoreticheskie Osnovy Khimicheskoi Tekhnologii. 2018;52(1):3–12 (in Russ.). https://doi.org/10.1134/S0040579518010098]

14. Tsirlin A.M. Separation of ideal mixtures in multistage systems: An algorithm for selecting a separation sequence. Theor. Found. Chem. Eng. 2012.46(2):128–134. https://doi.org/10.1134/S0040579512010150 [Original Russian Text: Tsirlin A.M. Separation of ideal mixtures in multistage systems: An algorithm for selecting a separation sequence. Teoreticheskie Osnovy Khimicheskoi Tekhnologii. 2012;46(2):162–168 (in Russ.).]

15. Lang Y-D, Biegler L.T. Distributed Stream method for Tray Optimization. AIChE J. 2002;48(3):582–595. https://doi.org/10.1002/aic.690480315

16. Huss R.S., Westerberg A.W. Collocation Methods for Distillation Design. 1. Model Description and Testing. Ind. Egn. Chem. Res. 1996;35(5):1603–1610. https://doi.org/10.1021/ie9503499

17. Ostrovskii G.M., Ziyatdinov N.N., Lapteva T.V., Bogula N.K. Optimal design of a distillation column system of a given topology. Theor. Found. Chem. Eng. 2011;45(1):89–98. https://doi.org/10.1134/S004057951006103X [Original Russian Text: Ostrovskii G.M., Ziyatdinov N.N., Lapteva T.V., Bogula N.K. Optimal design of a distillation column system of a given topology. Teoreticheskie Osnovy Khimicheskoi Tekhnologii. 2011;45(1):42–43 (in Russ.).]

18. Kholodnov V.A., Viktorov V.K., Krasnoborodʼko D.A., Khaidarov V.K., Kulishenko R.Yu., Fonar’ V.V. odelirovanie I optimizatsiya khimiko-tekhnologicheskikh sistem s pomoshch’yu interaktivnoi informatsionno-modeliruyushchei programmy Aspen Plus: Uchebnoe posobie (Modeling and optimization of chemical engineering systems using the interactive information and modeling program Aspen Plus). St. Peterburg: SPBGTI (TU); 2013. 214 p. (in Russ.).

19. Lisitsyn N.V., Viktorov V.K., Kuzichkin N.V. Khimikotekhnologicheskie sistemy: Optimizatsiya i resursosberezhenie (Chemical-technological systems: Optimization and resource conservation). St. Peterburg: Mendeleev; 2007. 312 p. (in Russ.). ISBN 5-94922-024-2

20. Ziyatdinov N.N., Lapteva T.V., Emel’yanov I.I., Loginova I.V. Komp’yuternoe modelirovanie i optimizatsiya khimiko-tekhnologicheskikh protsessov i sistem s ispol’zovaniem universal’noi modeliruyushchei programmy Unisim: Uchebnoe posobie (Computer modeling and optimization of chemical-technological processes and systems using the universal modeling program Unisim). Kazan: RAR Publishing House; 2019. p. 106. (in Russ.).

21. Gartman T.N., Sovetin F.S. Application of ChemCad software packages to simulate multicomponent rectification processes in tray columns for synthetic liquid fuel production. Khimicheskaya tekhnika. 2010;(2):36–38 (in Russ.).

22. Ziyatdinov N.N., Lapteva T. V., Ryzhov D. A. Matematicheskoe modelirovanie khimiko-tekhnologicheskikh sistem s ispol’zovaniem programmy ChemCad: Uchebnometodicheskoe posobie (Mathematical modeling of chemical technological systems using the ChemCad program). Kazan: KGTU; 2008. 160 p. ISBN 978-5-7882-0583-0

23. Kuznetsov A.S., Kornushko V.F. Intelligent control system of chemical-technological processes of structuring of multicomponent elastomer composites based on the production model. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2017;12(5):88–96 (in Russ.). https://doi.org/10.32362/2410-6593-2017-12-5-88-96

24.


Supplementary files

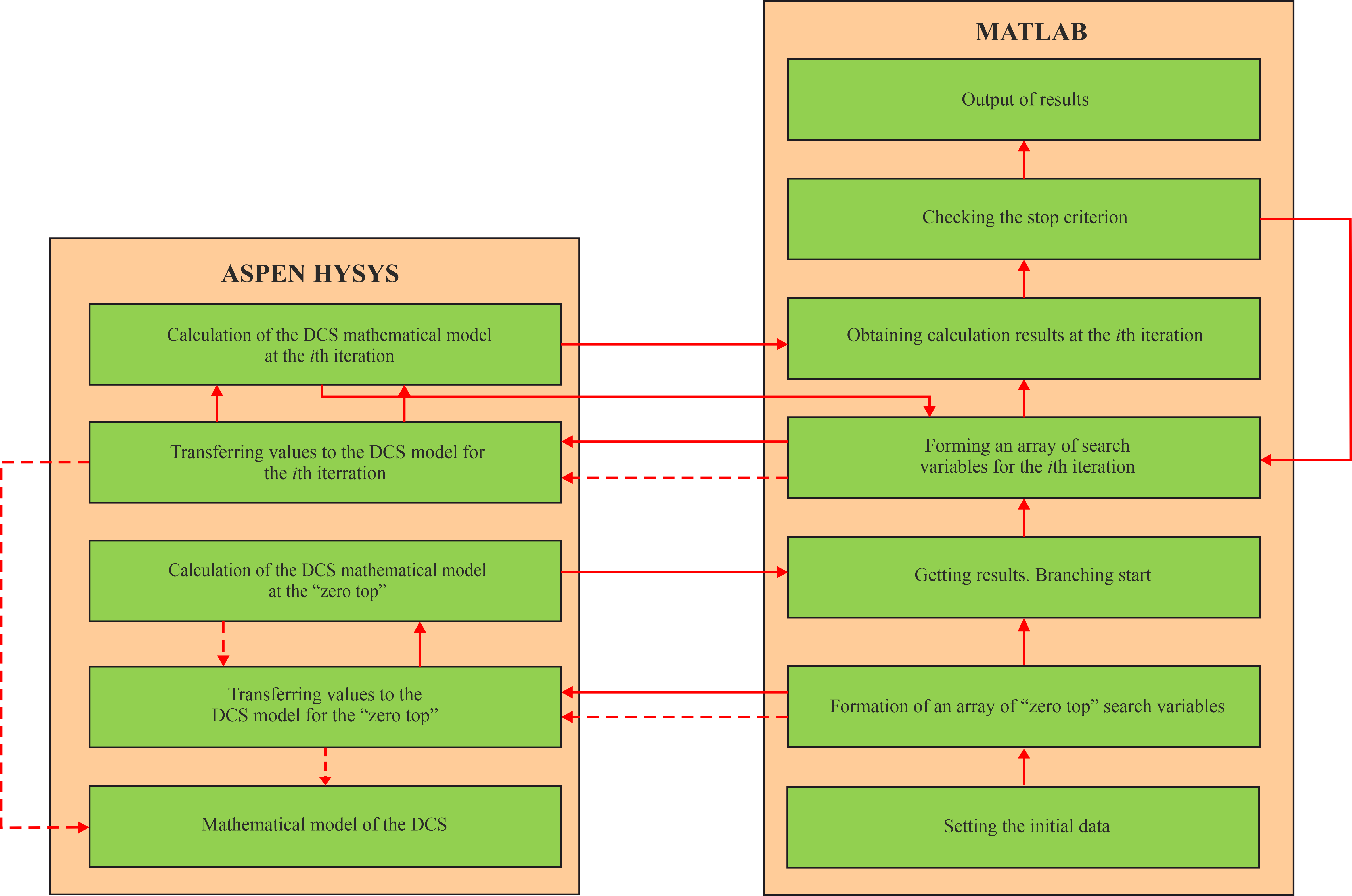

1. The structure of the software package.
Subject
Type Исследовательские инструменты
View (305KB)
Indexing metadata
2. This is to certify that the paper titled Algorithm and software for the optimal technological design of a system of simple distillation columns commissioned to us by Nadir N. Ziyatdinov, Ilia I. Emelyanov, Alina A. Ryzhova, Petr S. Chernakov has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (282KB)
Indexing metadata
  • The problem of optimal design of a system of distillation columns is formalized as a discrete–continuous mathematical programming problem.
  • To solve it using the branch and bound method, procedures for obtaining the upper and lower bounds of the economic optimality criterion and the branching procedure were described.
  • The algorithm for solving the design problem and the software package developed in Matlab, along with effective Aspen Hysys distillation models, were described.

For citation:


Ziyatdinov N.N., Emelyanov I.I., Ryzhova A.A., Chernakov P.S. Algorithm and software for the optimal technological design of a system of simple distillation columns. Fine Chemical Technologies. 2021;16(5):379-389. https://doi.org/10.32362/2410-6593-2021-16-5-379-389
