Synthesis of thermosensitive copolymers of N-isopropylacrylamide with 2-aminoethylmethacrylate hydrochloride

Full Text:


Objectives. Due to the increasing number of oncological diseases, active research into developing new radiopharmaceuticals is underway. Thermosensitive copolymers have valuable physicochemical properties that can be harnessed to develop therapeutic radiopharmaceuticals for treating solid tumors. The aim of this study was to develop a method for producing thermosensitive copolymers that can find use as radionuclide carriers to create therapeutic radiopharmaceuticals for treating solid tumors.

Methods. Using radical copolymerization in polar solvents, we synthesized water-soluble copolymers based on N-isopropyl acrylamide and 2-aminoethyl methacrylate hydrochloride. The resulting copolymers were characterized in terms of molecular composition and hydrodynamic properties using gel permeation chromatography, IR spectroscopy, potentiometry, and viscometry. Changes in optical density during temperature scanning helped determine the phase transition temperature (PTT) of aqueous copolymer solutions.

Results. We developed a method for preparing copolymers of N-isopropylacrylamide with 2-aminoethyl methacrylate using radical copolymerization in water and isopropanol with a content of 2-aminoethyl methacrylate hydrochloride in a copolymer up to 23 mol %. We studied how the second comonomer affected the PTT of the aqueous copolymer solutions. An increase in the content of 2-aminoethyl methacrylate in the copolymer caused the PTT to increase. We found that the change in the PTT depending on the content of 2-aminoethyl methacrylate units in the copolymer had a straightforward relationship with its content up to 17 mol %. The use of physiological saline as a solvent led to a temperature decrease of the phase transition by two degrees.

Conclusions. The method of producing thermosensitive copolymers by radical copolymerization in isopropanol does not allow creating a radionuclide carrier. Solutions of the obtained lowmolecular weight oligomers form coacervate solutions, which will inevitably cause the radionuclide to spread throughout the body. The copolymers obtained by radical copolymerization in water with the content of the second comonomer 2-aminoethyl methacrylate from 10–17 mol % can be used as a radionuclides carrier provided that a physiological solution of sodium chloride is used as a solvent.

About the Authors

V. R. Duflot
Karpov Institute of Physical Chemistry
Russian Federation

Dr. Sci. (Chem.), Director for Innovation, Obninsk Branch,

6, Kievskoe sh., Obninsk, Kaluga oblast, 249033

A. V. Gaivoronsky
Karpov Institute of Physical Chemistry; MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Engineer, Obninsk Branch, 6, Kievskoe sh., Obninsk, Kaluga oblast, 249033;

Postgraduate Student, S.S. Medvedev Department of Chemistry and Technology of Macromolecular
Compounds, 86, Vernadskogo pr., Moscow, 119571

E. I. Lobanova
Karpov Institute of Physical Chemistry
Russian Federation

Lead Engineer, Obninsk Branch,

6, Kievskoe sh., Obninsk, Kaluga oblast, 249033


1. Kaprin A.D., Biryukov V.A., Chernichenko A.V., Koryakin A.V., Polyakov V.A., Karyakin O.B., Galkin V.N., Apolikhin O.I., Ivanov S.A., Sivkov A.V., Oschepkov V.N., Alekseev B.Ya., Obukhov A.A., Lepilina O.G. Interstitial radiotherapy therapy (brachytherapy) of prostate cancer. Own experience of the National Medical Research Radiological Center of the Ministry of Health of Russia. Russ. Med. Zh. = RMJ. 2017;25(27):2011–2014 (in Russ.).

2. Galaev I.Y. “Smart” polymers in biotechnology and medicine. Russ. Chem. Rev. 1995;64(5):471–489. [Galaev I.Yu. “Smart” polymers in biotechnology and medicine. Usp. Khim. 1995;64(5):505–524 (in Russ.).]

3. Weller R.E., Lind M.E., Fisher D.R., et al. Stimulus sensitive gel with radioisotope and methods of making. US Patent US6296831B1, 2001. Oct. 2.

4. Weller R.E., Lind M.E., Fisher D.R., Gutovska A., Campbell A.A. Stimulus Sensitive Gel with Radioisotope and Methods of Making. US Patent US6869588B2, 2005. Mar. 22.

5. Cao Z., Jin Y., Zhang В., Miao Q., Ma С. A novel temperature- and pH-responsive polymer-biomolecule conjugate composed of casein and poly(N-isopropylacrylamide). Iran. Polym. J. 2010;19(9):689–698.

6. Bolbet N.M., Duflot R.V., Dubova E.A., Gaivoronsky A.V., Lobanova E.I. Altynnikova T.V. Synthesis and properties of thermosensitive polymer protein conjugates labeled with radioactive isotopes of iodine. Aktual. Prob. Gum. i Estestv. Nauk = Actual Prob. Human. and Nat. Sciences. 2013;6(53):30–39 (in Russ.).

7. Bolbit N.M., Dubova E.A., Duflot V.R., Gaivoronsky A.V. Thermosensitive polymer-protein iodine-containing radiopharmaceutical: RF Pat. 255447. Publ. 10.01.2015 (in Russ.).

8. Bolbit N.M., Duflot V.R., Dubova E.A., Altynnikova T.V. Heat-sensitive radiopharmaceutical for local radiotherapy on the basis of the 131I-radiolabeled polymer-protein conjugate. V mire nauchnykh otkrytii. 2013;7–3(43):30–48 (in Russ.).

9. Petriev V.M., Tishchenko V.K., Smorizanova O.A. et al. Novel radiopharmaceutical, Sm-153-labelled thermoresponsive polymer, for local radiotherapy of solid tumors. Radiatsiya i risk = Radiation and Risk. 2018;27(1):66–76 (in Russ.).

10. Bolbit N.M., Dubova E.A., Duflot V.R., Zamaraeva T.V., Lobanova E.I., Rybkin N.I. Method for producing a thermosensitive radiopharmaceutical agent: RF Pat. 2665140. Publ. 28.08.2018 (in Russ.).

11. Gitis S.S., Glaz A.I., Ivanov A.V. Praktikum po organicheskoi khimii: Organicheskii sintez (Workshop on organic chemistry: Organic synthesis). Moscow: Vysshaya shkola; 1991. 303 p. (in Russ.).

12. Korshunov M.A, Mikhlin V.S., Bondarenko F.N. Interaction of amine-alkylaminoalkanols with esters and acid chlorides of acrylic and methacrylic acids. Zh. Org. khim. 1969;5(2):254–263 (in Russ.).

13. Gosudarstvennaya Farmakopeya Rossiiskoi Federatsii XIV (State Pharmacopoeia of the Russian Federation XIV). Moscow: Gos. Med. Izd. 2018. V. 1. 1470 p. (in Russ.).

14. Pavia D.L., Lampman G.M., Kriz G.S., Vyvyan J.A. Introduction to Spectroscopy: 5th ed. Cengage Learning; 2009. 752 p. ISBN 978-1-285-46012-3

15. Bocias G., Houdret D., Hiopolos J. Positively charged аmphiphilic polymers based on poly(N-isopropylacrylamide): phase behavior and shear-induced thickening in aqueous solutions. Macromolecules. 2000;33(8):2929–2935.

16. Bertrand N., Fleischer J.G., Wasan K.M., Leroux J.-C. Pharmacokinetics and biodistribution of N-isopropylacrylamide copolymers for the design of pH-sensitive liposomes. Biomaterials. 2009;30(13):2598–2605.

17. Loginova N.N., Gavurina R.K., Alexandrova M.L. Polymerization of N,N-diethylaminoethylmethacrylate hydrochloride in aqueous solutions. Vysokomolek. soed. = Polym. Sci. 1969;11(9):643–645 (in Russ.).

18. Sund-Levander M., Forsberg C., Wahren L.K. Normal oral, rectal, tympanic and axillary body temperature in adult men and women: a systematic literature review. Scand. J. Caring. Sci. 2002;16(2):122–128.

Supplementary files

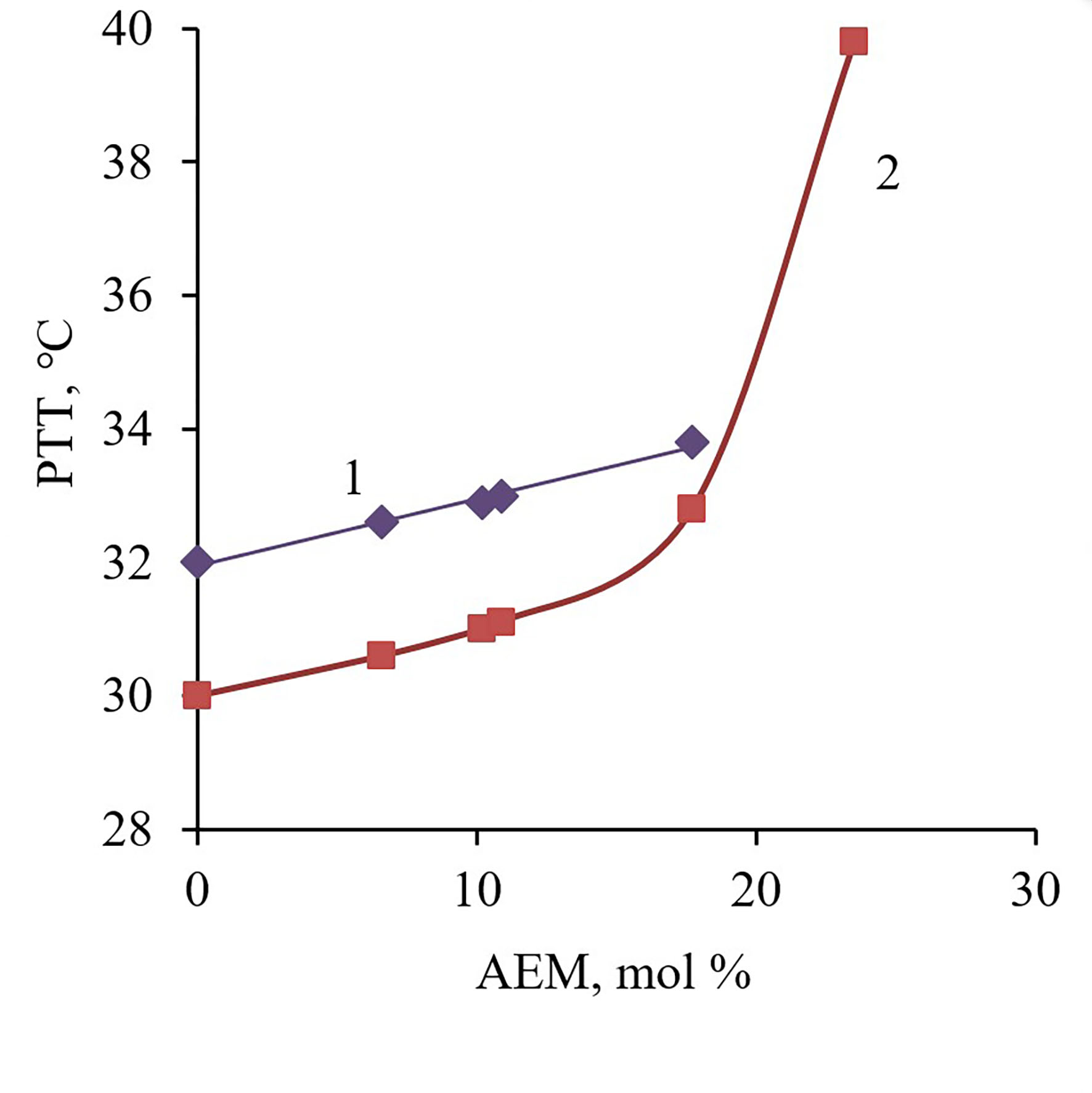

1. Fig. 2. The dependence of phase transition temperature (PTT) on the content of aminoethyl methacrylate (AEM) in the copolymer: water (1) and 0.9% NaCl (2).
Type Исследовательские инструменты
View (159KB)
Indexing metadata
2. This is to certify that the paper titled Synthesis of thermosensitive copolymers of N-isopropylacrylamide with 2-aminoethylmethacrylate hydrochloride commissioned to us by Vladimir R. Duflot, Andrey V. Gaivoronsky, Ekaterina I. Lobanova has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Type Other
View (207KB)
Indexing metadata

For citation:

Duflot V.R., Gaivoronsky A.V., Lobanova E.I. Synthesis of thermosensitive copolymers of N-isopropylacrylamide with 2-aminoethylmethacrylate hydrochloride. Fine Chemical Technologies. 2021;16(2):167-175.
