Dielectric properties of the system: 4-n-pentyloxybenzoic acid– N-(4-n-butyloxybenzylidene)-4᾽-methylaniline

https://doi.org/10.32362/2410-6593-2021-16-2-138-147

Full Text:

Abstract

Objectives. Our aim was to study the dielectric properties of the 4-n-pentyloxybenzoic acid– N-(4-n-butyloxybenzylidene)-4’-methylaniline system and reveal how different concentrations of N-(4-n-butyloxybenzylidene)-4’-methylaniline additives affect the dielectric properties of 4-n-pentyloxybenzoic acid.

Methods. System properties were investigated using polarization thermomicroscopy and dielcometry.

Results. We found that dielectric anisotropy changes its sign from positive to negative at the transition temperature of the high-temperature nematic subphase to the low-temperature one. The anisotropy of the dielectric constant of N-4-n-butoxybenzylidene-4’-methylaniline has a positive value and increases as to the system approaches the crystalline phase. The crystal structure of the 4-n-pentyloxybenzoic acid contains dimers formed by two independent molecules due to a pair of hydrogen bonds. The crystal structure of N-(4-n-butoxybenzylidene)-4’-methylaniline contains associates formed by orientational interactions of two independent molecules. 4-n-Pentyloxybenzoic acid dimers (270 nm) and associates of N-4-n-butoxybenzylidene-4’- methylaniline (250 nm) proved to have approximately the identical length. Considering the close length values of the structural units of both compounds and the dielectric anisotropy sign, we assume that the N-4-n-butoxybenzylidene-4’-methylaniline associates are incorporated into the supramolecular structure of the 4-n-pentyloxybenzoic acid. The specific electrical conductivity of the compounds under study lies between 10−7 and 10−12 S∙cm−1. The relationship between the specific electrical conductivity anisotropy and the system composition in the nematic phase at the identical reduced temperature, obtained between 100 and 1000 Hz is symbatic. However, the electrical conductivity anisotropy values of the system obtained at 1000 Hz are lower compared to those obtained at 100 Hz. At N-(4-n-butoxybenzylidene)-4’-methylaniline concentrations between 30 and 60 mol %, the electrical conductivity anisotropy values are higher than those of the individual component.

Conclusions. A change in the sign of the dielectric constant anisotropy of the 4-n-pentyloxybenzoic acid during nematic subphase transitions was established. We showed that the system has the highest dielectric constant anisotropy value when components have an equal number of moles. Highest electrical conductivity anisotropy values are observed when the concentration of the N-4-n-butoxybenzylidene-4᾽-methylaniline system lies between 30 and 60 mol %.

About the Authors

S. A. Syrbu
Ivanovo Fire and Rescue Academy of State Firefighting Service of Ministry of Russian Federation for Civil Defense, Emergencies and Elimination of Consequences of Natural Disasters
Russian Federation

Dr. Sci. (Chem.), Professor, Deputy Head for the Development of Extra-budgetary Activities,

33, Stroitelei pr., Ivanovo, 153040



M. S. Fedorov
Ivanovo State University
Russian Federation

Cand. Sci. (Chem.), Associate Professor, Department of Fundamental and Applied Chemistry,

39, Ermaka ul., Ivanovo, 153025



E. A. Lapykina
Ivanovo State University
Russian Federation

Cand. Sci. (Chem.), Associate Professor, Department of Fundamental and Applied Chemistry,

39, Ermaka ul., Ivanovo, 153025



V. V. Novikov
Ivanovo State University
Russian Federation

Cand. Sci. (Eng.), Associate Professor, Department of Fundamental Physics and Nanotechnology,

39, Ermaka ul., Ivanovo, 153025



References

1. Paleos C.M., Tsiourvas D. Supramolecular hydrogenbonded liquid crystals. Liquid Crystals. 2001;28(8):1127–1161. https://doi.org/10.1080/02678290110039516

2. Kato T., Uchida J., Ichikawa T., Soberats B. Functional liquid-crystalline polymers and supramolecular liquid crystals. Polym. J. 2018;50(1):149–166. https://doi.org/10.1038/pj.2017.55

3. Therrien B. Thermotropic Liquid-Crystalline Materials Based on Supramolecular Coordination Complexes. Inorganics. 2020;8(1):2. https://doi.org/10.3390/inorganics8010002

4. Syrbu S.A., Fedorov M.S., Giricheva N.I., Novikov V.V., Filippov I.A., Kiselev M.R. Supramolecular complexes based on 4-n-alkoxycinnamic acids and pyridine derivatives: Mesomorphic properties and prospects of applying to tribosystems. J. Mol. Liq. 2020;305:112796. https://doi.org/10.1016/j.molliq.2020.112796

5. Giricheva N.I., Syrbu S.A., Bubnova K.E., Fedorov M.S., Kiselev M.R., Girichev G.V. H-complexes in the “4-n-alkoxybenzoic acid: 4-pyridyl 4ʼ-n-alkoxybenzoate” system. IR spectroscopy and quantum chemical calculations. J. Mol. Liq. 2019;277:833–842. https://doi.org/10.1016/j.molliq.2019.01.029

6. Gray G.W., Harrison K.J., Nash J.A., Constant J., Hulme D.S., Kirton J., Raynes E.P. Stable, Low Melting Nematogens of Positive Dielectric Anisotropy for Display Devices. In: Johnson J.F., Porter R.S. (Eds.). Liquid Crystals and Ordered Fluids. Springer, Boston, MA; 1974. P. 617–643. https://doi.org/10.1007/978-1-4684-2727-1_55

7. Hird M., Goodby J.W., Toyne K.J. Nematic materials with negative dielectric anisotropy for display applications. Liquid Crystal Materials, Devices, and Flat Panel Displays. 2000;3955:15–23. https://doi.org/10.1117/12.379979

8. Belyaev V.V., Chausov D.N., Kurilov A.D., Rybakov D.O., Solomatin A.S., Murauski A.A., Muravsky A.A., Chigrinov V.G., Fan F. Dielectric properties of liquid crystals for display and sensor applications. J. Soc. Inf. Disp. 2015;23(9):403–409. https://doi.org/10.1002/jsid.352

9. Ishii Y., Uchida T. Wada M. Effects of dielectric anisotropy on DSM-type display devices. IEEE Transactions on Electron Devices. 1978;25(3):323–329. https://doi.org/10.1109/T-ED.1978.19077

10. Verma R., Tripathi A., Dhar R. Enhancement in the thermal stability of themesophases of 4-n-(decyloxy) benzoic acid due to Li ion beam irradiaton. J. Mol. Liq. 2013;177:409–415. https://doi.org/10.1016/j.molliq.2012.10.034

11. Efremova E.I., Kydryashova Z.A., Nosikova L.A., Kovshik A.P., Dobrun L.A., Melnikov A.B. Phase Diagram and Dielectric Studies in Hydrogen-Bonded Liquid Crystal System. Mol. Cryst. Liq. Cryst. 2016;626(1):12–20. https://doi.org/10.1080/15421406.2015.1106220

12. Patari S., Nath A. Tunable dielectric and conductivity properties of two 4-n alkoxy benzoic acid. OptoElectronics Review. 2018;26(1):35–43. https://doi.org/10.1016/j.opelre.2017.12.002

13. Valiskó M., Liszi J., Szalai I. Relative permittivity of a few H-bonded liquid crystals. J. Mol. Liq. 2004;109(1):39–43. https://doi.org/10.1016/j.molliq.2003.06.001

14. Missaoui T., Amor I.B., Soltani T., Ouada H.B., Jeanneau E., Chevalier Y. Dielectric and electro-optic properties of cybotactic nematic phase in hydrogen-bonded liquid crystals. J. Mol. Liq. 2020;304:112726. https://doi.org/10.1016/j.molliq.2020.112726

15. Prabu N.P.S., Mohan M.L.N.M. Thermal and Dielectric Investigations on Supramolecular Hydrogen Bonded Liquid Crystals. Mol. Cryst. Liq. Cryst. 2012;569(1):72–91. https://doi.org/10.1080/15421406.2012.703035

16. Nosikova L.A., Kudryashova Z.A., Iskhakova L.D., Syrbu S.A. Mesomorphic and dielectric properties of the p-n-hexyloxybenzoic acid-p-n-heptyloxybenzoic acid liquid crystal system. Russ. J. Phys. Chem. 2008;82(12):2065–2068. https://doi.org/10.1134/S0036024408120169 [Original Russian Text: Nosikova L.A., Kudryashova Z.A., Iskhakova L.D., Syrbu S.A. Mesomorphic and dielectric properties of the p-n-hexyloxybenzoic acid-p-n-heptyloxybenzoic acid liquid crystal system. Zhurnal Fizicheskoi Khimii. 2008;82(12):2292–2295 (in Russ.).]

17. Vijayakumar V.N., Madhu Mohan M.L.N. Optical, thermal and dielectric studies in linear hydrogen bonded liquid crystal homologous series. J. Mol. Struct. 2011;1000(1–3):69–76. https://doi.org/10.1016/j.molstruc.2011.05.054

18. Viciosa M.T., Nunes A.M., Fernandes A., Almeida P.L., Godinho M.H., Dionísio M.D. Dielectric studies of the nematic mixture E7 on a hydroxypropylcellulose substrate. Liquid Crystals. 2002;29(3):429–441. https://doi.org/10.1080/02678290110113478

19. Zheng A., Xia X., Gao S., Yang J., Lu H., Deng G., Yin Z. Dielectric properties of two high birefringence liquid crystal mixtures in the Sub-THz band. Liquid Crystals. 2020;47(1):83–88. https://doi.org/10.1080/02678292.2019.1630490

20. Syrbu S.A., Syrbu A.A., Bagazhkov I.V. Mesomorphic and volume properties of p-n-butyloxybenzylidene-p᾽- methylanyline – p-n-pentyloxybenzoic acid system. Zhidk. krist. ikh prakt. ispolz. = Liq. Cryst. and their Appl. 2010;3(33):46–56 (in Russ.).

21. Demus D., Demus H., Zaschke H. Flussiqe Kristalle in Tabellen. I. Leipzig: VEB, Deut. Verlag; 1974. 356 p.

22. Demus D., Zaschke H. Flussiqe Kristalle in Tabellen. II. Leipzig: VEB, Deut. Verlag; 1984. 468 p. 23. Fonseca J.M.S., Santos Luís M.N.B.F., Monte M.J.S. Thermodynamic Study of 4-n-Alkyloxybenzoic Acids, J. Chem. Eng. Data. 2010;55(6):2238–2245. https://doi.org/10.1021/je900776y

23. Kuz’mina L.G., Kucherepa N.S., Pectov S.M., Kochetov A.N., Rukk N.S., Syrbu S.A. Molecular and Crystal Structure of 4-Alkoxybenzoic Acids: Design of the Mesogenic Phase. Crystallogr. Rep. 2009;54(5):862–879. https://doi.org/10.1134/S1063774509050204 [Original Russian Text: Kuz’mina L.G., Kucherepa N.S., Pectov S.M., Kochetov A.N., Rukk N.S., Syrbu S.A. Molecular and Crystal Structure of 4-Alkoxybenzoic Acids: Design of the Mesogenic Phase. Kristallografiya. 2009;54(5):908–925 (in Russ.).]

24. Bryan R.F. 508. An X-ray study of the p-n-alkoxybenzoic acids. Part I. J. Chem. Soc. 1960;(0):2517–2519. https://doi.org/10.1039/JR9600002517

25. Kuzʼmina L.G., Kucherena N.S., Rodnikova M.N. X-ray diffraction study of p-(alkoxybenzylidene)- p᾽-toluidines C5H11O–C6H4–CH=N–C6H4–CH3 and C8H17O–C6H4–CH=N–C6H4–CH3. Crystallogr. Rep. 2008;53(6):1016–1022. https://doi.org/10.1134/S1063774508060175 [Original Russian Text: Kuzʼmina L.G., Kucherepa N.S., Rodnikova M.N. X-ray diffraction study of p-(alkoxybenzylidene)-p᾽-toluidines C5 H11O–C6 H4 –CH= N–C6 H4 –CH3 and C8H17O–C6H4–CH=N–C6H4–CH3. Kristallografiya, 2008;53(6):1072–1078 (in Russ.).]


Supplementary files

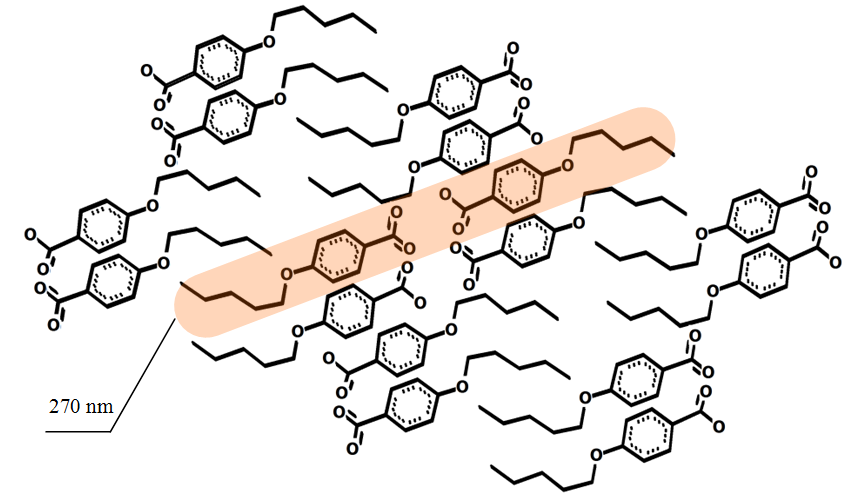

1. Fig. 3. The crystal packing fragment of 4-n-pentyloxybenzoic acid molecules (the molecule long axes are in the plane of the figure).
Subject
Type Исследовательские инструменты
View (127KB)
Indexing metadata

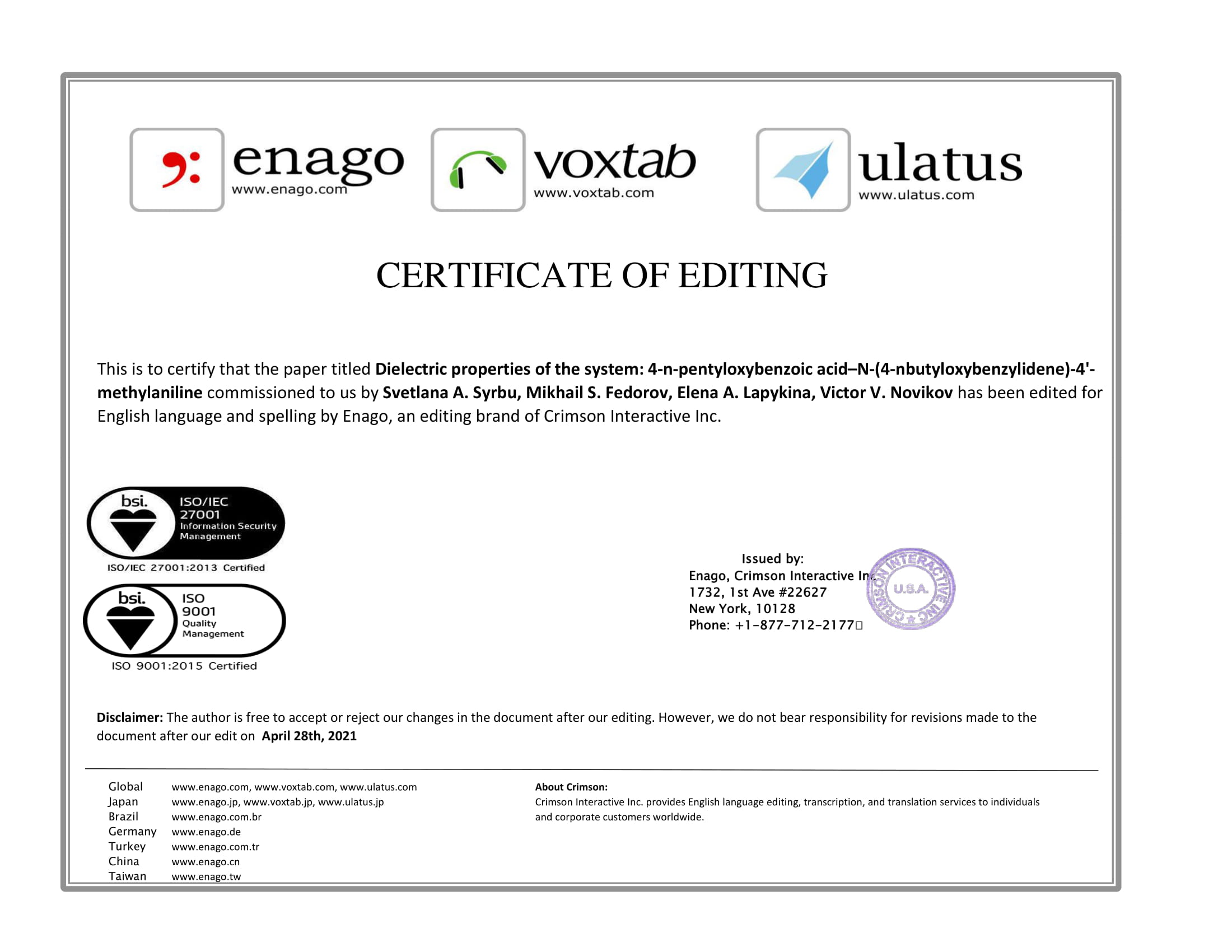

2. This is to certify that the paper titled Dielectric properties of the system: 4-n-pentyloxybenzoic acid–N-(4-nbutyloxybenzylidene)-4'-methylaniline commissioned to us by Svetlana A. Syrbu, Mikhail S. Fedorov, Elena A. Lapykina, Victor V. Novikov has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (207KB)
Indexing metadata
  • The crystal structure of N-(4-n-butoxybenzylidene)-4'-methylaniline contains associates formed by orientational interactions between two independent molecules. Close length values of 4-n-pentyloxybenzoic acid dimers (270 nm) and associates of N-(4-n-butoxybenzylidene)-4'-methylaniline (250 nm) were noted.
  • The dielectric constant anisotropy of the of 4-n-pentyloxybenzoic acid changes its sign from positive to negative at the transition temperature of the high-temperature nematic subphase to the low-temperature nematic subphase.
  • The highest values of the electrical conductivity anisotropy are observed when the system content ranges between 30 and 60 mol % N-(4-n-butoxybenzylidene)-4'-methylaniline.

For citation:


Syrbu S.A., Fedorov M.S., Lapykina E.A., Novikov V.V. Dielectric properties of the system: 4-n-pentyloxybenzoic acid– N-(4-n-butyloxybenzylidene)-4᾽-methylaniline. Fine Chemical Technologies. 2021;16(2):138-147. https://doi.org/10.32362/2410-6593-2021-16-2-138-147
