Manufacturing of nanopillar (ultra-dispersed) catalytically active materials through chemical engineering

https://doi.org/10.32362/2410-6593-2021-16-2-105-112

Full Text:

Abstract

Objectives. Catalytically active materials are required in different chemical engineering processes. This makes the development of new materials with high efficiency and original ways in which to obtain them of significant interest. The present work investigates the synthesis of catalytically active material including electrode materials, as well as their improved efficiency due to the nanodecoration of their surface.

Methods. An aluminum folio was nanoperforated (nanoscalloped) by high-voltage anodization in an acidic medium. The effective electrode material was obtained as a metallic nickel replica rather than an oxide layer of the product. To study the surface state of aluminum obtained in this manner, a scanning electron microscope (Hitachi-SU8200) was used. The elementary composition of the aluminum was determined by back-scattered X-ray irradiation.

Results. The nickel replica obtained in the above-described process exceeded the catalytic activity estimated by methanol oxidation of the unprocessed nickel 70–150 times.

Conclusions. The present paper demonstrates the potential of creating effective catalytically active nanopillar materials using the metallic rather than metal-oxide part of a layer of anodized aluminum as a matrix template.

About the Authors

A. P. Antropov
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Cand. Sci. (Eng.), Associate Professor, Department of Energy Technologies, Systems and Installations,

86, Vernadskogo pr., Moscow, 119571



N. K. Zaytsev
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Dr. Sci. (Chem.), Assistant Professor, Head of the Department of Energy Technologies, Systems and Installations, M.V. Lomonosov Institute of Fine Chemical Technologies,

86, Vernadskogo pr., Moscow, 119571



Ye. D. Ryabkov
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Postgraduate Student, Department of Energy Technologies, Systems and Installations, M.V. Lomonosov Institute of Fine Chemical Technologies,

86, Vernadskogo pr., Moscow, 119571



N. A. Yashtulov
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Dr. Sci. (Chem.), Professor, Department of Energy Technologies, Systems and Installations, M.V. Lomonosov Institute of Fine Chemical Technologies,

86, Vernadskogo pr., Moscow, 119571



P. N. Mudrakova
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Master Student, Department of Energy Technologies, Systems and Installations, M.V. Lomonosov Institute of Fine Chemical Technologies,

86, Vernadskogo pr., Moscow, 119571



References

1. Roslyakov I.V., Kolesnik I.V., Levina E.E., Katorova N.S., Pestrikov P.P., Kardash T.Yu., Solovyov L.A., Napolskii K.S. Annealing induced structural and phase transitions in anodic aluminum oxide prepared in oxalic acid electrolyte. Surf. Coat. Technol. 2020;381:125159. https://doi.org/10.1016/j.surfcoat.2019.125159

2. Goncharova A.S., Napolskii K.S., Skryabina O.V., Stolyarov V.S., Levin E.E., Egorov S.V., Eliseev A.A., Kasumov Y.A., Ryazanov V.V., Tsirlina G.A. Bismuth nanowires: electrochemical fabrication, structural features, and transport properties. Phys. Chem. Chem. Phys. 2020;22(26):14953–14964. https://doi.org/10.1039/D0CP01111H

3. Aslam S., Das A., Khanna M., Kuanr B. Concentration gradient Co-Fe nanowire arrays: Microstructure to magnetic characterizations. J. Alloys Compd. 2020;838:155566. https://doi.org/10.1016/j.jallcom.2020.155566

4. Li J., Wei H., Zhao K., Wang M., Chen D., Chen M. Effect of anodizing temperature and organic acid addition on the structure and corrosion resistance of anodic aluminum oxide films. Thin Solid Films. 2020;713:138359. https://doi.org/10.1016/j.tsf.2020.138359

5. Chumnanwat S., Watanabe Y., Taniguchi N., Higashi H., Kodama A., Seto T., Otani Y., Kumita M. Pore structure control of anodized alumina film and sorption properties of water vapor on CaCl2 -aluminum composites. Energy. 2020;208:118370. https://doi.org/10.1016/j.energy.2020.118370

6. Noormohammadi M., Arani Z.S., Ramazani A., Kashi M.A., Abbasimofrad S. Super-fast fabrication of selfordered nanoporous anodic alumina membranes by ultra-hard anodization. Electrochim. Acta. 2020;354:136766. https://doi.org/10.1016/j.electacta.2020.136766

7. Kawai S., Ueda R. Magnetic Properties of Anodic Oxide Coatings on Aluminum Containing Electrodeposited Co and Co-Ni. J. Electrochem. Soc. 1975;122(1):32–36. https://doi.org/10.1149/1.2134152

8. Shiraki M., Wakui Y., Tokushima T., Tsuya N. Perpendicular magnetic media by anodic oxidation method and their recording characteristics. IEEE Trans. Magn. 1985;21(5):1465–1467. https://doi.org/10.1109/TMAG.1985.1064078

9. Saito M., Kirihara M., Taniguchi T., Miyagi M. Micropolarizer made of the anodized alumina film. Appl. Phys. Lett. 1989;55(7):607–609. https://doi.org/10.1063/1.101572

10. Miller C.J., Majda M. Microporous aluminum oxide films at electrodes. J. Am. Chem. Soc. 1985;107(5):1419–1420. https://doi.org/10.1021/ja00291a056

11. Tierney M.J., Martin C.R. New Electrorelease Systems Based on Microporous Membranes. J. Electrochem. Soc. 1990;137(12):3789–3792. https://doi.org/10.1149/1.2086302

12. Yoshino T., Baba N. Electrochromism of Oxalatotungstate(V) Complexes Chemically Deposited onto Micropores of Anodic Oxide Films on Aluminum. Nippon Kagaku Kaishi. 1983;1983(6):955–957. https://doi.org/10.1246/nikkashi.1983.955

13. Mizuki I., Yamamoto Y., Yoshino T., Baba N. Electrochemical Incorporation of Electroluminescent Mn Activator into Porous Anodic Al2 O3 Films on Al. J. Met. Surf. Finish. Soc. Japan. 1987;38(12):561–563. https://doi.org/10.4139/sfj1950.38.561

14. Pashchanka M., Schneider J.J. Origin of selforganisation in porous anodic alumina films derived from analogy with Rayleigh–Bénard convection cells. J. Mater. Chem. 2011;21(46):18761–18767. https://doi.org/10.1039/C1JM13898G

15. Keller F., Hunter M.S., Robinson D.L. Structural Features of Oxide Coatings on Aluminum. J. Electrochem. Soc. 1953;100(9):411. https://doi.org/10.1149/1.2781142

16. Yashtulov N.A., Lebedeva M.V., Patrikeev L.N., Zaitcev N.K. New polymer-graphene nanocomposite electrodes with platinum-palladium nanoparticles for chemical power sources. Express Polym. Lett. 2019;13(8):739–748. https://doi.org/10.3144/expresspolymlett.2019.62

17. Yashtulov N.A., Lebedeva M.V., Ragutkin A.V., Zaitsev N.K. Electrode Materials Based on Porous Silicon with Platinum Nanoparticles for Chemical Current Sources. Russ. J. Appl. Chem. 2018;91(2):280–285. https://doi.org/10.1134/S1070427218020167 [Original Russian Text: Yashtulov N.A., Lebedeva M.V., Ragutkin A.V., Zaitsev N.K. Electrode Materials Based on Porous Silicon with Platinum Nanoparticles for Chemical Current Sources. Zh. Prikl. Khim. 2018;91(2):232−237 (in Russ.).]

18. Yashtulov N.A., Patrikeev L.N., Zenchenko V.O., Lebedeva M.V., Zaitsev N.K., Flid V.R. Palladium–platinum– porous silicon nanocatalysts for fuel cells with direct formic acid oxidation. Nanotechnol. Russia. 2016;11(9–10):562–568. https://doi.org/10.1134/S1995078016050207 [Original Russian Text: Yashtulov N.A., Patrikeev L.N., Zenchenko V.O., Lebedeva M.V., Zaitsev N.K., Flid V.R. Palladium–platinum–porous silicon nanocatalysts for fuel cells with direct formic acid oxidation. Rossiiskie Nanotekhnologii. 2016;11(9–10):45–50 in Russ.).]

19. Thompson G.E., Furneaux R.C., Wood G.C., Richardson J.A., Gode J.S. Nucleation and Growth of Porous Anodic Films on Aluminum. Nature. 1978;272(5652):433–435. https://doi.org/10.1038/272433a0

20. Wu J., Li Z, Li Z., Li S., Shen I., Hu X., Ling Z. Ultra-slow growth rate: Accurate control of the thickness of porous anodic aluminum oxide films. Electrochem. Commun. 2019;109:106602. https://doi.org/10.1016/j.elecom.2019.106602

21. Mishra P., Heberet K.R. Self-organization of anodic aluminum oxide layers by a flow mechanism. Electrochim. Acta. 2020;340:135879. https://doi.org/10.1016/j.electacta.2020.135879


Supplementary files

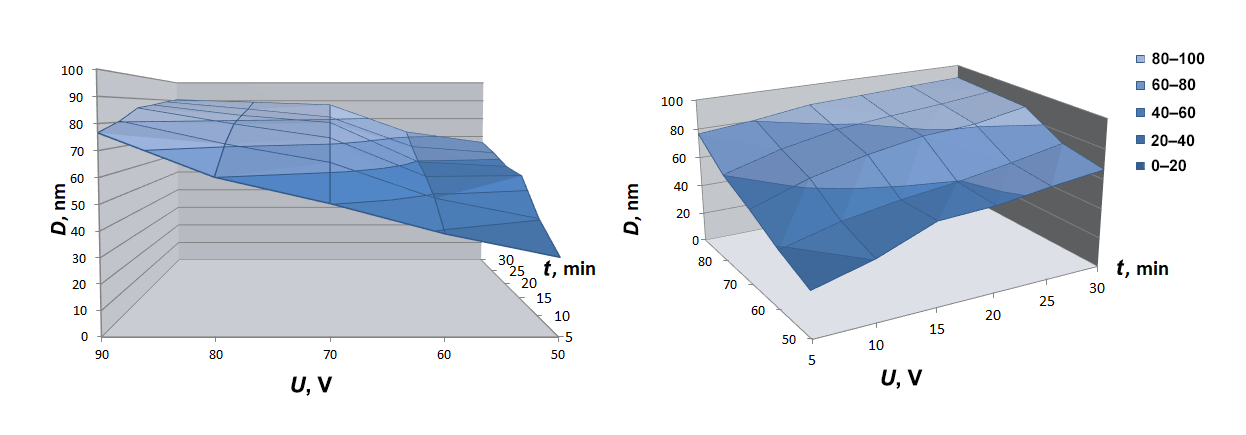

1. Fig. 2. A three-dimensional diagram of the dependence of the average diameter of holes formed on the aluminum surface during anodization on the voltage and time of anodizin).
Subject
Type Исследовательские инструменты
View (61KB)
Indexing metadata

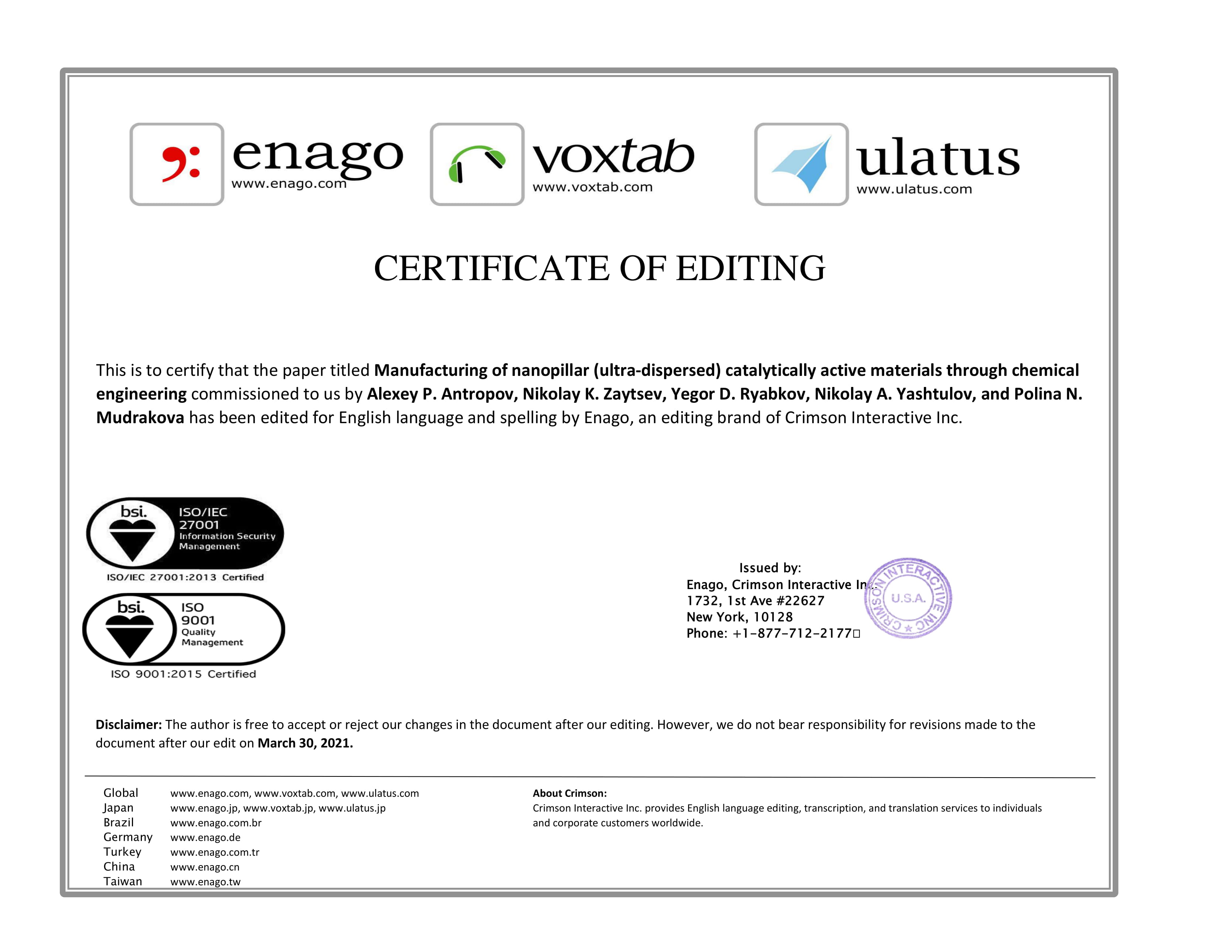

2. This is to certify that the paper titled Manufacturing of nanopillar (ultra-dispersed) catalytically active materials through chemical engineering commissioned to us by Alexey P. Antropov, Nikolay K. Zaytsev, Yegor D. Ryabkov, Nikolay A. Yashtulov, and Polina N. Mudrakova has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (369KB)
Indexing metadata
  • A nanostructuring method, in which the nanostructure material acts as a substrate, was implemented for the first time.
  • The replicas method allowed for creating nanostructured surfaces with controlled morphology and the ability to modify materials with nanoclusters in the process of their creation.
  • A nanostructured nickel material was obtained that surpassed smooth nickel in methanol oxidation reaction by 70–150 times.

For citation:


Antropov A.P., Zaytsev N.K., Ryabkov Y.D., Yashtulov N.A., Mudrakova P.N. Manufacturing of nanopillar (ultra-dispersed) catalytically active materials through chemical engineering. Fine Chemical Technologies. 2021;16(2):105-112. https://doi.org/10.32362/2410-6593-2021-16-2-105-112
