Preview

Fine Chemical Technologies

Advanced search

Chemical and technological aspects of increasing the functional characteristics of hard piezoceramics

https://doi.org/10.32362/2410-6593-2021-16-1-67-75

Full Text:

Abstract

Objectives. Ferroelectrically hard piezoelectric ceramics are in demand for high-power applications in piezotransformers, ultrasonic emitters, and piezo motors, which requires a combination of high piezoelectric characteristics and mechanical quality factors in it. The aim of this research was to reveal the main regularities in the microstructure and functional characteristic formation of ferroelectrically hard piezoceramics based on two widespread chemical systems, Pb(ZrxTi1-x)O3 and (Na1-xKx)NbO3, through various technological modes of production. In this study, two fundamentally different technological ways of forming a dense microstructure on the example of above systems have been employed to obtain the best set of dielectric, piezoelectric, and mechanical parameters for practical applications. In the case of lead-containing ceramics, various sintering technologies have been used, including conventional ceramic, hot pressing, and spark plasma sintering.

Methods. The microstructure of the piezoelectric ceramics was investigated using electron microscopy, and the functional characteristics were assessed in terms of mechanical and piezoelectric properties. The density values were determined by hydrostatic weighing in octane, the relative dielectric permittivity was measured using an LCR meter, and the values of the piezoelectric coefficient and mechanical quality factor were gathered using the resonance–antiresonance method.

Results. This research has identified that spark plasma sintering technology makes it possible to obtain high-density samples, which contain a homogeneous microstructure and double the figure-of-merit values, for use in high-power piezoelectric devices that operate at piezoresonance frequencies. It also found that the addition of a small amount of CuNb2O6 (x = 0.025) to lead-free solid solutions leads to the formation of a liquid phase during sintering, thereby creating a compacted microstructure with relative density values (96%) that have practical limitations in conventional ceramic technology. An increase in both the piezoelectric and mechanical properties, which leads to a twofold increase in the values of the quality indicator, was also observed.

Conclusions. It is possible to increase, and even to double, the functional characteristics of both lead-containing and lead-free ferroelectrically hard piezoceramics by varying the technology used in the manufacturing process. By using spark plasma sintering technology with lead-containing ceramics, it is possible to reduce the optimum sintering temperature by 200 °C and the sintering time by more than 20 times, thus reducing production costs.

About the Authors

M. V. Talanov
Research Institute of Physics, Southern Federal University
Russian Federation

Mikhail V. Talanov, Cand. Sci. (Phys.–Math.), Leading Researcher. Scopus Author ID 53164920700, Researcher ID P-8971-2019

194, Stachki pr., Rostov-on-Don, 344090



M. A. Marakhovskiy
NKTB Piezopribor, Southern Federal University
Russian Federation

Mikhail A. Marakhovskiy, Cand. Sci. (Eng.), Head of Sector. Scopus Author ID 57210826910

10, Milchakova ul, Rostov-on-Don, 344090



References

1. Jaffe B., Cook W.R., Jaffe H. Piezoelectric Ceramics. New York: Academic Press; 1971. 317 p.

2. Tan Q., Li J., Viehland D. Role of lower valent substituent-oxygen vacancy complexes in polarization pinning in potassium-modified lead zirconate titanate. Appl. Phys. Lett. 1999;75(3):418–420. https://doi.org/10.1063/1.124394

3. Feng Y., Wu J., Chi Q., Li W., Yu Y., Fei W. Defects and Aliovalent Doping Engineering in Electroceramics. Chem. Rev. 2020;120(3):1710–1787. https://doi.org/10.1021/acs.chemrev.9b00507

4. Fesenko E.G., Dantsiger A.Ya., Razumovskaya O.N. Novye p’ezokeramicheskie materialy (New piezoceramic materials). Rostov-on-Don: Rostov University; 1983.160 p. (in Russ.).

5. Zhang S., Xia R., Lebrun L., Anderson D., Shrout T.R. Piezoelectric materials for high power, high temperature applications. Mater. Lett. 2005;59(27):3471–3475. https://doi.org/10.1016/j.matlet.2005.06.016

6. Lee H.J., Zhang S., Bar-Cohen Y., Sherrit S. High Temperature, High Power Piezoelectric Composite Transducers. Sensors. 2014;14(8):14526–14552. https://doi.org/10.3390/s140814526

7. Kamel T.M., de With G. Poling of hard ferroelectric PZT ceramics. J. Europ. Ceram. Soc. 2008;28(9):1827–1838. https://doi.org/10.1016/j.jeurceramsoc.2007.11.023

8. Egerton L., Dillon D. M. Piezoelectric and Dielectric Properties of Ceramics in the System Potassium Sodium Niobate. J. Am. Ceram. Soc. 1959;42(9):438–442. https://doi.org/10.1111/j.1151-2916.1959.tb12971.x

9. Yang M.-R., Tsai C.-C., Hong C.-S., Chu S.-Y., Yang S.-L. Piezoelectric and ferroelectric properties of CNdoped (K0.5 Na0.5 )NbO 3 lead-free ceramics. J. Appl. Phys. 2010;108(9):094103. https://doi.org/10.1063/1.3493732

10. Park B.C., Hong I.K., Jang H.D., Tran V.D.N., Tai W.P., Lee J.-S. Highly enhanced mechanical quality factor in lead-free (K 0.5 Na 0.5 )NbO piezoelectric ceramics by co-doping with K 5.4 Cu1.3 Ta10 O29 and3 CuO. Mater. Lett. 2010;64(14):15771579. https://doi.org/10.1016/j.matlet.2010.04.031

11. Park H.-Y., Choi J.-Y., Choi M.-K., Cho K.‐H., Nahm S., Lee H.‐G., Kang H.‐W. Effect of CuO on the Sintering Temperature and Piezoelectric Properties of (Na K 0.5 )NbO 3 Lead‐Free Piezoelectric Ceramics. J. Am. 0.5 Ceram. Soc. 2008;91(7):2374–2377. https://doi.org/10.1111/j.1551-2916.2008.02408.x

12. Marakhovsky M.A., Panich A.A., Talanov M.V., Marakhovskiy V.A. Study of the influence of technological factors on improving the efficiency of ferroelectrically hard piezoceramic material PСR-8. Ferroelectrics. 2020;560(1):1–6. https://doi.org/10.1080/00150193.2020.1722875

13. Talanov M.V., Shikina L.A., Reznichenko L.A. Synthesis and properties of Na1- 3 х К х NbO3 -based solid solutions in the CuNb2 O6 NaNbO 3 –KNbO system. Inorg. Mater. 2016;52(10)1063–1069. https://doi.org/10.1134/S0020168516100186

14. Rödel J., Webber K.G., Dittmer R., Jo W., Kimura M., Damjanovic D. Transferring lead-free piezoelectric ceramics into application. J. Europ. Ceram. Soc., 2015;35(6):1659–1681. https://doi.org/10.1016/j.jeurceramsoc.2014.12.013

15. Zheng P., Zhang J.L., Tan Y.Q., Wang C.L. Grainsize effects on dielectric and piezoelectric properties of poled BaTiO 3 ceramics. Acta Materialia. 2012;60(13–14):50225033. https://doi.org/10.1016/j.actamat.2012.06.015

16. Huan Y., Wang X., Fang J., Li L. Grain size effect on piezoelectric and ferroelectric properties of BaTiO 3 ceramics. J. Europ. Ceram. Soc. 2014;34(5):1445–1448. https://doi.org/10.1016/j.jeurceramsoc.2013.11.030

17. Sakaki C., Newalkar B.L., Komarneni S., Uchino K. Grain Size Dependence of High Power Piezoelectric Characteristics in Nb Doped Lead Zirconate Titanate Oxide Ceramics. Jpn. J. Appl. Phys. 2001;40(12R):6907–6910. https://doi.org/10.1143/JJAP.40.6907

18. Marakhovskiy M.A., Panich A.A., Talanov M.V., Marakhovskiy V.A. Effect of the Type of Sintering on the Dielectric Hysteresis of a Hard Piezoceramic Material based on Lead Zirconate Titanate. Bull. Russ. RAS. Sciences: Physics. 2020;84(11):1419–1421. https://doi.org/10.3103/S1062873820110179

19. Randall C.A., Kim N., Kucera J.‐P., Cao W., Shrout T.R. Intrinsic and Extrinsic Size Effects in Fine‐Grained Morphotropic‐Phase‐Boundary Lead Zirconate Titanate Ceramics. J. Am. Ceram. Soc. 1998;81(3):677–688. https://doi.org/10.1111/j.1151-2916.1998.tb02389.x

20. Matsubara M., Yamaguchi T., Sakamoto W., Kikuta K., Yogo T., Hirano S. Processing and Piezoelectric Properties of Lead-Free (K,Na)(Nb,Ta) O 3 Ceramics. J. Am. Ceram. Soc. 2005;88(5):1190–1196. https://doi.org/10.1111/j.15512916.2005.00229.x

21. Zhang B.P., Li J.-F., Wang K., Zhang H. Compositional Dependence of Piezoelectric Properties in Na x K1− x NbO 3 Lead‐Free Ceramics Prepared by Spark Plasma Sintering. J. Am. Ceram. Soc. 2006;89(5):1605–1609. https://doi.org/10.1111/j.1551-2916.2006.00960.x

22. Ahn C.-W., Lee H.-Y., Han G., Zhang S., Choi S.Y., Choi J.-J., Kim J.-W., Yoon W.-H., Choi J.-H., Park D.-S., Hahn B.-D., Ryu J. Self-Growth of Centimeter-Scale Single Crystals by Normal Sintering Process in Modified Potassium Sodium Niobate Ceramics. Sci. Rep. 2015;5:17656. https://doi.org/10.1038/srep17656

23. Hong S.H., Kim D.Y. Effect of Liquid Content on the Abnormal Grain Growth of Alumina. J. Am. Ceram. Soc. 2001;84(7):1597–1600. https://doi.org/10.1111/j.1151-2916.2001.tb00883.x


Supplementary files

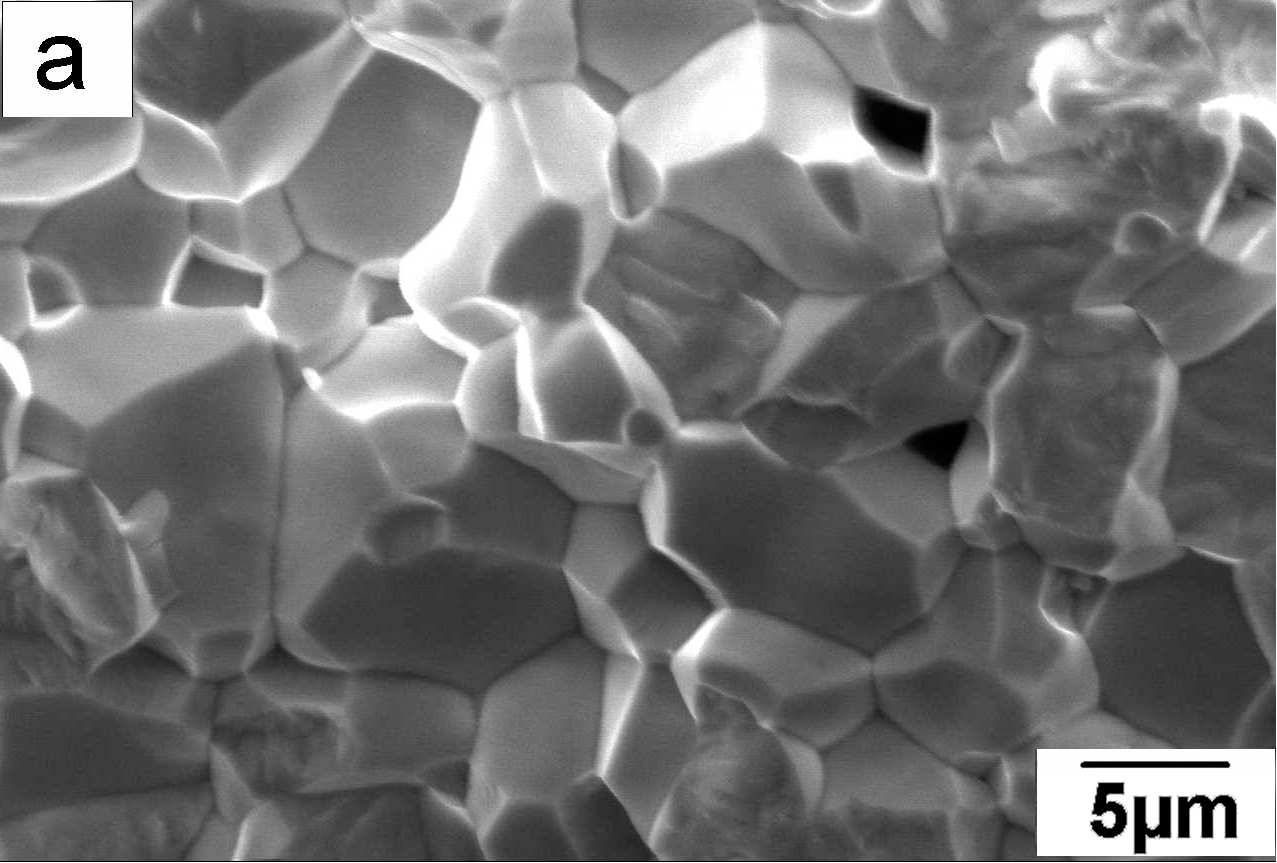

1. Fig. 1. Fragments of the microstructure of PZT-based ceramics sintered using various technologies
Subject
Type Исследовательские инструменты
View (347KB)
Indexing metadata
2. This is to certify that the paper titled Chemical and technological aspects of increasing the functional characteristics of hard piezoceramics commissioned to us by M.V. Talanov and M.A. Marakhovsky has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (436KB)
Indexing metadata
  • The use of the spark plasma sintering technology makes it possible to obtain high-density samples, which have a homogeneous microstructure and more than doubled figure-of-merit values, for use in high-power piezoelectric devices operating at piezoresonance frequencies.
  • It was found that the addition of a small amount of CuNb2O6 (x = 0.025) to lead-free solid solutions contributes to the formation of a liquid phase during sintering, as a result of which a compacted microstructure is formed with relative density values (96%) that have practical limitations in conventional ceramic technology.
  • An increase in both piezoelectric and mechanical properties is observed, which leads to a twofold increase in the figure-of-merit values.

For citation:


Talanov M.V., Marakhovskiy M.A. Chemical and technological aspects of increasing the functional characteristics of hard piezoceramics. Fine Chemical Technologies. 2021;16(1):67-75. https://doi.org/10.32362/2410-6593-2021-16-1-67-75

Views: 91


ISSN 2410-6593 (Print)
ISSN 2686-7575 (Online)
