Energy saving in the extractive distillation of isobutyl alcohol–isobutyl acetate with n-butyl propionate

https://doi.org/10.32362/2410-6593-2020-15-4-14-29

Full Text:

Abstract

Objectives. Determination of the effectiveness of using various types of heat pumps in the extractive distillation of an isobutyl alcohol–isobutyl acetate mixture with n-butyl propionate as the entrainer.

Methods. As the main research method, mathematical modeling was performed using the Aspen Plus V. 9 software package. As a model for describing the vapor–liquid equilibrium, the local composition equation-based UNIQUAC model was employed, and the Redlich–Kwong model was adopted to examine the non-ideal vapor phase. When modeling the conventional scheme of extractive distillation, parametric optimization was carried out according to the criterion of total energy costs in the reboilers of the columns. For economical evaluation, Aspen Process Economic Analyzer V10.1 tools were employed.

Results. In comparison with the conventional extractive distillation scheme, three variants of schemes with vapor-recompression heat pumps were considered: with a heat pump placed on an extractive distillation column, on an extractive agent regeneration column, and with two heat pumps placed on both columns of the scheme. A scheme with an internal heat pump was also proposed, in which the heat pump compressor is located between sections of extractive columns that operate at different pressures: 506.6 kPa in the top sections and 101.3 in the bottom section. An economic analysis was conducted for all the considered schemes to calculate the total annual costs. It was shown that schemes with vapor-recompression heat pumps can significantly reduce the energy costs of extractive distillation by up to 39.6%; however, a significant reduction in the total annual costs is achieved only with sufficiently long operation periods of the plants. The reduction in the energy costs in the scheme with an internal heat pump was 44%, and the total annual costs were in the range of 20.2–30.1%, depending on the operating time of the plant.

Conclusions. It was shown that using heat pumps in the extractive distillation of the mixture of isobutyl alcohol–isobutyl acetate with n-butyl propionate as the entrainer can significantly reduce energy costs. The scheme with an internal heat pump is the most economical of all the considered schemes.

About the Authors

P. S. Klauzner
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Pavel S. Klauzner, Postgraduate Student

86, Vernadskogo pr., Moscow, 119571



D. G. Rudakov
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Danila G. Rudakov, Cand. of Sci. (Engineering), Docent.Scopus Author ID 37018548000, ResearcherID M-5241-2014

86, Vernadskogo pr., Moscow, 119571



E. A. Anokhina
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Elena A. Anokhina, Cand. of Sci. (Engineering), Associate Professor. Scopus Author ID 6701718055, ResearcherID E-5022-2016

86, Vernadskogo pr., Moscow, 119571



A. V. Timoshenko
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Andrey V.,Timoshenko, Dr. of Sci. (Engineering), Professor. Scopus Author ID 56576076700, ResearcherID Y-8709-2018

86, Vernadskogo pr.Moscow, 119571



References

1. King C.J. Separation processes. 2nd ed. N-Y: Dover Publications; 2013. 880 p.

2. Kiss A.A., Olujić Z. A review on process intensification in internally heat-integrated distillation columns. Chem. Eng. Process.: Process Intensification. 2014;86:125-144. https://doi.org/10.1016/j.cep.2014.10.017

3. Timoshenko A.V., Anokhina E.A., Rudakov D.G., Timofeev V.S., Tatsievskaya G.I., Matyushenkova Y.V. Power saving in distillation using complexes with coupled flows. Vestnik MITHT = Fine Chemical Technologies. 2011;6(4):28-39 (in Russ.).

4. Null H.R. Heat pumps in distillation. Chem. Eng. Prog. 1976;72(7):58-64.

5. Jana A.K. Heat integrated distillation operation. Appl. Energ. 2010;7(5):1477-1494. http://dx.doi.org/10.1016/j.apenergy.2009.10.014

6. Gaile A.A., Somov V.E. Protsessy razdeleniya i ochistki produktov pererabotki nefti i gaza (Separation and purification processes for oil and gas refined products). St. Petersburg: Khimizdat; 2012. 376 p. (in Russ.). ISBN 978-5-93808-199-4

7. Pavlov S.Yu. Vydelenie i ochistka monomerov dlya sinteticheskogo kauchuka (Isolation and purification of monomers for synthetic rubber). Leningrad: Khimiya; 1987. 232 p. (in Russ).

8. Meirelles A., Weiss S., Herfurth H. Ethanol dehydration by extractive distillation. J. Chem. Tech. Biotechnol. 1992;53(2):181-188. https://doi.org/10.1002/jctb.280530213

9. Arifin S., Chien I-L. Design and Control of an Isopropyl Alcohol Dehydration Process via Extractive Distillation Using Dimethtyl Sulfoxide as an Entrainer. Ind. Eng. Chem. Res. 2008;47(3):790-803. https://doi.org/10.1021/ie070996n

10. Luyben W.L. Comparison of Pressure-Swing Distillation and Extractive Distillation Methods for MethanolRecovery Systems in the TAME Reactive-Distillation Process. Ind. Eng. Chem. Res. 2005;44(15):5715-5725. https://doi.org/10.1021/ie058006q

11. Muñoz R., Montón J.B., Burguet M.C. Separation of isobutyl alcohol and isobutyl acetate by extractive distillation and pressure-swing distillation: Simulation and optimization. Sep. Purif. Technol. 2006;50(2):175-183. https://doi.org/10.1016/j.seppur.2005.11.022

12. Luyben W.L. Comparison of Extractive Distillation and Pressure-Swing Distillation for Aceton-Methanol Separation. Ind. Eng. Chem. Res. 2008;47(8):2696-2707. https://doi.org/10.1021/ie701695u

13. Wang S.-J., Huang H.-P., Yu Ch.-Ch. Plantwide Design of Transesterification Reactive Distillation to CoGenerate Ethyl Acetate and n-Butanol. Ind. Eng. Chem. Res. 2010;49(2):750-760. https://doi.org/10.1021/ie901413c

14. Anokhina E.A. Energy saving in extractive distillation. Vestnik MITHT = Fine Chemical Technologies. 2013;8(5):28-39 (in Russ.).

15. You X., Rodriguez-Donis I., Gerbaud V. Reducing process cost and CO2 emissions for extractive distillation by double-effect heat integration and mechanical heat pump. Appl. Ener. 2016;166:128-140. http://dx.doi.org/10.1016/j.apenergy.2016.01.028

16. Timoshenko A.V., Anokhina E.A. Simulation and optimization as a tool for the development of high effective technological schemes of distillation. Rossiiskii tekhnologicheskii zhurnal = Russian Technological Journal. 2017;5(3):138-150 (in Russ). https://doi.org/10.32362/2500-316X-2017-5-3-138-150

17. Anokhina E.A., Shleynikova E.L., Timoshenko A.V. Energy efficiency of complexes with partially coupled thermally and material flows for extractive distillation of methyl acetate – chloroform mixture. Tonkie khimicheskie tekhnologii = Fine Chemical Technologies. 2013;8(2):18-25 (in Russ.).

18. Plesu V., Bonet-Ruiz A.E., Bonet J., Llorens J. Simple Equation for Suitability of Heat Pump Use in Distillation. Comput. Aided Chem. Eng. 2014;33:1327-1332. https://doi.org/10.1016/B978-0-444-63455-9.50056-8

19. Batista E., Meirelles A. Simulation and Thermal Integration SRV in Extractive Distillation Column. J. Chem. Eng. Jpn. 1997;30(1):45-51. https://doi.org/10.1252/jcej.30.45

20. Zakharov M.K. Energosberegayushchaya rektifikatsiya. Uchebnoe posobie (Energy saving distillation). St. Petersburg: Lan՚ Publishing House; 2018. 252 p. (in Russ.). ISBN 978-5-8114-2823-6

21. Luo H., Bildea C.S., Kiss. A.A. Novel Heat-PumpAssisted Extractive Distillation for Bioethanol Purification. Ind. Eng. Chem. Res. 2015;54(7):2208-2213. https://doi.org/10.1021/ie504459c

22. Shi L., Huang K., Wang S., Yu J., Yuan Y., Chen H., Wong D.S.H. Application of Vapor Recompression to Heterogeneous Azeotropic Dividing-Wall Distillation Columns. Ind. Eng. Chem. Res. 2015;54(46):11592-11609. https://doi.org/10.1021/acs.iecr.5b02929

23. Patraşcu I., Bildea C.S., Kiss A.A. Eco-efficient Downstream Processing of Biobutanol by Enhanced Process Intensification and Integration. ACS Sustainable Chem. Eng. 2018;6(4):5452-5461. https://doi.org/10.1021/acssuschemeng.8b00320

24. Shi P., Zhang Q., Zeng A., Ma Y., Yuan X. Ecoefficient vapor recompression-assisted pressure-swing distillation process for the separation of a maximum-boiling azeotrope. Energy. 2020;196(1):117095. https://doi.org/10.1016/j.energy.2020.117095

25. Monton J.B., Munoz R., Burguet M.C., de la Torre J. Isobaric vapor–liquid equilibria for the binary systems isobutylalcohol + isobutyl acetate and tert-butyl alcohol + tert-butylacetate at 20 and 101.3 kPa. Fluid Phase Equilibria. 2005;227(1):19-25. https://doi.org/10.1016/j.fluid.2004.10.022


Supplementary files

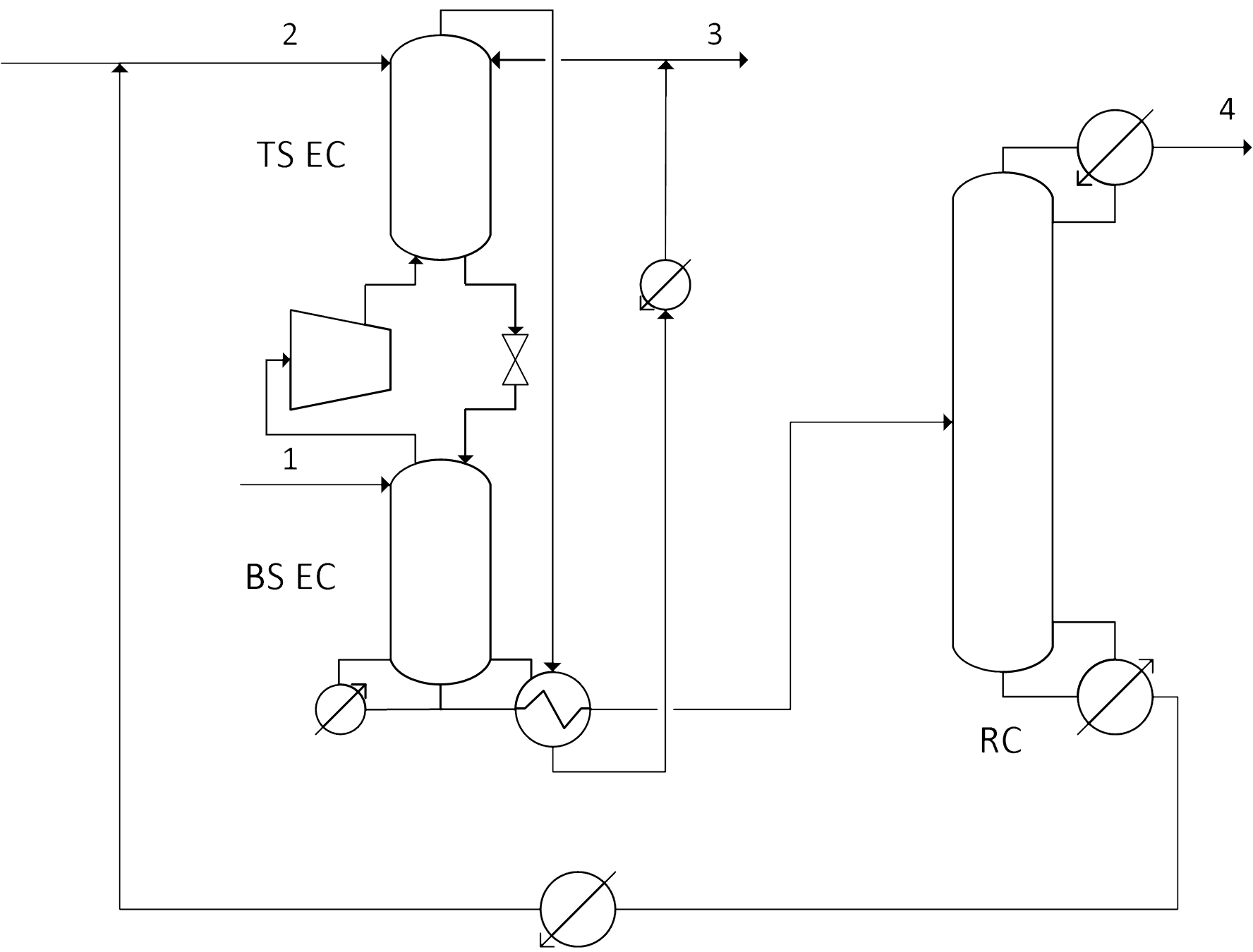

1. Scheme of ED including an “internal” heat pump.
Subject
Type Исследовательские инструменты
View (68KB)
Indexing metadata
  • For the extractive distillation of the isobutyl alcohol–isobutyl acetate mixture with butyl propionate as an entrainer, three variants of schemes with vapor recompression heat pumps were analyzed.
  • A scheme with an internal heat pump was proposed, in which the heat pump compressor is located between sections of extractive columns that operate at different pressures.
  • An economic assessment was conducted for all schemes. It is shown that the use of heat pumps in the extractive distillation of the mixture studied can significantly reduce energy and total annualcosts.
