Molybdenum(VI) oxide: New methods of synthesis and properties

https://doi.org/10.32362/2410-6593-2020-15-2-67-76

Full Text:

Abstract

Objectives. The present study aims to develop new methods for the synthesis of molybdenum(VI) oxide, which is a precursor for the synthesis of functional materials, as well as to investigate the physicochemical properties of the resulting oxide phases.

Methods. The synthesized phases and the products of their thermolysis were studied by differential thermal analysis, IR spectroscopy, X-ray diffraction analysis, and granulometry.

Results. Three methods for the synthesis of molybdenum(VI) oxide were developed, and the physicochemical properties of the oxide phases obtained were studied. The first method consisted in the reaction of molybdenum pentachloride with a 6.0–9.5 mol/L ammonia solution, the second one was the reaction of niobium pentachloride with a sulfuric acid solution, and the third method involved the reaction of ammonium molybdate with nitric acid, affording brown molybdenum(V) MoO(OH)3 hydroxide, a bright blue precipitate of molybdenum blue MoO2.75, and white hydrated oxide MoO3·H2O, respectively.

Conclusions. A series of thermal and X-ray diffraction analysis demonstrated that in all cases the samples were amorphous phases. Heat treatment at 580 °C of the synthesized phases led to the formation of a rhombic modification of molybdenum trioxide. The lattice parameters and X-ray density were calculated for all thermolysis products. The effect of heat treatment on the particle size of the synthesized samples and their thermolysis products was studied. Particle size analysis demonstrated that particles of different diameters were formed depending on the synthetic method. The smallest particle size (0.3–0.6 µm) was found in molybdenum trioxide, a product of the thermolysis of the sample obtained by the reaction of molybdenum pentachloride with a concentrated ammonium solution.

About the Authors

E. E. Nikishina
Nanoscale and Composite Materials, M.V. Lomonosov Institute of Fine Chemical Technologies, MIREA – Russian Technological University
Russian Federation

Elena E. Nikishina, Assistant Professor, Department of Chemistry and Technology Rare and Dispersed Elements

86, Vernadskogo pr., Moscow, 119571



E. N. Lebedeva
Nanoscale and Composite Materials, M.V. Lomonosov Institute of Fine Chemical Technologies, MIREA – Russian Technological University
Russian Federation

Elena N. Lebedeva, Engineer, Department of Chemistry and Technology Rare and Dispersed Elements

86, Vernadskogo pr., Moscow, 119571



D. V. Drobot
Nanoscale and Composite Materials, M.V. Lomonosov Institute of Fine Chemical Technologies, MIREA – Russian Technological University
Russian Federation

Dmitry V. Drobot, Professor, Department of Chemistry and Technology Rare and Dispersed Elements

86, Vernadskogo pr., Moscow, 119571



References

1. Miao F., Wu W., Li Q., Miao R., Tao B. Fabrication and Application of Molybdenum Trioxide Nanostructure Materials for Electrochemical Capacitors. Int. J. Electrochem. Sci. 2017;12:12060-12073. https://doi.org/10.20964/2017.12.200

2. Ban D., Xu N., Deng S., Chen J., She J. Lowtemperature Synthesis of Large-area Films of Molybdenum Trioxide Microbelts in Air and the Dependence of Their Field Emission Performance on Growth Conditions. J. Mater. Sci. Technol. 2010;26(7):584-588. https://doi.org/10.1016/S10050302(10)60089-8

3. Li G., Jiang L., Pang S., Peng H. Zhang Z. Molybdenum Trioxide Nanostructures: The Evolution from Helical Nanosheets to Crosslike Nanoflowers to Nanobelts. J. Phys. Chem. B. 2006;110(48):24472-24475. https://doi.org/10.1021/jp064855v

4. Hu X., Zhang W., Liu X., Meia Y., Huang Y. Nanostructured Mo-based electrode materials for electrochemical energy storage. Chem. Soc. Rev. 2015;44(8):2376-2404. https://doi.org/10.1039/C4CS00350K

5. Predel F. Phase diagram of Mo–O (molybdenum– oxygen) system. In: Predel F. (eds.) Phase Equilibria, Crystallographic and Thermodynamic Data of Binary Alloys. Physical Chemistry. Berlin, Heidelberg: Springer; 2016. V. 12D.

6. Karelin V.A. Himiya i tekhnologiya molibdena i vol’frama (Chemistry and technology molybdenum and tungstem). Tomsk: Tomsk Polytechnic University; 2017. 58 p. (in Russ.).

7. Henrich V.E., Cox P.A. The surface science of metal oxides. Cambridge: Cambridge University Press; 1996. 480 p.

8. Kihlborg L. Studies on molybdenum oxides. Acta Chem. Scand. 1959;13:954-962. https://doi.org/10.3891/acta.chem.scand.13-0954

9. Brandt B.G. Skapski A.C. A refinement of the crystal structure of molybdenum dioxide. Acta Chem. Scand. 1967;21:661672. https://doi.org/10.3891/acta.chem.scand.21-0661

10. Tsuda N., Nasu K., Fujimori A., Siratori K. Electronic conduction in oxides. New York: Springer-Verlag; 1991. 323 p.

11. Kihlbord L. Least squares refinement of the crystal structure of molybdenum. Arkiv för Kemi. 1963;21:357-364.

12. Yun J., Jang W., Lee T., Lee Y., Soon A. Aligning the band structures of polymorphic molybdenum oxides and organic emitters in light-emitting diodes. Phys. Rev. Applied. 2017;7:024025-1-024025-8. https://doi.org/10.1103/PhysRevApplied.7.024025

13. Mendes F.M. Weibel D.E., Blum R.P., Middeke J. Preparation and characterization of well-ordered MoOx films on Cu3Au(100)–oxygen substrate (CAOS). Catal. Today. 2008;133(1):187-191. https://doi.org/10.1016/j.cattod.2007.11.046

14. Tomina N.N., Pimerzin A.A., Moiseev I.K. Sulfide catalysts for hydropurification of oil fractions. Russ. J. Gen. Chem. 2009;79(6):1274-1288. https://doi.org/10.1134/S1070363209060449

15. Méndez-Vivar J. Synthesis of molybdenum oxides by the sol-gel method. Inorg. Chim. Acta. 1991;179(1):77-82. https://doi.org/10.1016/S0020-1693(00)85376-1

16. Ganguly A., George R. Synthesis, characterization and gas sensitivity of MoO3 nanoparticles. Bull. Mater. Sci. 2007;30(2):183-185. https://doi.org/10.1007/s12034-0070033-6

17. Pergament A.L., Malinenko V.P., Aleshina L.A., Kazakova E.L., Kuldin N.A. Electrical switching in thin film structures based on molybdenum oxides. J. Exp. Phys. 2014;2014:6 p. https://doi.org/10.1155/2014/951297

18. Chiang T.H., Yeh H.C. The synthesis of α-MoO3 by ethylene glycol. Materials. 2013;6(10):4609-4625. https://doi.org/10.3390/ma6104609

19. Parviz D., Kazemeini M., Rashidi A.M., Jozani J. Synthesis and characterization of MoO3 nanostructures by solution combustion method employing morphology and size control. J. Nanopart. Res. 2010;12(4):1509-1521. https://doi.org/10.1007/s11051-009-9727-6

20. Siciliano T., Tepore A., Filippo E., Micocci G., Tepore M. Characteristics of molybdenum trioxide nanobelts prepared by thermal evaporation technique. Mater. Chem. Phys. 2009;114(2-3):687-691. https://doi.org/10.1016/j.matchemphys.2008.10.018

21. Gupta C.K. Extractive metallurgy of molybdenum. Boca Raton: CRC Press; 1992. 404 p.

22. Nakamura I., Miras H.N., Fujiwara A., Fujibayashi M., etс. Investigating the formation of “molybdenum blues” with gel electrophoresis and mass spectrometry. J. Am. Chem. Soc. 2015;137(20):6524-6530. https://doi.org/10.1021/ja512758j

23. Koyun O., Gorduk S., Arvas M.B., Sahin Y. Direct, one-step synthesis of molybdenum blue using an electrochemical method, and characterization studies. Synth. Met. 2017;233:111-118. https://doi.org/10.1016/j.synthmet.2017.09.009

24. Kazenas E.K., Tsvetkov Yu.V. Isparenie oksidov (Evaporation of oxides). Moscow: Nauka; 1997. 543 p. (in Russ.).

25. Yuhnevich Yu.G. Advances in the use of IRspectroscopy to characterize OH bonds. Uspekhi Khimii = Russ. Chem. Rev. 1963;32(11):1397-1423 (in Russ.).

26. Li C., Xin Q., Wang K.-L., Guo X. FT-IR Emission spectroscopy studies of molybdenum oxide and supported molybdena on alumina, silica, zirconia, and titania. Appl. Spectrosc. 1991;45(5):874-882. https://doi.org/10.1366/0003702914336651

27. Chen D., Liu M., Yin L., Li T. et al. Singlecrystalline MoO3 nanoplates: topochemical synthesis and enhanced ethanol-sensing performance. J. Mater. Chem. 2011;21(25):9332-9342. https://doi.org/10.1039/C1JM11447F

28. Pavlova S.S., Kotvanova M.K. IR-spectra and electromechanical properties of transition metal oxide bronzes. Vestnik Yugorskogo gosudarstvennogo universiteta = Yugra State University Bulletin. 2008;10(3):61-63 (in Russ.).


Supplementary files

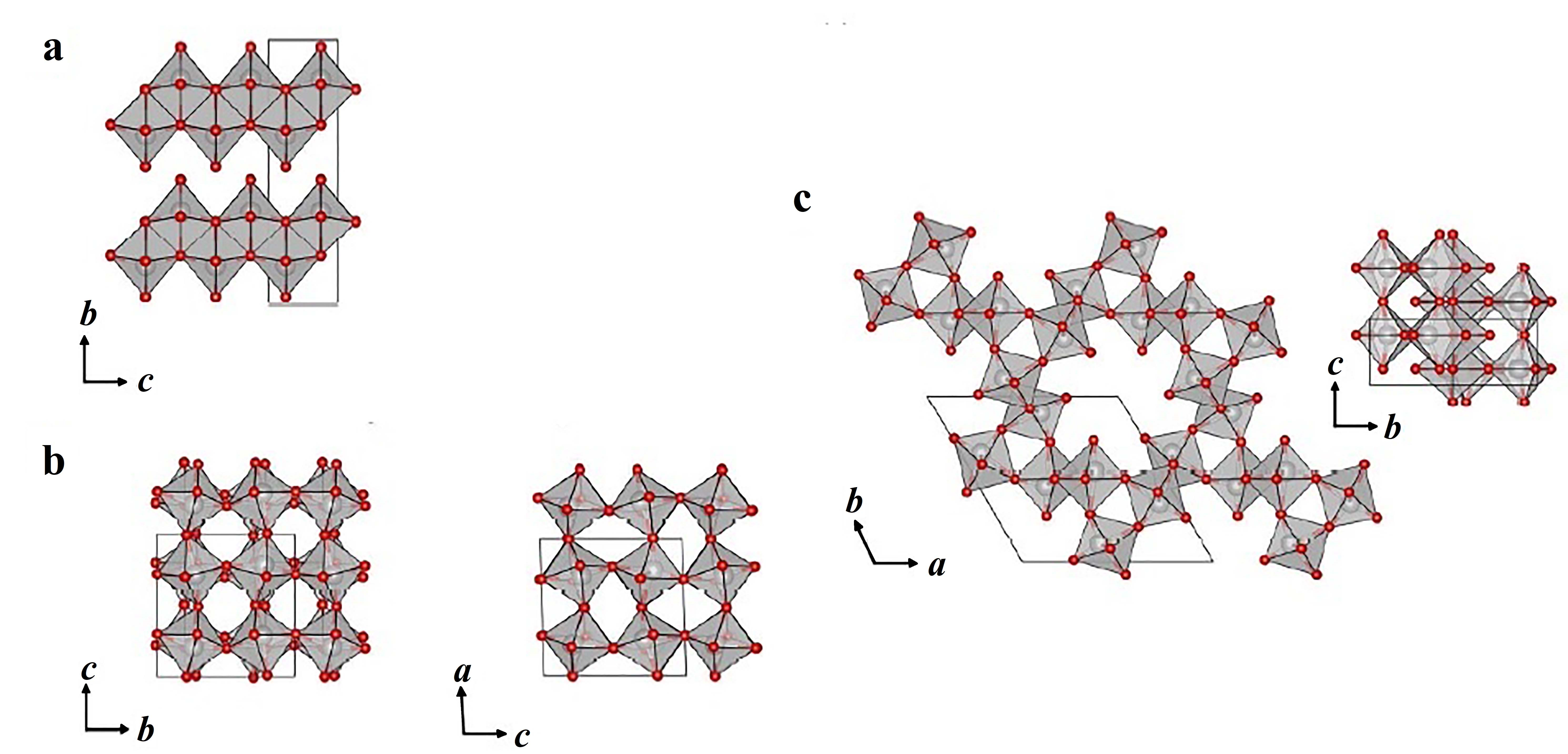

1. Structures of polymorph modifications of molybdenum trioxide: a) α-MoO3, b) β-MoO3, c) h-MoO3. In all structures, a unit cell is shown as a thin black line, oxygen atoms are indicated by black spheres, molybdenum atoms are located inside the gray MoO6 octahedra.
Subject
Type Исследовательские инструменты
View (6MB)
Indexing metadata

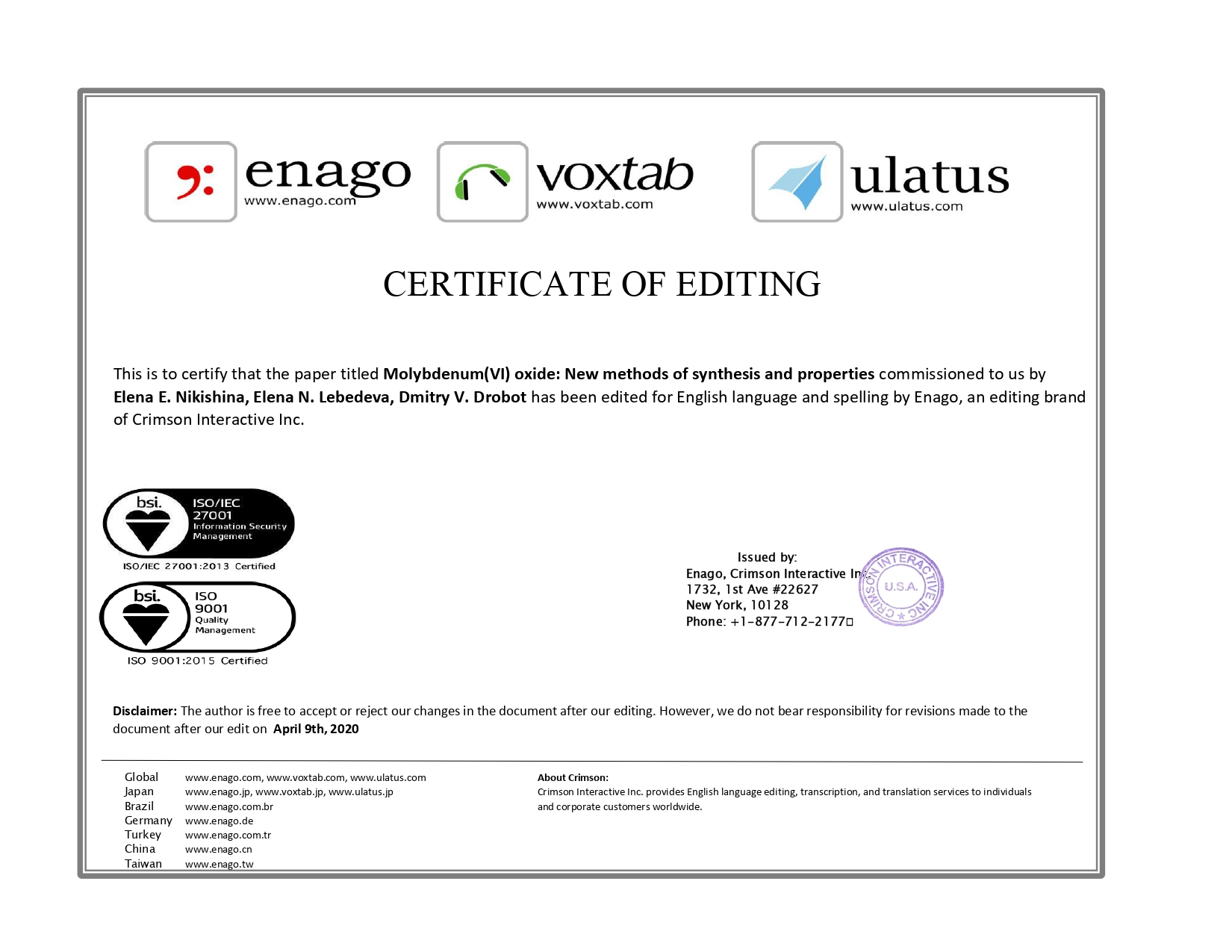

2. This is to certify that the paper titled Molybdenum(VI) oxide: New methods of synthesis and properties commissioned to Enago by Elena E. Nikishina, Elena N. Lebedeva, Dmitry V. Drobot has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (393KB)
Indexing metadata

Three methods for the synthesis of molybdenum(VI) oxide were developed, and the physicochemical properties of the obtained oxide phases were evaluated. A series of thermal and X-ray diffraction analyses demonstrated that in all cases, the samples were amorphous phases. Heat treatment of the synthesized phases at 580°C led to the formation of a rhombic modification of molybdenum trioxide. The lattice parameters and X-ray density were calculated for all thermolysis products. Moreover, the effect of heat treatment on the particle size of the synthesized samples and their thermolysis products was investigated.

For citation:


Nikishina E.E., Lebedeva E.N., Drobot D.V. Molybdenum(VI) oxide: New methods of synthesis and properties. Fine Chemical Technologies. 2020;15(2):67-76. https://doi.org/10.32362/2410-6593-2020-15-2-67-76
