Nickel catalysts for nitrogen–hydrogen mixture purification from carbon oxides

https://doi.org/10.32362/2410-6593-2020-15-2-21-29

Abstract

Objectives. This study is devoted to developing new-generation nickel (Ni) catalysts for the purification of a nitrogen–hydrogen mixture from carbon oxides, which should encompass the best qualities of the NIAP-07-series solid catalysts.

Methods. This study used derivatographic and radiographic methods; temperature-programmed recovery, decomposition, and joint temperature-programmed decomposition and recovery; and low-temperature nitrogen adsorption (specific surface determination). The mechanical strength of catalysts was determined using an MP-2C device by crushing granules with an applied load on the end face. The chemical composition and catalytic activity were determined by the methods of TU 2178-003-00209510 Technical Conditions.

Results. Many studies regarding Ni–aluminum (Al)–calcium (Ca) methanation catalyst at all stages of its preparation have been conducted. It is demonstrated that Ni hydrocarboxyaluminate, a precursor of the active component of the catalyst, is formed when Ni hydroxocarbonate is mixed with active alumina in the presence of an aqueous solution of ammonia, and its chemical formula is established. Moreover, it was found that the mechanical strength of the catalyst is determined by the amount of industrial Ca aluminate added to the Ni–Al composition. The compositions of catalysts with different contents of the active component have been optimized.

Conclusions. The developed catalyst has a low activation temperature and high catalytic activity, thermal stability, and mechanical strength and is resistant to organic and alkaline carbon dioxide absorbers. The catalyst can be produced in the form of a ring, cylindrical tablets, and extrudates of various geometric sizes. The methanation unit at Stavrolen (Budennovsk, Stavropol krai, Russia) has begun commercially operating the catalyst.

About the Authors

E. Z. Golosman
NIAP-KATALIZATOR
Russian Federation

Evgeniy Z. Golosman, Dr. of  Sci. (Chemistry), Main Researcher

10, Svyazi ul., Novomoskovsk, Tula oblast, 301660



V. N. Efremov
NIAP-KATALIZATOR
Russian Federation

Vasiliy N. Efremov, Cand. of Sci. (Engineering), Main Specialist on Catalysts

10, Svyazi ul., Novomoskovsk, Tula oblast, 301660



A. V. Kashinskaya
NIAP-KATALIZATOR
Russian Federation

Anna V. Kashinskaya, Head of the Laboratory of Physical and Chemical Research

10, Svyazi ul., Novomoskovsk, Tula oblast, 301660



References

1. Mel’nikov E.Ya. (Ed.). Spravochnik azotchika (Nitric directory). Moscow: Chemistry; 1986. 512 p. (in Russ.).

2. Semenova T.A., Leites I.L. (Eds.). Ochistka tekhnologicheskikh gazov (Process gas cleaning). Moscow: Chemistry; 1977. 488 p. (in Russ.).

3. Semenov V.P. (Ed.). Proizvodstvo ammiaka (Ammonia production.). Moscow: Chemistry; 1985. 368 p. (in Russ.).

4. Semenov V.P. (Ed.). Spravochnoe rukovodstvo po katalizatoram dlya proizvodstva ammiaka i vodoroda (Catalysts guide for ammonia and hydrogen production). Leningrad: Chemistry; 1973. 248 р. (in Russ.).

5. Berezina Yu.I., Shumilkina V.A., Semenova T.A., et al. Katalizatory metanirovaniya. Obzorn. inform. Ser. Azot. Prom. (Methanation catalysts. A Review. Nitrogen Industry Series). Moscow: NIITEKhim; 1986. 46 p. (in Russ.).

6. Obzor i analiz raboty reaktorov i katalizatorov na ustanovkakh proizvodstva etilena i pererabotki pirokondensata (Review and analysis of the operation of reactors and catalysts in plants for the production of ethylene and pyrocondensate processing). Moscow: VNIIOS-NAUKA; 2004. 10 p. (in Russ.).

7. Golosman E. Z. Treatment of process and exhaust gases using industrial cement-containing catalysts. Khimicheskaya tekhnologiya = Chemical Technology. 2000;12:25-35 (in Russ.).

8. Vakk E.G., Shuklin G.V., Leites I.L. Poluchenie tekhnologicheskogo gaza dlya proizvodstva ammiaka, metanola, vodoroda i vysshikh uglevodorodov: teoreticheskie osnovy, tekhnologiya, katalizatory, oborudovanie, sistemy upravleniya (Obtaining process gas for the production of ammonia, methanol, hydrogen and higher hydrocarbons: theoretical foundations, technology, catalysts, equipment, control systems). Moscow: 2011. 478 p. ISBN 978-5-98801-033-3 (in Russ.).

9. Dimidenko I.M., Yankovskii N.A., Stepanov V.A., Nikitina E.F., Kravchenko B.V. Ammiak. Voprosy tekhnologii (Ammonia. Technology issues), N.A. Yankovskii (Ed.). Donetsk: GIK Novaya Pechat’. OOO Lebed’; 2001. 497 p. (in Russ.).

10. Efremov V.N., Danyushevskii V.Ya., Grechenko A.N., Golosman E.Z., Yakerson V.I. Formation of a nickel catalyst with a different ratio of aluminum oxide and calcium aluminate. Kinetika i Kataliz = Kinetics and Catalysis. 1979;20(5):1315-1323 (in Russ.).

11. Yakerson V.I., Golosman E.Z. Katalizatory i tsementy (Catalysts and cements). Moscow: Khimiya; 1992. 256 p. (in Russ.). ISBN 5-7245-0762-5

12. Afanas’ev S.V. (Ed.). Promyshlennyi kataliz v gazokhimii (Industrial catalysis in gas chemistry). Samara: ANO SNTs Publishing House; 2018. 160 p. (in Russ.).

13. Gazimzyanov N.R., Gartman V.L. Features of methanetion catalyst operation at petrochemical and oil refining plants. Kataliz v Promyshlennosti = Catal. Ind. 2006;4:44-51 (in Russ.).

14. Dul’nev A.V., Obysov A.V., Dormidontova S.G. Method of producing a methanation catalyst. RF Pat. 2472587. Publ. 20.01.2013 (in Russ.).

15. Obysov A.V., Gartman V.L., Veinbender A.Ya., Sukhoruchkina L.A. Method of preparing nickel-aluminumchromium catalyst for reduction-oxidation processes, in particular, for carbon monoxide methanation. RF Pat. 2205068. Publ. 27.05.2003 (in Russ.).

16. Rozhdestvenskii V.P., Polyanskii A.B., Antipov A.V., Lyamina L.A. Methane synthesis catalyst. USSR Inventor’s Certificate 1287356. 1984 (in Russ.).

17. Kladova N.V., Borisova T.V., Kachkin A.V., Makarenko M.G. Method of synthesis of catalyst for hydrogenation of aromatic compounds, for methanation of CO and СО2. RF Pat. 2186623. Publ. 10.08.2002 (in Russ.).

18. Golosman E.Z., Efremov V.N. Poluchenie i ochistka zashchitnykh atmosfer na promyshlennykh katalizatorakh (Obtaining and purification of protective atmosphere on industrial catalysts). Deutschland. Saarbucken: Palmarium Academie Publishing; 2016. 68 p. (in Russ.). ISBN 978-3659-72283-7

19. Nechugovskii A.I., Grechenko A.N., Golosman E.Z. Study of the interaction of metal hydroxocarbonates with calcium aluminates in an aqueous medium. Russ. J. Appl. Chem. 1990;63(8):1747-1751 (in Russ.).

20. Leites I.L., Avetisov A.K., Yazvikova N.V., Suvorkin S.V., Baichtok Yu.K., Dudakova N.B., Deev K.N. Investigation of the physicochemical properties of the modified MDEA absorbent for fine purification of synthesis gas from carbon dioxide in the production of ammonia. Khim. Prom. Segodnya = Chem. Ind. Today. 2003;1:34-41 (in Russ.).

21. Avetisov A.K., Kononov S.M., Sokolov A.M., Baitchok Yu.K., Suvorkin S.V., Leitis I.L., Deripasov V.V. Experience of modernization of the absorption cleaning unit of the ammonia synthesis unit AM-70 at Nevinnomysskii azot with the replacement of the MEA solution with a Russianmade MDEA sorbent. Khim. Prom. Segodnya = Chem. Ind. Today. 2003;2:22-24 (in Russ.).

22. Nechueva L.G., Berezina Yu.I., Yazvikova N.V., Chudinov M.G., Glagoleva L.I. Nitrogen fertilizer production. Trudy GIAP = Procc. of GIAP. 1979;55:37-44 (in Russ.).

23. Kashinskaya A.V., Efremov V.N., Golosman E.Z., Polivanov B. I. Issledovanie i vnedrenie v promyshlennost’ nanostryktyirovannogo nikel’tsementsoderzhashchtgo katalizatora protsessa metanirovaniya (Research and implementation of a nanostructured Nickel-cement-containing catalyst for the methanation process in industry). All-Russian scientific and technical conference “Problems of science.” Conference proceedings. Part 1. Chemistry and chemical technology. D.I. Mendeleyev Russian State Technical University, Novomoskovsk Institute (branch). Novomoskovsk: 2019. Р. 24-36 (in Russ.).

24. Efremov V.N., Golosman E.Z., Kashinskaya A.V., Polivanov B.I., Polushin A.P. About destruction of nickel catalysts of a methanation under the influence of inorganic and organic absorbents CO2. Khim. Prom. Segodnya = Chem. Ind. Today. 2018;4:14-21 (in Russ.).


Supplementary files

1. The preparation of the Ni–aluminum (Al)–calcium (Ca) methanation catalyst has been previously comprehensively investigated. The developed catalyst exhibits a low activation temperature and high catalytic activity, thermal stability, and mechanical strength. It is resistant to organic and alkaline carbon dioxide absorbers. The catalyst can be produced in the form of a ring, cylindrical tablets, and extrudates of various geometric sizes.
Subject
Type Research Instrument
View (312KB)
Indexing metadata ▾

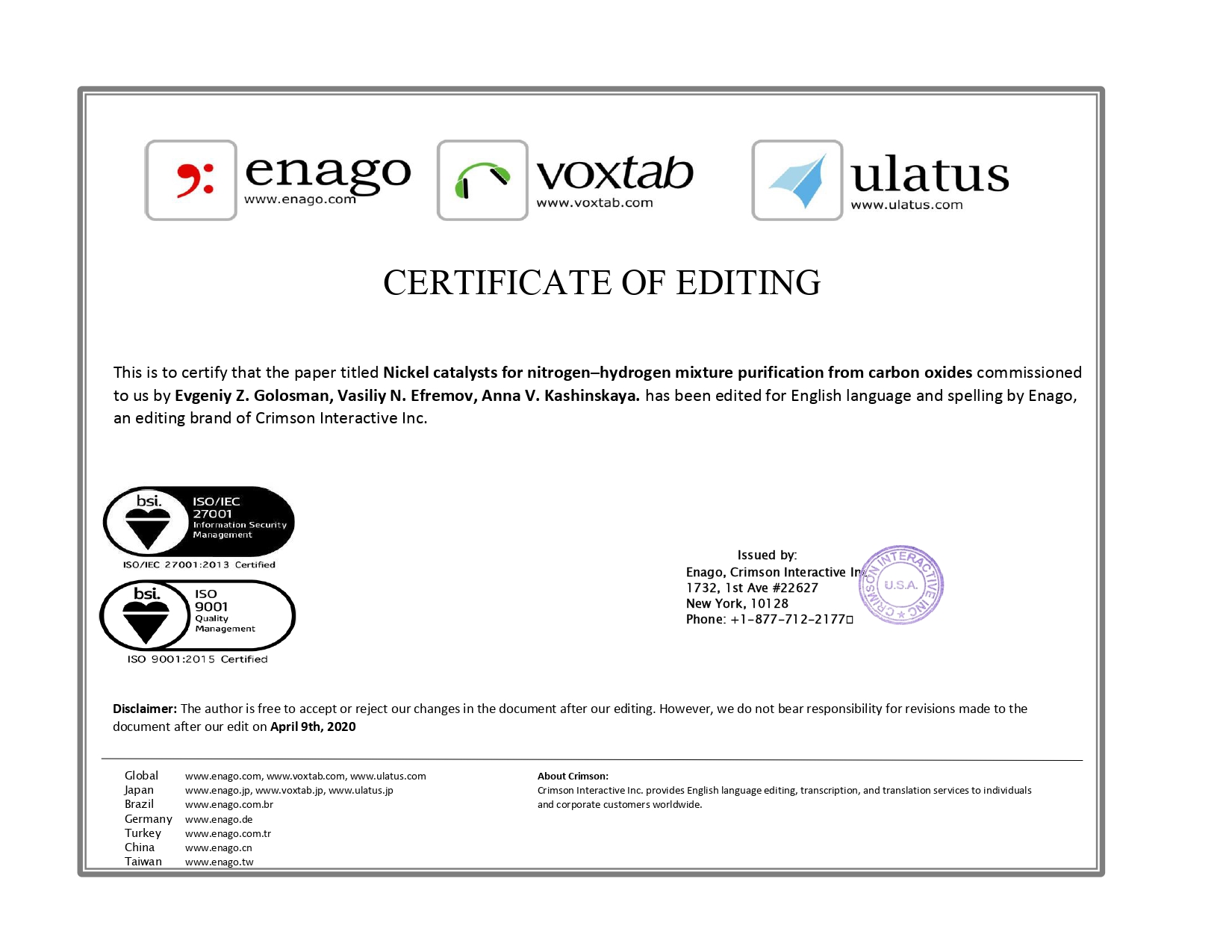

2. This is to certify that the paper titled Nickel catalysts for nitrogen–hydrogen mixture purification from carbon oxides commissioned to Enago by Evgeniy Z. Golosman, Vasiliy N. Efremov, Аnna V. Kashinskaya. has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (397KB)
Indexing metadata ▾

The preparation of the Ni–aluminum (Al)–calcium (Ca) methanation catalyst has been previously comprehensively investigated. The developed catalyst exhibits a low activation temperature and high catalytic activity, thermal stability, and mechanical strength. It is resistant to organic and alkaline carbon dioxide absorbers. The catalyst can be produced in the form of a ring, cylindrical tablets, and extrudates of various geometric sizes.

Review

For citations:


Golosman E.Z., Efremov V.N., Kashinskaya A.V. Nickel catalysts for nitrogen–hydrogen mixture purification from carbon oxides. Fine Chemical Technologies. 2020;15(2):21-29. https://doi.org/10.32362/2410-6593-2020-15-2-21-29
