Improvement of high-viscosity oil production technology via the effective redistribution of energy resources

https://doi.org/10.32362/2410-6593-2020-15-1-37-45

Full Text:

Abstract

Objectives. The synthesis of high-viscosity oils is a fundamental aspect of oil refinement and contributes toward improvements in their production technologies. However, current methods of oil extraction are characterized by the inefficient use of energy resources. Therefore, refinement costs continue to increase. Furthermore, high production emissions affect the environment. For example, the Duosol-type process uses a large quantity of gas used in solvent recovery units in existing furnaces, and excess heat is wasted. Additionally, oil dewaxing plants use water steam, whose condensate can be contaminated with petroleum products or ketone-aromatic solvents. The purpose of this study was to identify ways of improving the efficiency of high-viscosity oil production technologies for energy efficiency and environmental safety as well as prove the feasibility of computational methods of oil production plants’ improvement.

Methods. The heat quantity required for high-viscosity oil production is calculated using a thermal equation and data obtained from industrial equivalents, empirical dependencies, and reference data. The heat capacities and heat quantities of Duosol and dewaxing plants are calculated using conventional methods based on the heat recovery principle.

Results. At the solvent regeneration unit of a Duosol plant, excessive heating of the cube in one of the distillation columns was measured, leading to excessive heat consumption. This may result in contamination of the low boiling distillation component with water—one of the still bottom mixture components. Calculations show that the furnace should be divided into two chambers to lower the temperature of the column cube to help solve this problem. Water steam is currently used in the raw material preparation unit of the dewaxing plant. It has been found, however, that the quantity of heat carried away by the flue gases of the furnaces is sufficient to heat the raw material preparation unit of the oil dewaxing plant if water steam is completely excluded from this operation.

Conclusions. Technology improvement at Duosol and dewaxing plants, which are part of the process of obtaining high-viscosity oils at refineries, is possible through the effective redistribution of energy resources.

About the Authors

S. S. Rodin
Volgograd State Technical University
Russian Federation

Sergey S. Rodin, Master Student, Chemical Technology of Natural and Carbon Materials Program, Department of Technology of Organic and Petrochemical Synthesis.

28, Lenina pr., Volgograd, 400005



Yu. L. Zotov
Volgograd State Technical University
Russian Federation

Yuri L. Zotov, Dr. of Sci. (Chemistry), Professor, Department of Technology of Organic and Petrochemical Synthesis. Scopus Author ID 7003371961

28, Lenina pr., Volgograd, 400005



V. Yu. Moroshkin
Volgograd State Technical University
Russian Federation

Vladimir Yu. Moroshkin, Leading Specialist, Technical Supervision Department, LUKOIL-Volgogradneftepererabotka LLC.

55, 40 let Komsomola ul., Volgograd, 400029



E. A. Fedyanov
Volgograd State Technical University
Russian Federation

Evgeny A. Fedyanov, Dr. of Sci. (Engineering), Professor, Head of the Department of Heat Engineering and Hydraulics. Scopus Author ID 6507068214, Researcher ID Q-7217-2017

28, Lenina pr., Volgograd, 400005



E. V. Shishkin
Volgograd State Technical University
Russian Federation

Evgeny V. Shishkin, Dr. of Sci. (Chemistry), Professor, Department of Technology of Organic and Petrochemical Synthesis, Dean of the Department of Chemistry and Technology. Scopus Author ID 7004314557

28, Lenina pr., Volgograd, 400005



References

1. Dobrova A.A., Ilchibaeva A.K., Hidiyatullin A.S., Haritsky D.K., Antipin O.S., Khafizova S.R., Rudnev N.A. Analysis and optimization of heat transfer equipment of atmospheric and vacuum distillation of oil refining. Neftegazokhimiya. 2017;1:40-46 (in Russ.). https://doi.org/10.24411/2310-8266-2017-00006

2. Shcherbakov A.A., Dyusembaeva A.A. Modernization of regeneration solution of solvent of deparafinization plant of oils. Herald of Omsk University. 2018;23(4):98-102 (in Russ.). https://doi.org/10.25513/1812-3996.2018.23(4).98-102

3. Kolchina G.Yu., Tukhvatullin R.F., Babaev E.R., Movsumzade E.M. Sterically hindered phenols as antioxidant, anticorrosion and antimicrobial additives to mineral lubricating oils. Neftegazokhimiya. 2017;1:10-13 (in Russ.). https://doi.org/10.24411/2310-8266-2017-00001

4. Vafayev O.Sh., Sottikulov E.S., Tajihodzhayev Z.A., Yuldashev N.H., Jalilov A.T. Influence of a pour-point depressant additive on qualitative indicators of diesel fuel. Universum: Technical Sciences. 2018;9(54) (in Russ.). Available from: http://7universum.com/ru/tech/archive/item/6357

5. Kapustin V.M., Tonkonogov B.P., Fuks I.T. Tekhnologiya pererabotki nefti. Chast’ 3. Proizvodstvo neftyanykh smazochnykh materialov. Uchebnoe posobie (Oil refining technology. Part 3. Production of petroleum lubricants. Textbook). Moscow: Khimiya; 2014. 328 p. (in Russ.).

6. Polyakov K.M., Nosenko V.N. Influence of various feeds of distillation columns to energy consumption of the crude oil distillation unit. Herald of Omsk University. 2018;23(1):53-59 (in Russ.). https://doi.org/10.25513/1812-3996.2018.23(1).53-59

7. Ermolaeva V.A., Nikolaeva D.M., Stoletovykh N.G. Mathematical modeling of rectification of multicomponent mix. International Journal of Humanities and Natural Sciences. 2019;2-2:35-39 (in Russ.). https://doi.org/10.24411/2500-1000-2019-10567

8. Sokolov B.A. Neft’ (Oil). Sokolov V.A. (Ed.). Moscow: Nedra; 1970. 384 p. (in Russ.).

9. Tilicheev M.D. (Ed.). Fiziko-khimicheskie svoistva individual’nykh uglevodorodov. Vypusk 4. (Physical and chemical properties of individual hydrocarbons. Issue 4). Moscow-Leningrad: Gosudarstvennoe nauchno-tekhnicheskoe izdatel’stvo neftyanoi i gorno-toplivnoi literatury; 1953. 438 p. (in Russ.).

10. Mishchenko K.P., Ravdel’ A.A. (eds.). Kratkii spravochnik fiziko-khimicheskikh velichin (Quick reference of physical and chemical quantities). Leningrad: Khimiya; 1974. 200 p. (in Russ.).

11. Yakovlev S.I., Kerm L.J. Sposob regeneratsii rastvoritelya v protsessakh deparafinizatsii i obezmaslivaniya (Method of solvent regeneration in dewaxing and deoiling processes). Pat. 2 532 808. Russian Federation: IPC C10G 21/06 C10G 21/28 C10G 73/06; applicant and patentee of the “VOKSTEK” LLC; Appl. 20.08.2013; publ. 10.11.2014 (in Russ.). Available from: https://patents.google.com/patent/RU2700701C1/ru

12. Lide D.R. (Ed.). CRC Handbook of Chemistry and Physics. 90th edition. CRC Press; Taylor and Francis, 2009. 2828 p.

13. Golomshtok L.I., Haldej K.Z. Snizhenie potrebleniya energii v protsessakh pererabotki nefti (Reduction of energy consumption in oil refining processes). Moscow: Khimiya; 1990. 144 p. ISBN: 5-7245-0532-0 (Fuel and energy savings) (in Russ.).

14. Aznabaev Sh.T., Nigmatullin V.R., Nigmatullin I.R. Izbiratel’nye rastvoriteli i khladagenty v pererabotke nefti: Spravochnoe posobie (Selective solvents and refrigerants in oil refining: a reference guide). Olkov P.L. (Ed.). Ufa: UGNTU; 2000. 85 p. (in Russ.).

15. Kulchitskii A.R. Topliva dlya energoustanovok. Raschet termokhimicheskikh pokazatelei: ucheb. posobie (Fuel for power plants. Calculation of thermochemical parameters: Textbook). Kulchitskii A.R. (Ed.). Vladimir: Izdatel’stvo Vladimirskogo gosudarstvennogo universiteta; 2009. 100 p. (in Russ.).


Supplementary files

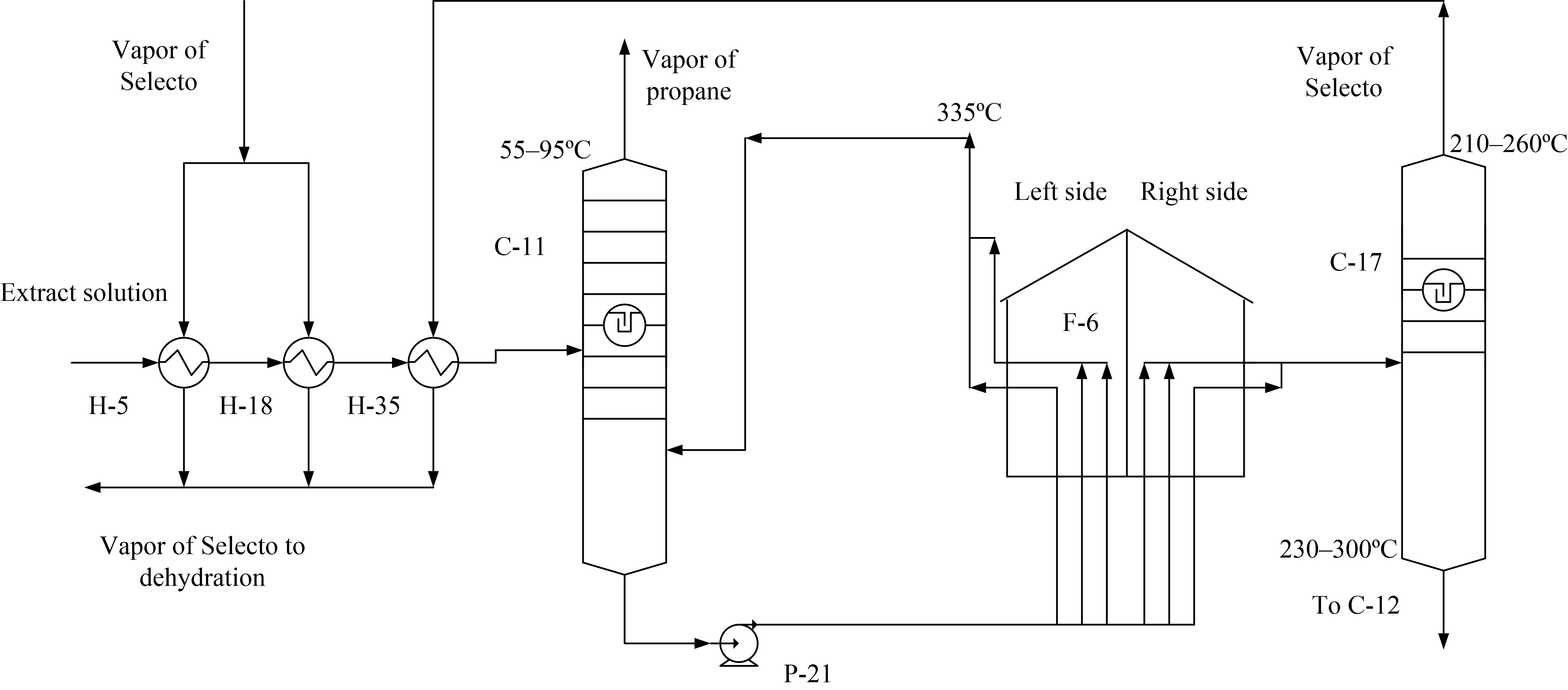

1. Existing scheme of propane regeneration: H-5, H-18, H-35 – heat exchangers; C-11, C-17 – packed columns; F-6 – furnace; P-21 – pump.
Subject
Type Research Instrument
View (191KB)
Indexing metadata

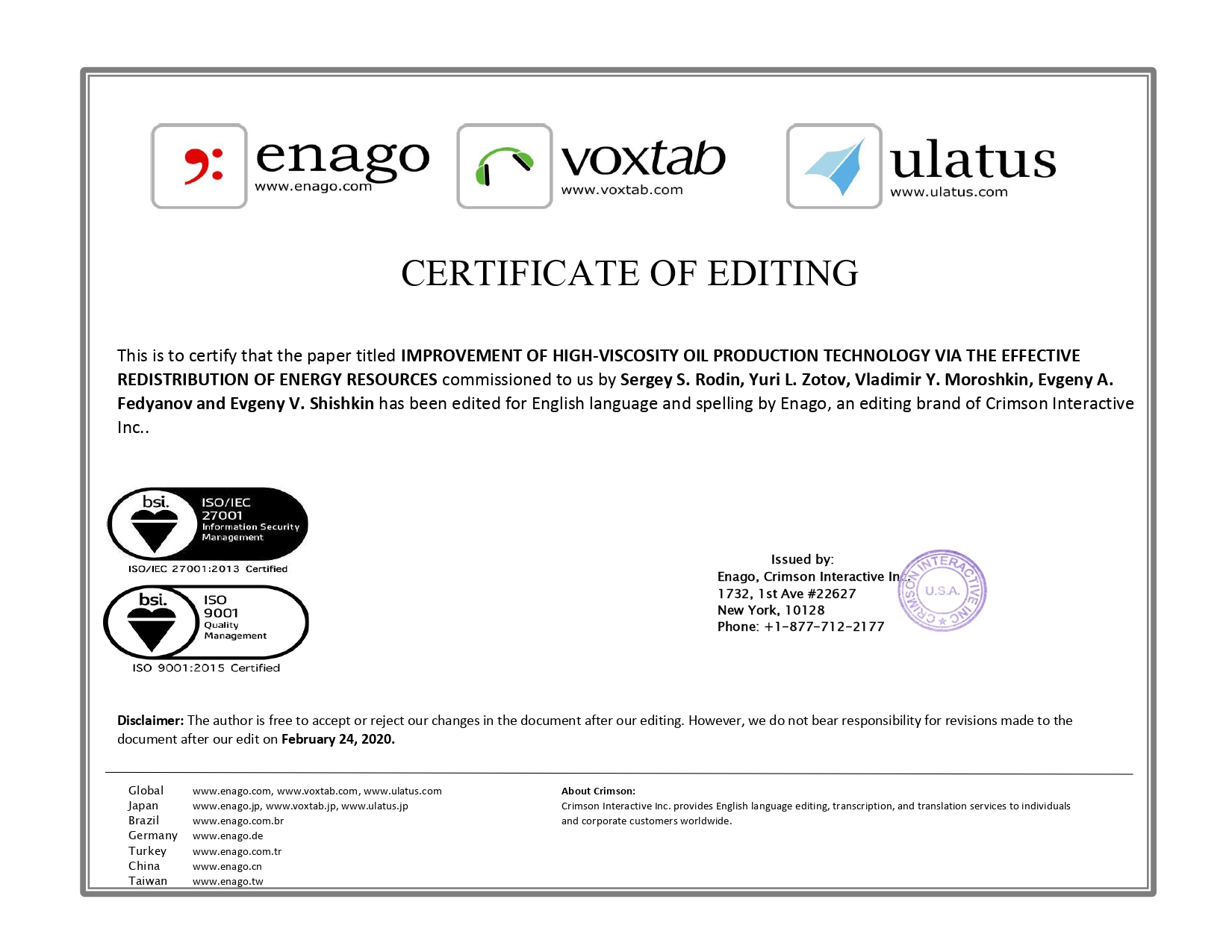

2. This is to certify that the paper titled IMPROVEMENT OF HIGH-VISCOSITY OIL PRODUCTION TECHNOLOGY VIA THE EFFECTIVE REDISTRIBUTION OF ENERGY RESOURCES commissioned to Enago by Sergey S. Rodin, Yuri L. Zotov, Vladimir Y. Moroshkin, Evgeny A. Fedyanov and Evgeny V. Shishkin has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (431KB)
Indexing metadata

Efficient energy redistribution is proposed for the Duosol and dewaxing processes. The separation of the regeneration unit furnace into two chambers is suggested to prevent the contamination of propane, which is used for column heating, with water. The new approach can prevent the formation of contaminated effluents at oil dewaxing plants.

For citation:


Rodin S.S., Zotov Yu.L., Moroshkin V.Yu., Fedyanov E.A., Shishkin E.V. Improvement of high-viscosity oil production technology via the effective redistribution of energy resources. Fine Chemical Technologies. 2020;15(1):37-45. https://doi.org/10.32362/2410-6593-2020-15-1-37-45
