Quantum chemical investigation of the oxidative addition reaction of allyl carboxylates to Ni(0) and Pd(0) complexes

Objectives. The first allylpalladium complex was synthesized and characterized 60 years ago at the Department of Physical Chemistry of M.V. Lomonosov Moscow State University of Fine Chemical Technology (MITHT). This discovery was an important stage in the development of a new direction in chemistry - metal complex catalysis, which subsequently led to understanding the strategy for studying the mechanisms of catalysts action, and gave a powerful impetus to the study of intermediates of catalytic reactions. The key sta.ge in many catalytic processes involving transition metal complexes is the oxidative addition stage. The study’s aim was the quantum chemical modeling of the oxidative addition stage of allylic carboxylates to the Ni(0) and Pd(0) complexes.

Methods. Quantum chemical calculations were carried out under the Kohn-Sham method for the density Junctional theory using the PBE exchange-correlation Junctional and all-electron L11 basis set.

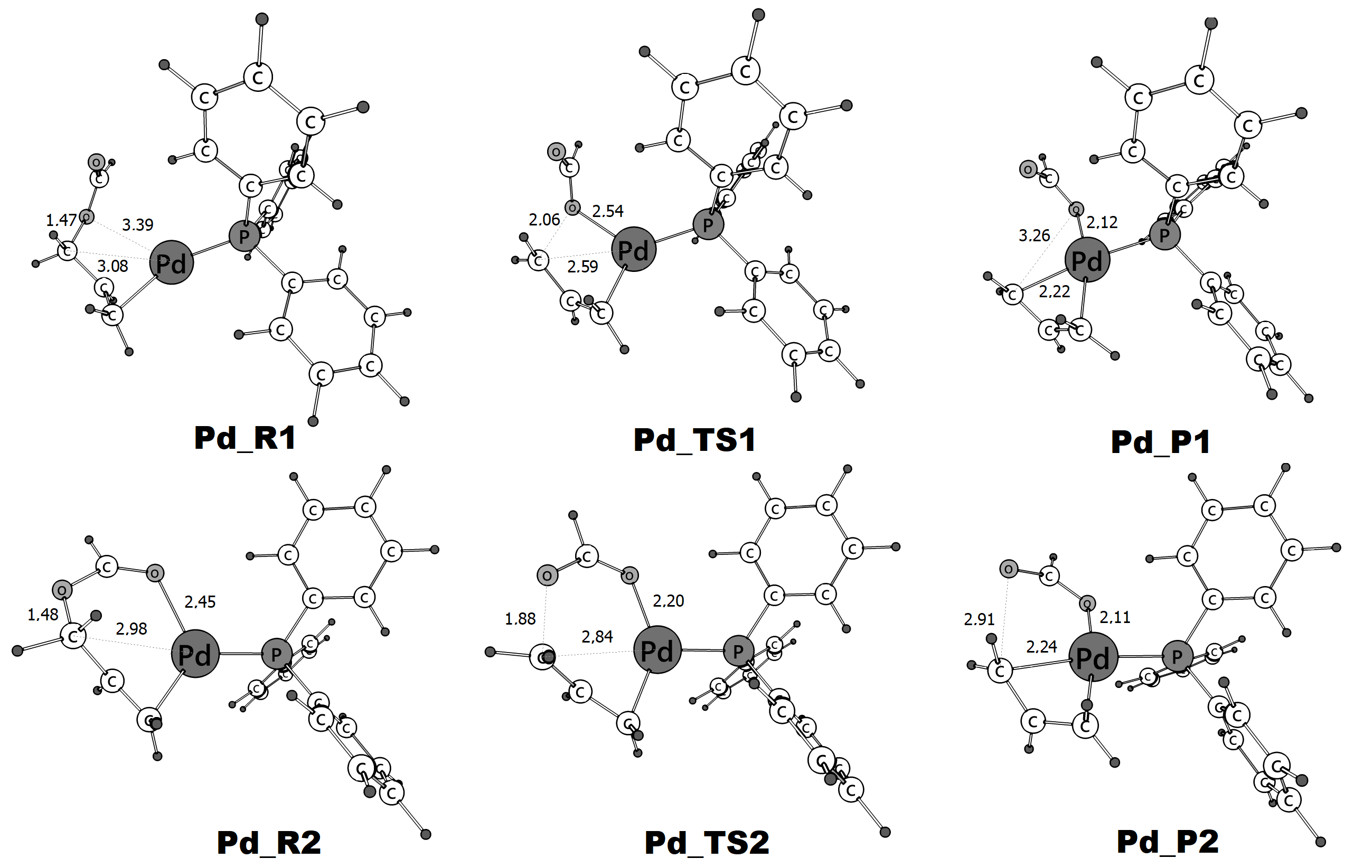

Results. As a result of theoretical study, we showed that the oxidative addition of allyl acetate to the triisopropylphosphite complex of nickel(0) and allyl formate to the triphenylphosphine complex of palladium(O) can proceed along two routes. In the first of them, in the coordinated breaking of the С-О bond and the formation of the metal-O bond, the same oxygen atom is involved, thus forming a three-center transition state. In the second route, the restructuring of relations is carried out in a five-center transition state. The chelating effect in the five-centered transition state of the second route reduces the reaction’s activation barrier by 12.7 kcal/mol for allyl acetate and the nickel(0) triisopropylphosphite complex Ni(P(QPr)₃)₂ and by 9.9 kcal/mol for allyl formate and the palladium(O) triphenylphosphine complex Pd(PPh₃). The presence of the second triphenylphosphine ligand in Pd(PPh₃)₂ reduces the activation barrier by only 2.6 kcal/mol.

Conclusions. The quantum chemical modeling performed allowed us to determine the preference for the oxidative addition of allyl carboxylates to the Ni(0) and Pd(0) complexes through a five-center transition state. The reaction’s activation barriers through the “classical” three-center interaction are 9.9-12.7 kcal/mol higher, and the chelating effect is more noticeable for the Ni complex The presence in the coordination sphere of several bulky ligands, such as triphenylphosphine, practically eliminates the chelating effect in the oxidative addition of allyl carboxylates.

1. Moiseev I.I., Fedorovskaya E.A., Syrkin Ya.K. New palladium complexes with unsaturated organic ligands. Russ. J. Inorg. Chem. 1959;4(11):2641-2642 (in Russ.).

2. Labinger J.A. Tutorial on oxidative addition. Organometallics. 2015;34(20):4784-4795. https://doi.org/10.1021/acs.organomet.5b00565

3. Chu T., Nikonov G. I. Oxidative addition and reductive elimination at main-group element centers. Chem. Rev. 2018;118(7):3608-3680. https://doi.org/10.1021/acs.chemrev.7b00572

4. Murakami M., Chatani N. Cleavage of carbon-carbon single bonds by transition metals. Weinheim, Germany: Wiley-VCH Publ.; 2016. 296 p. https://doi.org/10.1002/anie.201604142

5. Crabtree R.H. The organometallic chemistry of the transition metals. New Jersey: John Wiley & Sons Publ.; 2014. 520 p. https://doi.org/10.1002/9781118788301.ch6

6. Bhaduri S., Mukesh D. Homogeneous catalysis mechanisms and industrial applications. New Jersey: John Wiley & Sons Publ.; 2014. 288 p. https://doi.org/10.1002/9781118872369

7. Tamaru Y. Modern Organonickel Chemistry. Weinheim, Germany: Wiley-VCH Publ.; 2005. 327 p. https://doi.org/10.1002/3527604847

8. Yamamoto T., Ishizu J., Yamamoto A. Interaction of nickel(0) complexes with allyl carboxylates, allyl ethers, allylic alcohols, and vinyl acetate. п-Complex formation and oxidative addition to nickel involving cleavage of the alkenyl-oxygen bond. J. Am. Chem. Soc. 1981;103(23):6863-6869. https://doi.org/10.1021/ja00413a014

9. Yamamoto T., Saito O., Yamamoto A. Oxidative addition of allyl acetate to Pd(0) complexes. J. Am. Chem. Soc. 1981;103(18):5600-5602. https://doi.org/10.1021/ja00408a068

10. Yamamoto T., Akimoto M., Saito O., Yamamoto A. Interaction of palladium(0) complexes with allylic acetates, allyl ethers, allyl phenyl chalcogenides, allylic alcohols, and allylamines. Oxidative addition, condensation, disproportionation, and п-complex formation. Organometallics. 1986;5(8):1559-1567. https://doi.org/10.1021/om00139a009

11. Durakov S.A., Shamsiev R.S., Flid V.R., Gekhman A.E. Hydride transfer mechanism in the catalytic allylation of norbornadiene with allyl formate. Russ. Chem. Bull. 2018; 67(12):2234-2240. https://doi.org/10.1007/s11172-018-2361-7

12. Flid V.R., Gringolts M.L., Shamsiev R.S., Finkelshtein E.S., Norbornene, norbornadiene and their derivatives: promising semi-products for organic synthesis and production of polymeric materials. Russ. Chem. Rev. 2018;87(12):1169-1205. http://doi.org/10.1070/RCR4834

13. Catellani M., Chiusoli G.P., Dradi E., Salerno G. Nickel-catalyzed allylation of norbornene. J. Organomet. Chem. 1979;177(2):29-31. https://doi.org/10.1016/S0022-328X(00)94094-4

14. Evstigneeva E.M., Flid V.R. Nonconventional allylation of norbornene and norbornadiene derivatives: stoichiometry and catalysis. Russ. Chem. Bull. 2008;57(4):837-844. https://doi.org/10.1007/s11172-008-0121-9

15. Laikov D.N., Ustynyuk Y.A. PRIRODA-04: a quantum-chemical program suite. New possibilities in the study of molecular systems with the application of parallel computing. Russ. Chem. Bull. 2005;54(3):820-826. https://doi.org/10.1007/s11172-005-0329-x

16. Perdew J.P., Burke K., ErnzerhofM. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996;77(18):3865-3868. https://doi.org/10.1103/PhysRevLett.77.3865

17. Laikov D.N. A new class of atom basis functions for accurate electronic structure calculations of molecules. Chem. Phys. Lett. 2005;416(1-3):116-120. https://doi.org/10.1016/j.cplett.2005.09.046

18. Dayneko M.V., Shamsiev R.S., Belov A.P., Stromnova T.A., Alekseev L.S., Kochubei D.I., Novgorodov B.N. Change in the coordination mode of nitrosyl groups: transformation of Pd₄(µ-NO)₄(µ-OCOCF₃)₄ into Pd₃(NO)₂(µ-OCOCF₃)₄(C₆H₅Me)₂. Russ. J. Inorg. Chem. 2005;50(3):365-371

19. Shamsiev R.S., Drobyshev A.V., Flid V.R. Quantum-chemical study on the mechanism of catalytic dimerization of norbornadiene in the presence of hydride nickel(I) complex. Russ. J. Org. Chem. 2013;49(3):345-349. https://doi.org/10.1134/S1070428013030056

20. Shamsiev R.S., Ha Ngok Thien, Flid V.R. Problems of the stereoselectivity in the norbornadiene [2+2]-cyclodimerization reactions catalyzed by hydride nickel(I) complexes. Theoretical aspects. Russ. Chem. Bull. 2013;62(7):1553-1557. https://doi.org/10.1007/s11172-013-0223-x
