New technological solutions in the production of high quality cyclohexanone

Objectives. The intensification of modern large-tonnage Russian technologies requires a deep investigation into the theoretical foundations of these processes and searching for ways that would significantly reduce the time and cost of their development, as well as to ensure the access of high-quality products on the world market. The aim of the work was to study the options regarding technological changes in the process of obtaining cyclohexanone at two stages: 1) oxidate (cyclohexane oxidation product after the stage of neutralization and removal of the main amount of unreacted cyclohexane) saponification and 2) end product rectification. The changes should ensure the high quality of the product without requiring significant energy and investment costs.

Methods. Studies of heterophase alkaline hydrolysis with NaOH solutions were carried out at 30–80 °C in the presence of and without a phase transfer catalyst (PTC) (saponification conditions in the industry are 70 °C). The homophase process was studied in the presence of KOH at 120 °C (industrial conditions for raw cyclohexanone rectification are 90–130 °C) on artificial mixtures based on industrial samples of the oxidate with the addition of model substances (oxygencontaining impurities with a main substance content of no less than 95%). Analysis of the initial and obtained products was carried out using gas-liquid chromatography and chromatographymass spectrometry.

Results. The totality of the obtained data provides theoretical justification for the fact: 50– 70% of esters and unsaponifiable impurities can be removed by using heterophase alkaline saponification in industrial environments. The post-treatment of crude cyclohexanone by rectification in the presence of KOH decreases the ester number by a factor of 3–5, however, the number of cyclohexanone condensation products in the bottom sharply increases. The amount of these substances varies from 10 to 20 kg/t of cyclohexanone depending on compliance with the conditions. In the presence of PTC, the conversion of esters at the saponification stage is 95–100%, aldehydes 100%, and unsaturated ketones 80%.

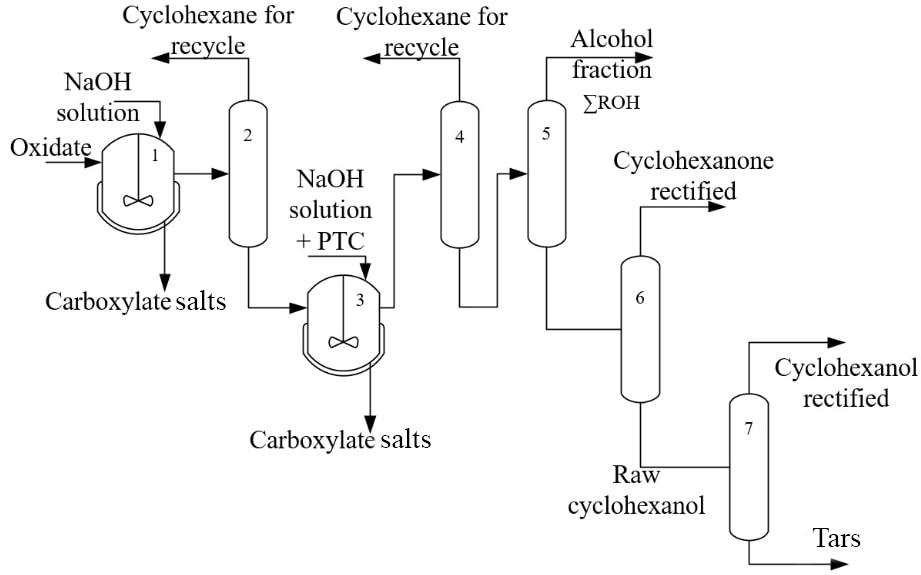

Conclusions. If the proposed technology for saponification in the presence of PTC is adopted there will be no need to use an alkali during the process of cyclohexanone rectification. This makes the process more stable, reduces the losses of cyclohexanone, reduces the amount of tars, and normalized indicators of cyclohexanone quality are attained.

1. Ritz J., Fuchs H., Kieczka H., Moran W.C. Caprolactam. In: Ullmannʼs Encyclopedia of Industrial Chemistry. Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, 2005. https://doi.org/10.1002/14356007.a05_031

2. Martynenko E.A., Glazko I.L., Levanova S.V. Cyclohexanone in the production of caprolactam. Problems and solutions. Izvestiya Akademii nauk. Seriya khimicheskaya = Russ. Chem. Bull. 2016;65(10):2513-2521 (in Russ.). https://doi.org/10.1007/s11172-016-1616-4

3. Karaseva S.Ya., Krasnykh E.L., Levanova S.V. Petrov G.G., Sadivskiy S.Ya. On the quality of caprolactam and polyamide. Rossiiskii khimicheskii zhurnal (Zhurnal Rossiiskogo khimicheskogo obshchestva im. D.I. Mendeleeva) = Russ. Chem. J. (Journal of the D.I. Mendeleev Russian Chemical Society). 2006;L(3):54-58.

4. Pohorecki R., Badyga J., Moniuk W., Podgorska W., Zdrojkowski A., Wierzchowski P.T. Kinetic model of cyclohexane oxidation. Chem. Eng. Sci. 2001;56(4):1285-1291. http://dx.doi.org/10.1016/S0009-2509(00)00350-X

5. Vereecken L., Nguyen T.L., Hermans I., Peeters J. Computational study of the stability of α-hydroperoxyl or α-alkylperoxyl substituted alkyl radicals. Chem. Phys. Lett. 2004;393(4-6):432-436. http://dx.doi.org/10.1016/j.cplett.2004.06.076

6. Serinyel Z., Herbinet O., Frottier O., Dirrenberger P., Warth V., Glaude P.A., Battin-Leclerc F. An experimental and modeling study of the low- and high-temperature oxidation of cyclohexane. Combustion and Flame. 2013;160(11):2319-2332. https://doi.org/10.1016/j.combustflame.2013.05.016

7. Zhang Y., Dai W., Wu G., Guan N., Li L. Cyclohexane oxidation: Small organic molecules as catalysts. Chin. J. Catal. 2014;35(3):279-285. http://dx.doi.org/10.1016/S1872-2067(14)60024-3

8. Lupanov P.A., Chichagov V.N., Chadaev V.P., Penskiy G.V. The quality of caprolactam obtained by cyclohexane oxidation. Khimicheskaya promyshlennost’ = Russian Chemical Industry. 1975;5:336-338 (in Russ.).

9. Puffr R., Kubanek V. Lactam-based polyamides. Vol. 1. Polymerization. Structure and Properties. CRC Press, Inc., 1991. 321 p.

10. Theodorou V., Skobridis K., Tzakosb A.G., Ragoussis V. A simple method for the alkaline hydrolysis of esters. Tetrahedron Lett. 2007;48(46):8230-8233. http://dx.doi.org/10.1016/j.tetlet.2007.09.074

11. Xie D., Zhou Y., Xu D., Guo H. Solvent effect on concertedness of the transition state in the hydrolysis of p-nitrophenyl acetate. Org. Lett. 2005;7(11):2093-2095. http://dx.doi.org/10.1021/ol0502836

12. Pisareva V.S., Glukhov P.A., Bekin V.V., Dorokhov V.S., Kuropatkina A.A. Inhibitory activity of POD-oil. Bashkirskii khimicheskii zhurnal = Bashkir Chemical Journal. 2011;18(4):41-45 (in Russ.).

13. Ostapenko G.I., Denisova D.A., Kapustin P.P., Troshina M.A., Sadivskiy S.Ya. Ivestigation of the cyclohexanone dimer as steel corrosion inhibitor in acidic media. Vector nauki TGU = Science Vector of Togliatti State University. 2012;1(19):36-39 (in Russ.).

14. Glazko I.L., Levanova S.V., Martynenko E.A., Sokolova A.A. Optimization of cyclohexanone rectification in the presence of alkali. Zhurnal prikladnoi khimii = Russian Journal of Applied Chemistry. 2011:84(10):1675-1679 (in Russ.).

15. Zhdanuk E.N., Krut’ko E.T., Prokopchuk N.P. Study of factors affecting the quality of caprolactam. Trudy BGTU = Proceedings of BSTU. 2011;4:21-25 (in Russ.).

16. Hu H., Sun B., Wang E. An analysis of impurities affecting the volatile base content in caprolactam. Petroleum Proces. & Petrochem. 2011;42(6):84-87.

17. Martynenko E.A., Glazko I.L., Levanova S.V., Portnova Yu.V. Intensification of cyclohexanone stage from impurities in caprolactam production using phase transfer catalysis. Zhurnal prikladnoi khimii = Russian Journal of Applied Chemistry. 2014;84(7):907-912 (in Russ.).

18. Martynenko E.A., Levanova S.V., Glazko I.L., Morgun A.A. Catalytic condensation of carbonyl compounds during the synthesis of cyclohexanone in the production of caprolactam. Neftekhimiya = Petroleum Chemistry. 2018;58(5):602-607 (in Russ.). http://dx.doi.org/10.1134/S002824211805012X

19. Martynenko E.A., Glazko I.L., Levanova S.V. On the issue of improving the quality of cyclohexanone during rectification in the production of caprolactam. Knimicheskaya promyshlennost’ segodnya = Chemical Industry Today. 2013;8:43-47 (in Russ.).

20. Ovchinnikov V.I., Ruchinskiy V.P. Caprolactam Production. Moscow: Khimiya Publ., 1977. 264 р. (in Russ.).

21. Chernyshev A.K., Gerasimenko V.I., Sokol B.A., Gumerov F.M., Levin B.V., Chernyshev K.A., Sirotin A.V., Vol'fson S.I. Kaprolaktam: svoystva, proizvodstvo, primeneniye [Caprolactam: Properties, Production, Application]: in 2 v. V. 1. Moscow, Galleya-print Publ., 2016. 755 р. (in Russ.).

22. Fuchs S., Berl V., Lepoittevin J.-P. A highly stereoselective divergent synthesis of icyclic models of photoreactive sesquiterpene lactones. Eur. J. Org. Chem. 2007;7:1145-1152. https://doi.org/10.1002/ejoc.200600611

23. NIST Chemistry Webbook [Electronic resource]. http://webbook.nist.gov/

24. Lebedev A.T. Mass Spectrometry in Organic Chemistry. Moscow: BINOM. Laboratoriya znanii Publ., 2003. 493 p. (in Russ.).

25. Zhan C.G., Landry D.W., Ornstein R.L. Reaction pathways and energy barriers for alkaline hydrolysis of carboxylic acid esters in water studied by a hybrid supermolecule-polarizable continuum approach. J. Am. Chem. Soc. 2000;122(11):2621-2627. https://doi.org/10.1021/ja9937932

26. Sharma R.C., Sharma M.M. Kinetics of fast alkaline hydrolysis of esters. J. Appl. Chem. 1969;19:162-166. https://doi.org/10.1002/jctb.5010190602

27. Yanovskaya L.A., Yufit S.S. Organic Synthesis in Two- Phase System. Moscow: Khimiya Publ., 1982. 184 p. (in Russ.).

28. Revyakin V.A., Levanova S.V., Sirovskiy F.S. Kinetics and mechanism of dehydrochlorination of 3,4-dichlorobutene using phase-transfer catalysis. Kinetika i kataliz [Kinetics and Catalysis]. 1988;29(4):962-966 (in Russ.).

29. Glazko I.L., Martynenko E.A. Levanova S.V., Sokolov A.B. The method of purification of cyclohexanol: patent RU 2523011. Appl. no. 2012144159/04; filed 10/16/2012; publ. 07/20/2014.
