Research in processes of the nitrogen-containing heterocycles obtaining from intermediate of the off-spec fuel disposal — 1,1-dimethyl-2-methylenehydrazone

Objectives. To introduce the intermediate obtained from the disposal of unusable rocket propellant—1,1-dimethyl2-methylenehydrazone (DMH)—into the synthesis of pyrroloquinolines (and pyridines) with potential applications in medicine; to carry out reactions of DMH with tetracyanoethylated ketones (TCEKs) derived from acetone, methyl ethyl ketone, cyclohexanone, 4-propylcyclohexanone, and 2-methylcyclohexanone; to investigate the prospects for increasing the yields of target products by performing the same syntheses under microwave irradiation (MWI) and using an ultrasonic reactor.

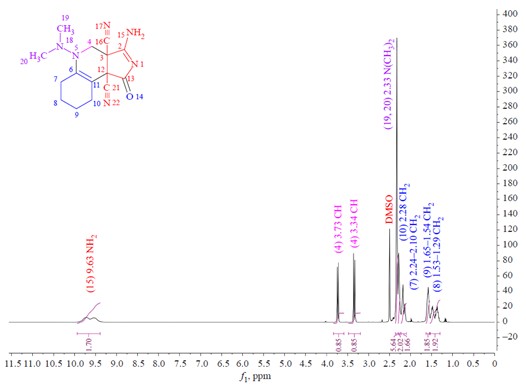

Methods. TCEKs were prepared from tetracyanoethylene (TCNE) and the corresponding ketone in dioxane, acetone, or ethanol, with the presence of concentrated hydrochloric or sulfuric acid as a catalyst. Pyrroloquinolines (and pyridines) were synthesized from DMH and the corresponding TCEK in ethyl acetate with base as a catalyst. Syntheses were carried out under standard conditions using a magnetic stirrer, an ultrasonic reactor (Vologda, Russia), and a UWave-2000 microwave reactor (Sineo Microwave Chemistry Technology Co., China). Reaction progress and product purity were monitored by thin-layer chromatography on Sorbfil plates (Sorbfil, Russia). The TCNE presence in the reaction mixture was determined by the hydroquinone test. Melting and decomposition points were measured using anOptiMeltMPA100 apparatus (OptiMelt, USA). Structural identification was performed by infrared spectroscopy (FSM-1202, SpektroLab, Russia), ¹H and ¹³C nuclear magnetic resonance spectroscopy in dimethyl sulfoxide d₆ on a Bruker AVANCE 400 WB spectrometer (Bruker Corporation, USA), and mass spectrometry using a quadrupole time-of-flight AB SCIEX TripleTOF 5600 spectrometer (AB SCIEX PTE. Ltd., Singapore) and a quadrupole gas chromatography–mass spectrometer GCMS-QP2020 NX (Shimadzu, Germany).

Results. Reliable procedures developed for the synthesis of pyrrolopyridines from acetone and methyl ethyl ketone without tar formation under ultrasonic stirring and MWI demonstrated significantly increased yields. The highest conversion of DMH to pyrroloquinoline was achieved from cyclohexanone, providing the target product in 92% yield within the shortest reaction time of 2 min under MWI conditions. However, for derivatives of 4-propylcyclohexanone and 2-methylcyclohexanone, the described synthesis modifications did not give the desired results: in the former case, a decrease in yield was observed as compared to standard methods, while in the latter, only a slight increase was obtained.

Conclusions. Ultrasonic stirring and MWI are effective for the conversion of DMH into pyrrolopyridines based on aliphatic TCEKs, but unsuitable for the synthesis of pyrroloquinolines derived from 4-propylcyclohexanone and 2-methylcyclohexanone. The high yield of pyrroloquinoline from cyclohexanone (92%) suggests potential for implementing the rapid MWI-promoted reaction between DMH and cyclohexanone-based TCEK in industrial production.

1. Ivanova E.S., Maryasov M.A., Andreeva V.V., Osipova M.P., Vasilieva T.V., Eremkin A.V., Lodochnikova O.A., Grishaev D.Yu., Nasakin O.E. Treatment of Substandard Rocket Fuel 1,1-Dimethylhydrazine via Its Methylene Derivative into Heterocycles Based on Pyrrolo-[3,4c]Quinolines, Cyclododeca[b]piran and Pyrrole. Int. J. Mol. Sci. 2023;24(17):13076. https://doi.org/10.3390/ijms241713076

2. Nasakin O.E., Ivanova E.S., Maryasov M.A., Andreeva V.V., Karpov S.V., Lodochnikova O.A., Grishaev D.Yu. 3,3,4,4-Tetracyanoalkanones as expedient reagents for utilization of N,N-dimethylhydrazine. Mendeleev Commun. 2023;33(6): 856–857. https://doi.org/10.1016/j.mencom.2023.10.039

3. Nasakin O.E., Ivanova E.S., Andreeva V.V., Maryasov M.A., Lodochnikova O.A. Method of the preparation of pyrrolo[3,4-c]quinolines: RF Pat. RU 2802332 C1. Publ. 24.08.2023.

4. Ivanova E.S., Osipova M.P., Vasilieva T.V., Eremkin A.V., Markova S.A., Zazhivihina E.I., Smirnova S.A., Mitrasov Y.N., Nasakin O.E. The Recycling of Substandard Rocket Fuel N,N-Dimethylhydrazine via the Involvement of Its Hydrazones Derived from Glyoxal, Acrolein, Metacrolein, Crotonaldehyde, and Formaldehyde in Organic Synthesis. Int. J. Mol. Sci. 2023;24(14):17196. https://doi.org/10.3390/ijms242417196

5. Herdy J.R. Marshall Enriched Storable Oxidizer (MESO) for Space Power, Propulsion, and Thermal System Applications. In: Aiaa Aviation Forum and Ascend 2025. 4044:2025. https://doi.org/10.2514/6.2025-4044

6. Devos C., Bampouli A., BrozziE., StefanidisG.D., DusselierM., Van Gerven T., Kuhn S. Ultrasound mechanisms and their effect on solid synthesis and processing: a review. Chem. Soc. Rev. 2025;54(1):85–115. https://doi.org/10.1039/d4cs00148f

7. Dong Z., Delacour C., Mc Carogher K., Udepurkar A.P., Kuhn S. Continuous Ultrasonic Reactors: Design, Mechanism and Application. Materials. 2020;13(2):344. https://doi.org/10.3390/ma13020344

8. Markić F., Smokrović K., Stulić V., Pleslić S., Zadravec M., Vukušić Pavičić T., Maltar-Strmečki N. Understanding of free radicals induced by ultrasonication and their effects on antioxidative capacity and microbial quality in tomato juice. In: 10th Regional Biophysics Conference & 15th International Summer School of Biophysics: Book of abstracts. Split: Hrvatsko Biofizičko Društvo: 2024. P. 77–77.

9. Kolesnikov S.V. General Information about Fuel – 1,1 Dimethylhydrazine. In: Kolesnikov S.V. Okislenie nesimmetrichnogo dimetilgidrazina (geptila) i identifikatsiya produktov ego prevrashcheniya pri prolivakh (Oxidation ofAsymmetric Dimethylhydrazine (Heptil) and Identification ofIts Transformation Products in Straits): Monograph. Novosibirsk: SibAK; 2014. P. 1–13 (in Russ.). ISBN 978-5-4379-0359-9

10. Kappe C.O., Stadler A., Dallinger D. Microwave Processing Techniques. In: Microwaves in Organic and Medicinal Chemistry. Methods and Principles in Medicinal Chemistry. 2012. Ch. 4. P. 83–150. https://doi.org/10.1002/9783527647828.ch4

11. Semenov N.N. Tsepnye reaktsii (Chain Reactions). Moscow: Nauka; 2004, 392 p. (In Russ.). ISBN 5-02-033059-0

12. Dodonov V.A., Grishin D.F. Peculiarities of polymerization of some vinyl monomers on organoelement initiators in the presence of hydroquinone. Vysokomolekulyarnye Soedineniya. Seriya B. 1993;35(1):47–49 (in Russ.). https://elibrary.ru/bihssh
