Features of changes in the electrical resistance of mixtures of crystallizing polymers with carbon black upon heating

Objectives. The effects of positive and negative temperature coefficients (PTC and NTC, respectively) in carbon black-filled conductive polymer composites based on high-density polyethylene grade 277-73 and polypropylene grade 01050 were investigated. Carbon black electrically conducting grade OMCARB C-140 (UM-76) was used as the filler.

Methods. To study the electrical characteristics of the compositions, plates were pressed with brass contact electrodes at the plate ends to simulate polymer heaters. The electrical resistance of the samples was evaluated using an ohmmeter DT9208A (RESANTA, Latvia). Tests at elevated temperatures were carried out in an SNOL 3.5 heat chamber (NPF TherMIX, Russia) with a heating rate of ~3℃/min. The crystallinity of the samples during heating was assessed by differential scanning calorimetry on a DSC 204F1 Phoenix device (NETZSCH, Germany) with a heating rate of 3℃/min.

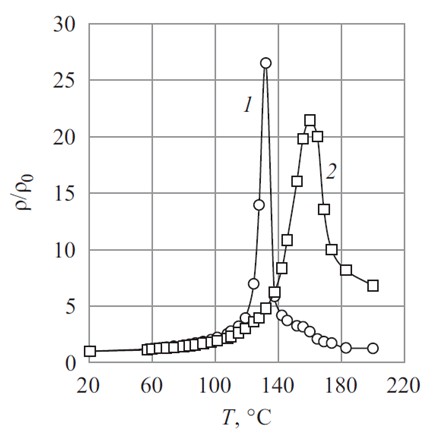

Results. The complex PTC and NTC mechanisms in mixed polymer compositions are not solely related to thermal expansion and melting of the polymer. While changes in the electrical resistance of carbon-filled polymer composites are associated with the presence of crystalline regions with defects, the destruction of the conductive channels occurs at the earliest stages of polymer melting due to the formation of expanding amorphous “microdroplets” of the hot melt. For a carbon-filled, electrically conductive mixture of polyethylene and polypropylene, the magnitude and nature of the change in the peak temperature of the PTC depends on the melting onset temperature of the lowest-melting phase of polyethylene. At the same time, the heterogeneity of the mixtures of crystallizing polymers with technical carbon increases the thermal stability of the material by expanding the PTC zone into the melting region of the higher-melting phase of polypropylene. When comparing electrically conductive compositions of polymers with different melting points and carbon black, the low-melting polymer determines the temperature of self-regulation and the nature of PTC, while the high-melting polymer shifts the jump in electrical conductivity to the region of elevated temperatures.

Conclusions. The activation energies of carbon-filled mixtures of polyethylene and polypropylene, which are weakly dependent on the mixing method, are approximately 44 ± 3 kJ/mol. The obtained values are consistent with the activation energy values for the viscous melt flow process. The method of mixing the components in mixtures of carbon-filled compositions based on crystallizing polymers was found to have little effect on PTC. The use of carbon-filled polymer compositions with a mixed matrix of polyethylene and polypropylene allows for the regulation of the intensity of PTC and NTC.

1. Frydman E. Improvements in or Relating to Resistance Elements Having Positive Temperature/Resistance Characteristics: United Kingdom Pat. GB 604695A. Current Assignee: Automatic Telephone and Electric Co. Ltd. Priority 16.11.1945; Publ. 08.07.1948.

2. Meyer J. Glass transition temperature as a guide to selection of polymers suitable for PTC materials. Polym. Eng. Sci. 1973;13(6):462–468. https://doi.org/10.1002/pen.760130611

3. Kohler F. Resistance Element: USA Pat. US 3243753. Priority 13.13.1962; Publ. 29.03.1966.

4. Markov V.A., Kandyrin L.B., Markov A.V. The effect of strain on electrical resistivity of carbon black filled polyethylene composites. Konstruktsii iz kompozitsionnykh materialov = Composite Materials Constructions. 2013;4:40–44 (in Russ.). https://www.elibrary.ru/rdhgqf

5. Ilyin A.P. Plastic Hot Water Boiler: RF Pat. RU 2680099 C1. Publ. 15.02.2019 (in Russ.).

6. Ishii T., Yasui K., Terakado S., Kohara K., Eneyama M. Flexible Heating Element with a Positive Temperature Coefficient of Resistance and a Method for Manufacturing Such a Heating Element: RF Pat. RU 2297112C2. Publ. 10.04.2007 (in Russ.).

7. Heinemann K., Bauer R.U., Welzel T., Schrödner M., Schubert F., Riede S. Electroconductive Molded Article With a Positive Temperature Coefficient: RF Pat. RU 2709631C9. Publ. 04.06.2020 (in Russ.).

8. Setnescu R., Lungulescu E.M. Novel PTC Composites for Temperature Sensors (and Related Applications). In: Sen J., Yi M., Niu F., Wu H. (Eds.). Wireless Sensor Networks – Design, Applications and Challenges. 2023. https://doi.org/10.5772/intechopen.110358

9. Ahn J.-H., Choi D.-S., Lee C.-Y. Resistances of carbon black and polymers in smart paints for temperature sensors. J. Nanosci. Nanotechnol. 2021;21(7):3716–3720. https://doi.org/10.1166/jnn.2021.19209

10. Huang Y., Ellingford C., Bowen C.R., et al. Tailoring the electrical and thermal conductivity of multi-component and multi-phase polymer composites. Int. Mater. Rev. 2020;65(3): 129–163. https://doi.org/10.1080/09506608.2019.1582180

11. Harussani M.M., Sapuan S.M., Nadeem G., et al. Recent applications of carbon-based composites in defence industry: A review. Defence Technol. 2022;18(8):1281–1300. https://doi.org/10.1016/j.dt.2022.03.006

12. Yun C.M., Tong C.T., Kuo H.C. Conductive Composition Exhibiting PTC Behavior and Over-Current Protection Device Using the Same: USA Pat. US 20060108566A1. Publ. 25.05.2006.

13. Wang S.C., Yang E.T. Over-Current Protection Device: USA Pat. US 2006089448. Publ. 27.04.2006.

14. Jeong M.W. Composition Materials for Current Control Heating Resistor Having Elasticity and Method for Manufacturing PTC Having Elasticity: South Korea Pat. KR 20050114005A. Publ. 05.12.2005.

15. Vasilev V.A., Khoshev A.V. Manufacturing Method of Nano- and Micro-Sized System of Sensor of Physical Values with Specified Positive Temperature Coefficient of Resistance of Resistive Elements: RF Pat. RU 2554083C1. Publ. 27.06.2015 (in Russ.).

16. Berlyand A.M., Ehidler E.D. Polymer Electrically Conductive Composition: USSR Pat. SU892479A1. Publ. 23.12.1981 (in Russ.).

17. Liu C.C., Walters A.B., Vannice M.A. Measurement of electrical properties of a carbon black. Carbon. 1995;33(12): 1699–1708. https://doi.org/10.1016/0008-6223(95)00125-4

18. Gul’ V.E., Shenfil’ L.Z. Ehlektroprovodyashchie polimernye kompozitsii (Electrically Conductive Polymer Compositions). Moscow: Khimiya; 1984, 240 p. (In Russ.).

19. Khodabakhshi S., Fulvio P.F., Andreoli E. Carbon black reborn: Structure and chemistry for renewable energy harnessing. Carbon. 2020;162:604–649. https://doi.org/10.1016/j.carbon.2020.02.058

20. Aharoni S.M. Electrical resistivity of a composite of conducting particles in an insulating matrix. J. Appl. Phys. 1972;43(5):2463–2465. https://doi.org/10.1063/1.1661529

21. Bueche F. Electrical resistivity of conducting particles in an insulating matrix. J. Appl. Phys. 1972;43(11):4837–4838. https://doi.org/10.1063/1.1661034

22. Foulger S.H. Reduced percolation thresholds of immiscible conductive blends. J. Polym. Sci. Part B: Polym. Phys. 1999;37(15):1899–1910.

23. Sommers D.J. Carbon black for electrically conductive plastics. Polymer-Plastics Technol. Eng. 1984;23(1):83–89. https://doi.org/10.1080/03602558408070043

24. Beaucage G., Rane S., Schaefer D.W., et al. Morphology of polyethylene–carbon black composites. J. Polym. Sci. Part B: Polym. Phys. 1999;37(11):105–119.

25. Sircar A.K., Wells J.L. Electrothermal study of carbon loaded ethylene‐vinylacetate copolymer. Polym. Eng. Sci. 1981;21(13):809–815. https://doi.org/10.1002/pen.760211302

26. Zhang M., Jia W., Chen X. Influences of crystallization histories on PTC/NTC effects of PVDF/CB composites. J. Appl. Polym. Sci. 1996;62(5):743–747. https://doi.org/10.1002/(SICI)1097-4628(19961031)62:5<743::AID-APP4>3.0.CO;2-W

27. Tang H., Chen X., Luo Y. Studies on the PTC/NTC effect of carbon black filled low density polyethylene composites. Eur. Polym. J. 1997;33(8):1383–1386. https://doi.org/10.1016/S0014-3057(96)00221-2

28. Markov V.A., Kandyrin L.B., Markov A.V., Sorokina E.A. Effect of silane-crosslinking on electrical properties and heat-resistance of carbon black polyethylene composites. Plasticheskie massy. 2013;10:21–24 (in Russ.). https://www.elibrary.ru/rrtibr

29. Marsden A.J., Papageorgiou D.G., Valles C., et al. Electrical percolation in graphene–polymer composites. 2D Mater. 2018;5(3):2–19. https://doi.org/10.1088/2053-1583/aac055

30. Sumita M., Sakata K., Asai S., et al. Dispersion of fillers and the electrical conductivity of polymer blends filled with carbon black. Polymer Bulletin. 1991;25(2):265–271. https://doi.org/10.1007/bf00310802

31. Tchoudakov R., Breuer O., Narkis M. Conductive polymer blends with low carbon black loading: polypropylene/ polyamide. Polym. Eng. Sci. 1996;36(10):1336–1346. https://doi.org/10.1002/pen.10528

32. Markov V.A., Markov A.V., Poldushev M.A., et al. The influence of the method used to prepare electrically conductive composites based on polyethylene, polypropylene, and carbon black on their properties at elevated temperatures. Int. Polym. Sci. Technol. 2016;43(3):T13–T18. https://doi.org/10.1177/0307174x1604300303

33. Markov A.V., Zverev A.E., Markov V.A. Features of the change in the thermal coefficient of electrical resistance upon heating electrically conductive composites of crystallizable polyolefins with carbon black. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2024;19(5):429–440. https://doi.org/10.32362/2410-6593-2024-19-5-429-440

34. Markov A.V., Kuleznev V.N. Formation of the phase structure and its influence on the properties of oriented polypropylenepolyethylene blend films. Polym. Sci. Ser. A. 2008;50(4): 422–428. https://doi.org/10.1134/S0965545X0804010X [Original Russian Text: Markov A.V., Kuleznev V.N. Formation of the phase structure and its influence on the properties of oriented polypropylene-polyethylene blend films. Vysokomolekulyarnye soedineniya. Ser. A. 2008;50(4): 651–658 (in Russ.). https://elibrary.ru/ijkowv
