Rheokinetics of a multicomponent epoxy binder modified with polysulfone

Objectives. The work set out to develop epoxy multicomponent binders for polymer composite materials by interrelating the rheological properties and the curing kinetics of the epoxy modified with thermoplastic. Changes in the rheological properties of binders are determined by the competition between two processes: the curing reaction of modified epoxy oligomers with an amine curing agent, and phase separation, which leads to a loss of compatibility between thermosetting components and modifier.

Methods. During the curing process, rotational and oscillational rheometry were used. The kinetic patterns of the curing process of epoxy-amine binders based on a mixture of trifunctional and bifunctional epoxy resins modified with polysulfone were studied.

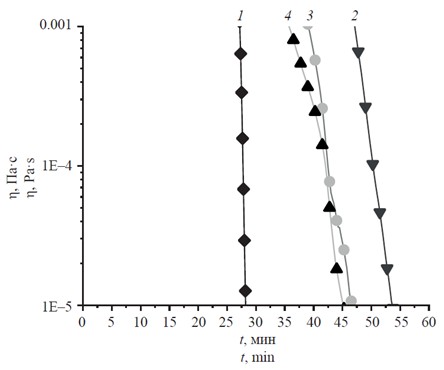

Results. The dependence of viscosity on curing time of an epoxy binder at various temperatures and polysulfone content was experimentally studied. Gelation and vitrification time, viscosity growth constants, and activation energies values were determined. It was shown that phase separation induced by curing results in the formation of a polysulfone-rich phase. Moreover, the phase separation time decreases with higher modifier content.

Conclusions. It has been established that the adding of polysulfone into the composition of a multicomponent epoxy-amine binder leads to an enhancement in the gelation time by 8–15 min, depending on the curing temperature and the thermoplastic content, which is explained by an increase in the viscosity of the binder.

1. Perez R.M., SandlerJ.K.W., AltstädtV., etal. Novel phosphorusmodified polysulfone as a combined flame retardant and toughness modifier for epoxy resins. Polymer. 2007;48(3): 778–790. https://doi.org/10.1016/j.polymer.2006.12.011

2. Woo E.M., Bravenec L.D., Seferis J.C. Morphology and properties of an epoxy alloy system containing thermoplastics and a reactive rubber. Polym. Eng. Sci. 1994;34(22): 1664–1673. https://doi.org/10.1002/pen.760342204

3. Yıldız E., Özarslan Ö., İnan T.Y., Kuyulu A., Güngör A. Toughening of Epoxy Resins by Amine Terminated Poly(arylene ether ketone)s having Pendant Tertiary Butyl Groups. Polym. Bull. 2007;58(3):503–511. https://doi.org/10.1007/s00289-006-0689-x

4. Zheng T., Xi H., Wang Z., et al. The curing kinetics and mechanical properties of epoxy resin composites reinforced by PEEK microparticles. Polym. Testing. 2020;91:106781. https://doi.org/10.1016/j.polymertesting.2020.106781

5. Wu J., Li C., Hailatihan B., Mi L., Baheti Y., Yan Y. Effect of the Addition of Thermoplastic Resin and Composite on Mechanical and Thermal Properties of Epoxy Resin. Polymers. 2022;14(6):1087. https://doi.org/10.3390/polym14061087

6. Wu Z., Chen Q., Liu D., Fan J., Zhang Q., Chen W. In situ monitoring of epoxy resin curing process: Using glass transition as a bridge. Polym. Testing. 2023;117:107871. https://doi.org/10.1016/j.polymertesting.2022.107871

7. Teng N., Dai J., Wang S., Hu J., Liu X. Hyperbranched flame retardant for epoxy resin modification: Simultaneously improved flame retardancy, toughness and strength as well as glass transition temperature. Chem. Eng. J. 2022;428:131226. https://doi.org/10.1016/j.cej.2021.131226

8. Yue C., Guan L., Zhang X., Wang Y., Weng L. Thermally conductive epoxy/boron nitride composites with high glass transition temperatures for thermal interface materials. Mater. Des. 2021;212:110190. https://doi.org/10.1016/j.matdes.2021.110190

9. Franieck E., Fleischmann M., Hölck O., Kutuzova L., Kandelbauer A. Cure Kinetics Modeling of a High Glass Transition Temperature Epoxy Molding Compound (EMC) Based on Inline Dielectric Analysis. Polymers. 2021;13(11):1734. https://doi.org/10.3390/polym13111734

10. Liu X.F., Xiao Y.F., LuoX., et al. Flame-Retardant multifunctional epoxy resin with high performances. Chem. Eng. J. 2022;427:132031. https://doi.org/10.1016/j.cej.2021.132031

11. Wang H., Wang Y., Gao J., Zhu Z, Xiao F. Synergistic engineering of phosphaphenanthrene and ionic liquids for unlocking flame retardant multifunctional epoxy resin with high performances. Polym. Degr. Stab. 2025;239:111407. https://doi.org/10.1016/j.polymdegradstab.2025.111407

12. Dong M., Zhang H., Tzounis L., Santagiuliana G., Bilotti E., Papageorgiou D.G. Multifunctional epoxy nanocomposites reinforced by two-dimensional materials: A review. Carbon. 2021;185:57–81. https://doi.org/10.1016/j.carbon.2021.09.009

13. Dyer W.E., Alasoo E.D., Lorenz N., Kumru B. Resveratrol Trisepoxy-Based High-Performance Resin Formulation and Carbon Fiber-Reinforced Composite Processing for Structural Applications. ACS Omega. 2025;10(42):49887–49895. https://doi.org/10.1021/acsomega.5c05906

14. Ratna D. Modification of epoxy resins for improvement of adhesion: a critical review. J.Adhesion Sci. Technol. 2003;17(12): 1655–1668. https://doi.org/10.1163/156856103322396721

15. Chikhi N., Fellahi S., Bakar M. Modification of epoxy resin using reactive liquid (ATBN) rubber. Eur. Polym. J. 2002;38(2): 251–264. https://doi.org/10.1016/S0014-3057(01)00194-X

16. Al-Shiblawi K.A., Pershin V.F., Yartsev V.P. Modification of Epoxy Resins: Modern Condition and Prospects. Part I. Modification of Nanoparticles. AM&T. 2018;2:68–78. https://doi.org/10.17277/amt.2018.02.pp.068-078

17. Ma H., Aravand A., FalzonB.G. Synergistic enhancement of fracture toughness in multiphase epoxy matrices modified by thermoplastic and carbon nanotubes. Composit. Sci. Technol. 2021;201:108523. https://doi.org/10.1016/j.compscitech.2020.108523

18. Wang D., Hou L., Zhao L., et al. Preparation of PEK-C-toughened epoxy structural adhesive for bonding CF/PEEK composites. J. Appl. Polym. Sci. 2024;141(42):e56093. https://doi.org/10.1002/app.56093

19. Sarath Kumar P., Jayanarayanan K., Balachandran M. Performance comparison of carbon fiber reinforced polyaryletherketone and epoxy composites: Mechanical properties, failure modes, cryo‐thermal behavior, and finite element analysis. J. Appl. Polym. Sci. 2022;139(29):e52494. https://doi.org/10.1002/app.52494

20. Taubert M., Diez J.G., Musil B., Höfer P. Comparing interphase formation in different thermoplastics combined with RTM6/M18 epoxy systems. Advanced Manufacturing: Polym. Composit. Sci. 2025;11(1):2482280. https://doi.org/10.1080/20550340.2025.2482280

21. Zhou J., Zhang C., Cheng C., et al. Synergetic Improvement of Interlaminar Fracture Toughness in Carbon Fiber/ Epoxy Composites Interleaved with PES/PEK-C Hybrid Nanofiber Veils. Adv. Fiber Mater. 2022;4(5):1081–1093. https://doi.org/10.1007/s42765-022-00160-9

22. Korokhin R.A., Solodilov V.I., Zvereva U.G., Solomatin D.V., Gorbatkina Yu.A., Shapagin A.V. Epoxy polymers modified with polyetherimide. Part I: rheological and thermomechanical characteristics. Polym. Bull. 2021;78(3):1573–1584. https://doi.org/10.1007/s00289-020-03174-8

23. Wen Y., Liu X., Liu L. Improving Epoxy Resin Performance Using PPG and MDI by One-Step Modification. Processes. 2022;10(5):929. https://doi.org/10.3390/pr10050929

24. Bajpai A., Davidson J.R., Robert C. Studies on the Modification of Commercial Bisphenol-A-Based Epoxy Resin Using Different Multifunctional Epoxy Systems. Appl. Mech. 2021;2(2):419–430. https://doi.org/10.3390/applmech2020023

25. Anurangi J., Jayalath S., Senevirathna S.R., Herath M., Epaarachchi J. Enhanced thermo‐mechanical properties of carbon fiber reinforced thermoresistant polymer, a blend of di‐functional epoxy bisphenol A and a tri‐functional epoxy Tactix 742. Polym. Composit. 2024;45(12):10898–10910. https://doi.org/10.1002/pc.28517

26. Cicala G., Mannino S., Latteri A., Ognibene G., Saccullo G. Effects of mixing di‐ and tri‐functional epoxy monomers on epoxy/thermoplastic blends. Adv. Polym. Technol. 2018;37(6):1868–1877. https://doi.org/10.1002/adv.21845

27. Khalina M., Beheshty M.H., Salimi A. The effect of reactive diluent on mechanical properties and microstructure of epoxy resins. Polym. Bull. 2019;76(8):3905–3927. https://doi.org/10.1007/s00289-018-2577-6

28. Pastarnokienė L., Jonikaitė-Švėgždienė J., Lapinskaitė N., et al. The effect of reactive diluents on curing of epoxy resins and properties of the cured epoxy coatings. J. Coat. Technol. Res. 2023;20(4): 1207–1221. https://doi.org/10.1007/s11998-022-00737-4

29. Yuan Q., Wang Z., Yao H., Huang J., Zuo S., Huang H. Comparative study of reactive diluents with different molecular structures on the curing properties of epoxy adhesives and the interface bonding properties with mortar. Int. J. Adhesion Adhesives. 2023;126:103473. https://doi.org/10.1016/j.ijadhadh.2023.103473

30. Li J., Zhao H., SuiG. Renewable green reactive diluent for bisphenol a epoxy resin system: curing kinetics and properties. RSC Adv. 2022;12(49):31699–31710. https://doi.org/10.1039/D2RA05160E

31. Malburet S., Bertrand H., RichardC., LacabanneC., Dantras E., Graillot A. Biobased epoxy reactive diluents prepared from monophenol derivatives: effect on viscosity and glass transition temperature of epoxy resins. RSC Adv. 2023;13(22): 15099–15106. https://doi.org/10.1039/d3ra01039b

32. Tang Y., Fairclough J.P.A. Electric Conductivity Enhancement in Conductive Carbon Black (Cb) Thermosetting Polymer Composite: A Study on Dispersion and Ucst-Type Phase Separation Dynamics. SSRN. Preprint posted online 2024. https://doi.org/10.2139/ssrn.4858464

33. Shapagin A.V., Budylin N.Yu., Chalykh A.E., Solodilov V.I., KorokhinR.A., PoteryaevA.A. Phase Equilibrium, Morphology, and Physico-Mechanics in Epoxy–Thermoplastic Mixtures with Upper and Lower Critical Solution Temperatures. Polymers. 2020;13(1):35. https://doi.org/10.3390/polym13010035

34. Plyusnina I.O., Nikulova U.V., Shapagin A.V. Phase equilibria, diffusion and structure in the initial and cured polylactide – epoxy resin system. Polymer. 2025;336:128866. https://doi.org/10.1016/j.polymer.2025.128866

35. Fan R., Zhang L., Liu Y., et al. Effect of Poly(ether imide) on the Mechanical Properties of Epoxy Resin under Extreme Environmental Conditions. ACS Appl. Polym. Mater. 2025;7(19):13321–13331. https://doi.org/10.1021/acsapm.5c02744
