Hydrolysis of tetraethoxysilane in various associated media of diols

Objectives. To investigate the specific features of tetraethoxysilane (TEOS) hydrolysis in associated media of saturated diols and their esters in acidic media. Propylene- and butylene glycols and ethylcarbitol were selected as associated systems.

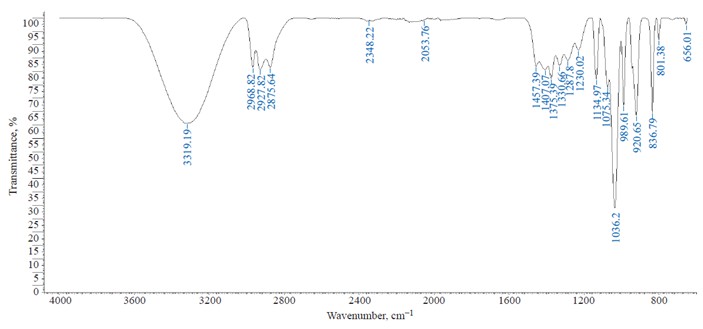

Methods. Association, hydrolysis, and condensation processes in the TEOS–diol system were studied by potentiometry, infrared spectroscopy, and dynamic light scattering in liquid media. The acidic environment was created by adding HCl in the amount not exceeding 0.3 wt %.

Results. The hydrolysis of TEOS in associated alcohol media is limited by the reaction that yields silanol (RO)₃SiOН, which further interacts with the associated diol. This results in the incorporation of (RO)₃SiO groups into the hydrogen bond network of diols. This is confirmed by a decrease in the self-association of diols with a decrease in size in the diol–(RO)₃SiO domains of up to 1–7 μm.

Conclusions. The use of diols as a reaction medium for TEOS with a low content of H₂O in acidic media limits the depth of hydrolysis and condensation, which increases the possibility of esterification reactions of diol with alkoxy derivatives of silanols. The decreased number of hydroxyl groups during the transition from diols to their esters has a significant effect on the degree of association.

1. Donato K.Z., Matĕjka L., Mauler R.S., Donato R.K. Recent Applications of Ionic Liquids in the Sol–Gel Process for Polymer–Silica Nanocomposites with Ionic Interfaces. Colloids Interfaces. 2018;1(1):5. http://doi.org/10.3390/colloids1010005

2. Sanchez C., Belleville P., Popall M., Nicole L. Applications of advanced hybrid organic-inorganic nanomaterials: From laboratory to market. Chem. Soc. Rev. 2011;40(2):696–753. https://doi.org/10.1039/c0cs00136h

3. Brinker C.J., Scherer G.W. Sol–Gel Science: The Physics and Chemistry of Sol–Gel Processing. Elsevier; 1990, 908 p.

4. Matĕjka L. Epoxy-silica/silsesquioxane Polymer Nanocompo sites. In: Merhari L. (Ed.). Hybrid Nanocomposites for Nanotechnology. Boston, MA, USA: Springer; 2009. P. 1–84. http://doi.org/10.1007/978-0-387-30428-1_1

5. Pajonk G.M., Elaloui E., Chevalier B., Begag R. Optical transmission properties of silica aerogels prepared from polyethoxidisiloxanes. J. Non-Crystalline Solids. 1997;210(2-3): 224–231. http://doi.org/10.1016/S0022-3093(96)00600-X

6. Danks A.E., Hall S.R., Schnepp Z. The evolution of “sol–gel” chemistry as a technique for materials synthesis. Mater. Horiz. 2016;3(2):91–112. https://doi.org/10.1039/c5mh00260e

7. Pagliaro M., Ciriminna R., Palmisano G. Silica-based hybrid coatings. J. Mater. Chem. 2009;19(20):3116–3120. https://doi.org/10.1039/B819615J

8. Nassif N., Livage J. From diatoms to silica-based biohybrids. Chem. Soc. Rev. 2011;40(2):849–859. https://doi.org/10.1039/c0cs00122h

9. Vallet-Regi M., Colilla M., Gonzalez B. Medical applications of organic-inorganic hybrid materials within the field of silica-based bioceramics. Chem. Soc. Rev. 2011;40:596-607. https://doi.org/10.1039/c0cs00025f

10. Li J., Mooney D.J., Buffle J., DeRouchey J.E., Langer R. Designing. Hydrogels for Controlled Drug Delivery. Nat. Rev. Mater. 2016;1(12):16071. https://doi.org/10.1038/natrevmats.2016.71

11. Slaughter B.V., Khurshid S.S., Fisher O.Z., Khademhosseini A., Peppas N.A. Hydrogels in Regenerative Medicine. Adv. Mater. 2009;21(32-33):3307–3329. https://doi.org/10.1002/adma.200802106

12. Hayashi K., Okamoto F., Hoshi S., et al. Fast-Forming Hydrogel with Ultralow Polymeric Content as an Artificial Vitreous Body. Nat. Biomed. Eng. 2017;1(3):0044. https://doi.org/10.1038/s41551-017-0044

13. Peppas N.A., Hilt J.Z., Khademhosseini A., Langer R. Hydrogels in Biology and Medicine: From Molecular Principles to Bionanotechnology. Adv. Mater. 2006;18(11):1345–1360. https://doi.org/10.1002/adma.200501612

14. Letailleur A.A., Ribot E., Boissiere C., Teisseire J., Barthel E., Desmazieres B., Chemin N., Sanchez C. Sol–gel derived hybrid thin films: The chemistry behind processing. Chem. Mater. 2011;23:5082–5089. http://doi.org/10.1021/cm202755g

15. Sanchez C., Shea K.J., Kitagawa S. Recent progress in hybrid materials science. Chem. Soc. Rev. 2011;40(2):471–472. https://doi.org/10.1039/c1cs90001c

16. Avnir D., Levy D., Reisfeld R. The nature of the silica cage as reflected by spectral changes and enhanced photostability of trapped Rhodamine 6G. J. Phys. Chem. 1984;88(24): 5956–5959. https://doi.org/10.1021/j150668a042

17. Owens G.J., Singh R.K., Foroutan E, Alqaysi M., Han C.M., Mahapatra C., Kim H.W., Knowles J.C. Sol–gel based materials for biomedical applications. Prog. Mater. Sci. 2016;77:1–79. https://doi.org/10.1016/j.pmatsci.2015.12.001

18. Lu A.H., Schüth F. Nanocasting: A versatile strategy for creating nanostructured porous materials. Adv. Mater. 2006;18(14): 1793–1805. https://doi.org/10.1002/adma.200600148

19. Jiang P., Bertone J.F., Colvin V.L. A Lost-Wax Approach to Monodisperse Colloids and Their Crystals. Science. 2001; 291(5503):453–457. https://doi.org/10.1126/science.291.5503.453

20. Díaz-García M.E., Laíñ R.B. Molecular Imprinting in Sol–Gel Materials: Recent Developments and Applications. Microchim. Acta. 2005;149(1-2):19–36. https://doi.org/10.1007/s00604-004-0274-7

21. Chen L., Wang X., Lu W., Wu X., Li J. Molecular imprinting: Perspectives and applications. Chem. Soc. Rev. 2016;45(8):2137–2211. https://doi.org/10.1039/c6cs00061d

22. Guan Z.S., Lu C.H., Zhang Y., Xu Z.Z. Morphology-controlled Synthesis of SiO2 Hierarchical Structures Using Pollen Grains as Templates. Chinese J. Chem. 2008;26(3):467–470. https://doi.org/10.1002/cjoc.200890088

23. Rahman I.A., Padavettan V. Synthesis of Silica nanoparticles by sol–gel: Size-dependent properties, surface modification, and applications in silica-polymer nanocomposites: A review. J. Nanomater. 2012:132424. https://doi.org/10.1155/2012/132424

24. Jindal A., Vasudevan S. The Conformation of Ethylene Glycol in the Liquid State: Intra- Versus Intermolecular Interactions. J. Phys. Chem. B. 2017;121(22):5595–5600. https://doi.org/10.1021/acs.jpcb.7b02853

25. Klingshirn M.A., Spear S.K., Subramanian R., Holbrey J.D., Huddleston J.G., Rogers R.D. Gelation of Ionic Liquids Using a Cross-Linked Poly(Ethylene Glycol) Gel Matrix. Chem. Mater. 2004;16(16):3091–3097. https://doi.org/10.1021/cm0351792

26. Andrade-Espinosa G., Escobar-Barrios V., Rangel-Mendez R. Synthesis and characterization of silica xerogels obtained via fast sol–gel process. Colloid Polym. Sci. 2010;288(18): 1697–1704. https://doi.org/10.1007/s00396-010-2311-x

27. Perullini M., Jobbagy M., Bilmes S.A., Torriani I.L., Candal R. Effect of synthesis conditions on the microstructure of TEOS derived silica hydrogels synthesized by the alcohol-free sol–gel route. J. Sol–Gel Sci. Technol. 2011;59(1):174–180. https://doi.org/10.1007/s10971-011-2478-8

28. Zhang H.N., Zhao Y., Akins D.L. Synthesis and new structure shaping mechanism of silica particles formed at high pH. J. Solid State Chem. 2012;194:277–281. https://doi.org/10.1016/j.jssc.2012.05.031

29. Zhao B.B., Tian C.H., Zhang Y., Tang T., Wang F.Y. Size control of monodisperse nonporous silica particles by seed particle growth. Particuology. 2011;9(3):314–317. https://doi.org/10.1016/j.partic.2010.07.028

30. Bogush G.H., Zukoski C.F Studies of the Kinetics of the Precipitation of Uniform Silica Particles through the Hydrolysis and Condensation of Silicon Alkoxides. J. Colloids Interface Sci. 1991;142(1):1–18. https://doi.org/10.1016/0021-9797(91)90029-8

31. Harris M.T., Byers C.H., Brunson R.R. The base-catalyzed hydrolysis and condensation reactions of dilute and concentrated TEOS solutions. J. Non-Cryst. Solids. 1990;121(1-3):397–403. https://doi.org/10.1016/0022-3093(90)90165-I

32. Lee K., Look J.L., Harris M.T., McCormick A.V. Assessing Extreme Models of the Stöber Synthesis Using Transients under a Range of Initial Composition. J. Colloid Interface Sci. 1997;194(l):78–88. https://doi.org/10.1006/jcis.1997.5089

33. Brinker C.J., Keefer K.D., Schaefer D.W., Assink R.A., Kay E.D., Ashley C.S. Sol–gel transition in simple silicates II. J. Non-Cryst. Solids. 1984;63(l-2):45–59. http://doi.org/10.1016/0022-3093(84)90385-5

34. Prabakar P., Assink R.A., Irwin A.D. Spinnability of Silica Sols: the Role of Alkoxy Group Exchange. Mater. Res. Soc. Symp. Proc. 1994;346:433–437. https://doi.org/10.1557/PROC-346-433

35. Schmidt H., Rinn G., Nass R., Sporn D. Film Formation by Inorganic-Organic Sol–Gel Synthesis. In: Better Ceramics through Chemistry III. 1988;121:743–752. MRS Online Proceedings Library. https://doi.org/10.1557/PROC-121-743

36. Green D.L., Jayasundara S., Lam Y.-F., Harris M.T. Chemical reaction kinetics leading to the first Stober silica nanoparticles – NMR and SAXS investigation. J. Non-Cryst. Solids. 2003;315(1-2): 166–179. http://doi.org/10.1016/S0022-3093(02)01577-6

37. Malay O., Yilgor I., Yusuf Z., Menceloglu Yu.Z. Effects of solvent on TEOS hydrolysis kinetics and silica particle size under basic conditions. J. Sol-Gel. SciTechnol. 2013;67(2): 351–361. https://doi.org/10.1007/s10971-013-3088-4

38. Bari A.H., Jundale R.B., Kulkarnia A.A. Understanding the role of solvent properties on reaction kinetics for synthesis of silica nanoparticles. Chem. Eng. J. 2020;398(9):125427. http://doi.org/10.1016/j.cej.2020.125427

39. Bernards T.N.M., Janssen M.J.C.H., van Bommel M.J. Influence of butanol on the hydrolysis-condensation behaviour of TEOS. J. Non-Cryst. Solids.1994;168(3):201–212. http://doi.org/10.1016/0022-3093(94)90331-X

40. Lim J.H., Ha S.W., Lee J.K. Precise Size-control of Silica Nanoparticles via Alkoxy Exchange Equilibrium of Tetraethyl Orthosilicate (TEOS) in the Mixed Alcohol Solution. Bull. Korean Chem. Soc. 2012;33(3):1067–1070. https://doi.org/10.5012/bkcs.2012.33.3.1067

41. Dyment O.N., Kazanskii K.S., Miroshnikov A.M. Glikoli i drugie proizvodnye okisei ehtilena i propilena (Glycols and Other Derivatives of Ethylene and Propylene Oxides). Moscow: Khimiya; 1976, 373 p. (in Russ.).
