Determination of Copper(II) Ions by Diffuse Reflectance Spectroscopy Method

https://doi.org/10.32362/2410-6593-2018-14-2-78-86

Full Text:

Abstract

A method for copper(II) determination based on copper(II) ions interaction with the organic reagent picramine-ε, concentrating the formed complex on a solid-phase matrix and recording diffuse reflectance spectroscopy spectra by a portable combined LED miniphotometer was developed. Poly-ε-caproamide membranes were investigated as solid-phase matrixes. It was found that the diffuse reflectance coefficient of the studied membranes in the visible spectrum region does not depend on wavelength. So, the signal from membranes does not distort the results of the analysis. Factors controlling the process of sorption of the copper(II) complex with picramine-ε were studied. It was shown that the poly-ε-caproamide membranes are effective sorbents which provide the possibility of concentrating the analyte at a level higher than 105. The dependences of analytical signal on the acidity of the solution, the time of keeping the complex in the solution and the initial volume of the solution passed through the membrane were studied. Based on the obtained data, the optimal conditions of the analysis were found. Calibration dependence of the analytical signal on the concentration of copper(II) in model solutions was estimated. The method was tested for the determination of copper(II) ions in white wine. The method of additives was used for the analysis. It was found that the concentration of copper(II) ions in “Vagrus” wine is 0.0016 mkg/ml.

About the Authors

I. I. Kuzmin
V.I. Vernadsky Institute of Geochemistry and Analytical Chemistry, Russian Academy of Sciences
Russian Federation

Junior Researcher, Laboratory of Instrumental Methods and Organic Reagents

GEOKHI RAS, 19, Kosygina St., Moscow 119991, Russia



T. Kh. Chyong
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Student of the Alimarin Chair of Analytical Chemistry

86, Vernadskogo Pr., Moscow 119571, Russia



Ya. I. Simakina
V.I. Vernadsky Institute of Geochemistry and Analytical Chemistry, Russian Academy of Sciences
Russian Federation

Postgraduate Student, Junior Researcher, Laboratory of Instrumental Methods and Organic Reagents

GEOKHI RAS, 19, Kosygina St., Moscow 119991, Russia



A. V. Mikhailova
V.I. Vernadsky Institute of Geochemistry and Analytical Chemistry, Russian Academy of Sciences
Russian Federation

Ph.D. (Chemistry),Senior Researcher, Laboratory of Instrumental Methods and Organic Reagents

GEOKHI RAS, 19, Kosygina St., Moscow 119991, Russia



Yu. I. Fabelinsky
V.I. Vernadsky Institute of Geochemistry and Analytical Chemistry, Russian Academy of Sciences
Russian Federation

Senior Researcher, Laboratory of Instrumental Methods and Organic Reagents

GEOKHI RAS, 19, Kosygina St., Moscow 119991, Russia



References

1. Ermakov V.V. Geochemical ecology and biogeochemical criteria for the estimation of the ecological condition of biosphere taxes. Geokhimiya (Geochemistry). 2015; (3):203-221. (in Russ.)

2. Suldina T.I. The content of heavy metals in food and their effects on the body. Nauchnyi zhurnal «Ratsional'noe pitanie, pishchevye dobavki i biostimulyatory» (Scientific journal «Rational Nutrition, Nutritional Supplements and Biostimulants»). 2016.; (1):136-140. (in Russ.)

3. Olivares M., Uauy R. Copper as an essential nutrient. The American Journal of Clinical Nutrition. 1996; 63(5): 791S-796S.

4. The Food and Agriculture Organization of the United Nations (FAO), site. URL: http://www.fao.org/home/ru/. Access data: 03/04/2019.

5. Ilbulova G.R., Biktimerova G.Y., Semenova I.N. Copper accumulation by plants Bromopsis inermis (Leys) in conditions of technogenic pollution. Mezhdunarodnyi zhurnal prikladnykh i fundamental'nykh issledovanii (International Journal of Applied and Basic Research). 2015; 12-8:1471-1475. (in Russ.)

6. Podchainova V.N., Simonova L.N. Cuprum. Analytical chemistry of the elements. Moscow: Nauka Publ., 1990. 279 p. (in Russ.)

7. Zhirov V.M., Babaeva M.V., Zhirova V.V. Expert assessment of wines based on elemental analysis by inductively coupled plasma mass-spectrometry. Tekhnologii XXI veka v legkoi promyshlennosti – (Tekhnologii XXI veka v pishchevoi, pererabatyvayushchei i legkoi promyshlennosti) (Technologies of XXI century in light industry – (Technologies of the XXI century in the food, processing and light industries), web science edition]. 2013; 7 (Part 2). URL: http://mgutm.ru/ jurnal/tehnologii_21veka/eni7_chat2/section1/3.pdf (in Russ.)

8. Kalmanova V.B., Kogan R.M. Еcological condition of accumulative environment components as a parameter of quality of the urbanized territories on the example of Birobidzhan. Vestnik RUDN. Seriya Ekologiya i bezopasnost' zhiznedeyatel'nosti (RUDN Journal of Ecology and Life Safety). 2009; (2):89-96. (in Russ.)

9. Lukin S.V., Melentsova S.V. Copper in agrolandscapes of Belgorod region. Dostizheniya nauki i tekhniki APK (Achievements of Science and Technology of AICis). 2006; (4):46-48. (in Russ.)

10. Analytical chemistry and physico-chemical methods of analysis: in two volumes. Ed. by A.A. Ishchenko. 3rd edition. Moscow: Academia Publ., 2014. 416 p. (in Russ.)

11. Simakina Ya.I., Kuzmin I.I., Fabelinsky Yu.I., Chyong T.Kh. Determination of manganese(II) by diffuse reflectance spectroscopy method. Tonkie Khim. Tekh. = Fine Chemical Technologies. 2017; 12(5):47-55. (in Russ.)

12. Savvin S.B., Shvoeva O.P., Mikhailova A.V., Rotov A.V., Minin V.V. Copper(II) complexation with sulfochlorophenol S on a poly(acrylonitrile) matrix from EPR data. Russian Journal of Inorganic Chemistry. 2004; 49(11):1661-1664.

13. Nikonenko I.S. Express methods for determining copper and cadmium ions in the environment. Molodoi uchenyi (Young Scientist). 2016; (24):121-124. (in Russ.)

14. Temerdashev Z.A., Konshina D.N., Salov D.I., Konshin V.V. Concentration and X-ray fluorescence determination of copper and cobalt on cellulose sorbents impregnated by 1-(2-carboxyphenyl)-3-hetaryl-5-arylformazanes. Zavodskaya laboratoriya. Diagnostika materialov (Industrial Laboratory. Diagnostics of Materials). 2008; 74(10):4-7. (in Russ.)

15. Shvoeva O.P., Dedkova V.P., Savvin S.B. Adsorptionspectroscopic method for multielement analysis: Determination of Cr(VI), V(V), Ni(II), and Cu(II) from one sample using a two-layer adsorbent. J. Anal. Chem. 2010; 65(7):699-703.

16. Chernova R.K., Kozlova L.M., Myznikova I.V., Ladygina V.V., Moiseikina N.A. The effect of sample preparation of the siliceous clay on the sorption nature of copper(II) ions and iron(III) ions. Izvestiya Vysshikh Uchebnykh Zavedeniy. Seriya «Khimiya i Khimicheskaya Tekhnologiya» = Russian Journal of Chemistry and Chemical Technology. 2001; 44(1):35-38. (in Russ.)

17. Shachneva E.Yu., Archibasova D.E., Zukhaireva A.S., Magomedova E.M. Concentration and determination on the sorbent CB-1-A ions of Cu(II), Zn(II) and Cd(II). Ekologicheskii Vestnik Severnogo Kavkaza. Krasnodar (The North Caucasus Ecological Herald. Krasnodar). 2014; 10(1): 33-38. (in Russ.)

18. Rustamov N.Kh., Rustamova U.N. Extractionphotometric determination of copper with alizarin yellow R and triisobutyl phosphate in food products. Molodoi uchenyi (Young Scientist). 2012; (8):47-50. (in Russ.)

19. Ghasemi E., Kaykhaii M. Determination of zinc, copper, and mercury in water samples by using novel micro cloud point extraction and UV-Vis spectrophotometry. Eurasian J. Anal. Chem. 2017; 12(4):313-324.

20. Savvin S.B., Shtykov S.N., Mikhailova A.V. Organic reagents in spectrophotometric methods of analysis. Russian Chemical Reviews. 2006; 75(4):341-349.

21. Dedkov Yu.M., Koluzanova V.P., Kirakosyan A.K. Picramine-epsilon as a reagent for photometric determination of copper(II). Zhurnal analiticheskoi khimii (Journal of Analytical Chemistry). 1970; 25(8):1482-1485. (in Russ.)

22. Lazarev A.I., Kharlamov I.P., Yakovlev P.Ya., Yakovleva E.F. Handbook for Analytical Chemists. Moscow: Metallurgiya Publ., 1976. 184 p. (in Russ.)


Supplementary files

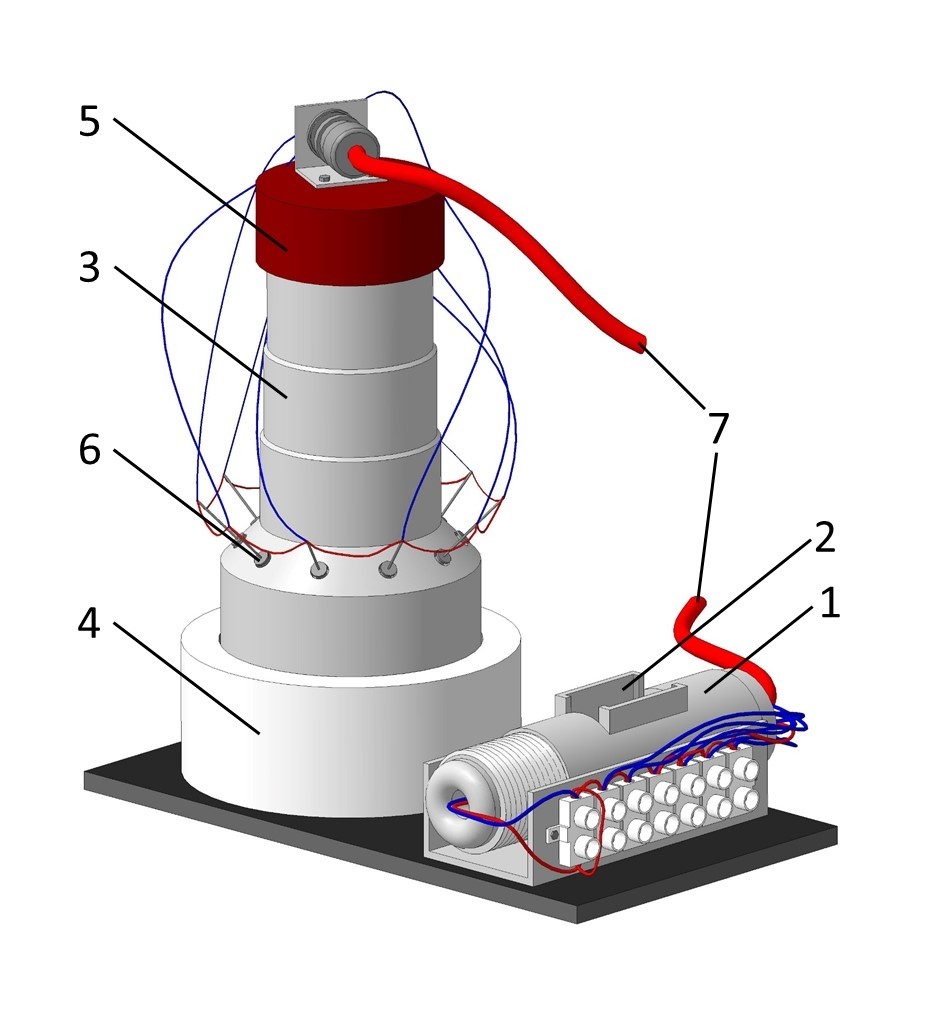

1. Fig. 1. LED miniphotometer: 1 – device housing of transmission measurement (the diode matrix is coaxially located with the detector); 2 – cell holder; 3 – device housing of diffuse reflection spectroscope; 4 – stand for solid phase; 5 – photodiode
Subject
Type Research Instrument
View (102KB)
Indexing metadata

For citation:


Kuzmin I.I., Chyong T.K., Simakina Y.I., Mikhailova A.V., Fabelinsky Yu.I. Determination of Copper(II) Ions by Diffuse Reflectance Spectroscopy Method. Fine Chemical Technologies. 2019;14(2):78-86. (In Russ.) https://doi.org/10.32362/2410-6593-2018-14-2-78-86
