INCREASING YIELD OF DISTILLATE FRACTIONS DURING COKING OF PETROLEUM RESIDUES

https://doi.org/10.32362/2410-6593-2019-14-1-75-81

Full Text:

Abstract

The research results of the influence of preliminary mechanochemical activation of heavy oil feedstock (oil-fuel, tar) on the output of their coking products are presented. Raw materials were activated by creating a cavitation effect when a hydrocarbon stream passes through a diffuser under a pressure. The pressure gradient on the diffuser ranged from 10 to 50 MPa, and the number of cycles of passage through the diffuser - from 1 to 5. It is shown that hydrodynamic cavitation processing results in a change in the physicochemical characteristics of heavy oil feedstock. The presented values of the raw material density and its fractional composition before and after processing suggest that the cavitation effect results in cracking reactions in the raw material. Changes in the characteristics of the raw material affect the change in the output of its coking products. It is established that as the pressure gradient and the number of impact acts increase, the yield of liquid coking products increases, and the yield of coke decreases. No relationship between the feedstock characteristics and the increase in the yield of distillate fractions as a result of prior cavitation effects has been established. At the same time, the preliminary mechanochemical activation of the raw materials leads to a decrease in the density and refractive index of the liquid coking products, a decrease in the temperature of their initial boiling point, and an increase in the content of hydrocarbons in the gasoline and kerosene fractions in them. The increase in the density and refractive index of the light fractions of the liquid coking products suggests that the aromatization process proceeds as a result of mechanochemical activation.

About the Authors

V. B. Terentyeva
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Postgraduate Student of the A.N. Bashkirov Chair of Petrochemical Synthesis and Synthetic Liquid Fuel Technology,

86, Vernadskogo pr., Moscow, 119571, Russia



А. I. Nikolaev
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

D.Sc. (Engineering), Professor of the A.N. Bashkirov Chair of Petrochemical Synthesis and Synthetic Liquid Fuel Technology,

86, Vernadskogo pr., Moscow, 119571, Russia



B. V. Peshnev
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

D.Sc. (Engineering), Professor of the A.N. Bashkirov Chair of Petrochemical Synthesis and Synthetic Liquid Fuel Technology,

86, Vernadskogo pr., Moscow, 119571, Russia



References

1. Ezhov B.M. (ed.) Problems of development of electrode coke production. Proceedings. Iss. XIII. Ufa: BashNII NP, 1975. 322 p. (in Russ.)

2. Akhmetov S.А. Technology of deep oil and gas processing. Ufа: Gilem Publ., 2002. 672 p. (in Russ.)

3. Solodova N.L., Cherkasova Е.I. Trends in the development of oil refining in Russia. Vestnik technologicheskogo universiteta (Bulletin of the Technological University). 2016; 19(21): 57-63. (in Russ.)

4. Sunyaev Z.I. Production, refining and application of petroleum coke. Moscow: Khimiya Publ., 1973. 296 p. (in Russ.).

5. Kositsyna S.S., Buryukin F.A., Buza A.O., Melchakov D.A. Tars coking with different composition and properties. Fundamentalnye issledovaniya (Basic Research). 2016; 6: 288-293. (in Russ.)

6. Kapustin V.M., Glagoleva О.F. Physico-chemical aspects of the petroleum coke formation (review). Neftekhimiya (Petrochemistry). 2016; 56(1): 3-12. (in Russ.)

7. Galiullin E.A., Fakhrutdinov R.Z., Bashkirtseva N.Yu., Ganieva T.F. Heavy oil upgrades approach. Vestnik technologicheskogo universiteta (Bulletin of the Technological University). 2017; 20(19): 35-39. (in Russ.)

8. Pirsol I. Cavitation. Мoscow: Mir Publ., 1975. 95 p. (in Russ.)

9. Fedin L.М., Fedin К.L., Fedin А.К. Fundamentals of enhanced oil recovery of heavy oil. Simferopol: Dolya Publ., 2013. 112 p. (in Russ.)

10. Franc J., Michel J. Fundamentals of cavitation. Grenoble Sciences, 2003. 306 p.

11. Bitiev G.V., Gulyaeva L.A., Nikulshin P.A., Khavkin V.A. On the process chemistry of the hydrocarbons conversion in catalytic and thermal cracking. Neftepererabotka i neftekhimiya. Nauchno-tekhnicheskiye dostizheniya i peredovoy opyt (Oil refining and Petrochemistry. Scientific and Technological Achievements and Best Practices). 2017; 12: 3-11. (in Russ.)

12. Nemchin A.F, Mikhaylik V.A, Todorashko G.T, Schepkin E.V. Influence of cavitation effect on hydrocarbon fuel. Promishlennaya teplotekhnika (Industrial Heat Engineering). 2002; 24(6): 60-63. (in Russ.)

13. Vorobyev S.I., Torkhovsky V.N., Tutorsky I.А. Mechanical destruction of petroleum hydrocarbons

14. with a high pressure disintegrator. Vestnik MITHT (Fine Chemical Technologies). 2008: 3(3): 77-84. (in Russ.)

15. Nikolaev А.I., Terentyeva V.B., Torkhovsky V.N., Vorobyev S.I. Petroleum coke production from modified raw materials. AvtoGazoZapravochniy Komplex + Alternativnoe toplivo (AutoGaz Filling Complex + Alternative fuel). 2016; 7(112): 3-6. (in Russ.)

16. Kapustin V.M., Gureev A.A. Technology of oil refining. In 2 parts. Part 2. Destructive processes. Moscow: КоlоsS Publ., 2007. 334 p. (in Russ.)


Supplementary files

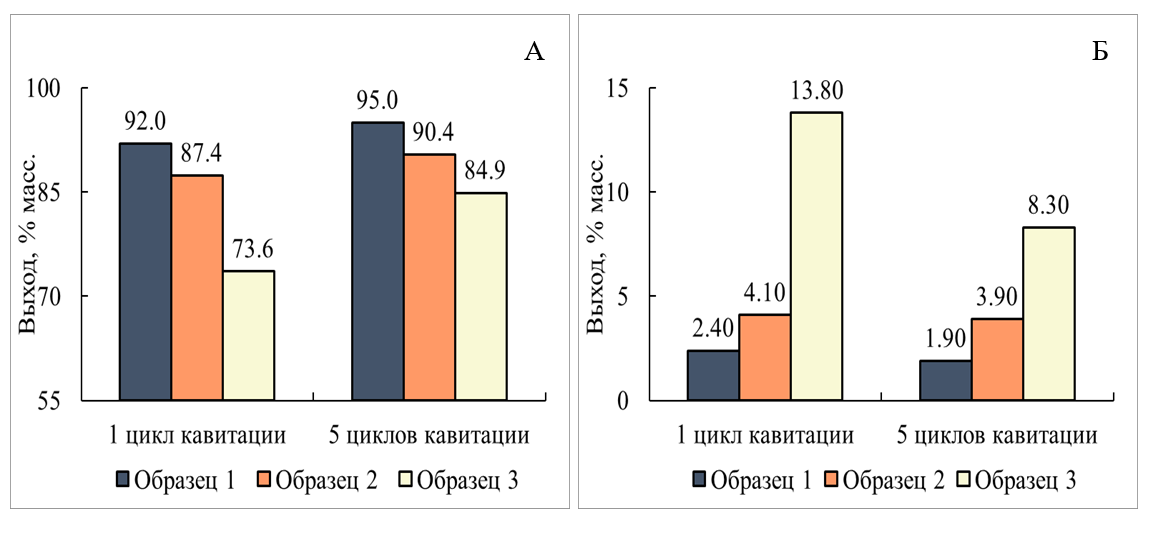

1. Influence of the number of processing cycles of raw materials on the yield of liquid (A) and solid (B) coking products.
Subject
Type Research Instrument
View (62KB)
Indexing metadata

For citation:


Terentyeva V.B., Nikolaev А.I., Peshnev B.V. INCREASING YIELD OF DISTILLATE FRACTIONS DURING COKING OF PETROLEUM RESIDUES. Fine Chemical Technologies. 2019;14(1):75-81. (In Russ.) https://doi.org/10.32362/2410-6593-2019-14-1-75-81
