Quality management of the chemical-technological process for continuous synthesis of pharmaceutical substances of medicinal compounds in flow microreactors

https://doi.org/10.32362/2410-6593-2021-16-3-252-266

Full Text:

Abstract

Objectives. The introduction of digital tools for the development of medicines, intelligent management systems, and quality control is stipulated not only by modern requirements for the chemical and pharmaceutical industry but also by strict regulatory requirements for manufactured products. This principle ensures the release of a quality product on the first attempt. The aim of this study is to develop information support for the intelligent quality management system for the production of active pharmaceutical substances (APSs) for medicines using a fundamentally new technology: continuous synthesis in flow microreactors. To develop the necessary information support, we developed appropriate systemic, informational, and mathematical models; algorithms for the online management of the experiment; and techniques and algorithms to qualitatively assess whether the product meets official regulatory documents.
Methods. System analysis techniques, information and mathematical modeling techniques with multireference regression models, and online optimization using the Hook–Jeevs algorithm (a method of expert evaluation based on the concordance factor) were used to solve the problems formulated.

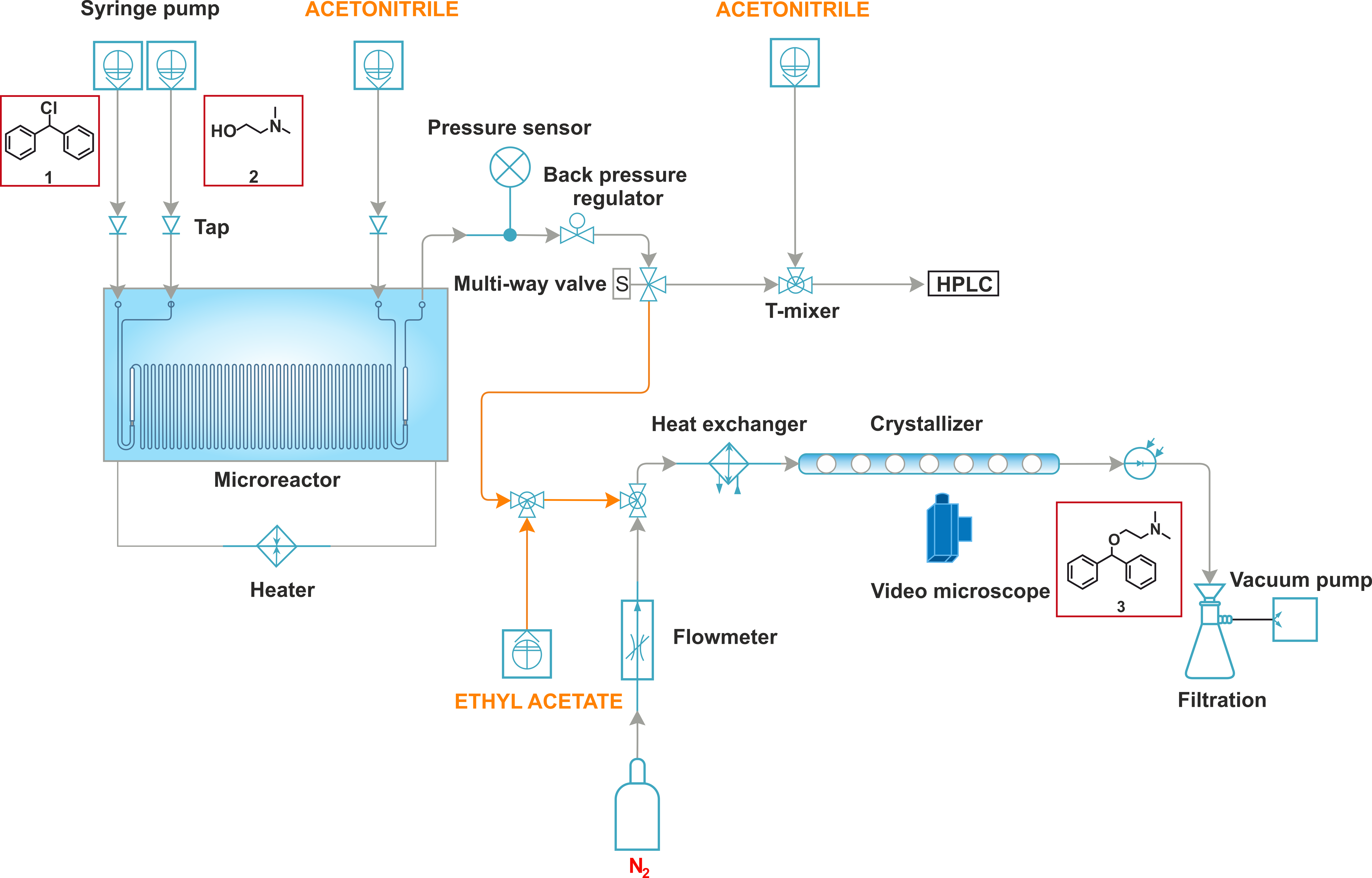

Results. To manage the quality of the process of continuous APS synthesis in the flow microreactor, we developed theoretic multiple system models that were designed to build the digital information environment for the process of experimental research. We developed algorithms for mathematical modeling and optimization of the control process based on multiresponse regression models and an online optimization algorithm that allows the process to be managed step by step, taking into account the limitations. Our results show that the degree of conversion is higher in reactions that contain bromodiphenylmethan.
Conclusions. Based on mathematical modeling method algorithms for the quality control of the process of continuous APS synthesis on a fundamentally new microreactor system, Qmix were developed. The applicability of the proposed methods and algorithms in the production of the drug diphenhydramine from chlorobenzohydrol and bromobenzohydrol as initial substances was proven by an experimental study. The built models were statistically adequate and valid.

About the Authors

V. F. Kornyushko
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Valery F. Kornyushko, Dr. Sci. (Eng.), Professor, Department of Information Systems in Chemical Technology

86, Vernadskogo pr., Moscow, 119571

Scopus Author ID 57205055432

ResearcherID C-4089-2017



O. M. Nikolaeva
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Olga M. Nikolaeva, Cand. Sci. (Eng.), Assistant, Department of Information Systems in Chemical Technology

86, Vernadskogo pr., Moscow, 119571



A. V. Panov
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Alexey V. Panov, Cand. Sci (Chem.), Docent, Department of Information Systems in Chemical Technology

86, Vernadskogo pr., Moscow, 119571

Scopus Author ID 57203160969

ResearcherID C-4251-2018



R. R. Biglov
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Rem R. Biglov, Cand. Sci. (Eng.), Docent, Department of Information Systems in Chemical Technology

86, Vernadskogo pr., Moscow, 119571

Scopus Author ID 57218597730

ResearcherID C-4057-2018



A. S. Kuznetsov
MIREA – Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Andrei S. Kuznetsov, Cand. Sci. (Eng.), Docent, Department of Information Systems in Chemical Technology

86, Vernadskogo pr., Moscow, 119571

Scopus Author ID 57215101046

Researcher ID C-4035-2018



References

1. Bykov V.A., Beregovykh V.V., Shvets V.I., Samylina I.A., Pyatigorskaya N.V., Meshkovskii A.P., Topnikov I.V. On the specialty “Industrial Pharmacy.” Farmatsiya = Pharmacy. 2007;1:45–47 (in Russ.).

2. Taptunov V.N., Guseva E.V., Batin S.E., Menshutina N.V., Zhukov D.J., Matasov A.V. Information intellectual system for conceptual design of technological schemes for solid dosage forms production. In: Proceedings 19th International Congress of Chemical and Process Engineering (CHISA’2010). Prague: Czech Republic; 2010. P. 132.

3. Matasov A.V., Kozlov A.I., Mozgunov V.A., Batin S.E., Menshutina N.V. Implementation of quality by design approach in CAD systems of solid dosage pharmaceutical forms production. In: Proceedings 19th International Congress of Chemical and Process Engineering (CHISA’2010). Prague: Czech Republic; 2010. P. 130.

4. Am Ende D., Bronk K.S., Mustakis J., O’Connor G., Santa Maria Ch.L., Nosal R., Watson T.J.N. API quality by design example from the Torcetrapib manufacturing process. J. Pharm. Innov. 2007;2(3–4):71–76. https://doi.org/10.1007/s12247-007-9015-x

5. Ende D.J. Proizvodstvo lekarstvennykh sredstv. Khimicheskaya tekhnologiya ot R&D do proizvodstva (Production of drugs. Chemical technology from R&D to production). St. Peterburg: Professiya; 2015. 1280 р. (in Russ.). ISBN 978-5-91884-071-9 [Ende A.D.J. Production of drugs. Chemical technology from R&D to production. Cambridge Press; 2014.]

6. Henry N.R. Prostranstvo doktora Deminga = The Deming dimension: Printsipy postroeniya ustoichivogo biznesa (The Deming dimension: Principles of building a sustainable business). Moscow: Al’pina Biznes Buks; 2005. 370 p. (in Russ.). ISBN 5-9614-0238-X [Henry N.R. The Deming dimension. Knoxville, Tenn.: SPC Press; 1990. 440 p.]

7. Kornushko V.F., Panov A.V., Bogunova I.V., Nikolaeva O.M., Flid A.A. System approach to informational support of pharmaceutical development of finished medicinal products. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2018;13(2):91–99 (in Russ.). https://doi.org/10.32362/2410-6593-2018-13-2-91-99

8. Kornyushko V.F., Bogunova I.V., Flid A.A., Nikolaeva O.M., Grebenschikov A.A. Information – algorithmic support for the development of solid pharmaceutical form. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2018;13(5):73–81. https://doi.org/10.32362/2410-6593-2018-13-5-73-81

9. Kornushko V.F., Bogunova I.V., Panov A.V., Nikolaeva O.M., Flid A.A. The application of the system approach for building the information space for the development of the production of ready medicines. Prikl. Inform. = J. Appl. Informatics. 2018;13(3–75):83–100 (in Russ.).

10. Trofimova E.O., Del’vig T.Yu. New prospects for innovative development of the domestic pharmaceutical industry. Farm Ekspress. 2008;5:43–44 (in Russ.).

11. Lebedev E.A., Voynovskiy A.A., Matasov A.V. Menshutina N.V. Dispersion Process Modeling and Equipment Design. In: Proceedings 20th European Symposium on Computer Aided Process Engineering (ESCAPE20). 2010. P. 1859–1864.

12. Chueshov V.I., Gladukh E.V., Lyapunova O.A., Saiko I.V., Sichkar’ A.A., Ruban E.A., Krutskikh T.V. Promyshlennaya tekhnologiya lekarstv: elektronnyi uchebnik (Industrial Drugs Technology). Kharkiv: National University of Pharmacy; 2010. (in Russ.).

13. Snead D.R., Jamison T.F. End-to-end continuous flow synthesis and purification of diphenhydramine hydrochloride featuring atom economy, inline separation, and flow of molten ammonium salts. Chemical Science. 2013;4(7):2822–2827. https://doi.org/10.1039/C3SC50859E

14. Lengauer T., Lemmen C., Rarey M., Zimmerman M. Novel technologies for virtual screening. Drug Discov. Today. 2004;9(1):27–34. https://doi.org/10.1016/s1359-6446(04)02939-3

15. Kornyushko V.F., Nikolaeva O.M., Bogunova I.V., Kuznetsov A.S., Panov A.V. Software and algorithmic support for the intelligent control system of active pharmaceutical ingredient synthesis. Program. Prod. i Sist. = Software & Systems. 2020;33(1):132–143 (in Russ.). http://dx.doi.org/10.15827/0236-235X.129.132-143

16. Krasnyuk I.I., Mikhailova G.V., Chizhova E.T. Farmatsevticheskaya tekhnologiya. Tekhnologiya lekarstvennykh form (Pharmaceutical Technology. Technology of dosage forms). Moscow: Akademiya; 2006. 424 p. (in Russ.).

17. Roberge D.M., Ducry L., Bieler N., Cretton P., Zimmermann B. Microreactor Technology: A Revolution for the Fine Chemical and Pharmaceutical Industries? Chem. Eng. Technol. 2005;28(3):318–323. https://doi.org/10.1002/ceat.200407128

18. Hook R., Jeeves T. «Direct Search» Solution of Numerical and Statistical Problems. ACM J. 1961;8(2):212–229. https://doi.org/10.1145/321062.321069

19. Zhilyakova E.T., Zinchenko A.A., Novikov O.O., Popov N.N. The development of a methods for the determination of miramistin and dimedrol in the new prolonged eye drops for treatment of bacterial conjunctivitis. Nauch. Vedom. Belgorod. Gos. Univ. Ser. Medicina, Farm. = Belgorod State Univ. Sci. Bull. Med. Pharm. 2015;10(207):211–214 (in Russ.).


For citation:


Kornyushko V.F., Nikolaeva O.M., Panov A.V., Biglov R.R., Kuznetsov A.S. Quality management of the chemical-technological process for continuous synthesis of pharmaceutical substances of medicinal compounds in flow microreactors. Fine Chemical Technologies. 2021;16(3):252-266. (In Russ.) https://doi.org/10.32362/2410-6593-2021-16-3-252-266
