Enhanced ibuprofen loading capacity of chitosan nanoparticles for prolonged release: A comprehensive study

Objectives. Oral administration of ibuprofen often requires much higher doses than the necessary therapeutic dose due to the low solubility and first-pass metabolism of this anti-inflammatory drug. In order to improve its solubility and bioavailability, orally administered ibuprofen can be encapsulated into chitosan nanoparticles. The release of ibuprofen from chitosan nanoparticles can be pH-controlled to increase drug delivery efficiency when passing through the gastrointestinal tract. While ionic gelation provides versatile nanochitosan synthesis, the impact of the chitosan-to-tripolyphosphate (CS/TPP) ratio on encapsulation efficiency (EE) and loading capacity (LC) of the ibuprofen-loaded chitosan nanoparticles (IBU-CSNPs), as well as their release behavior under various pH conditions, remains unexplored. The study aims to determine the appropriate CS/TPP ratio for the highest EE and LC, as well as to evaluate the morphology, release behavior, and degradability of the IBU-CSNPs under optimal conditions.

Methods. The effect of CS/TPP ratio on the EE and LC of nanoparticle-loaded ibuprofen is studied by comparing the total and free concentrations of the drug and the weights of the CSNPs and IBU-CSNPs. To elucidate the characteristic properties of the IBU-CSNPs prepared at the optimal CS/TPP ratio, in-depth characterization was performed, including their morphology, chemical structure, crystallinity profile, in vitro degradation, and release behavior. The release profile of the IBU-CSNPs is studied under simulated gastric fluid (SGF), intestinal fluid (SIF), and sequential conditions of SGF and SIF.

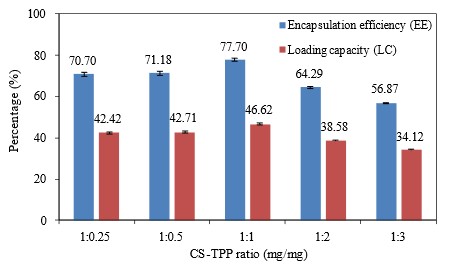

Results. EE and LC were found to be significantly enhanced by an appropriate 1 : 1 mg/mg ratio, reaching 77.70 ± 0.65% and 46.62 ± 0.39%, respectively. The fabricated IBU-CSNPs exhibit a spherical shape with a uniform size distribution of approximately 50–60 nm and accelerated degradation compared to the unadulterated chitosan nanoparticles under simulated gastrointestinal conditions. The synthesized IBU-CSNPs demonstrate remarkable acid resistance by a minimal drug release of 9.44% in SGF after 3 h. However, a sustained release pattern in SIF achieves an equilibrium cumulative release of 94.51% over 5 days. The elaboration of drug release kinetics using the Kopcha and Korsmeyer–Peppas models suggests erosion-controlled release in SGF and diffusion-controlled release with swellable ability in SIF.

Conclusions. The results represent valuable insights into the formulation of pH-responsive IBU-CSNPs for the controlled delivery of ibuprofen via oral administration.

1. Irvine J., Afrose A., Islam N. Formulation and delivery strategies of ibuprofen: challenges and opportunities. Drug. Dev. Ind. Pharm. 2018;44(2):173–183. https://doi.org/10.1080/03639045.2017.1391838

2. Susilo S.P., Pertiwi S.H., Ainurofiq A. Development and validation of analytical methods for multicomponent crystals of ibuprofen with malic and tartaric acid using spectrophotometry. J. Phys: Conf. Ser. 2022;2190:012033. https://doi.org/10.1088/1742-6596/2190/1/012033

3. Volans G.. Human Toxicity of Ibuprofen. In: Rainsford K.D. (Ed). Ibuprofen. UK: John Wiley & Sons, Ltd,; 2015. P. 498–517. https://doi.org/10.1002/9781118743614.ch12

4. Janus E., Ossowicz P., Klebeko J., Nowak A., Duchnik W., Kucharski Ł., et al. Enhancement of ibuprofen solubility and skin permeation by conjugation with l-valine alkyl esters. RSC Adv. 2020;10:7570–7584. https://doi.org/10.1039/D0RA00100G

5. Bensouiki S., Belaib F., Sindt M., Magri P., Rup-Jacques S., Bensouici C., et al. Evaluation of anti-inflammatory activity and in vitro drug release of ibuprofen-loaded nanoparticles based on sodium alginate and chitosan. Arab. J. Sci. Eng. 2020;45: 7599–7609. https://doi.org/10.1007/s13369-020-04720-2

6. Li C., Wang K., Xie D. Green fabrication and release mechanisms of pH-sensitive chitosan–ibuprofen aerogels for controlled transdermal delivery of ibuprofen. Front. Chem. 2021;9:767923. https://doi.org/10.3389/fchem.2021.767923

7. Balde A., Kim S.-K., Abdul N.R. Crab (Charybdis natator) exoskeleton derived chitosan nanoparticles for the in vivo delivery of poorly water-soluble drug: Ibuprofen. Int. J. Biol. Macromol. 2022;212:283–293. https://doi.org/10.1016/j.ijbiomac.2022.05.131

8. Olvera Rodríguez I., Mora-Muñoz J.M., Pérez V., Campos-Guillén J., Gallegos-Reyes M.A., García-Solís P., et al. Development and evaluation of ibuprofenloaded chitosan nanoparticles for pulmonary therapy. Front. Nanotechnol. 2024;6:1429889. https://doi.org/10.3389/fnano.2024.1429889

9. Thirugnanasambandan T., Gopinath S.C.B. Laboratory to industrial scale synthesis of chitosan-based nanomaterials: A review. Process Biochem. 2023;130:147–155. https://doi.org/10.1016/j.procbio.2023.04.008

10. Najafabadi A.H., Abdouss M., Faghihi S. Synthesis and evaluation of PEG-O-chitosan nanoparticles for delivery of poor water soluble drugs: Ibuprofen. Mater. Sci. Eng. C. 2014;41:91–99. https://doi.org/10.1016/j.msec.2014.04.035

11. Pereira A.K. dos S., Reis D.T., Barbosa K.M., Scheidt G.N., da Costa L.S., Santos L.S.S. Antibacterial effects and ibuprofen release potential using chitosan microspheres loaded with silver nanoparticles. Carbohydr. Res. 2020;488:107891. https://doi.org/10.1016/j.carres.2019.107891

12. Zhang Y., Chen J., Zhang G., Lu J., Yan H., Liu K. Sustained release of ibuprofen from polymeric micelles with ahigh loading capacity of ibuprofen in media simulating gastrointestinal tract fluids. React. Funct. Polym. 2012;72(6):359–364. https://doi.org/10.1016/j.reactfunctpolym.2012.03.010

13. Sorasitthiyanukarn F.N., Muangnoi C., Rojsitthisak P., Rojsitthisak P. Stability and biological activity enhancement of fucoxanthin through encapsulation in alginate/chitosan nanoparticles. Int. J. Biol. Macromol. 2024;263(Part 1): 130264. https://doi.org/10.1016/j.ijbiomac.2024.130264

14. DoN.H.N., HuynhT.N.A., LeT.X., HaA.C., LeP.K. Encapsulation of Triphasia trifolia extracts by pH and thermal dual-sensitive chitosan hydrogels for controlled release. Carbohydr. Polym. 2023;320:121264. https://doi.org/10.1016/j.carbpol.2023.121264

15. Jonassen H., Kjøniksen A.-L., Hiorth M. Stability of chitosan nanoparticles cross-linked with tripolyphosphate. Biomacromolecules. 2012;13(11):3747–3756. https://doi.org/10.1021/bm301207a

16. Dhandapani R.K., Gurusamy D., Howell J.L., Palli S.R. Development of CS-TPP-dsRNA nanoparticles to enhance RNAi efficiency in the yellow fever mosquito, Aedes aegypti. Sci. Rep. 2019;9(1):8775. https://doi.org/10.1038/s41598-019-45019-z

17. Sawtarie N., Cai Y., Lapitsky Y. Preparation of chitosan/ tripolyphosphate nanoparticles with highly tunable size and low polydispersity. Colloids Surf. B: Biointerfaces. 2017;157: 110–117. https://doi.org/10.1016/j.colsurfb.2017.05.055

18. Tomaz A.F., de Carvalho S.M.S., Barbosa R.C., Silva S.M.L., Gutierrez M.A.S., de Lima A.G.B., et al. Ionically Crosslinked Chitosan Membranes Used as Drug Carriers for Cancer Therapy Application. Materials. 2018;11(10):2051. https://doi.org/10.3390/ma11102051

19. AlehosseiniE., ShahiriTabarestaniH., KharazmiM.S., JafariS.M. Physicochemical, thermal, and morphological properties of chitosan nanoparticles produced by ionic gelation. Foods. 2022;11(23):3841. https://doi.org/10.3390/foods11233841

20. Lin W.-C., Yu D.-G., Yang M.-C. pH-sensitive polyelectrolyte complex gel microspheres composed of chitosan/sodium tripolyphosphate/dextran sulfate: swelling kinetics and drug delivery properties. Colloids Surf. B: Biointerfaces. 2005; 44(2-3):143–151. https://doi.org/10.1016/j.colsurfb.2005.06.010

21. Anand O., Pepin X.J.H., Kolhatkar V., Seo P. The use of physiologically based pharmacokinetic analyses— in biopharmaceutics applications-regulatory and industry perspectives. Pharm. Res. 2022;39:1681–1700. https://doi.org/10.1007/s11095-022-03280-4

22. Muhammad Saeed J., Waqas A., Madeeha S. Fundamentals Applications of Controlled Release Drug Delivery. In: Abdur R. (Ed.). Drug Development and Safety. Rijeka: IntechOpen; 2023. P. 1–12. http://doi.org/10.5772/intechopen.113283

23. Mazaleuskaya L.L., Theken K.N., Gong L., Thorn C.F., FitzGerald G.A., Altman R.B., et al. PharmGKB summary: ibuprofen pathways. Pharmacogenetics Genom. 2015;25(2): 96–106. https://doi.org/10.1097/FPC.0000000000000113
