Comparing the original and biosimilar biotherapeutics of the monoclonal antibody eculizumab by intact mass measurement and middle-up mass spectrometry analysis

https://doi.org/10.32362/2410-6593-2021-16-1-76-87

Full Text:

Abstract

Objectives. In this biosimilar research, we compare the monoclonal antibody eculizumab obtained from different drugs [original Soliris® (Alexion Pharmaceuticals) and candidate Elizaria® (Generium)] by intact mass measurement and middle-up mass spectrometry analysis to enhance the role of mass spectrometry methods in biopharmaceutical development processes.

Methods. The intact mass measurement is performed using a high-resolution ESI-MS. The middle-up analysis is performed by reversed-phase high-performance liquid chromatography with ESI-MS detection, subsequent IdeS treatment of antibodies, and disulfide bond reduction.

Results. We have shown some small differences between the original and candidate drugs in the minor glycans level. Man5 glycan is only found in the original Soliris, and G0 is only found in the Elizaria. Glycation sites are also found in the light chain and Fd subunits of the original Soliris. The glycation level does not exceed 4.4%. The non-clipped C-end lysine level and G0F glycan levels are slightly lower in the original Soliris. All registered differences are not crucial for eculizumab’s quality and do not affect its effectiveness and preclinical safety. Generally, the results show a high level of similarity between the original and candidate drugs.

Conclusions. The comparative mass spectrometry analysis of eculizumab in the original Soliris and Elizaria allows us to estimate their high degree of similarity by molecular masses and major modification profiles.

About the Authors

M. B. Degterev
International Biotechnology Center Generium
Russian Federation

Maksim B. Degterev, Research Scientist, Physico-Chemical Methods Laboratory

14, Vladimirskaya ul., Volginskiy, Vladimir oblast, 601125



R. R. Shukurov
International Biotechnology Center Generium
Russian Federation

Rakhim R. Shukurov, Head of the Analytical Methods Department

14, Vladimirskaya ul., Volginskiy, Vladimir oblast, 601125



References

1. Dillon T.M., Bondarenko P.V., Rehder D.S., Pipes G.D., Kleemann G.R., Ricci M.S. Optimization of a reversed-phase high-performance liquid chromatography/mass spectrometry method for characterizing recombinant antibody heterogeneity and stability. J. Chromatogr. A. 2006;1120(1–2):112-120. https://doi.org/10.1016/j.chroma.2006.01.016

2. Ren D., Pipes G., Xiao G., Kleemann G.R., Bondarenko P.V., Treuheit M.J., Gadgil H.S. Reversed-phase liquid chromatography–mass spectrometry of site-specific chemical modifications in intact immunoglobulin molecules and their fragments. J. Chromatogr. A. 2008;1179(2):198–204. https://doi.org/10.1016/j.chroma.2007.11.088

3. Sawyer W.S., Srikumar N., Carver J., Chu P.Y., Shen A., Xu A., Williams A.J., Spiess C., Wu C., Liu Y., Tran J.C. High-throughput antibody screening from complex matrices using intact protein electrospray mass spectrometry. Proc. Natl. Acad. Sci. USA. 2020;117(18):9851–9856. https://doi.org/10.1073/pnas.1917383117

4. Haberger M., Leiss M., Heidenreich A-K., Pester O., Hafenmair G., Hook M., Bonnington L., Wegele H., Haindl M., Reusch D., Bulau P. Rapid characterization of biotherapeutic proteins by size-exclusion chromatography coupled to native mass spectrometry. MAbs. 2015;8(2):331–33. https://doi.org/10.1080/19420862.2015.1122150

5. Leney A.C., Heck A.J. Native Mass Spectrometry: What is in the Name? J. Am. Soc. Mass Spectrom. 2017;28(1):5–13. https://doi.org/10.1007/s13361-016-1545-3

6. Wehofsky M., Hoffmann R. Automated deconvolution and deisotoping of electrospray mass spectra. J. Mass Spectrom. 2002;37(2):223–229. https://doi.org/10.1002/jms.278

7. Lu J., Trnka M.J., Roh S.H., et al. Improved Peak Detection and Deconvolution of Native Electrospray Mass Spectra from Large Protein Complexes. J. Am. Soc. Mass Spectrom. 2015;26(12):21412151. https://doi.org/10.1007/s13361-015-1235-6

8. Wohlschlager T., Scheffler K., Forstenlehner I.C. et al. Native mass spectrometry combined with enzymatic dissection unravels glycoform heterogeneity of biopharmaceuticals. Nat. Commun. 2018;9:1713. https://doi.org/10.1038/s41467-018-04061-7

9. Lermyte F., Tsybin Y.O., O’Connor P.B., Loo J.A. Top or Middle? Up or Down? Toward a Standard Lexicon for Protein Top-Down and Allied Mass Spectrometry Approaches. J. Am. Soc. Mass Spectrom. 2019;30(7):1149-1157. https://doi.org/10.1007/s13361-019-02201-x

10. Marty M.T., Baldwin A.J., Marklund E.G., Hochberg G.R.A., Benesch J.L.P., Robinson C.V. Bayesian deconvolution of mass and ion mobility spectra: from binary interactions to polydisperse ensembles. Anal. Chem. 2015;87(8):4370–4376. https://doi.org/10.1021/acs.analchem.5b00140

11. Tsong Y., Dong X., Shen M. Development of statistical methods for analytical similarity assessment. J. Biopharm. Stat. 2017;27(2):197–205. https://doi.org/10.1080/10543406.2016.1272606

12. Chow S.-C. Challenging issues in assessing analytical similarity in biosimilar studies. Biosimilars. 2015;5:33–39. https://doi.org/10.2147/BS.S84141

13. Raju T.S., Jordan R.E. Galactosylation variations in marketed therapeutic antibodies. MAbs. 2012;4(3):385–391. https://doi.org/10.4161/mabs.19868

14. Bruce A., Hunter J., Malanson H.F. Recombinant glycosylated eculizumab and eculizumab variants: US Patent US20170073399A1. Priority 11.09.2015.

15. Reusch D., Tejada M.L. Fc glycans of therapeutic antibodies as critical quality attributes. Glycobiology. 2015;25(12):1325–1334. https://doi.org/10.1093/glycob/cwv065


Supplementary files

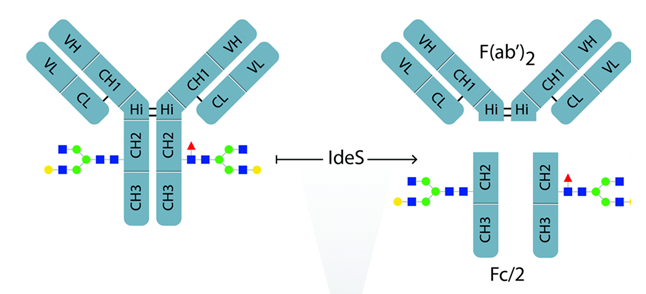

1. Fig. 1. Mechanism of action of the IdeS protease.
Subject
Type Исследовательские инструменты
View (103KB)
Indexing metadata

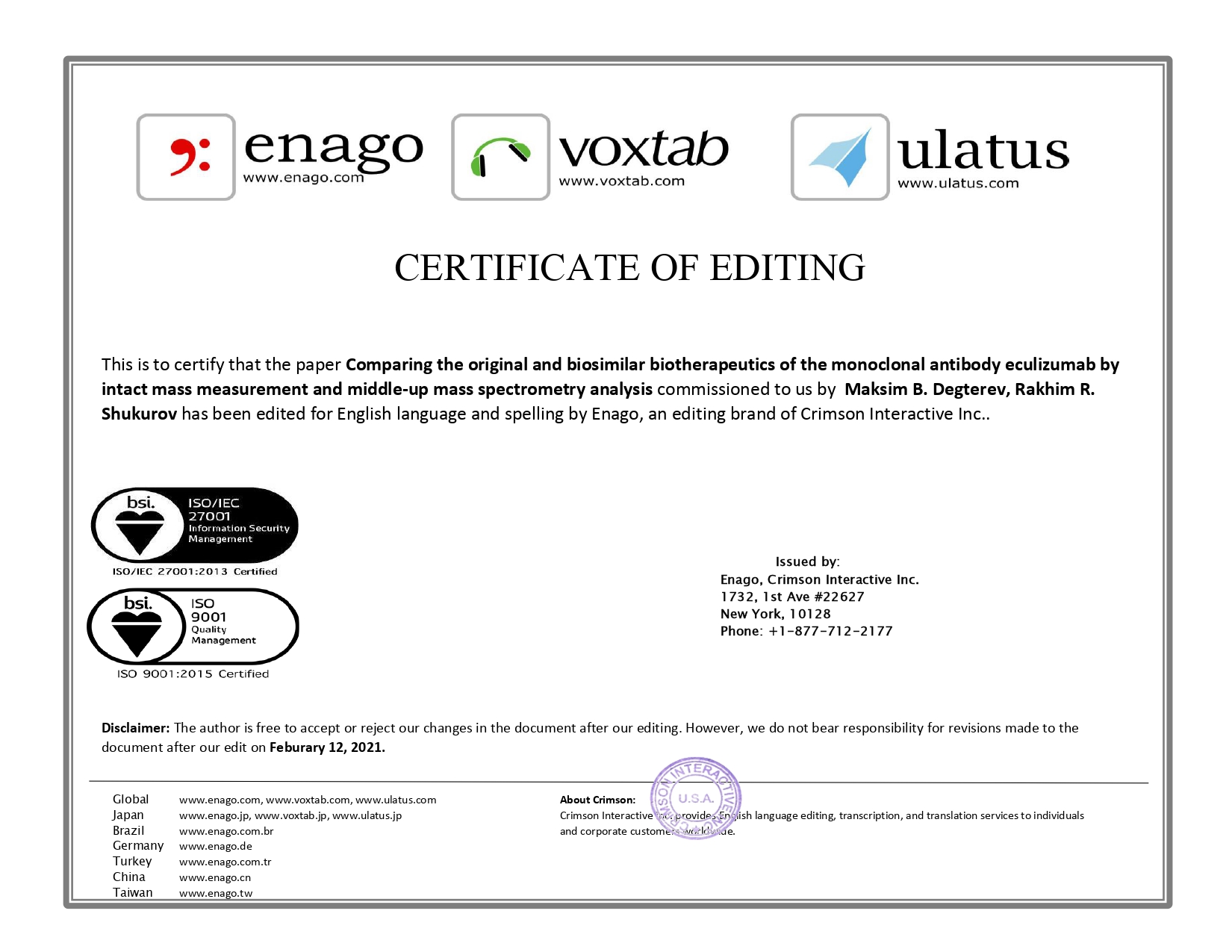

2. This is to certify that the paper Comparing the original and biosimilar biotherapeutics of the monoclonal antibody eculizumab by intact mass measurement and middle-up mass spectrometry analysis commissioned to us by Maksim B. Degterev, Rakhim R. Shukurov has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (450KB)
Indexing metadata
  • We have conducted a mass spectrometric study of the comparability of the original and biosimilar preparations of the monoclonal antibody eculizumab at the levels of intact molecules and subunits after IdeS proteolysis and restoration of disulfide bonds.
  • At the level of intact molecules, several differences in glycosylation profiles are found. However, the study of subunits shows that a significant part of them is due to the presence of additional glycation sites in the LC and Fd subunits of eculizumab of the original drug.
  • Mass spectrometric analysis of samples of the original and biosimilar preparations of the monoclonal antibody eculizumab at the intact molecules and subunits levels shows a high comparability level.

For citation:


Degterev M.B., Shukurov R.R. Comparing the original and biosimilar biotherapeutics of the monoclonal antibody eculizumab by intact mass measurement and middle-up mass spectrometry analysis. Fine Chemical Technologies. 2021;16(1):76-87. https://doi.org/10.32362/2410-6593-2021-16-1-76-87
