Method of electrochemical biotesting for comparative analysis of probiotic and antibiotic properties of various plant extracts

https://doi.org/10.32362/2410-6593-2020-15-6-34-43

Full Text:

Abstract

Objectives. The purpose of this study was to develop an objective instrumental method for assessing microbial contamination and expressing the probiotic and antibiotic properties of food, pharmacological, and other products.

Methods. The developed method consists of periodic (every 2 h) registration of changes in pH, redox potential, and electrical conductivity of a liquid nutrient medium incubated in the presence and absence of viable test microorganisms and test samples.

Results. Using liquefied CO2 from 10 different types of plant materials, we carried out a comparative analysis of probiotic and antibiotic activities against Lactobacillus acidophilus of various concentrations of subcritical whole extracts obtained.

Conclusions. Among the studied plant extracts, the most active prolonged antibiotic properties were exhibited by extracts from the leaves of Eucalyptus globulus Labill. and seeds of Illicium verum Hook.f. at a concentration in the test medium (CTE) more than 3 vol %, whereas the most active prolonged probiotic properties were exhibited by an extract from the herb of Mentha arvensis L. at CTE = 0.2 vol %. In most cases, the initial antibiotic activity of the tested extracts (TEs) was greater than their prolonged activity. Also, the mid-term (in terms of TEs interaction time with test microorganisms) antibiotic activity of TEs was intermediate in value between their initial and prolonged activity. In the test medium, the decreasing concentration of TEs decreases their antibiotic activity monotonically and increases their probiotic activity, suggesting that the biological activity of products, including various plant extracts, is largely determined not only by the raw material and the method of extracting biologically active substances from it but also by the concentration of the extract in the product and by the interaction time of the said product with microbiota and others. In most cases, a significant number of tests could establish the exact nature of these dependencies. The proposed method is much more rapid, objective, and informative and less laborious and material-intensive than using standard microbiological methods in assessing the initial microbial contamination and the probiotic and antibiotic properties of various samples of both the new and already approved pharmaceuticals, foods, and other products, as well as the individual ingredients and additives.

About the Authors

V. S. Sibirtsev
All-Russia Research Institute for Food Additives
Russian Federation

Vladimir S. Sibirtsev, Cand. of Sci. (Chemistry), Associate Professor, Head of the Laboratory of Development of Technologies and Formulations of Food Ingredients; Scopus Author ID 6603964394

(55, Liteinyi pr., Saint Petersburg, 191014



U. Yu. Nechiporenko
All-Russia Research Institute for Food Additives
Russian Federation

Ulyana Yu. Nechiporenko, Junior Researcher

55, Liteinyi pr., Saint Petersburg, 191014



References

1. Sutherland J., Miles M., Hedderley D., Li J., Devoy S., Sutton K., Lauren D. In vitro effects of food extracts on selected probiotic and pathogenic bacteria. Int. J. Food Sci. Nutr. 2009;60(8):717-727. https://doi.org/10.3109/09637480802165650

2. Das S., Anjeza C., Mandal S. Synergistic or additive antimicrobial activities of Indian spice and herbal extracts against pathogenic, probiotic and food–spoiler microorganisms. Int. Food Res. J. 2012;19(3):1185-1191.

3. Al-Zubairi A., Al-Mamary M. A., Al-Ghasani E. The antibacterial, antifungal and antioxidant activities of essential oil from different aromatic plants. Glo. Adv. Res. J. Med. Med. Sci. 2017;6(9):224-233. http://garj.org/garjmms

4. Rodino S., Butu M. Herbal Extracts—New Trends in Functional and Medicinal Beverages. In: Grumezescu A.M., Holban A.M. (Eds.). Functional and Medicinal Beverages. Volume 11: The Science of Beverages. Academic Press; 2019. P. 73-108. https://doi.org/10.1016/B978-0-12-816397-9.00003-0

5. Burt S. Essential oils: their antibacterial properties and potential applications in foods – a review. Int. J. Food Microbiol. 2004;94(3):223-253. https://doi.org/10.1016/j.ijfoodmicro.2004.03.022

6. Bakkali F., Averbeck S., Averbeck D., Idaomar M. Biological effects of essential oils – A review. Food Chem. Toxicol. 2008;46(2):446-475. https://doi.org/10.1016/j.fct.2007.09.106

7. Tripathi A.K., Bhoyar P.K., Baheti J.R., Biyani D.M., Khalique M., Kothmire M.S., Bhanarkar A.B. Herbal antidiabetics: a review. International Journal of Research in Pharmaceutical Sciences (IJRPS). 2011;2(1):30-37.

8. Fatima A., Alok S., Agarwal P., Singh P.P., Verma A. Benefits of herbal extracts in cosmetics: a review. International Journal of Pharmaceutical Sciences and Research (IJPSR). 2013;4(10):3746-3760. https://doi.org/10.13040/ijpsr.0975-8232.4(10).3746-60

9. Alok S., Jain S.K., Verma A., Kumar M., Mahor A., Sabharwal M. Herbal antioxidant in clinical practice: a review. Asian Pac. J. Trop. Biomed. 2014;4(1):78-84. https://doi.org/10.1016/S2221-1691(14)60213-6

10. Radice M., Manfredini S., Ziosi P., Dissette V., Buso P., Fallacara A., Vertuani S. Herbal extracts, lichens and biomolecules as natural photo-protection alternatives to synthetic UV filters. A systematic review. Fitoterapia. 2016;114:144-162. https://doi.org/10.1016/j.fitote.2016.09.003

11. Merghni A., Marzouki H., Hentati H., Aouni M., Mastouri M. Antibacterial and antibiofilm activities of Laurus nobilis L. essential oil against Staphylococcus aureus strains associated with oral infections. Curr. Res. Transl. Med. 2016;64(1):29-34. https://doi.org/10.1016/j.patbio.2015.10.003

12. Fani M., Kohanteb J. In vitro antimicrobial activity of thymus vulgaris essential oil against major oral pathogens. J. Evid. Based Complementary Altern. Med. 2017;22(4):660-666. https://doi.org/10.1177/2156587217700772

13. Kokina M.S., Frioui M., Shamtsyan M., Sibirtsev V.S., Krasnikova L.V., Konusova V.G., Simbirtsev A.S. Influence of pleurotus ostreatus beta-glucans on the growth and activity of certain lactic acid bacteria. Sci. Study Res. Chem. Chem. Eng. Biotechnol. Food Ind. 2018;19(4):465-471.

14. Atarés L., Chiralt A. Essential oils as additives in biodegradable films and coatings for active food packaging. Trends Food Sci. Technol. 2016;48:51-62. https://doi.org/10.1016/j.tifs.2015.12.001

15. Ribeiro-Santos R., Andrade M., Melo N. R., SanchesSilva A. Use of essential oils in active food packaging: Recent advances and future trends. Trends Food Sci. Technol. 2017;61:132-140. https://doi.org/10.1016/j.tifs.2016.11.021

16. Ju J., Xie Y., Guo Y., Cheng Y., Qian H., Yao W. Application of edible coating with essential oil in food preservation. Crit. Rev. Food Sci. Nutr. 2019;59(15):2467-2480. https://doi.org/10.1080/10408398.2018.1456402

17. Yuan G., Chen X., Li D. Chitosan films and coatings containing essential oils: The antioxidant and antimicrobial activity, and application in food systems. Food Res. Int. 2016;89(1):117-128. https://doi.org/10.1016/j.foodres.2016.10.004

18. Donsì F., Ferrari G. Essential oil nanoemulsions as antimicrobial agents in food. J. Biotechnol. 2016;233:106-120. https://doi.org/10.1016/j.jbiotec.2016.07.005

19. Pavela R., Benelli G. Essential Oils as Ecofriendly Biopesticides? Challenges and Constraints. Trends Plant Sci. 2016;21(12):1000-1007. https://doi.org/10.1016/j.tplants.2016.10.005

20. Rout P.K., Naik S.N., Rao Y.R. Subcritical CO 2 extraction of floral fragrance from Quisqualis indica. J. Supercrit. Fluids. 2008;45(2):200-205. https://doi.org/10.1016/j.supflu.2008.02.011

21. Sahena F., Zaidul I.S.M., Jinap S., Karim A.A., Abbas K.A., Norulaini N.A.N., Omar A.K.M. Application of supercritical CO 2 in lipid extraction – A review. J. Food Eng. 2009;95(2):240-253. https://doi.org/10.1016/j.jfoodeng.2009.06.026

22. Ibadullaeva G.S., Pichkhadze G.M., Ustenova G.O., Dil’barkhanov R., Tikhonova S.A., Grud’ko V.A., Bevz N.Yu., Yudina Yu.V. Chemical composition of the CO 2 -extract of Acorus Calamus obtained under subcritical conditions. Pharmaceut. Chem. J. 2015;49(6):388-392. https://doi.org/10.1007/s11094-015-1290-0

23. Valle Jr.D.L., Cabrera E.C., Puzon J.J.M., Rivera W.L. Antimicrobial activities of methanol, ethanol and supercritical CO 2 extracts of Philippine Piper betle L. on clinical isolates of Gram positive and Gram negative bacteria with transferable multiple drug resistance. PLoS ONE. 2016;11(1):е0146349. https://doi.org/10.1371/journal.pone.0146349

24. Lazarotto M., Valério A., Boligon A., Tres M.V., Scapinello J., Dal Magro J., Oliveira J.V. Chemical composition and antibacterial activity of bergamot peel oil from supercritical CO 2 and compressed propane extraction. Open Food Sci. J. 2018;10(1):16-23. https://doi.org/10.2174/1874256401810010016

25. Vieitez I., Maceiras L., Jachmanián I., Alborés S. Antioxidant and antibacterial activity of different extracts from herbs obtained by maceration or supercritical technology. J. Supercrit. Fluids. 2018;133(1):58-64. https://doi.org/10.1016/j.supflu.2017.09.025

26. Coelho J., Veiga J., Karmali A., Nicolai M., Pinto Reis C., Nobre B., Palavra A. Supercritical CO 2 extracts and volatile oil of basil (Ocimum basilicum L.) comparison with conventional methods. Separations. 2018;5(2):21-33. https://doi.org/10.3390/separations5020021

27. Sibirtsev V.S. Study of applicability of the bifunctional system “Ethidium bromide + Hoechst-33258” for DNA analysis. Biochemistry (Moscow). 2005;70(4.):449-457. https://doi.org/10.1007/s10541-005-0136-x

28. Sibirtsev V.S. Fluorescent DNA probes: study of mechanisms of changes in spectral properties and features of practical application. Biochemistry (Moscow). 2007;72(8):887-900. https://doi.org/10.1134/S0006297907080111

29. Sibirtsev V.S., Naumov I.A., Kuprina E.E., Olekhnovich R.O. Use of impedance biotesting to assess the actions of pharmaceutical compounds on the growth of microorganisms. Pharmaceut. Chem. J. 2016;50(7):481-485. https://doi.org/10.1007/s11094-016-1473-3

30. Sibirtsev V.S. Biological test methods based on fluorometric genome analysis. J. Opt. Technol. 2017;84(11):787-791. https://doi.org/10.1364/JOT.84.000787

31. Sibirtsev V.S., Maslova A.Yu. Complex research of E.coli vital activity dynamics in presence of transition metal ions. Sci. Tech. J. Inf. Technol. Mech. Opt. 2019;19(2):236-241. https://doi.org/10.17586/2226-1494-2019-19-2-236-241

32. Sibirtsev V.S., Uspenskaya M.V., Garabadgiu A.V., Shvets V.I. An integrated method of instrumental microbiotesting of environmental safety of various products, wastes, and territories. Dokl. Biol. Sci. 2019;485(1):59-61. https://doi.org/10.1134/S001249661902011X

33. Sibirtsev V.S., Garabadgiu A.V., Shvets V.I. New technique for integrated photofluorescence microbiotesting. Dokl. Biol. Sci. 2019;489(6):196-199. https://doi.org/10.1134/S0012496619060103

34. Korn G., Korn T. Mathematical Handbook for Scientists and Engineers. Definitions, Theorems and Formulas for Reference and Review. NY: McGraw Hill Book Company; 1968. 1152 p.

35. Johnson K., Jeffi V. Numerical Methods in Chemistry. Cambridge University Press; 1983. 503 p.

36. Sibirtsev V. S. Analysis of benzo[a]pyrene deactivation mechanisms in rats. Biochemistry (Moscow). 2006;71(1):90-98. https://doi.org/10.1134/S0006297906010147

37. Zhuravlev O.E., Voronchikhina L.I. Synthesis and antimicrobial activity of N-decylpyridinium salts with inorganic anions. Pharmaceut. Chem. J. 2018;52(4):312-315. https://doi.org/10.1007/s11094-018-1813-6

38. Luzhnova S.A., Tyrkov A.G., Gabitova N.M., Yurtaeva E.A. Synthesis and antimicrobial activity of 5-(arylmethylidene)-2,4,6-pyrimidine-2,4,6(1 H ,3 H ,5 H )triones. Pharmaceut. Chem. J. 2018;52(6):506-509. https://doi.org/10.1007/s11094-018-1849-7


Supplementary files

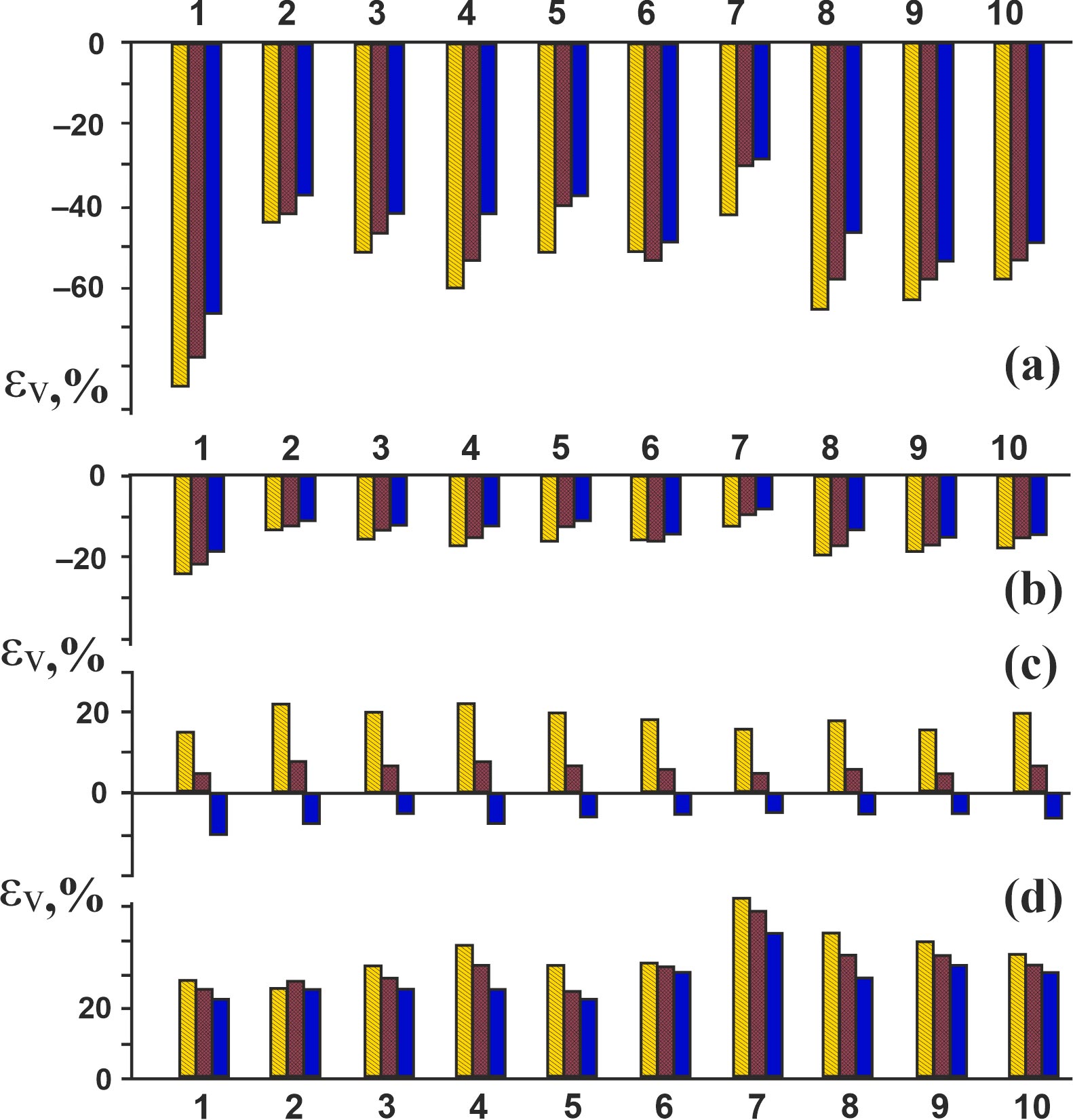

1. Comparative biological activity of the tested extracts against L. acidophilus at different TE concentrations in the test medium
Subject
Type Research Instrument
View (263KB)
Indexing metadata

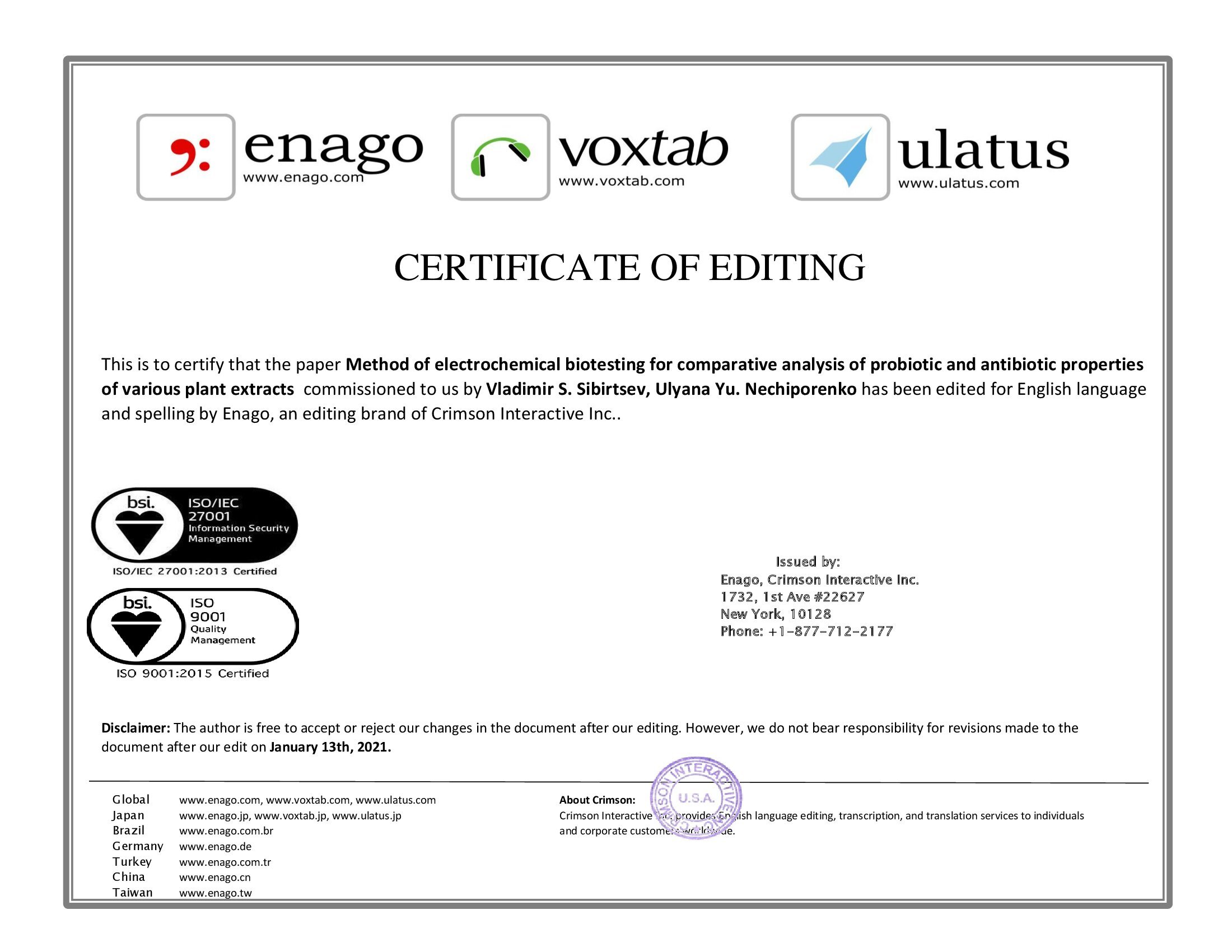

2. This is to certify that the paper Method of electrochemical biotesting for comparative analysis of probiotic and antibiotic properties of various plant extracts commissioned to us by Vladimir S. Sibirtsev, Ulyana Yu. Nechiporenko has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (290KB)
Indexing metadata
  • An express and objective instrumental method has been developed for assessing microbial contamination, as well as probiotic and antibiotic properties of various samples of foods, pharmacological, and other products, consisting in periodic (every 2 h) recording changes in pH, redox potential, and electrical conductivity of a liquid nutrient medium incubated in the presence and the absence of viable test microorganisms and test samples.
  • Using the developed methodology, we carried out a comparative analysis of the probiotic and antibiotic activities against Lactobacillus acidophilus of different concentrations of subcritical whole extracts, obtained using liquefied CO2 from 10 different types of plant raw materials.
  • The presented technique makes it possible to evaluate the initial microbial contamination, as well as the probiotic and antibiotic properties of various samples, both new and already approved products, much more quickly, objectively, and informatively, as well as significantly less laborious and material-intensive than using standard microbiological methods approved products, as well as the individual ingredients and additives.
  • The biological activity of products, including various plant extracts, is largely determined not only by the raw material and the method of extracting biologically active substances from it but also by the concentration of the extract in the product and by the time of interaction of the said product with microbiota and others.

For citation:


Sibirtsev V.S., Nechiporenko U.Yu. Method of electrochemical biotesting for comparative analysis of probiotic and antibiotic properties of various plant extracts. Fine Chemical Technologies. 2020;15(6):34-43. https://doi.org/10.32362/2410-6593-2020-15-6-34-43
