Esterification of malic acid on various catalysts

https://doi.org/10.32362/2410-6593-2020-15-2-47-55

Full Text:

Abstract

Objectives. The study aims to identify the optimal choice of an effective catalyst for the esterification of malic acid to produce esters of high purity.

Methods. To determine the qualitative and quantitative composition of reaction masses, the following analysis methods were used: mass-spectroscopy (using FinniganTrace DSQ device with NIST 2002, Xcalibur 1.31 Sp 5 database) and gas–liquid chromatography (using the Kristall 2000M software and hardware complex).

Results. Esters of malic acid and butyl alcohol of normal structure were synthesized using the following catalysts: sulfuric, orthophosphoric, p-toluenesulfonic acid, Amberlyst 36 Dry, Amberlyst 36 Wet, KU-2-FPP, and KIF-T. The obtained products were analyzed by gas–liquid chromatography. The structure of the products was confirmed by mass spectrometry. Schemes for the formation of byproducts are proposed. The yields and purity of the malic acid butyl esters obtained using different catalysts were evaluated. The results show that the heterogeneous catalyst Amberlyst 36 Dry is optimal for obtaining a pure malic acid ester with a maximum yield.

Conclusions. The results show that during the esterification of malic acid with butyl alcohol of normal structure, byproducts, such as esters of fumaric and maleic acids, are formed using different catalysts. An accumulation of byproducts occurs as a result of reactions of dehydration of malic acid or its ester. The results also show that the number of byproducts is almost independent of the catalyst, with the exception of sulfuric acid. The Amberlyst 36 Dry catalyst provides an optimal ratio between conversion and selectivity for malic acid dibutyl ester production.

About the Authors

N. S. Kuzmina
Samara State Technical University
Russian Federation

Natalia S. Kuzmina, Engineer, Technology of Organic and Petrochemical Synthesis Department

244, Molodogvardeiskaya ul., Samara, 443100



S. V. Portnova
Samara State Technical University
Russian Federation

Svetlana V. Portnova, Cand. of Sci. (Chemistry), Associate Professor, Technology of Organic and Petrochemical Synthesis Department

244, Molodogvardeiskaya ul., Samara, 443100



E. L. Krasnykh
Samara State Technical University
Russian Federation

Eugen L. Krasnykh, Dr. of Sci. (Chemistry), Head of the Technology of Organic and Petrochemical Synthesis Department

244, Molodogvardeiskaya ul., Samara, 443100



References

1. Kuznetsov B.N. Urgent Directions of Chemical Processing of Renewable Plant Biomass. Khimiya v interesakh ustoichivogo razvitiya = Chem. Sust. Dev. 2011;19(1):77-85 (in Russ.).

2. Sushkova S. V., Levanova S. V., Glazko I. L., Alexandrov A. Yu. Esterification of citric adic with aliphatic alcohols С2-С5. Tonk. Khim. Tekhnol. = Fine Chem. Technol. 2017;12(3):28-32 (in Russ.). https://doi.org/10.32362/24106593-2017-12-3-28-32

3. Hermann B.G., Patel M. Today’s and tomorrow’s bio-based bulk chemicals from white biotechnology. Appl. Biochem. Biotechnol. 2007;136(3):361-388. https://doi.org/10.1007/s12010-007-9031-9

4. Senko O.V., Stepanov N.A., Maslova O.V., Lyagin I.V., Efremenko E.N. Resource-saving biotechnology of fumaric acid production from renewable sources. Vestnik KuzGTU. 2013;1(95): 111-113 (in Russ.).

5. Santiago Malmierca, Rebeca Díez-Antolínez, Ana Isabel Paniagua, and Mariano Martín. Technoeconomic Study of Biobutanol AB Production. 1. Biomass Pretreatment and Hydrolysis. Ind. Eng. Chem. Res. 2017;56(6):1518-1524. https://doi.org/10.1021/acs.iecr.6b02943

6. Barshtein R.S., Kirilovich V.M., Nosovskii Yu.E. Plastifikatory dlya polimerov (Plasticizers for polymers). Moscow: Khimiya; 1982. 200 p. (in Russ.).

7. Lebedev N.N. Khimiya i tekhnologiya osnovnogo organicheskogo i neftekhimicheskogo sinteza: Uchebnik dlya vuzov (Chemistry and technology of basic organic and petrochemical synthesis: Textbook for high schools). Moscow: Khimiya; 1988. 592 p. (in Russ.). ISBN: 5-7245-0008-6

8. Lipp S.V., Krasnyh E.L., Sokolov A.B., Glazko I.L., Levanova S.V. Synthesis of C2-C6 dicarboxylic acid esters and C5-C6 alcohols. Khim. Prom. Segodnya = Chem. Ind. Today. 2010;8:26-31 (in Russ.).

9. Melnyk S., Melnyk Yu., Nykulyshyn I., Shevchuk L. Research into esterification of mixture of lower dicarboxylic acids by 2-ethylhexan-1-ol in the presence of р-toluensulfonic acid. Eastern-European Journal of Enterprise Technologies. 2017;6/6(90):10-16. https://doi.org/10.15587/1729-4061.2017.114324

10. Houston T.A., Wilkinson B.L., Blanchfield J.T. Boric Acid Catalyzed Chemoselective Esterification of α-Hydroxycarboxylic Acids. Org. Lett. 2004;6(5):679-681. https://doi.org/10.1021/ol036123g

11. Nafikova R.F., Rahmatullina Z.F., Rahimkulova A.A., Rahimkulov A.G., Rahmatullina F.T. The reception of the ftalate plastificator with the use of the indigorests of the butyl alcohol. Bashkirskii Khimicheskii Zhurnal = Bashkir Chem. J. 2006;13(3):60-62 (in Russ.).

12. Samoilov V.O., Ramazanov D.N., Nekhaev A.I., Maksimov A.L. Heterogeneous catalytic conversion of glycerol with n-butyl alcohol. Pet. Chem. 2016;56(2):125-130. https://doi.org/10.1134/S0965544116010060

13. Gromova V.V., Mamarasulova Z.V. Thermak esterification of penthaerytrite by alyphatic monocarbonic acids. Bulletin of St PbSIT (TU). 2013;20(46):64-67 (in Russ.).

14. Kornilov P.I., Kachalova T.N. 3D design of the plant for obtaining an oxygen-containing additive to automotive gasoline. Vestnik Kazanskogo tekhnologicheskogo universiteta (Herald of Kazan Technological University). 2013;16(9):226-227 (in Russ.).

15. Migdal C.A., Rowland R.G. Lubricant compositions containing hydroxyl carboxylic and hydroxyl polycarboxylic acid esters: US Pat. 7696136. 2005/0198894 A 1; prior publ. data 15.09.2005; date of patent 13.04.2010.

16. Xiang Z., Xiaodong L. Circular reaction water phase organic acid esterifying device and organic acid esterifying method thereof: CN Pat. 105884611; prior publ. data 26.05.2016; date of patent 24.08.2016.

17. Houston T.A., Wilkinson B.L., Blanchfield J.T. Boric Acid Catalyzed Chemoselective Esterification of α-Hydroxycarboxylic Acids. Org. Lett. 2004;6(5):679-681. https://doi.org/10.1021/ol036123g

18. Ogorodnikov S.K. (Ed.). Spravochnik neftekhimika (Petrochemicals Handbook). V. 2. Moscow: Khimiya; 1978. 592 p. (in Russ.).

19. Ageicheva Ya.N., Merzlyakova N.V., Shevtsova I.N. Sposob ochistki p-toluolsulʼfokisloty (Method of purification of p-toluene sulfonic acid): USSR Pat. 1139725 А; 1985

20.


Supplementary files

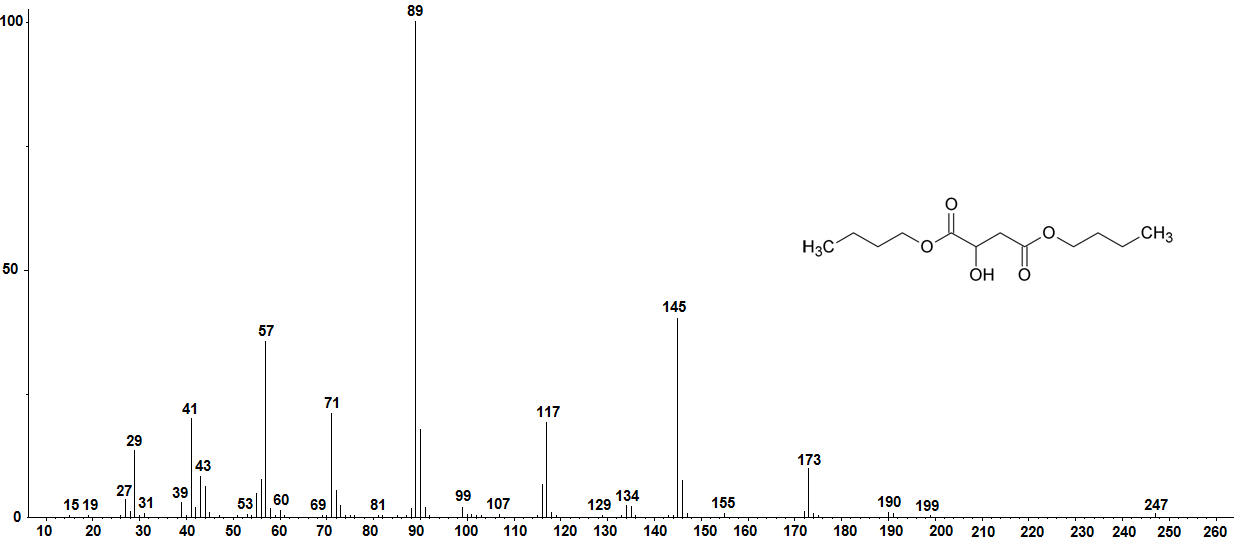

1. Mass spectrum of malic acid dibutyl ester.
Subject
Type Research Instrument
View (21KB)
Indexing metadata

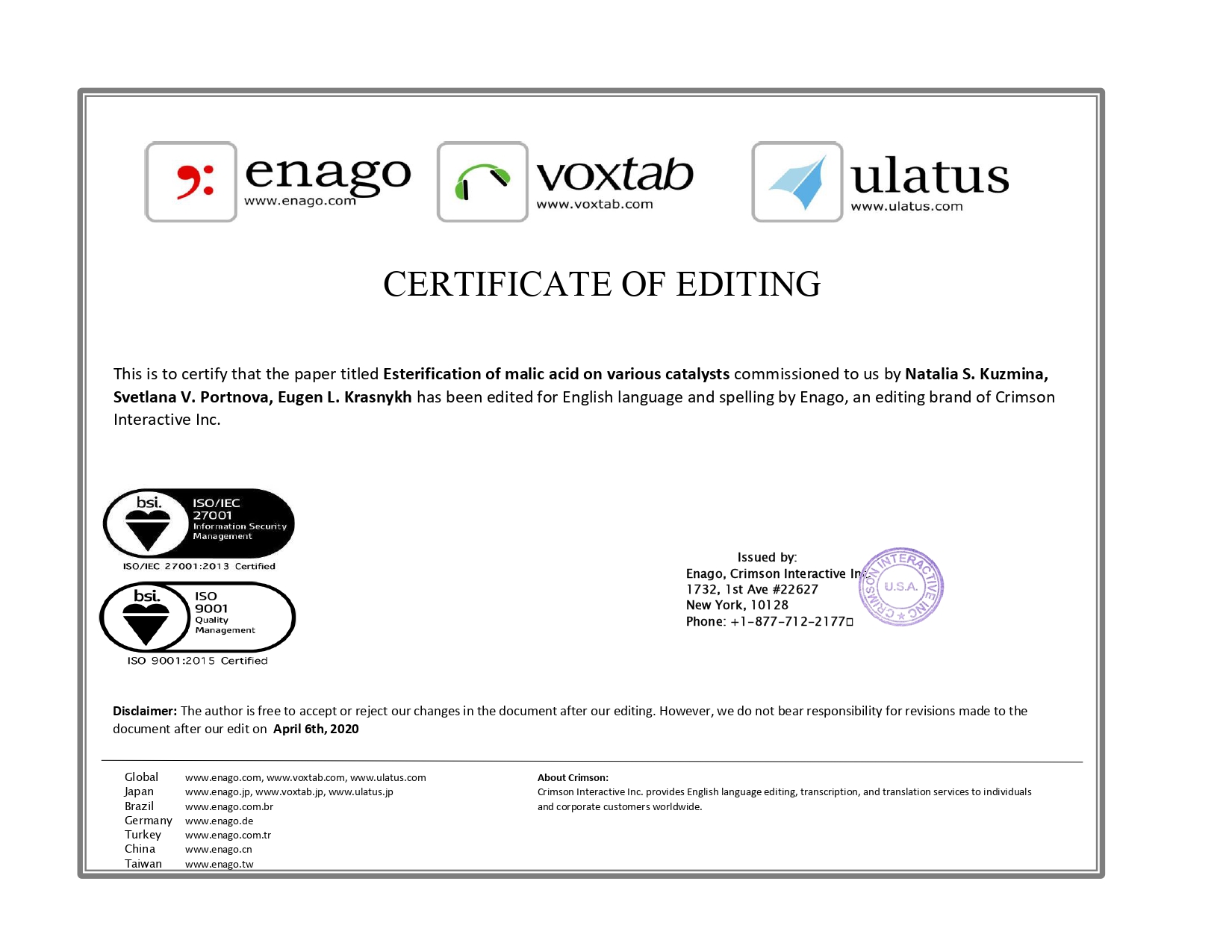

2. This is to certify that the paper titled Esterification of malic acid on various catalysts commissioned to Enago by Natalia S. Kuzmina, Svetlana V. Portnova, Eugen L. Krasnykh has been edited for English language and spelling by Enago, an editing brand of Crimson Interactive Inc.
Subject CERTIFICATE OF EDITING
Type Other
View (389KB)
Indexing metadata

The results show that during esterification of malic acid with butyl alcohol exhibiting a normal structure, various byproducts, including esters of fumaric and maleic acids, are formed in the presence of different catalysts. The outcomes also demonstrate that the number of byproducts is independent of the catalyst, with the exception of sulfuric acid. Employing the Amberlyst 36 dry catalyst results in optimal conversion and selectivity for malic acid dibutyl ester.

For citation:


Kuzmina N.S., Portnova S.V., Krasnykh E.L. Esterification of malic acid on various catalysts. Fine Chemical Technologies. 2020;15(2):47-55. https://doi.org/10.32362/2410-6593-2020-15-2-47-55
