Synthesis and properties of Cu- and Pd-complexes of cyclen conjugates with pheophorbide and bacteriopheophorbide

https://doi.org/10.32362/2410-6593-2019-14-6-95-103

Full Text:

Abstract

Objectives. Chlorin and bacteriochlorin photosensitizers are effective agents for cancer photodynamic therapy and fluorescence imaging. They are also excellent chelators forming stable metal complexes. Besides, 64Cu and 109Pd isotopes can serve as emitters for nuclear medicine. Chelation of these metals with cyclen conjugates with chlorin and bacteriochlorin photosensitizers can become a simple and universal strategy for the synthesis of diagnostic and therapeutic radiopharmaceuticals for nuclear medicine. This article reports on the synthesis of similar Cu and Pd complexes of cyclen conjugates with pheophorbide and bacteriopheophorbide and the study of their photophysical properties.

Methods. Metalation of cyclen conjugates was carried out with palladium and copper acetates. For bacteriochlorins, 6-O-palmitoyl-L-ascorbic acid was additionally used as a reducing agent. MALDI mass spectrometry, which was carried out on a time-of-flight mass spectrometer Bruker Ultraflex TPF/TOF and a Bruker Daltonics Autoflex II confirmed the structure of the compounds obtained Electronic absorption spectra were obtained on a Shimadzu 3101 spectrophotometer. Fluorescence and phosphorescence spectra were obtained on a FluoTime 300 PicoQuant spectrofluorometer.

Results. Photophysical studies of metal complexes showed that the introduction of palladium cations quenches fluorescence and increases the quantum yield of singlet oxygen generation to 0.98 for the chlorin conjugate. Besides, it decreases the quantum yield of fluorescence to 0.10 and increases the quantum yield of singlet oxygen generation to 0.72 for the bacteriochlorin conjugate. Introducing a copper cation to cyclen conjugates with pheophorbide and bacteriopheophorbide leads to photophysical characteristics quenching.

Conclusions. Due to the stability of the synthesized metal complexes in acidic media, as well as the short metalation time (5, 20, 10, and 15 minutes) it is reasonable to expect the successful development of effective imaging agents for positron emission tomography and radionuclide therapy. In addition, the residual fluorescence of bacteriochlorins makes it possible to use fluorescence diagnostics in combination with these methods.

About the Authors

A. S. Smirnov
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Alexander S. Smirnov - Postgraduate Student, N.A. Preobrazhensky Department of Chemistry and Technology of Biologically Active Compounds, Medical and Organic Chemistry.

86, Vernadskogo pr., Moscow 119571



M. A. Grin
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Mikhail A. Grin - Dr. of Sci. (Chemistry), Professor, Head of the N.A. Preobrazhensky Department of Chemistry and Technology of Biologically Active Compounds, Medical and Organic Chemistry, Scopus Author ID 6603356480

86, Vernadskogo pr., Moscow 119571



A. F. Mironov
MIREA - Russian Technological University (M.V. Lomonosov Institute of Fine Chemical Technologies)
Russian Federation

Andrey F. Mironov - Dr. of Sci. (Chemistry), Professor, N.A. Preobrazhensky Department of Chemistry and Technology of Biologically Active Compounds, Medical and Organic Chemistry, Scopus Author ID 55968884300.

86, Vernadskogo pr., Moscow 119571



References

1. Desbois N., Michelin C., Chang Y, Stupar V., Bonnaud M., Pacquelet S., Gros C.P. Synthetic strategy for preparation of a folate corrole DOTA heterobimetallic Cu-Gd complex as a potential bimodal contrast agent in medical imaging. Tetrahedron Lett. 2015;56(51):7128-7131. http://dx.doi.org/10.1016/j.tetlet.2015.11.032

2. Vologdin N., Rolla G.A., Botta M., Tei L. Orthogonal synthesis of a heterodimeric ligand for the development of the Gdlll-Galll ditopic complex as a potential pH-sensitive MRI/ PET probe. Org. Biomol. Chem. 2013;11:1683-1690. http://dx.doi.org/10.1039/C2OB27200H

3. Ranyuk E., Lebel R., Berube-Lauziere Y, Klarskov K., Lecomte R., van Lier J.E., Guerin B. <sup>68</sup>Ga/DOTA- and <sup>64</sup>Cu/NOTA-phthalocyanine conjugates as fluorescent/PET bimodal imaging probes. Bioconjug. Chem. 2013;24:1624-1633. https://doi.org/10.1021/bc400257u

4. Park J.-A., Kim J.Y, Lee Y.J., Lee W., Lim S.M., Kim T.-J., Yoo J., Chang Y., Kim K.M. Gadolinium complex of 125I/127I-RGD-DOTA conjugate as a tumor-targeting SPECT/MR bimodal imaging probe. ACS Med. Chem. Lett. 2013;4:216-219. https://doi.org/10.1021/ml3003499

5. Waghorn P.A., Labrl J., Radiolabelled porphyrins in nuclear medicine. Compd. Radiopharm. 2014;57:304-309. https://doi.org/10.1002/jlcr.3166

6. Ke T., Feng Y, Guo J., Parker D.L., Lu Z.R. Biodegradable cystamine spacer facilitates the clearance of Gd(III) chelates in poly(glutamic acid) Gd-DO3A conjugates for contrast-enhanced MR imaging. Magn. Reson. Imaging. 2006;24:931-940. https://doi.org/10.1016/j.mri.2006.03.009

7. Smith S.V. Molecular imaging with copper-64. J. Inorg. Biochem. 2004;98:1874-1901. http://dx.doi.org/10.1016/j.jinorgbio.2004.06.009

8. Shi J., Tracy W.B. Liu, Chen J., Green D., Jaffray D., Wilson B.C., Wang F., Zheng G. Transforming a targeted porphyrin theranostic agent into a PET imaging probe for cancer. Theranostics. 2011;1:363-370. http://dx.doi.org/10.7150/thno/v01p0363

9. De Leon-Rodriguez L.M., Kovacs Z. The synthesis and chelation chemistry of DOTA-peptide conjugates. Bioconjug. Chem. 2008;19:391-402. http://dx.doi.org/10.1021/bc700328s

10. Chong H.S., Mhaske S., Lin M., Bhuniya S., Song H.A., Brechbiel M.W., Sun X. Novel synthetic ligands for targeted PET imaging and radiotherapy of copper. Bioinorg. Med. Chem. Lett. 2007;17:6107-6110. http://dx.doi.org/10.1016/j.bmcl.2007.09.052

11. Sprague J.E., Peng Y., Fiamengo A.L, Woodin K.S., Southwick E.A., Weisman G.R., Synthesis, characterization and in vivo studies of Cu(II)-64-labeled cross-bridged tetraazamacrocycle-amide complexes as models of peptide conjugate imaging agents. J. Med. Chem. 2007;50:2527-2535. http://dx.doi.org/10.1021/jm070204r

12. Dilworth J.R., Pascu S.I., Waghorn P.A., Vullo D., Bayly S.R., Christlieb M., Sun X., Supuranc C.T. Synthesis of sulfonamide conjugates of Cu(II), Ga(III), In(III), Re(V) and Zn(II) complexes: Carbonic anhydrase inhibition studies and cellular imaging investigations. Dalton Trans. 2015;44:4859-4873. http://dx.doi.org/10.1039/C4DT03206C

13. Mironov A.F. Lanthanide porphyrin complexes. Russ. Chem. Rev. 2013;82:333-351. https://doi.org/10.1070/RC2013v082n04ABEH004300

14. Josefsen L.B., Boyl R.W. Unique diagnostic and therapeutic roles of porphyrins and phthalocyanines in photodynamic therapy, imaging and theranostics. Theranostics. 2012;2:916-966. http://dx.doi.org/10.7150/thno.4571

15. Das T., Chakraborty S., Sarma H.D., Banerjee S., Venakatesh M. A novel 177Lu-labeled porphyrin for possible use in targeted tumor therapy. Nucl. Med. Biol. 2010;37:655-663. http://dx.doi.org/10.1016/j.nucmedbio.2010.02.007

16. Kilian K., Pyrzynska K. The fast method of Cu-porphyrin complex synthesis for potential use in positron emission tomography imaging. Talanta. 2003;60:669-678. http://dx.doi.org/10.1016/j.saa.2016.01.045

17. Grin M.A., Brusov S.S., Shchepelina E.Y, Ponomarev P.V., Khrenova M.K., Smirnov A.S., Lebedeva V.S., Mironov A.F. Calixresorcinarene-capped silver nanoparticles as new supramolecular hybrid nanocontainers. Mendeleev Commun. 2017;27:338-340. http://dx.doi.org/10.1016/j.mencom.2017.07.004

18. Chen Q., Huang Z., Luck D., Beckers J., Brun P.H., Wilson B.C., Scherz A., Salomon Y., Hetzel F.W. Preclinical studies in normal canine prostate of a novel palladium-bacteriopheophorbide (WST09) photosensitizer for photodynamic therapy of prostate cancer. Photochem Photobiol. 2002;76:438-445. http://dx.doi.org/10.1562/0031-8655(2002)076<0438:PSINCP>2.0.CO;2


Supplementary files

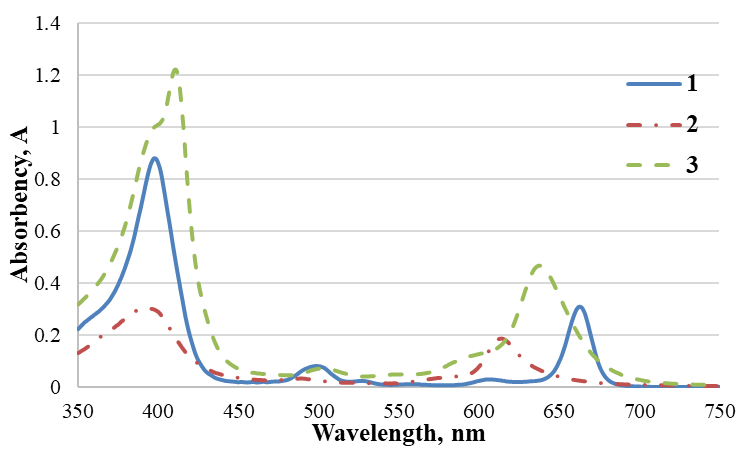

1. Fig. 1. Absorption spectra for methylpheophorbide a conjugate with cyclen (1), Pd complex of chlorin-cyclen conjugate (2), and Cu complex of chlorin-cyclen conjugate (3)
Subject
Type Исследовательские инструменты
View (32KB)
Indexing metadata

For citation:


Smirnov A.S., Grin M.A., Mironov A.F. Synthesis and properties of Cu- and Pd-complexes of cyclen conjugates with pheophorbide and bacteriopheophorbide. Fine Chemical Technologies. 2019;14(6):95-103. https://doi.org/10.32362/2410-6593-2019-14-6-95-103
